Set for LAN + PoE transmission over 2 cables 100Mbps up to 300m
ETH-2wire-SET - Set for LAN + PoE transmission over 2 cables 100Mbps up to 300m
€756.30
Tax included
Set for LAN + PoE transmission over 2 cables 100Mbps up to 300m
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

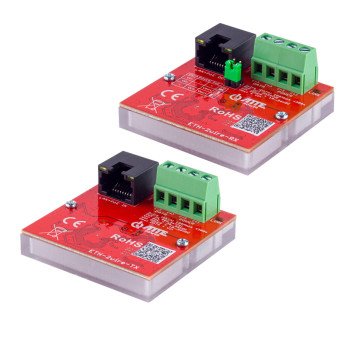

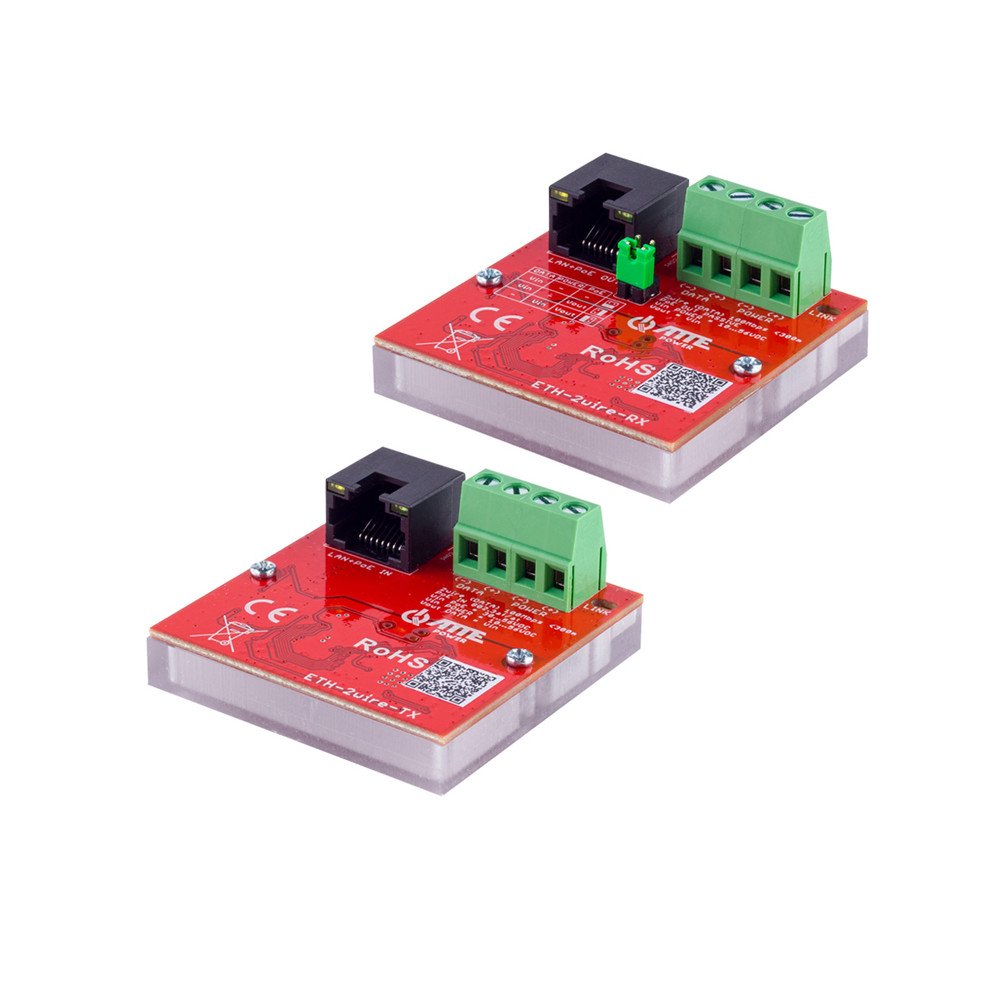

The ETH-2WIRE-SET set consists of transmitter and receiver modules, used for Ethernet data transmission and PoE power supply using 2 wires, e.g. one pair of UTP twisted pair
The devices enable the installation of cameras or other IP PoE devices in places where replacing the existing cabling is impossible or unprofitable.
The ETH-2wire-TX module is powered by any PoE switch (RJ45 port) and then via 2 wires, enabling bidirectional network communication and powering the ETH-2wire-RX module
A camera or other PoE receiver can be connected to the RJ45 port of the ETH-2wire-RX module at the end of the line
The devices can optionally be powered from POWER screw connectors
Depending on the selected operating mode of the converters, powering them and the devices connected to them can be done in several ways
Powered by PoE or from an external power supply, both from the ETH-2wire-TX transmitter and the ETH-2wire-RX receiver (configuration using jumpers)
| Connectors: |
|
| LAN ports: | 1 Szt. RJ45 100 MB/S |
| Terminal strip: | ETH-2WIRE-TX :
|
| Transmission speed: | 100 Mbps |
| Transmission range: |
|
| Signal diodes: |
|
| Security: |
|
| Selected features: |
|
| Power supply: | ETH-2WIRE-TX :
|
| Power consumption: | 1.35 W (total) |
| Case: | Plastic (PC) |
| Tightness class: | IP20 |
| Working temperature: | -25 °C ... 65 °C |
| Libra: | 0.03 kg (single piece) |
| Dimensions: | 51 x 51 x 24 mm (single piece) |
| Manufacturer / Brand: | ATTE |
| Guarantee: | 3 lata |
