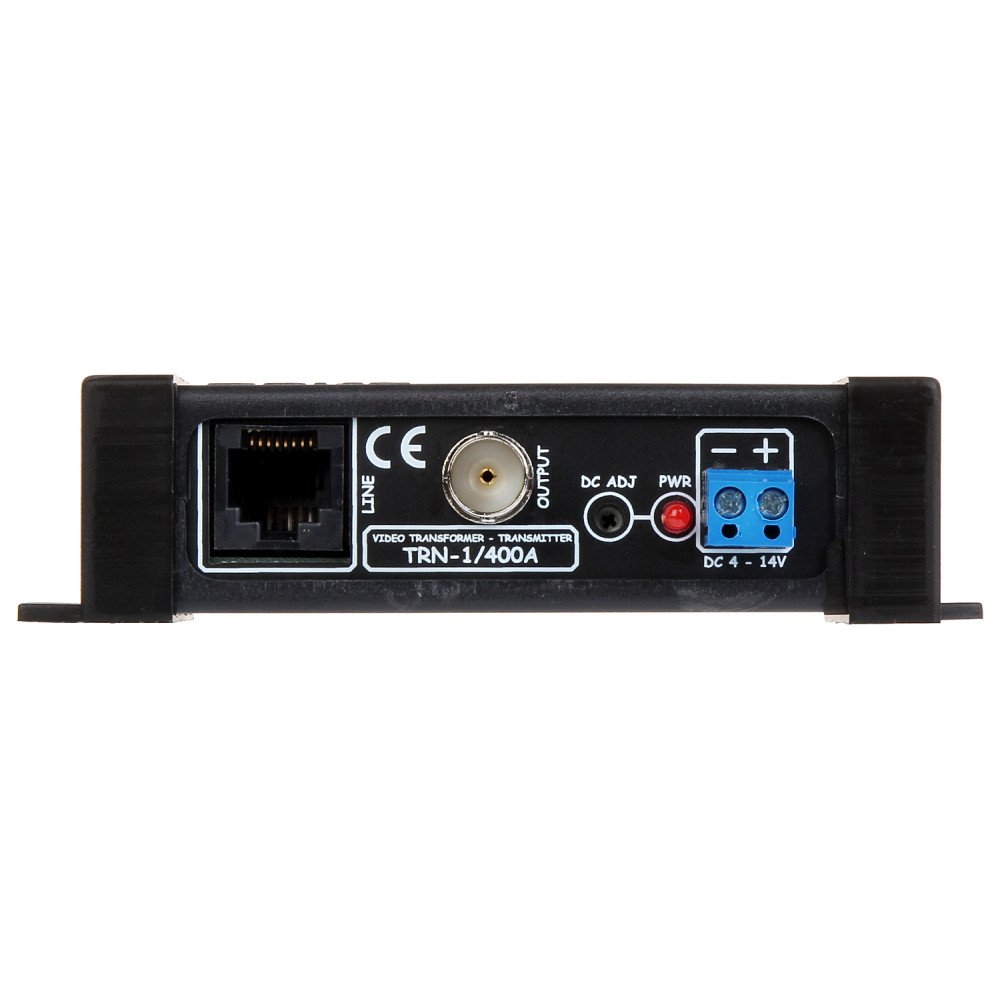

TRN-1/400A VIDEO TRANSFORMER
€136.63
Tax included
TRN-1/400A is designed to transmit video signal and power via twisted pair cable (UTP, FTP)
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
TRN-1/400A is designed to transmit video signal and power via twisted pair cable (UTP, FTP)

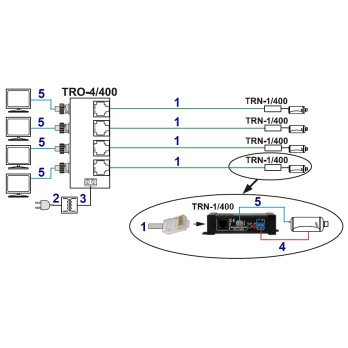

The signal from the camera fed to the input of the TRN-1/400A transmitter is sent to the TRO-4G/400 or TRO-1/400 receiver via a twisted-pair cable.
In the transmitter and receiver, the impedance of the 75Ω coaxial cable is matched to the impedance of the symmetrical cable, which ensures video transmission up to 400m
The TRO-1/400 receiver supplies unstabilized direct voltage (up to 45V DC) to the twisted-pair cable, which is stabilized to 4V ... 14V DC in the TRN-1/400A transmitter, allowing it to power cameras with a thermostat.
The device allows you to change the output voltage in the range of 4V ... 14V using a potentiometer
ATTENTION! The TRN-1/400A device is not autonomous and works only with TRO-1/400, TRO-4G/400 devices
| Standard: |
|
| Input voltage: | max. 45 V DC |
| Device type: | Active / Transmitter |
| Number of channels: | 1 Video 1 DC |
| I/O voltage 75Ω (CVBS): | 1 Vpp |
| Output voltage regulation: | 4 V ... 14 V DC |
| Video range: |
|
| Output voltage: | 12 V DC / max. 900 mA (factory setting) |
| Damping: |
|
| Symmetrical junction impedance: | 100 OHMS |
| Connector type: | BNC Video Jack DC cable clamps |
| Symmetrical connector type: | RJ-45 (8-pin, 4 pairs) Socket |
| Power Range: |
|
| Libra: | 0.09 kg |
| Dimensions: | 118 x 61 x 30 mm |
| Guarantee: | 3 lata |
| Manufacturer / Brand: | DELTA |
