VIDEO SPLITTER RV-8/16PR
€344.93
Tax included
The RV-8/16PR video splitter allows you to separate video signals
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The RV-8/16PR video splitter allows you to separate video signals
The device is designed for continuous operation in closed rooms
The device is adapted to color, black and white, PAL cameras
Appropriate distances between the sockets allow you to easily tighten any BNC plug with your fingers

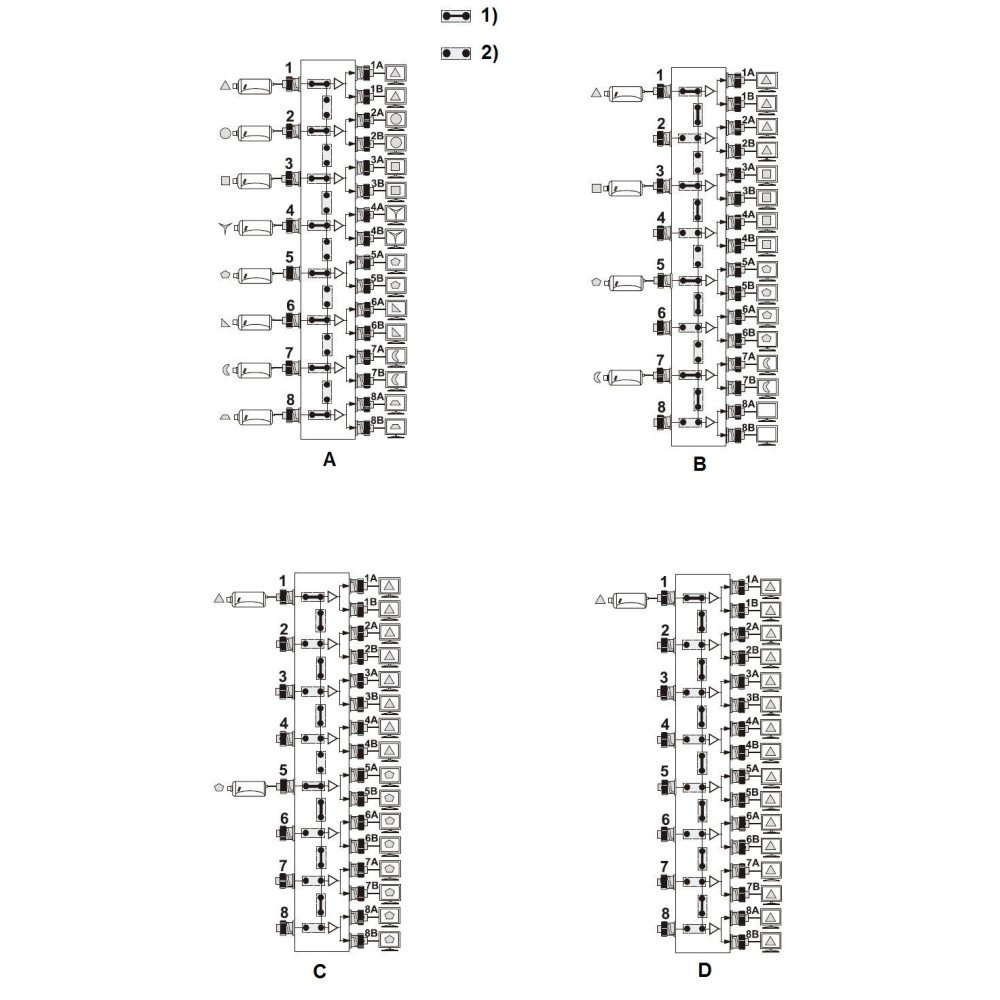

RV-8/16PR is set by default as eight independent 1/2 video splitters (fig. 1)

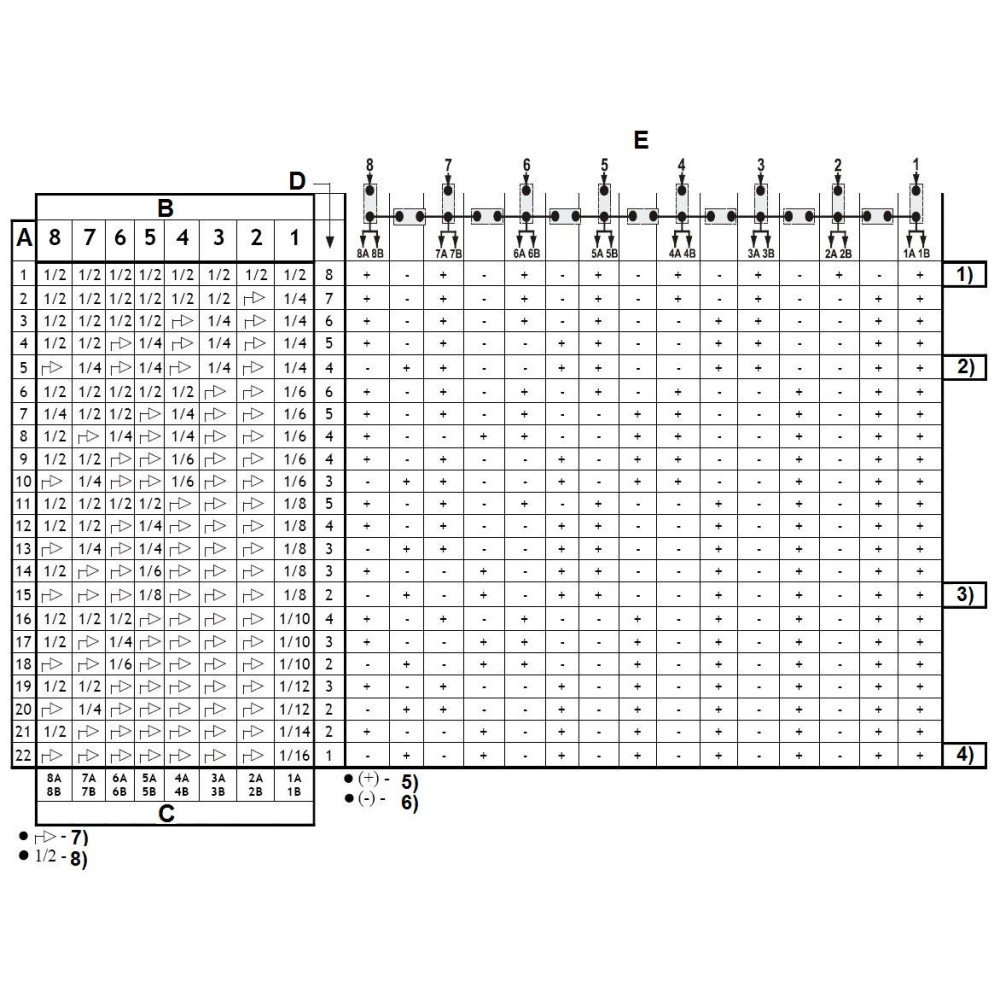

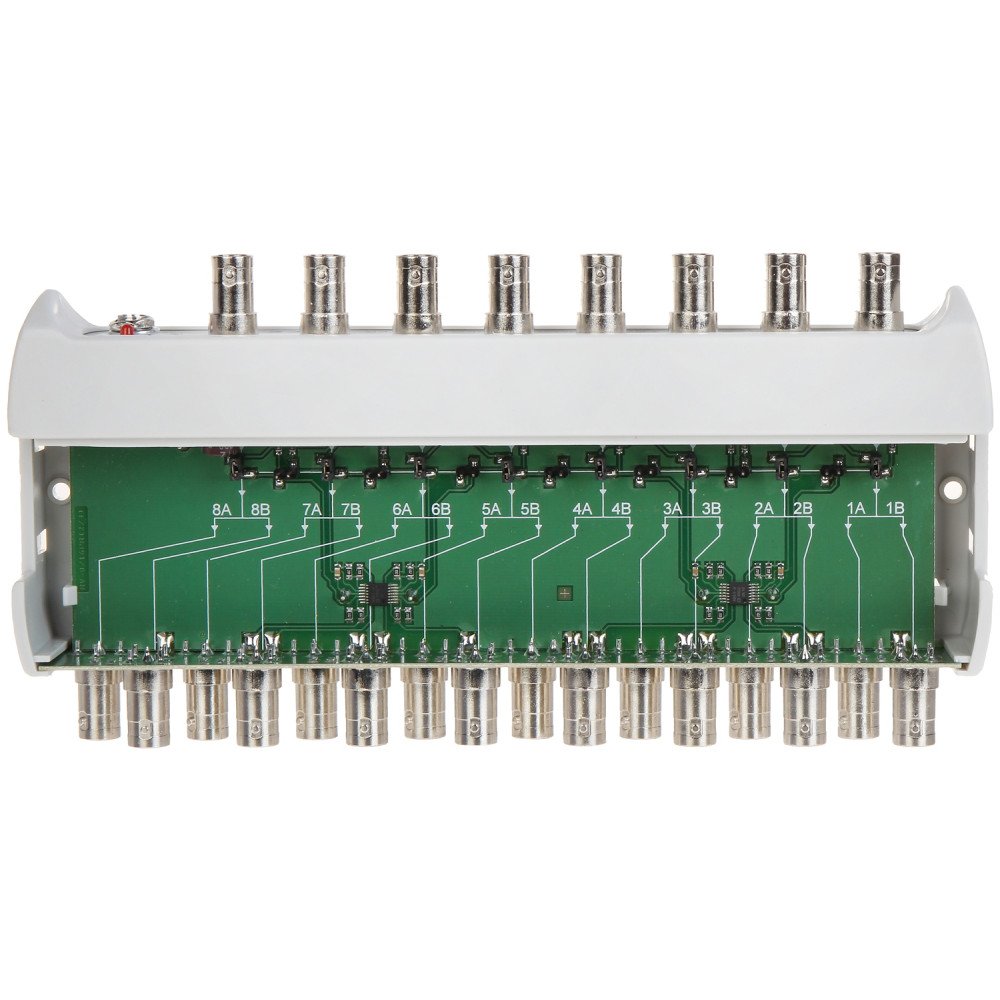

It can be reprogrammed very easily using the jumpers on the front panel. Number of combinations: 22. Examples of four of them are visible in the drawings. When programming, use the table. Vertical jumpers activate individual inputs, while horizontal jumpers connect outputs
| Standard: | CVBS - PAL, NTSC |
| Number of entries: | 8 pcs. BNC |
| Number of outputs: | 16 pcs. BNC |
| Working bandwidth: | 0 ... 40 MHz (-3dB) |
| Input impedance: | 75 OH |
| Output impedance: | 75 OH |
| Output configuration: | NO |
| Power supply: | 12 V DC (power supply not included) |
| Power consumption: | 100 mA |
| Reinforcement: | 0 dB |
| Libra: | 0.350 kg |
| Dimensions: | 222 x 36 x 110 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 lata |
