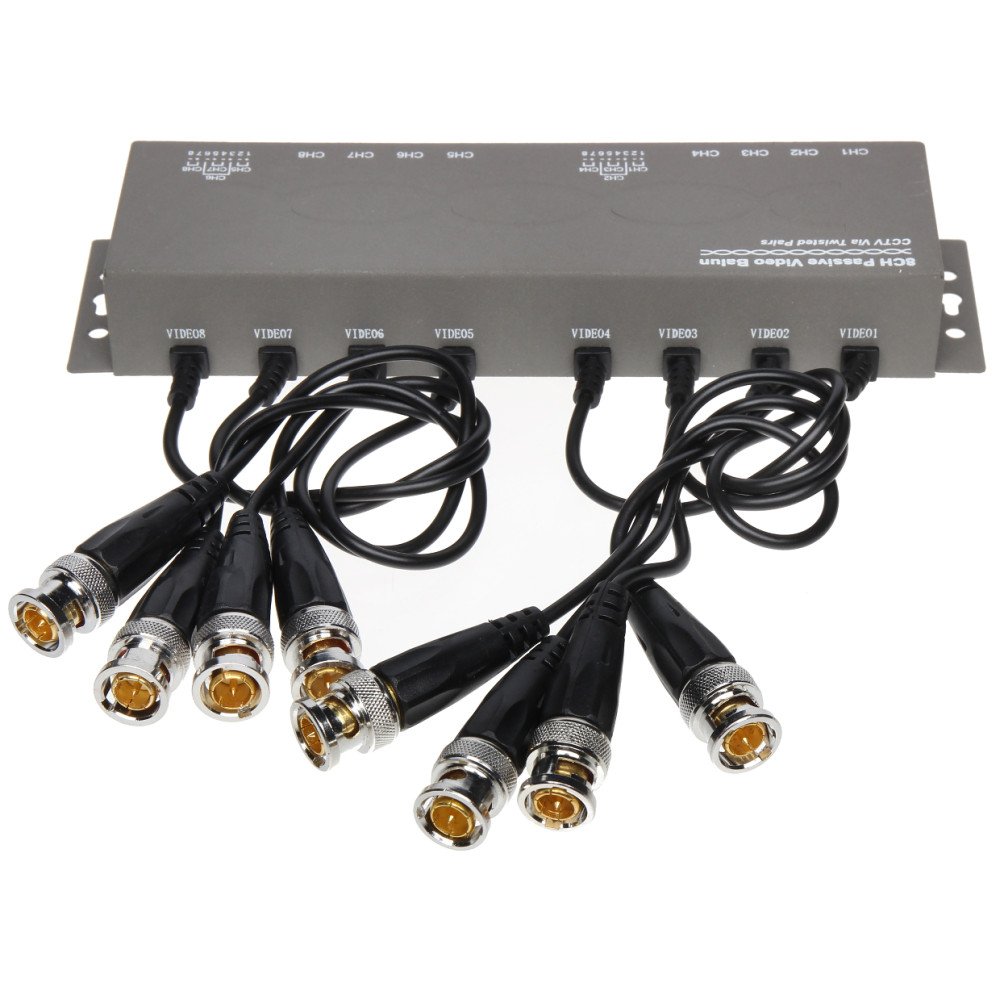

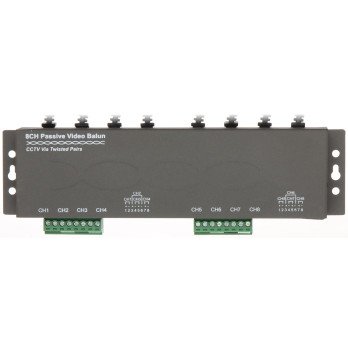

TR-8M VIDEO TRANSFORMER
€137.27
Tax included
TR-8M is designed to transmit a video signal via a twisted-pair cable
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
TR-8M is designed to transmit a video signal via a twisted-pair cable

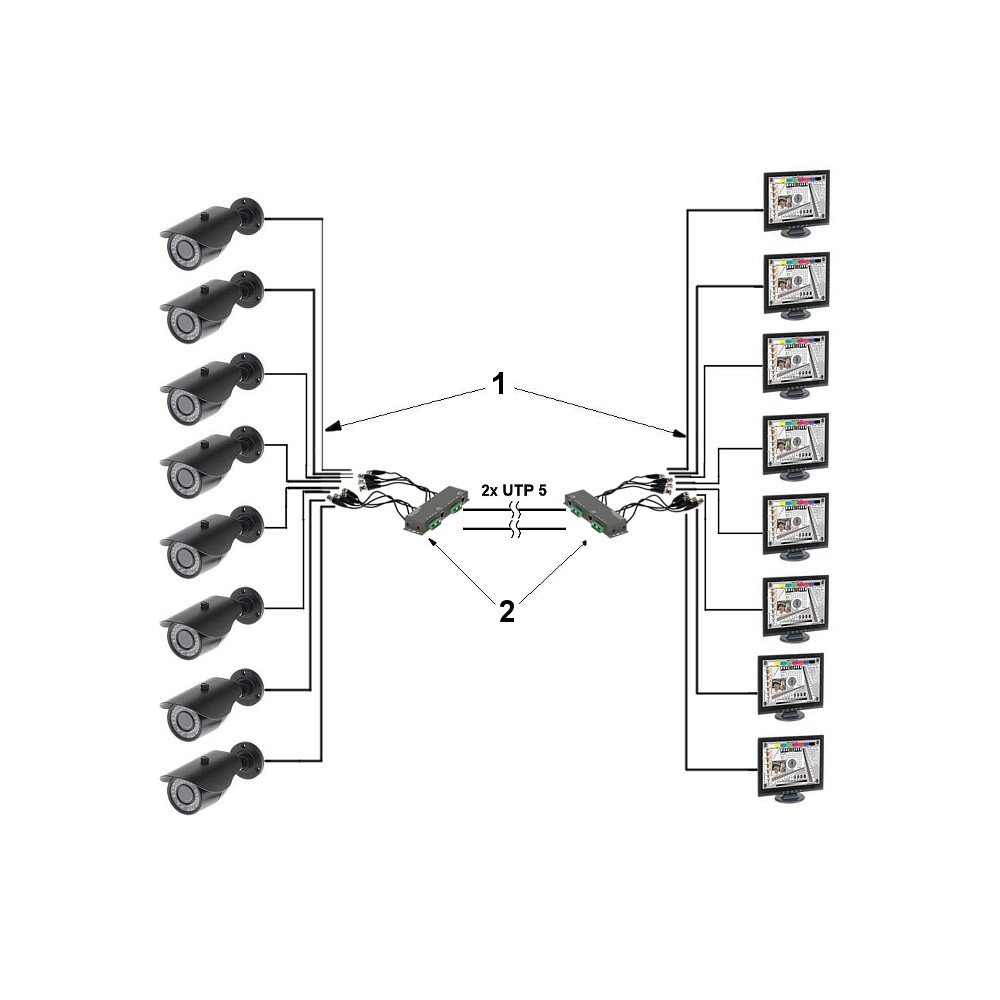

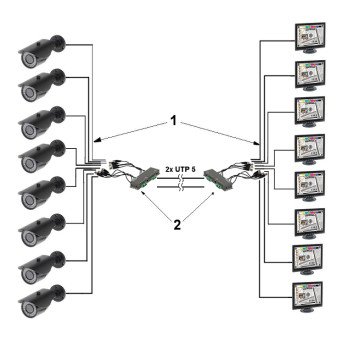

The device adjusts the impedance of the 75Ω coaxial cable to the impedance of the symmetrical cable, ensuring video signal transmission up to 400m (category 5 twisted pair) and eliminates asymmetric interference

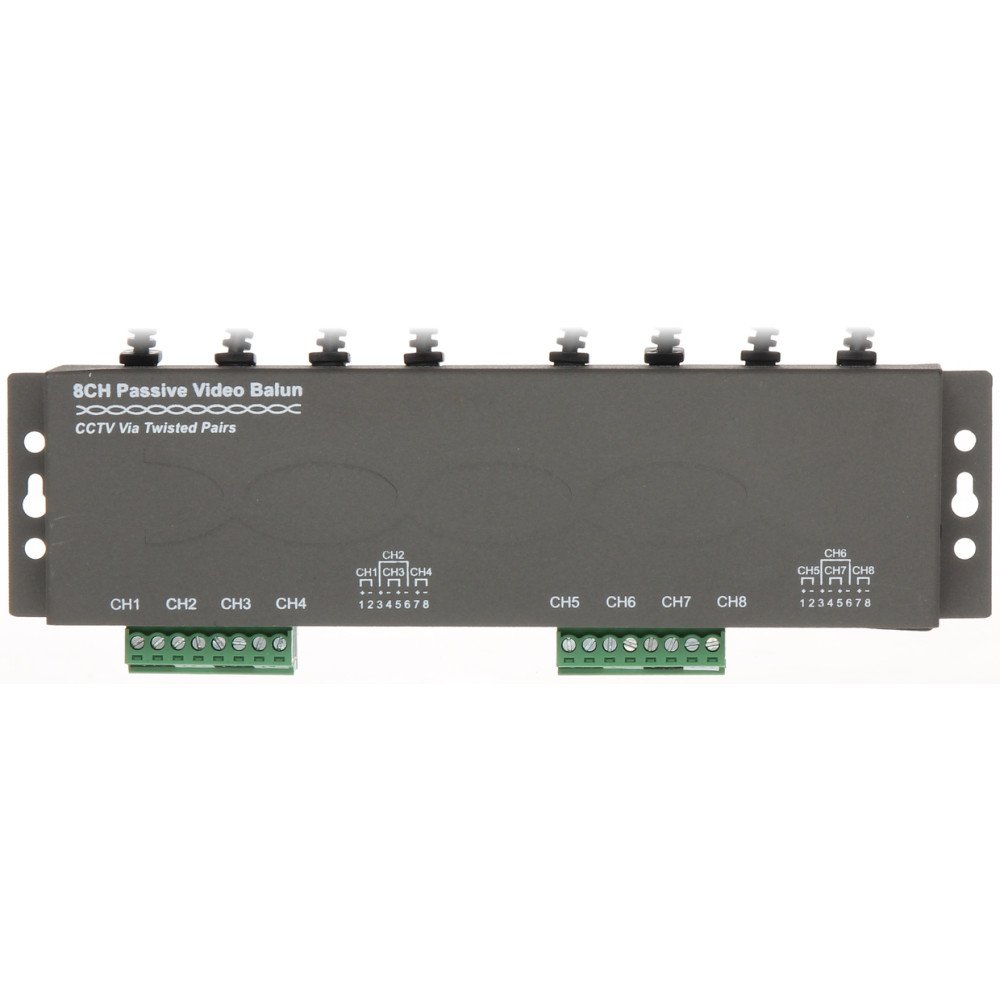

Pay attention to the correct connection of the (+) and (-) terminals
The reverse connection will cause image distortion

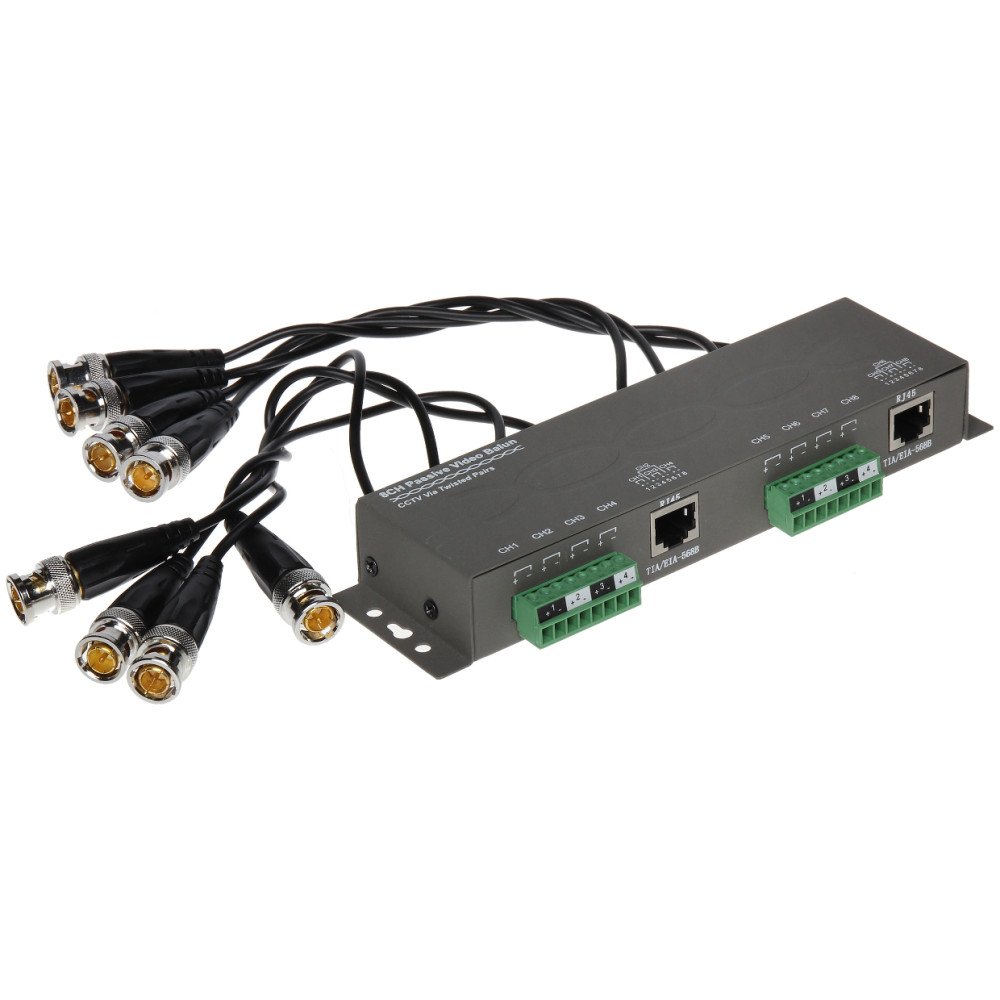

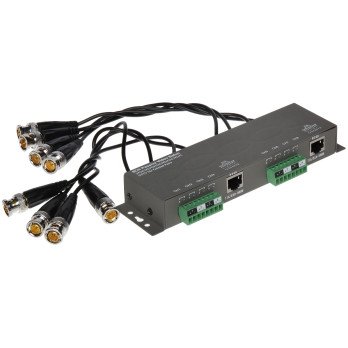

The whole thing is enclosed in a metal housing
| Standard: |
|
| Device type: | Passive |
| Number of channels: | 8 pcs Video |
| Video range: |
|
| Damping: |
|
| I/O voltage 75Ω (CVBS): | 1 Vpp |
| Separation between inputs: | -50 dB |
| CMRR (dB @ 5MHz): | 60 dB |
| Coaxial impedance: | 75 OH |
| Symmetrical junction impedance: | 100 OHMS |

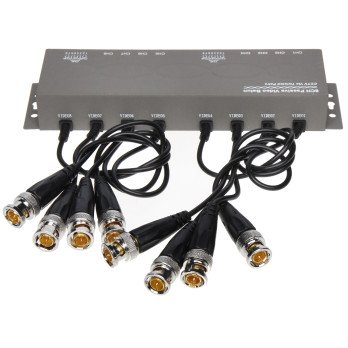

| Coaxial Connector Type: | 8 x BNC Plug on the cable |

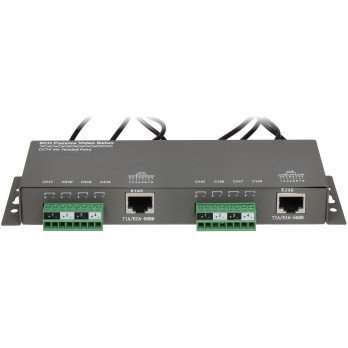

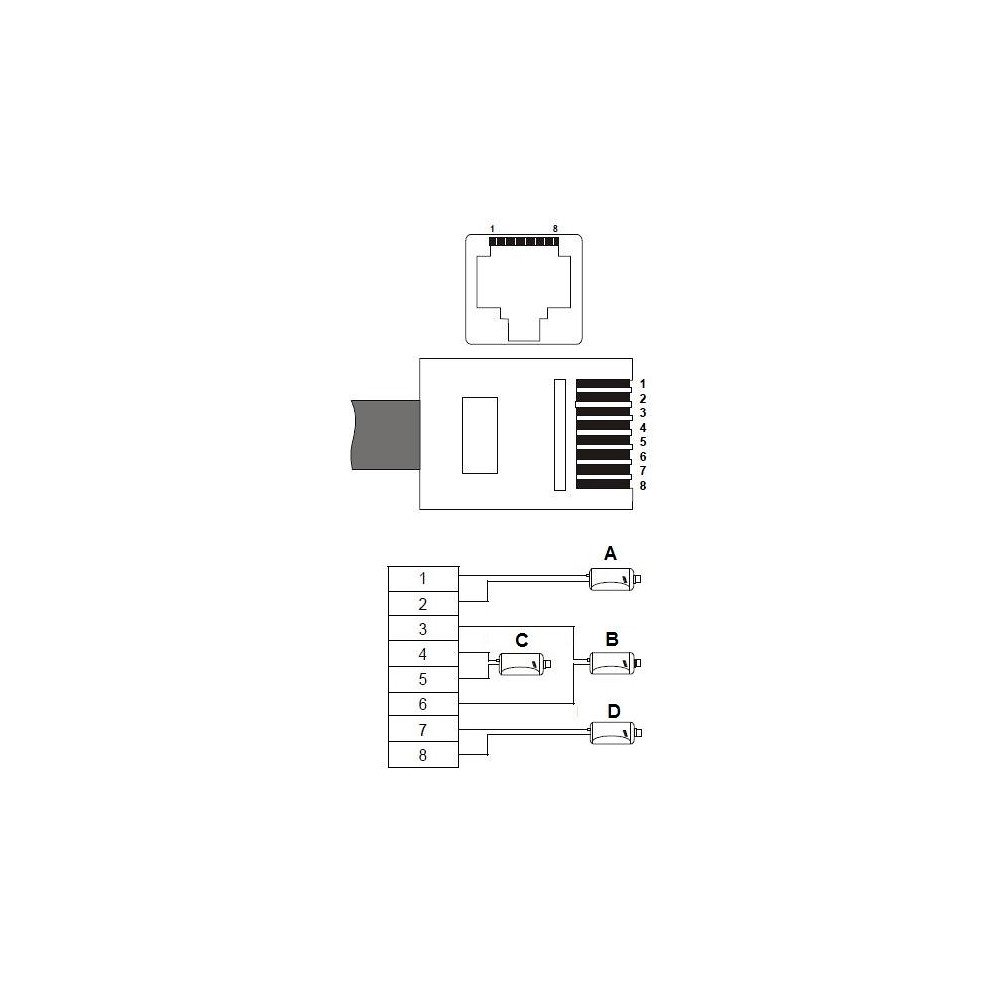

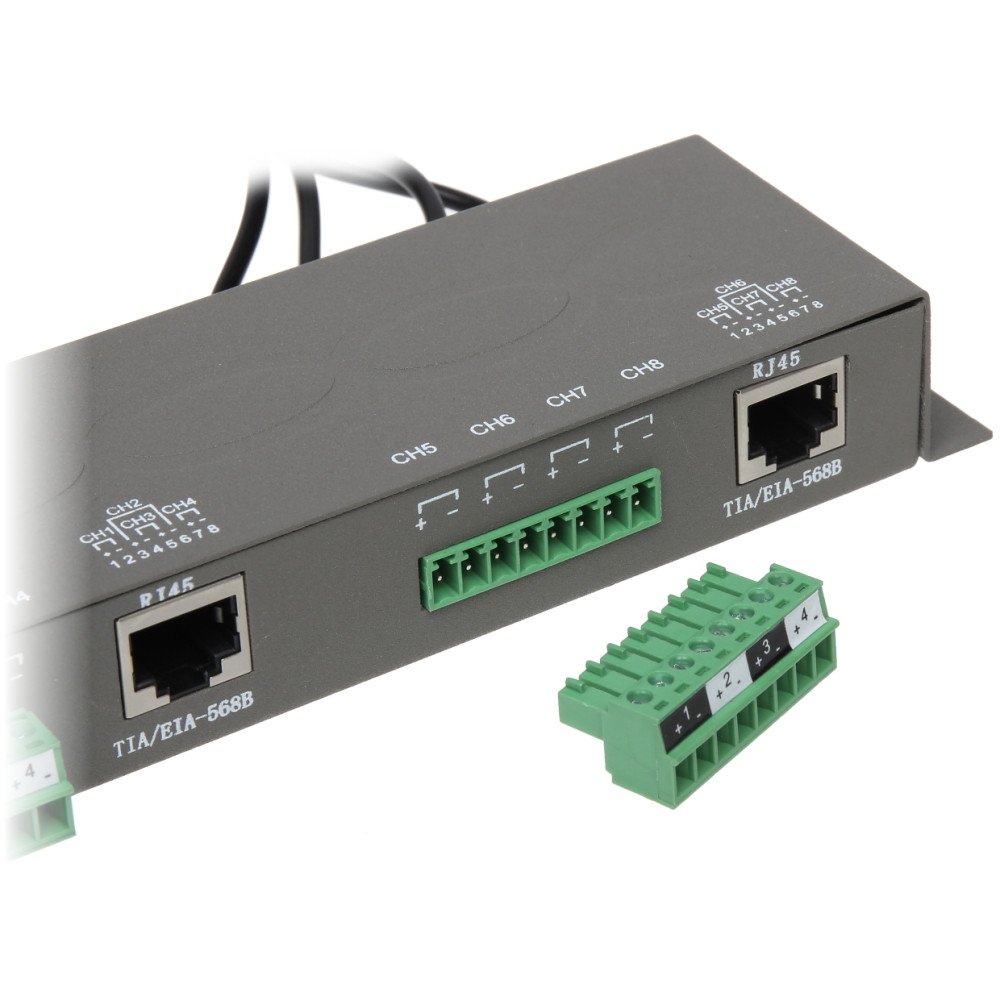

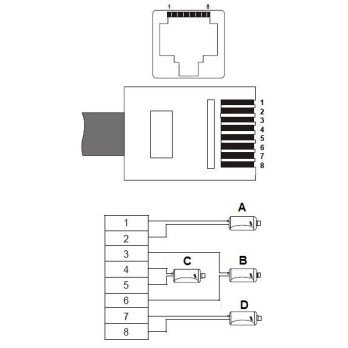

| Symmetrical connector type: | Cable terminals / 2 x RJ-45 (8-pin, 4 pairs) Socket |
| Working temperature: | -10 °C ... 70 °C |
| Permissible relative ambient humidity: | 95 % |
| Libra: | 0.32 kg |
| Dimensions: | 185 x 58 x 25 mm |
| Guarantee: | 2 lata |
