ETH10-2WIRE-SET ATTE Set for LAN + PoE transmission over 2 cables 10Mbps up to 1000m

ETH10-2WIRE-SET ATTE Set for LAN + PoE transmission over 2 cables 10Mbps up to 1000m

€561.21
Tax included

ETH10-2wire-SET is a set of active converters for data transmission from the Ethernet network and PoE power supply using 2 wires, e.g. one pair of UTP twisted pair

Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

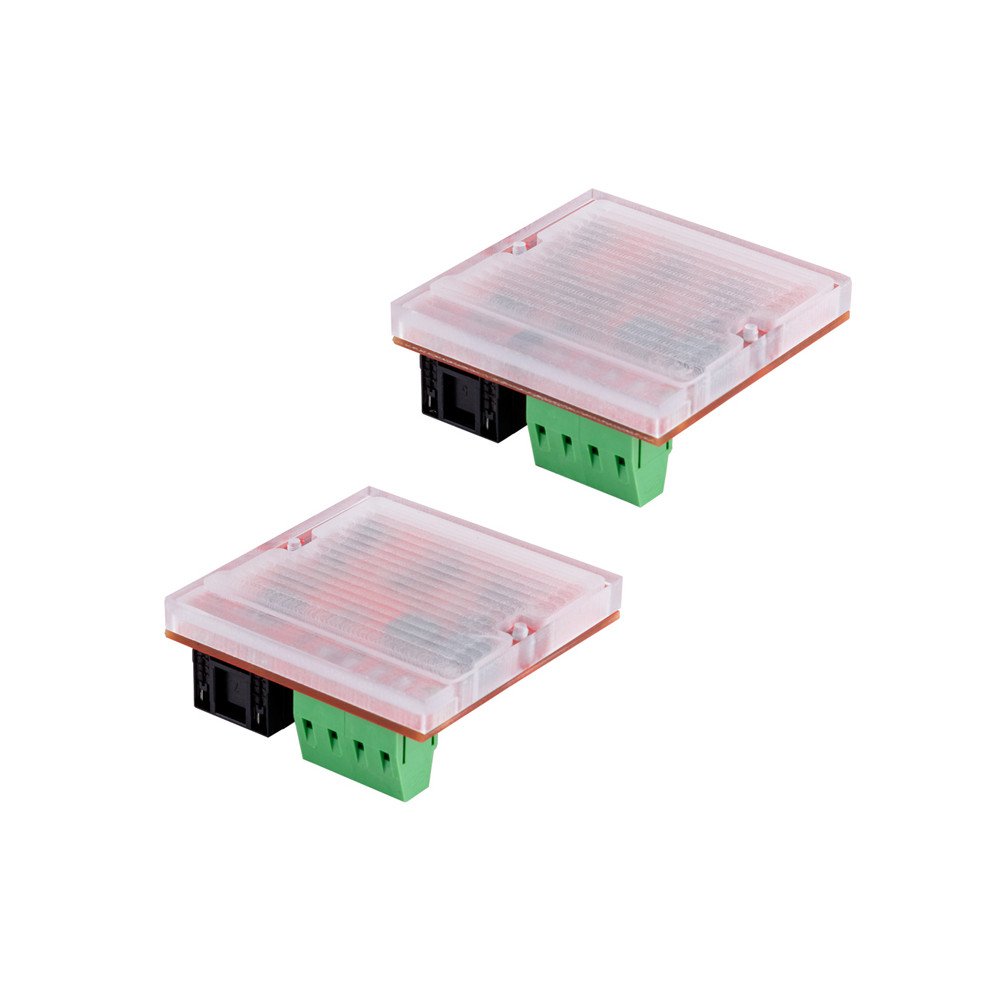

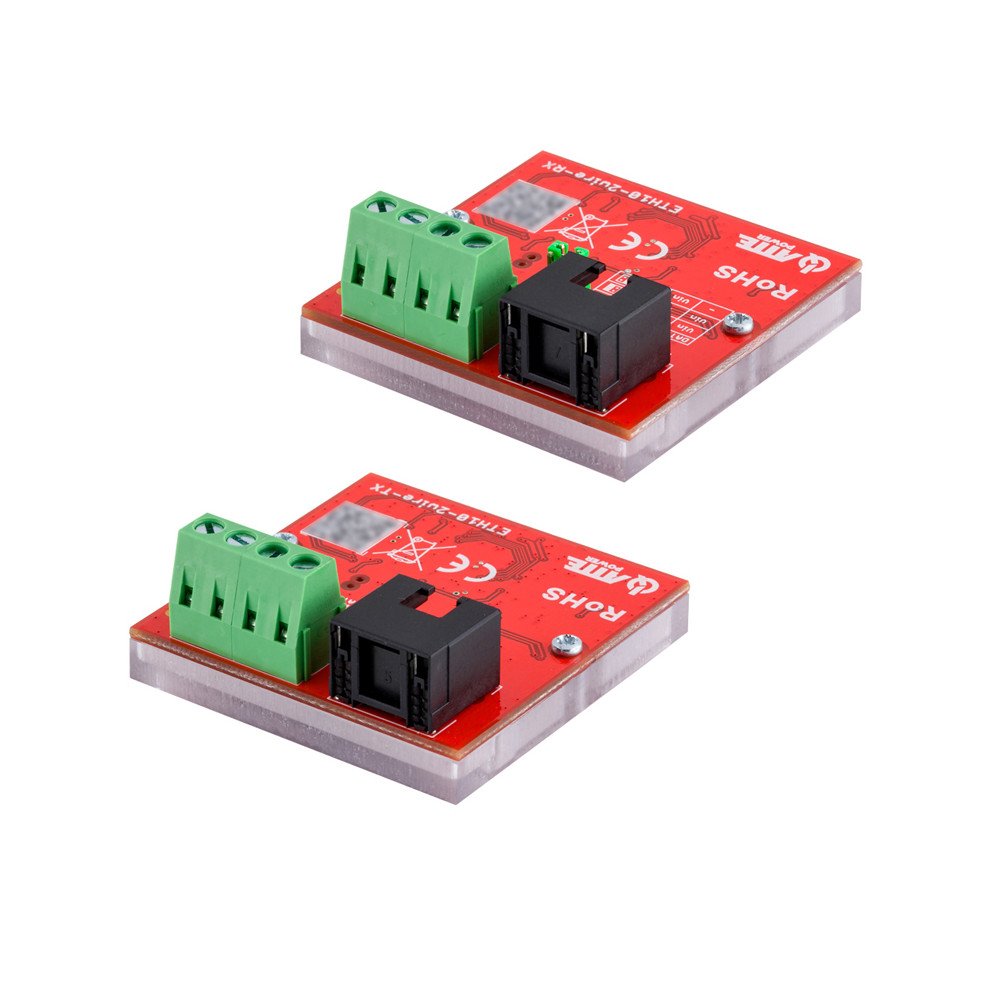

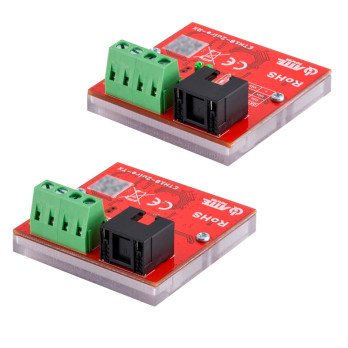

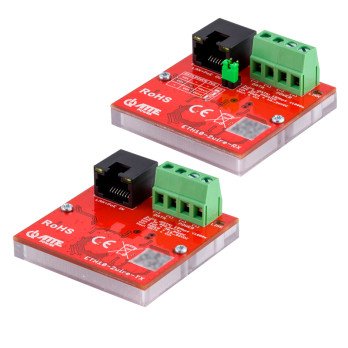

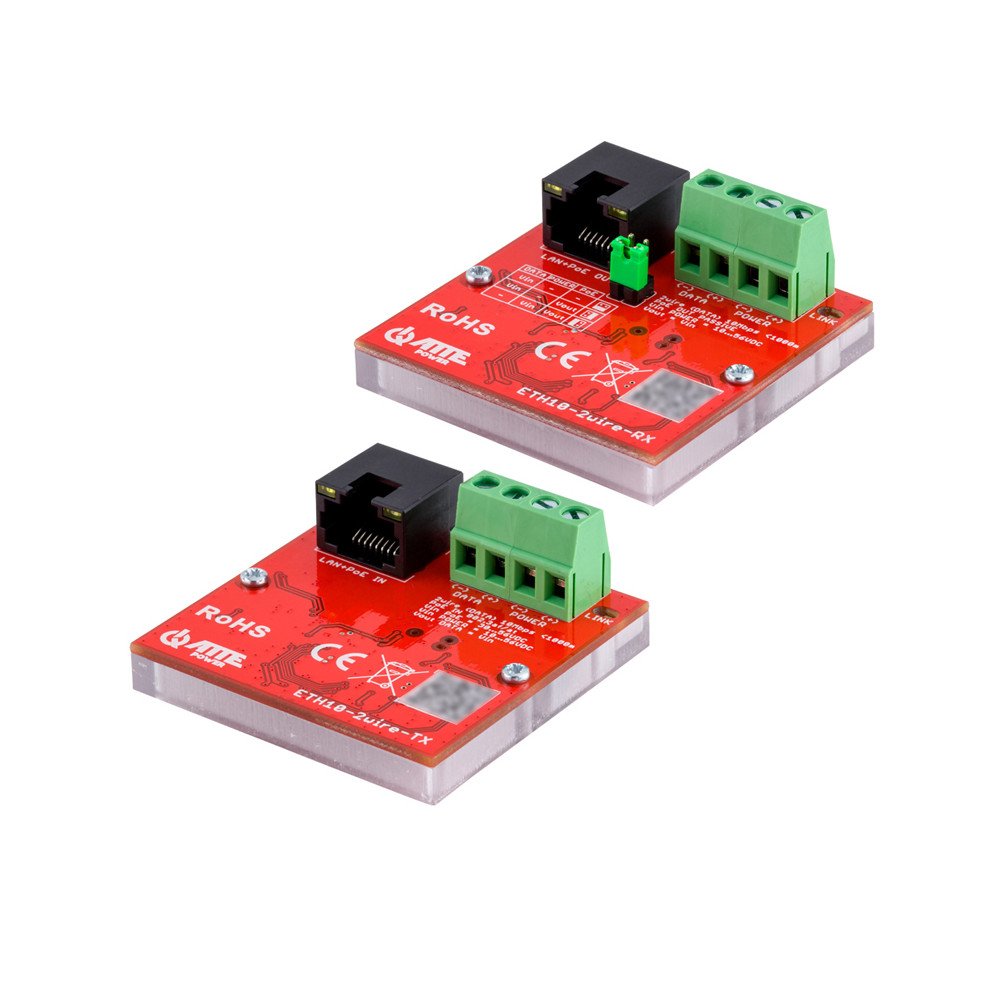

The ETH10-2WIRE-SET set consists of transmitter and receiver modules, used for Ethernet data transmission and PoE power supply using 2 wires, e.g. one pair of UTP twisted pair

The devices enable the installation of cameras or other IP PoE devices in places where replacing the existing cabling is impossible or unprofitable.

The ETH10-2wire-TX module is powered by any PoE switch (RJ45 port) and then via 2 wires, enabling bidirectional network communication and powering the ETH10-2wire-RX module

A camera or other PoE receiver can be connected to the RJ45 port of the ETH10-2wire-RX module at the end of the line

The devices can optionally be powered from POWER screw connectors

Depending on the selected operating mode of the converters, powering them and the devices connected to them can be done in several ways

Powered by PoE or from an external power supply, both from the ETH10-2wire-TX transmitter and the ETH10-2wire-RX receiver (configuration using jumpers)

Connectors:
  • 1pcs RJ45
  • 1 pc. terminal block (screw terminals) - 0.32 ... 3.3 mm² (22 ... 12 AWG)
LAN ports: 1 Szt. RJ45 10 MB/S

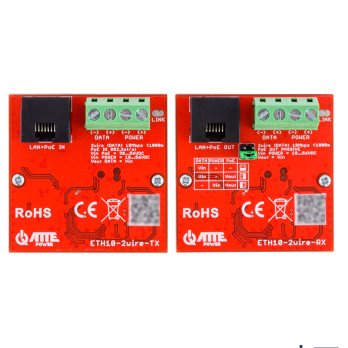

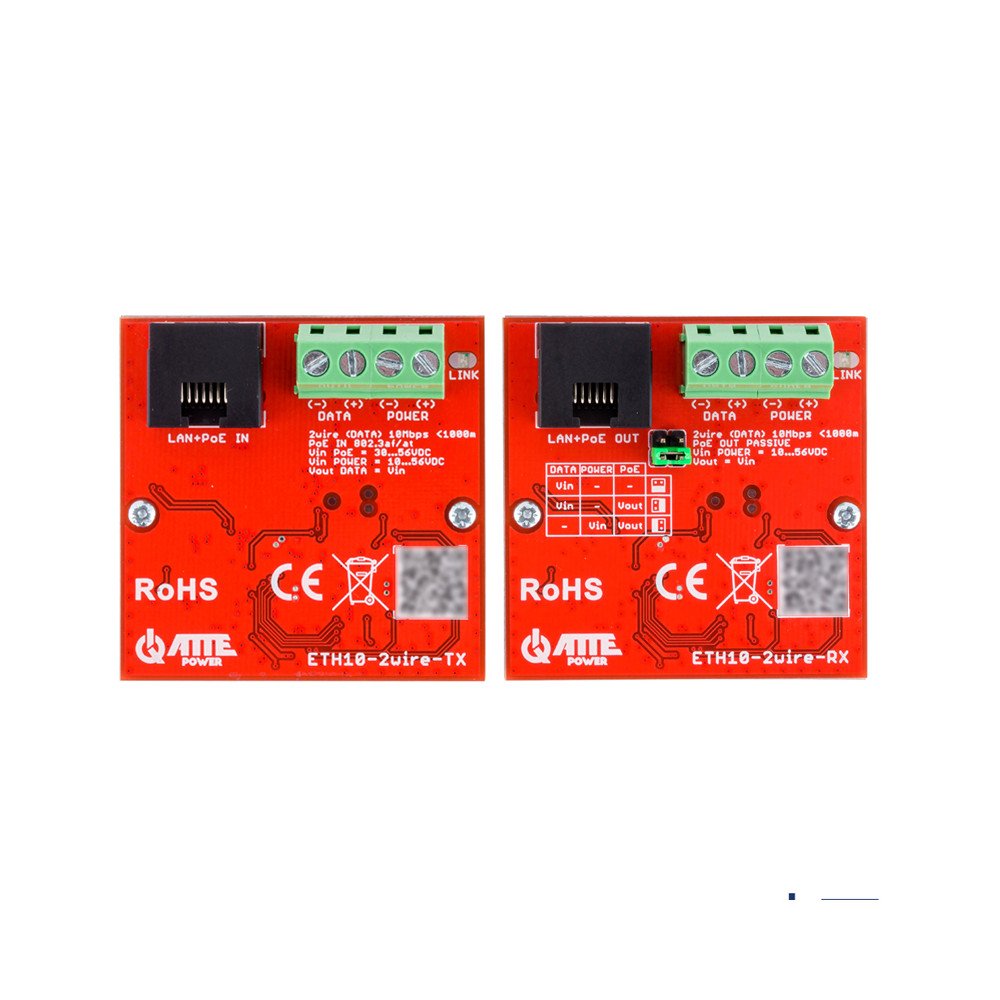

Connector description: ETH10-2WIRE-TX :
  • IN - INCIVEIN POSIVE PASSILE ≤ 30 (802.3T) ≤ 30.
    ("+/-": pins 1, 2; "+/-": pins 3, 6) or ("+/-": pins 4, 5; "+/-": pins 7, 8)
  • Power
  • DATA - 2-wire
ETH10-2WIRE-RX :
  • PoE OUT - Passive PoE
    ("+": pins 4, 5; "-": pins 7, 8)
  • Power
  • DATA - 2-wire
Transmission speed: 10 Mbps
Transmission range:
  • 1000 m @ 2-wire
  • 100 m @ UTP : Switch PoE - ETH10-2WIRE-TX
  • 100 m @ UTP : ETH10-2WIRE-RX - Kamera IP
Signal diodes:
  • Power
  • LAN
  • 2-wire
Security:
  • Surge protection - LAN, DATA
  • Protection against reverse polarity connection - Power
  • Overload 0.6 A - PoE IN ETH10-2WIRE-TX
Selected features:
  • Plug Play
  • Support for IP cameras and network devices
  • Full transparency for the network
  • Operating modes - Set with jumpers
Power supply: ETH10-2WIRE-TX :
  • 30 ... 56 V DC - PoE
  • 10 ... 56 V DC - Power
ETH10-2WIRE-RX :
  • 10 ... 56 V - Power
  • The PoE output voltage is equal to the input voltage
Power consumption: 1.35 W (total)
Case: Plastic (PC)
Tightness class: IP20
Working temperature: -25 °C ... 65 °C
Libra: 0.03 kg (single piece)
Dimensions: 51 x 51 x 24 mm (single piece)
Manufacturer / Brand: ATTE
Guarantee: 3 lata
