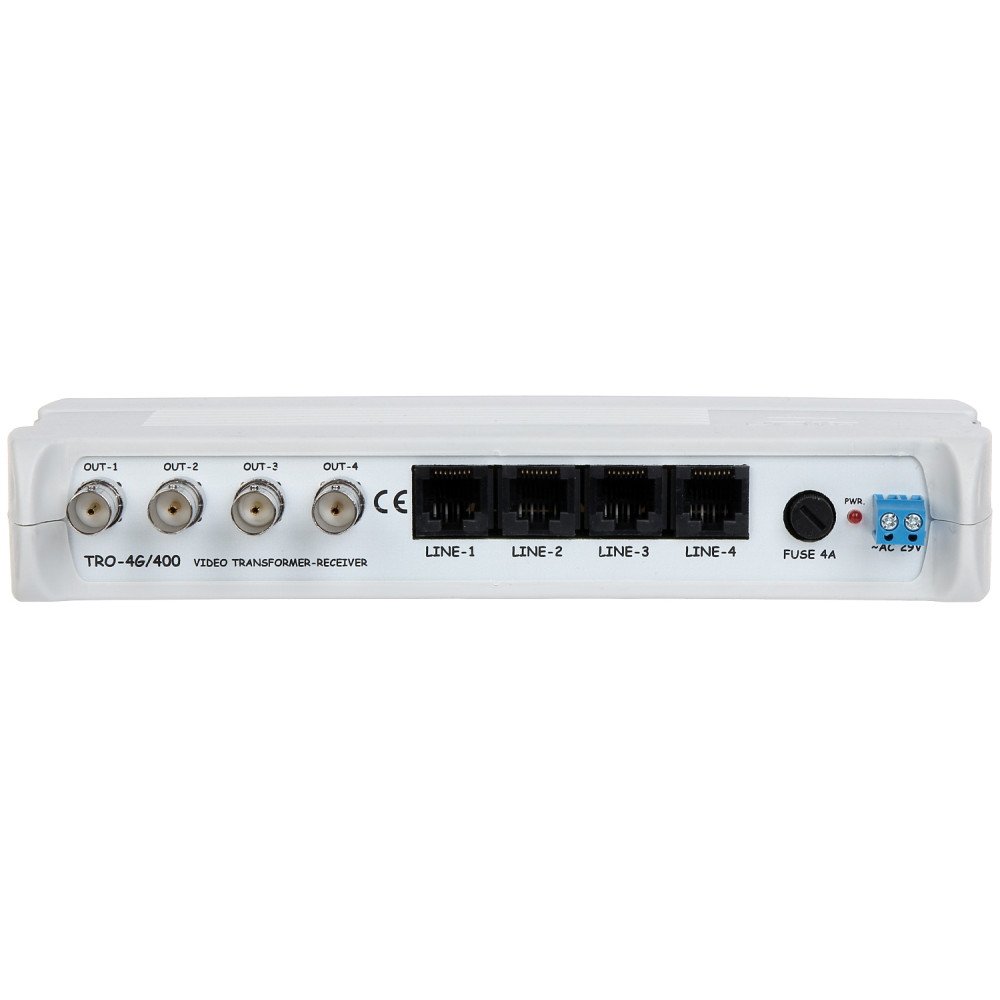

TRO-4G/400 VIDEO TRANSFORMER

TRO-4G/400 VIDEO TRANSFORMER

€74.10
Tax included

TRO-4G/400 is designed to supply DC voltage and receive video signals from 4 TRN-1/400 devices (video transformers - transmitters), using a twisted pair cable (UTP, FTP) at a distance of up to 400 meters

Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

TRO-4G/400 is designed to supply DC voltage and receive video signals from 4 TRN-1/400 devices (video transformers - transmitters), using a twisted pair cable (UTP, FTP) at a distance of up to 400 meters

The signal from the camera fed to the input of the TRN-1/400 transmitter is sent to the TRO-4G/400 receiver via a twisted-pair cable. In the transmitter and receiver, the impedance of the 75Ω coaxial cable is matched to the impedance of the symmetrical cable, which ensures video transmission up to 400 meters.

The TRO-4G/400 receiver supplies unstabilized DC voltage (up to 40V DC) to the twisted-pair cable, which is stabilized to 12V DC in the TRN-1/400 transmitter, allowing it to power cameras with a thermostat.

Standard:
  • AHD - 5 Mpx,
  • HD-CVI - 8 Mpx 4K UHD,
  • HD-TVI - 8Mpx 4K UHD,
  • CVBS - PAL, NTSC
Input voltage: max. 29 V AC / 2 A
Device type: Active / Receiver
Number of channels: 4 Video
4 DC
I/O voltage 75Ω (CVBS): 1 Vpp
Video range:
  • 250 m @ 720p - UTP kat. 5e
  • 150 m @ 1080p - UTP kat. 5e
  • 400 m @ CVBS - PAL / NTSC - UTP kat. 5e
Output voltage: max. 40 V DC / 2 A
Damping:
  • 4.43 MHz @ 0.73 dB
  • 11 MHz @ 1.24 dB
  • 21 MHz @ 2.16 dB
  • 38 MHz @ 3.35 dB
  • 42 MHz @ 3.54 dB
  • 67.5 MHz @ 3.72 dB
Selected features: Slow-blow fuse 5 x 20 2 A / 250 V
Symmetrical junction impedance: 100 OHMS
Connector type: 4 x BNC Video Socket
DC cable clamps

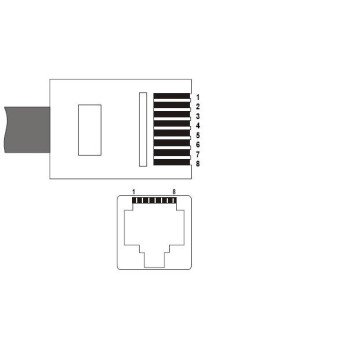

Symmetrical connector type: 4 x RJ-45 (8-pin, 4 pairs) Socket
Permissible relative ambient humidity: 95 %
Working temperature: -50 °C ... 55 °C
Power Range:
  • 24V supply
    50 do 2 x 750 in + 190 M @ 3 P 500 in
    130 M @ Ne 750 M @Le @L @Alex 0 x 370
    720 M @ 3 x 250 Does not

  • 29 V supply
    420 M @ 3 x 0 x 750 in
    440 M @ 0 x 700 In + 1200 m @ 1 x 00 m @
    4808 m @ 3 x 70 m @ 30 M @ 3 x 250 in
    4808 do do you 1 x 750 M @ 3 x 250 in
    1700 M @ 3 x 250 on
Libra: 0.250 kg
Dimensions: 213 x 36 x 93 mm
Guarantee: 3 lata
Manufacturer / Brand: DELTA
