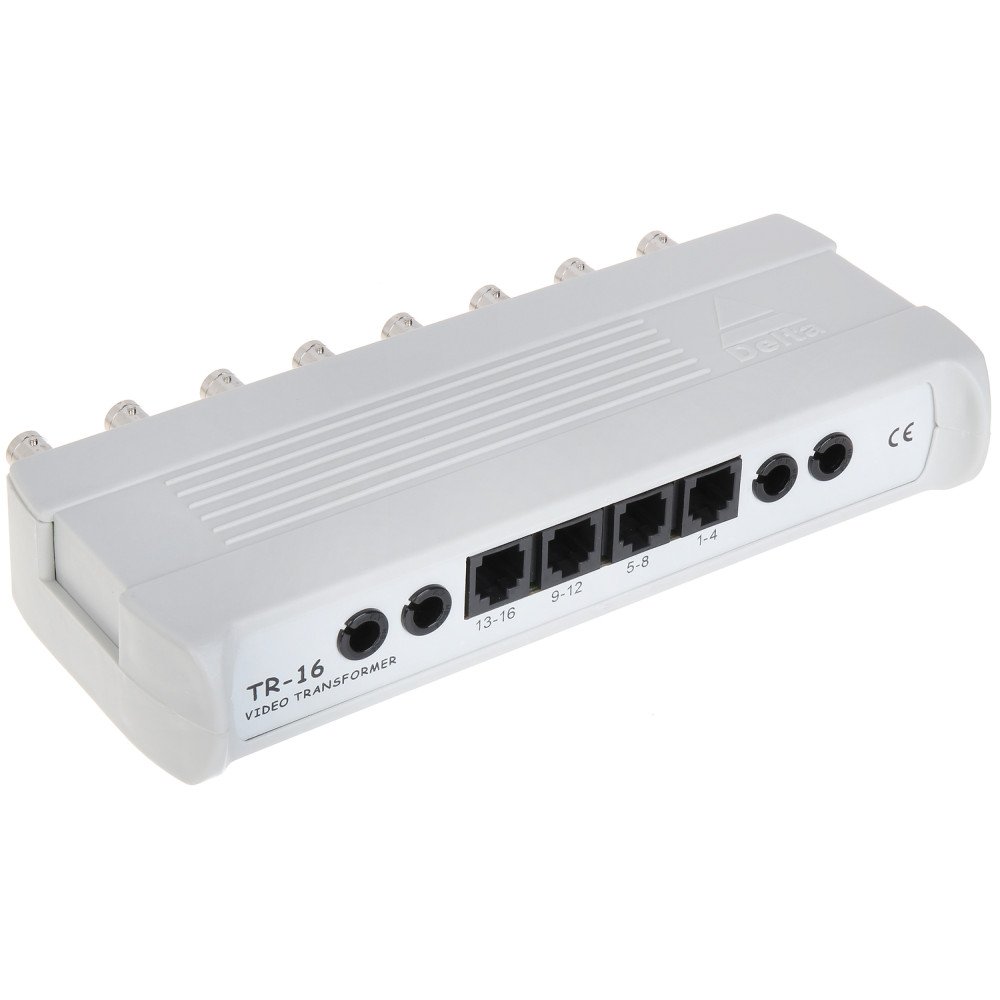

TR-16 VIDEO TRANSFORMER
€423.92
Tax included
TR-16 is designed to transmit a video signal via a twisted-pair cable
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
TR-16 is designed to transmit a video signal via a twisted-pair cable
The device adjusts the impedance of the 75Ω coaxial cable to the impedance of the symmetrical cable, ensuring video signal transmission up to 400m (category 5 twisted pair) and eliminates asymmetric interference

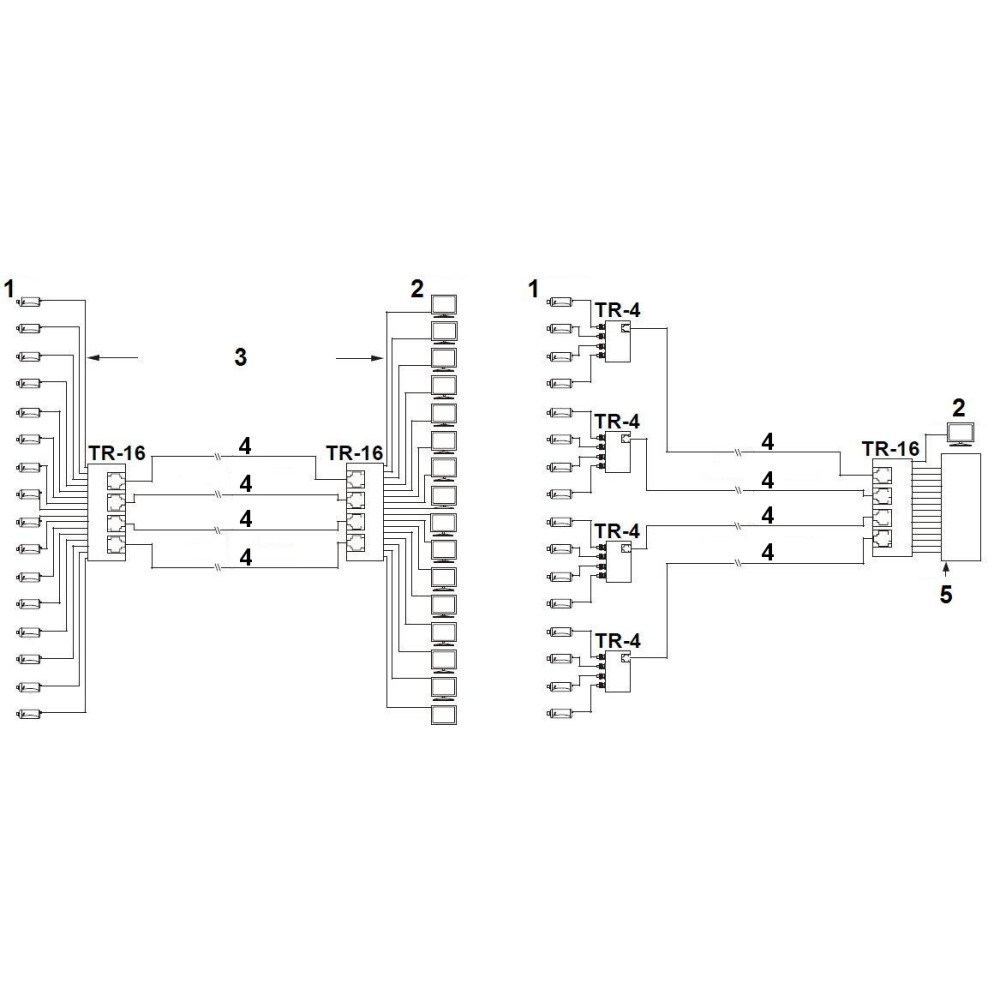

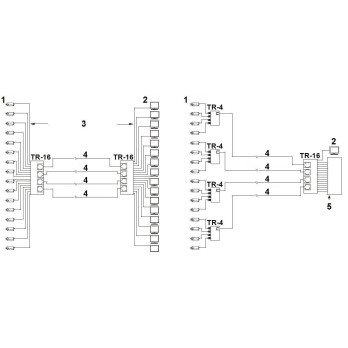

Two such devices are required to build a complete signal transmission path
Pay attention to the correct connection of the (+) and (-) terminals
The reverse connection will cause image distortion
| Standard: |
|
| Device type: | Passive |
| Number of channels: | 16 pcs Video |
| Video range: |
|
| I/O voltage 75Ω (CVBS): | 1 Vpp |
| Damping: |
|
| CMRR (dB @ 5MHz): | 50 dB |
| Coaxial impedance: | 75 OH |
| Symmetrical junction impedance: | 100 OHMS |

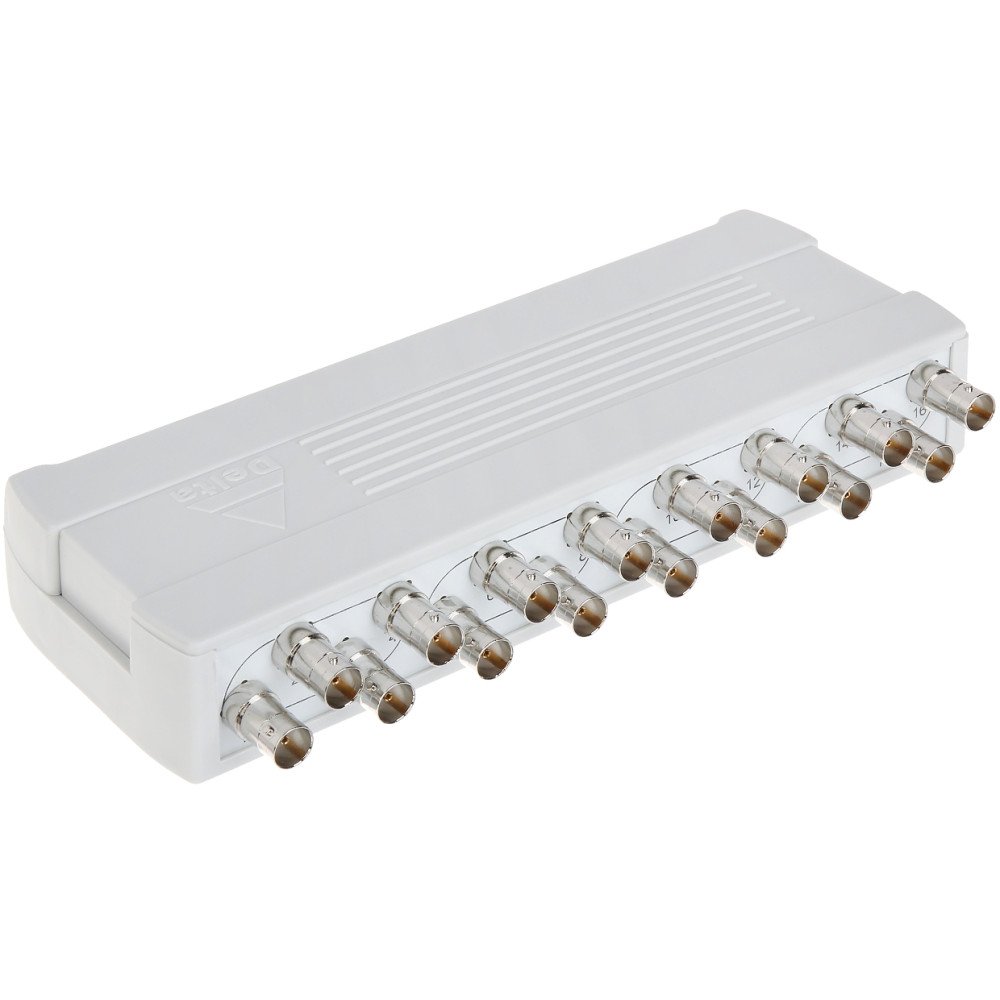

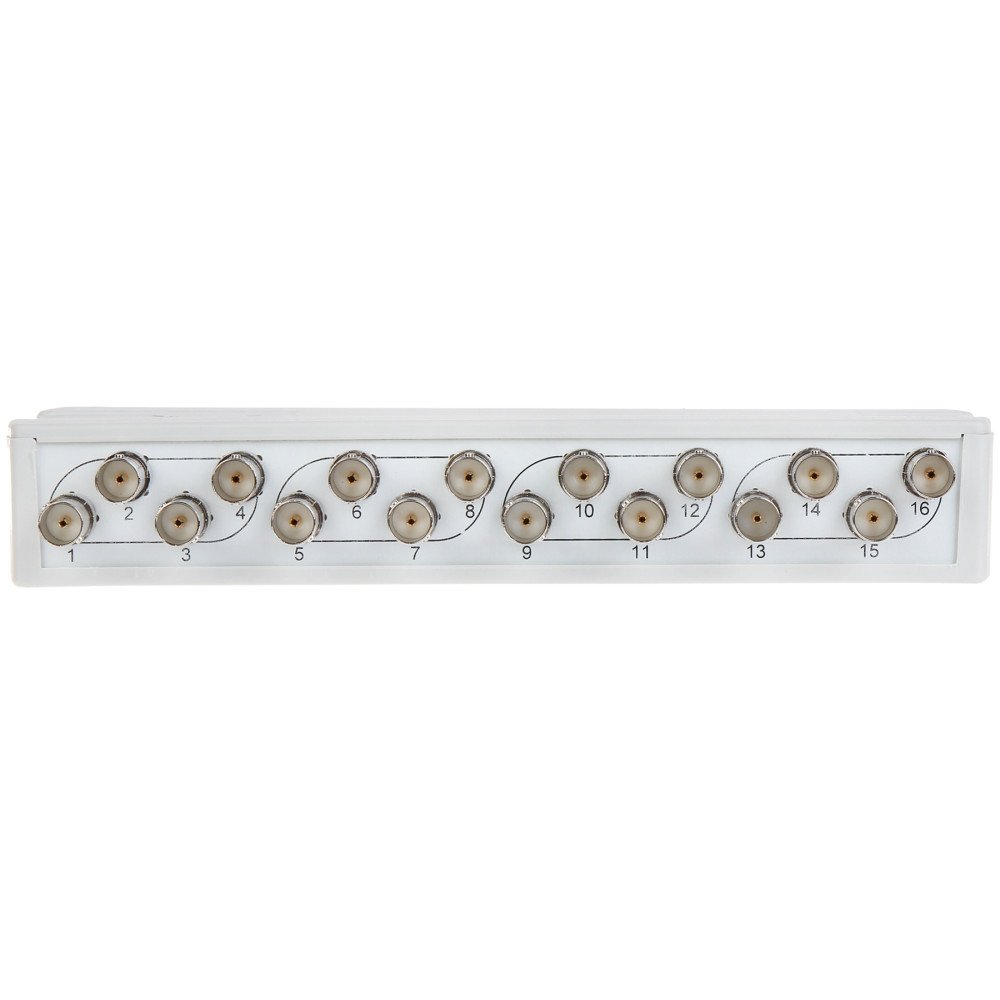

| Coaxial Connector Type: | 16 x BNC Straight socket |

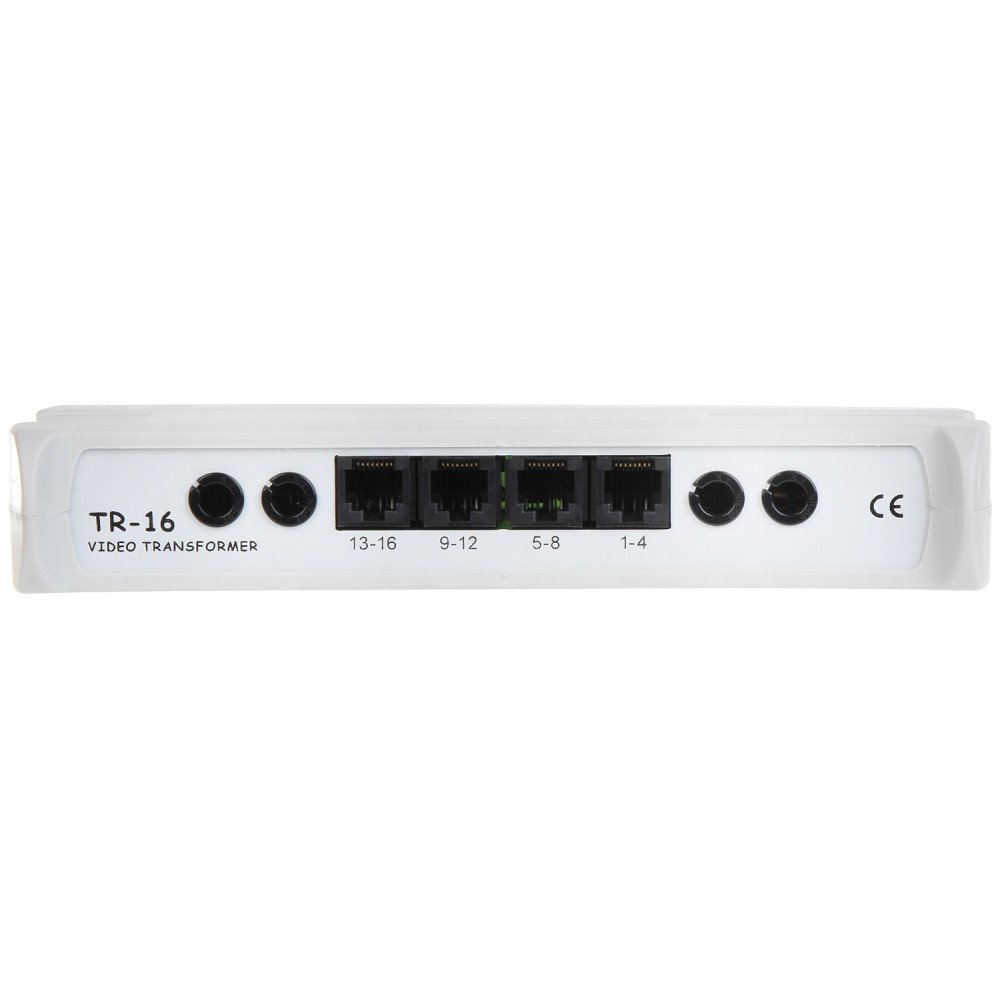

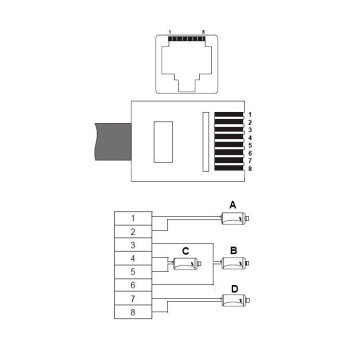

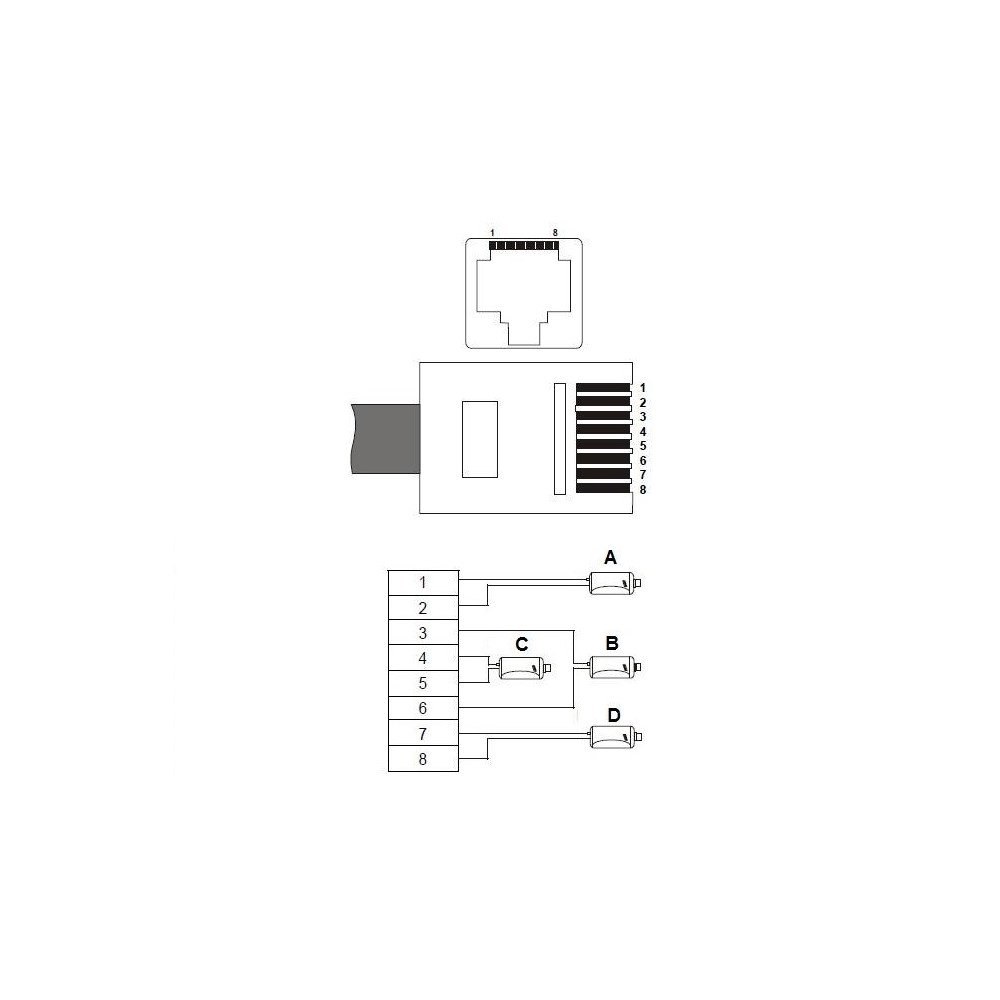

| Symmetrical connector type: | 16 x Cable Clamps / 4 x RJ-45 (8-pin, 4 pairs) Socket |
| Working temperature: | -50 °C ... 55 °C |
| Permissible relative ambient humidity: | 95 % |
| Libra: | 0.336 kg |
| Dimensions: | 213 x 36 x 101 mm |
| Guarantee: | 3 lata |
| Manufacturer / Brand: | DELTA |
