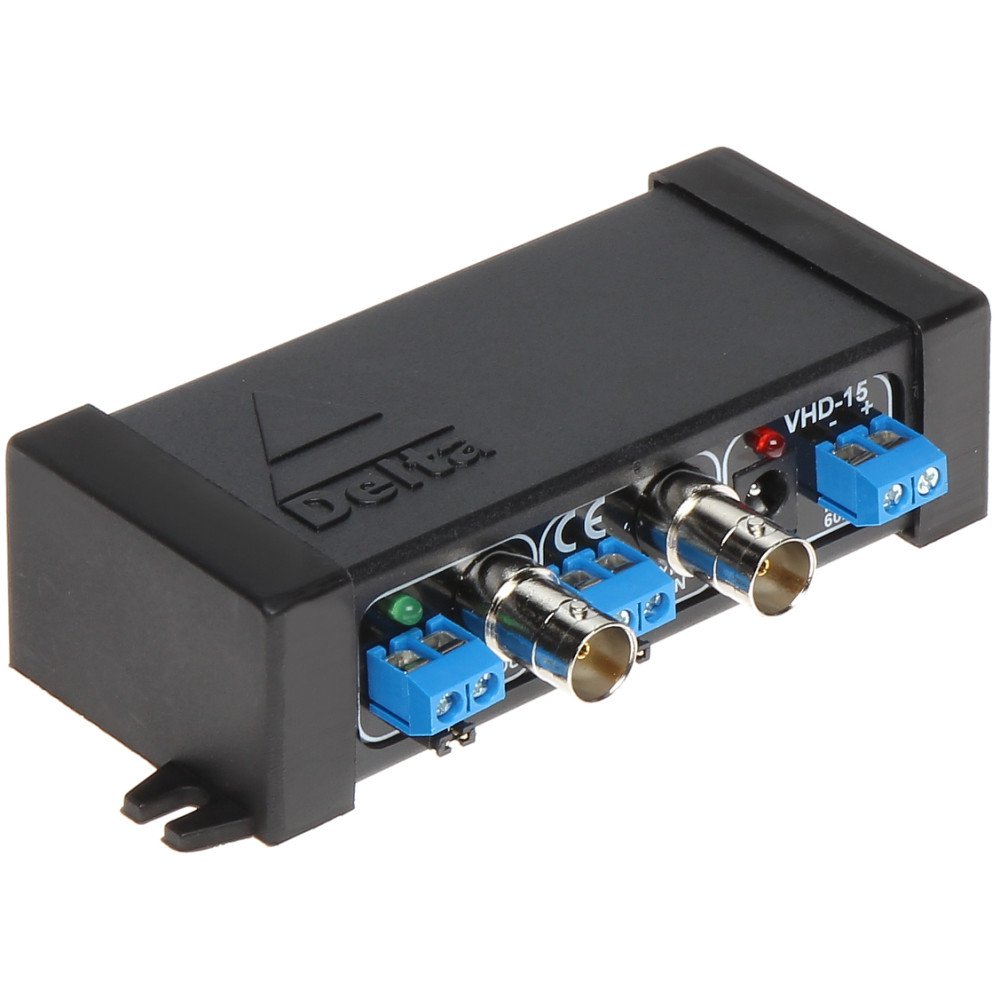

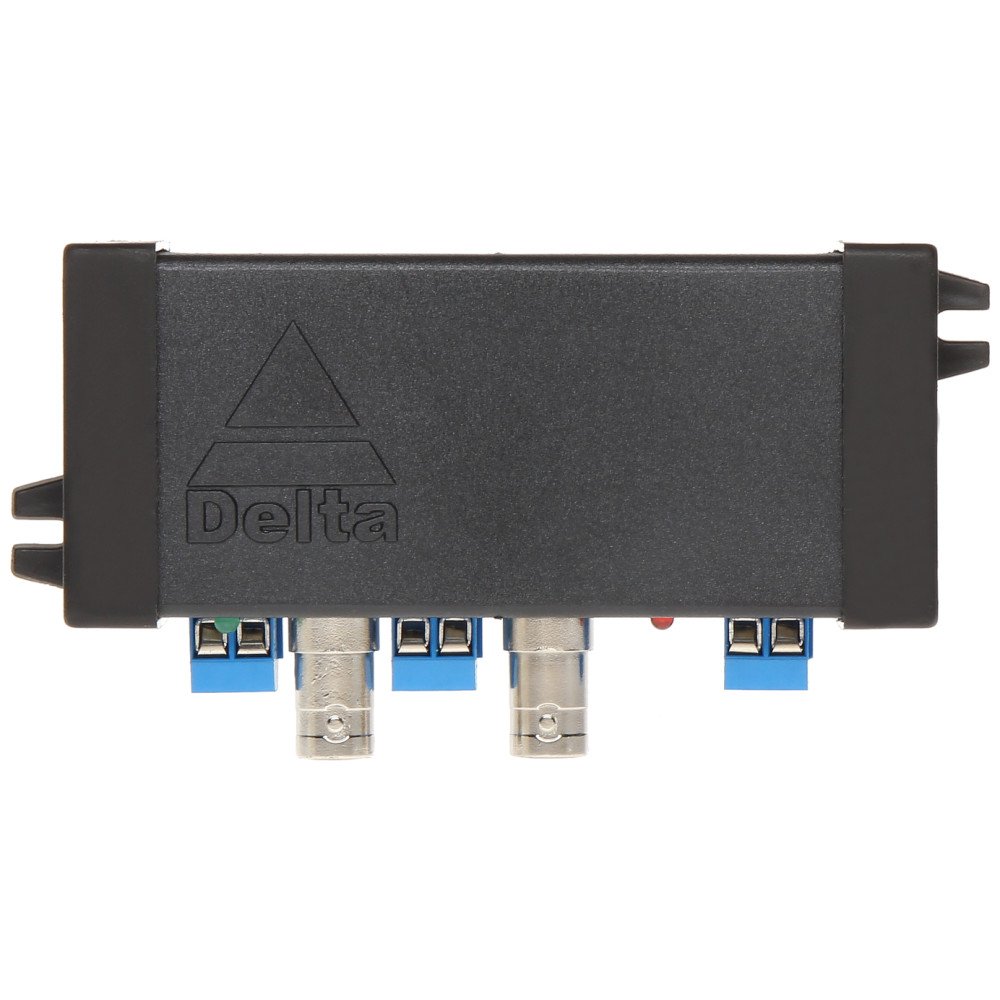

The VHD-15 repeater is designed to amplify a video signal transmitted via twisted pair or coaxial cable, enabling the transmission of an analog high-definition video signal (AHD, HD-CVI, HD-TVI) over a longer distance.
REPEATER VHD-15 SIGNAL AMPLIFIER AHD, HD-CVI, HD-TVI
€150.03
Tax included
The VHD-15 repeater is designed to amplify a video signal transmitted via twisted pair or coaxial cable, enabling the transmission of an analog high-definition video signal (AHD, HD-CVI, HD-TVI) over a longer distance.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The VHD-15 repeater is designed to amplify a video signal transmitted via twisted pair or coaxial cable, enabling the transmission of an analog high-definition video signal (AHD, HD-CVI, HD-TVI) over a longer distance.

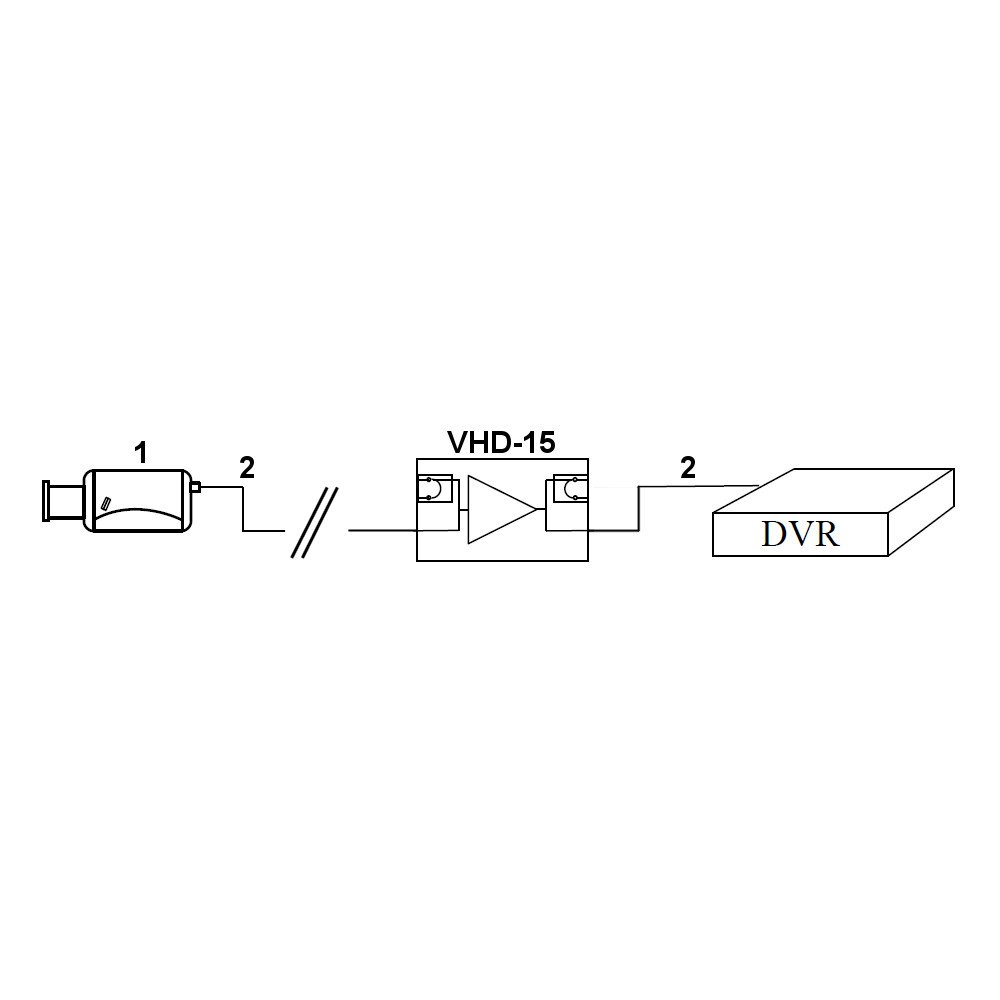

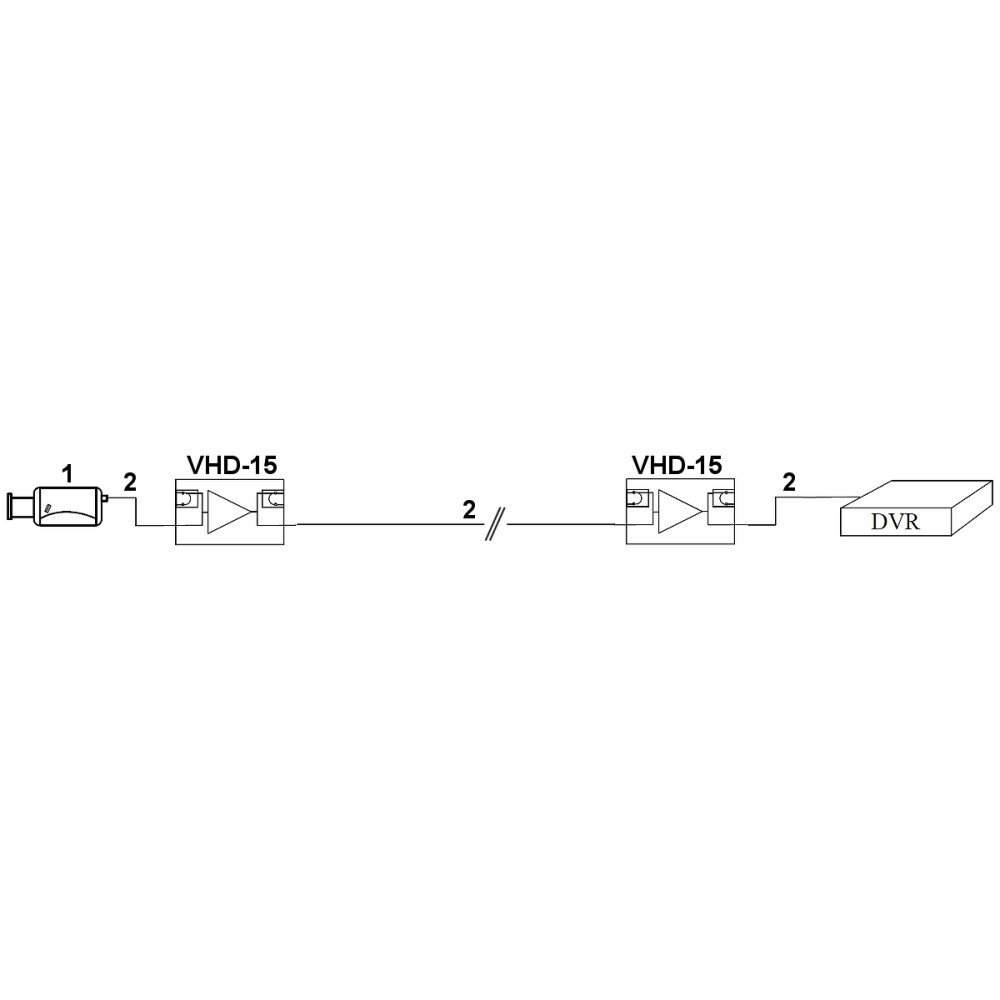

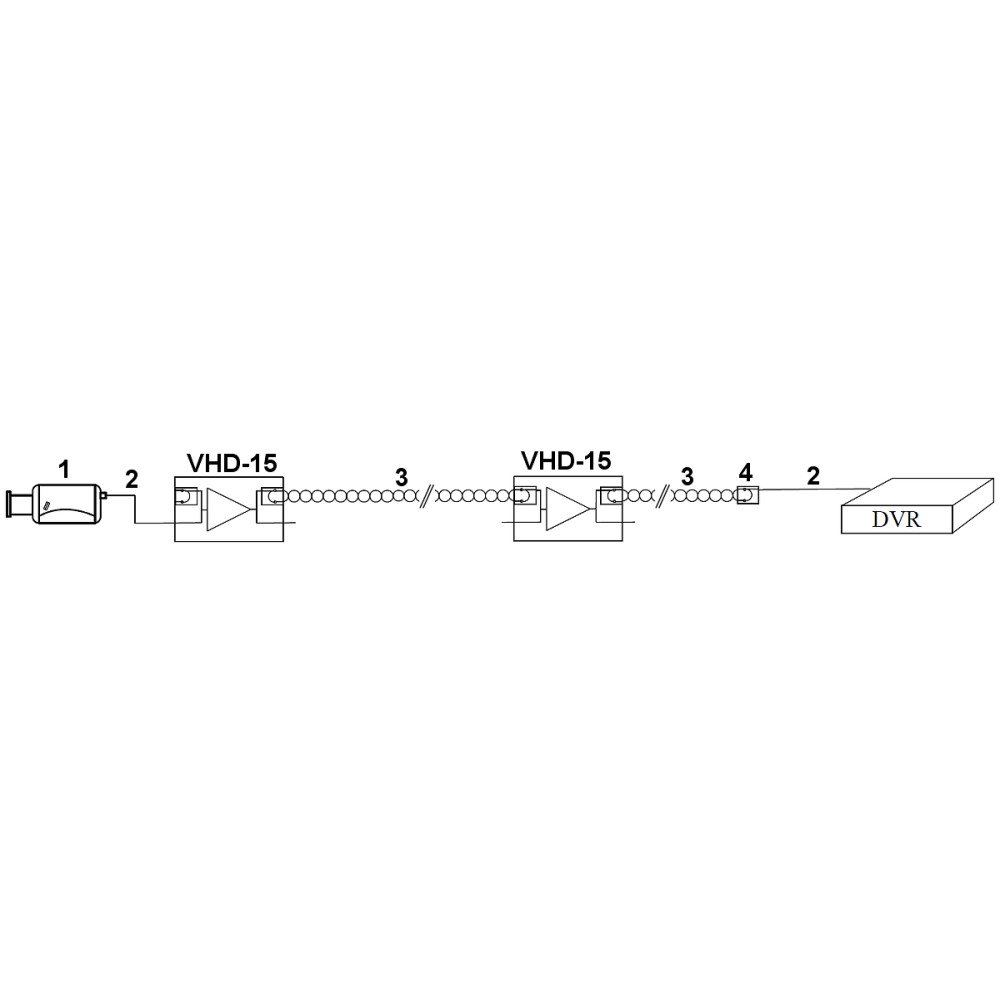

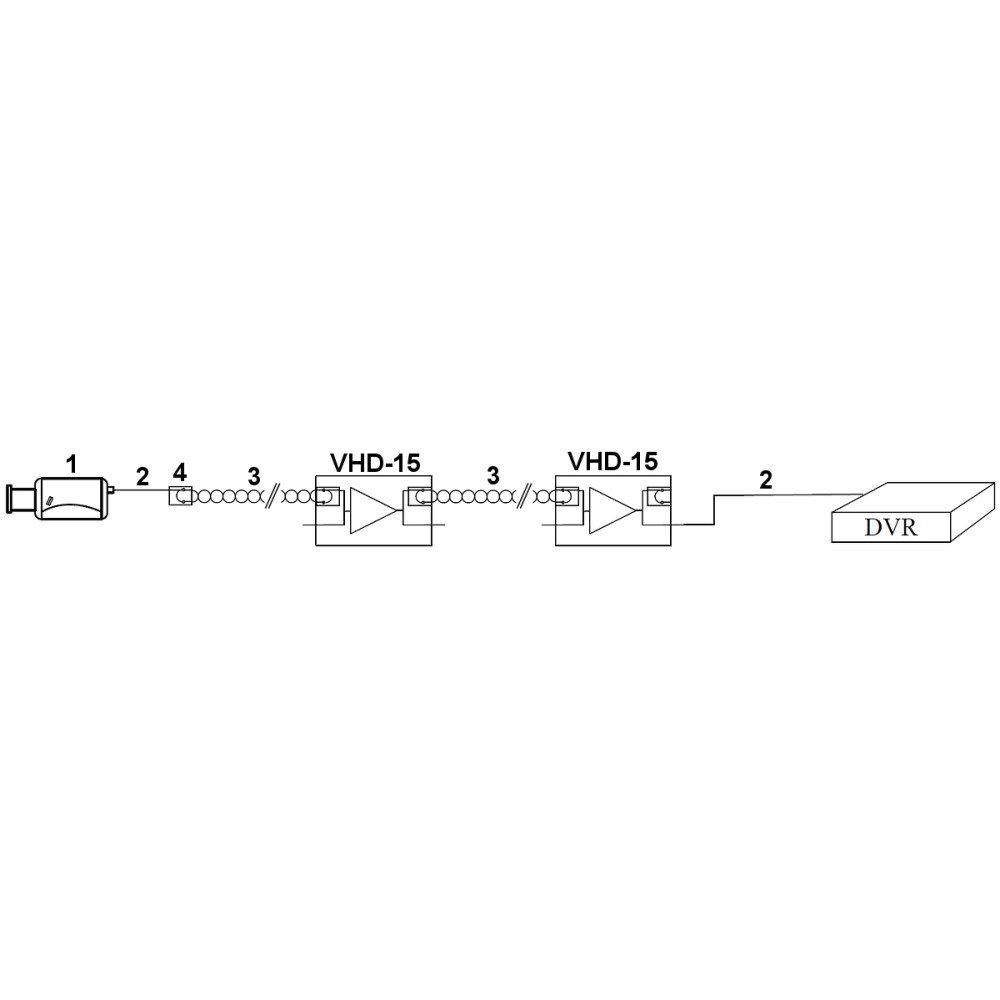

A single regenerator allows for attenuation correction of approx. 150 m of twisted pair and approx. 300 m - 500 m of coaxial cable (depending on the type of cable used)

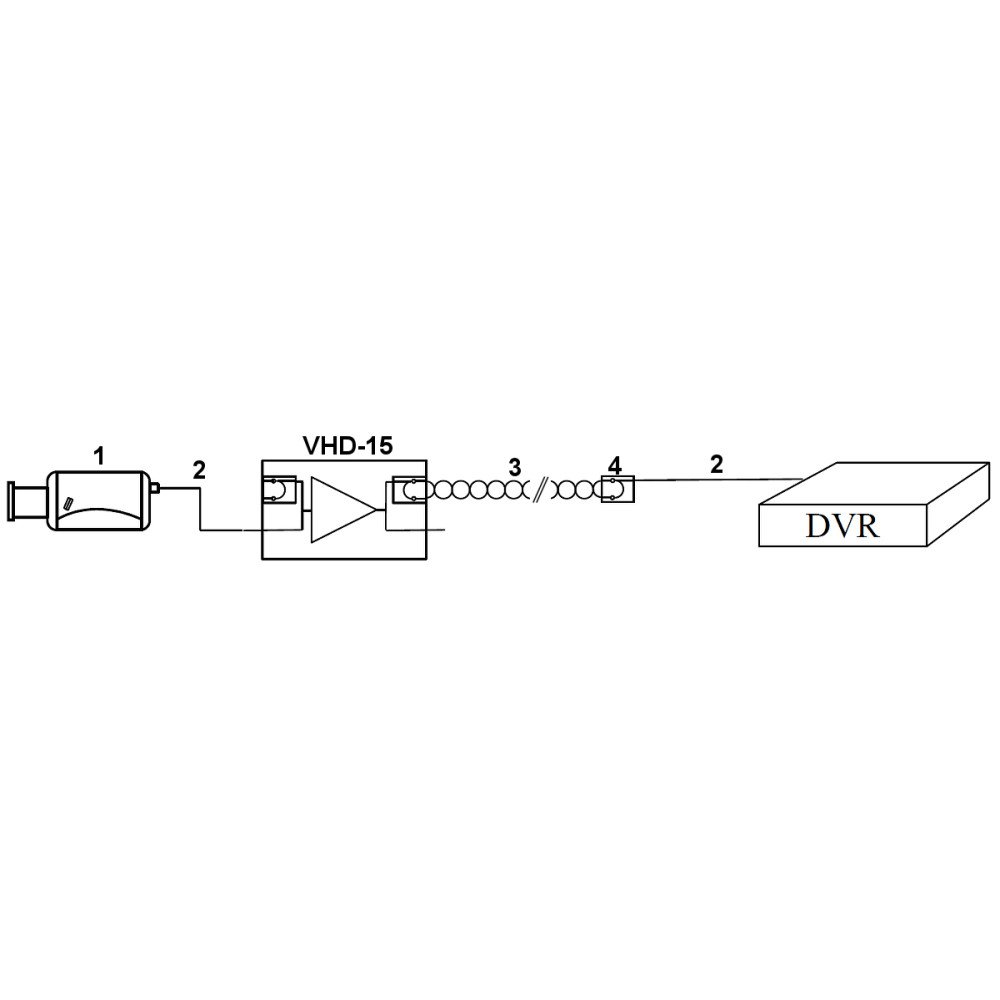

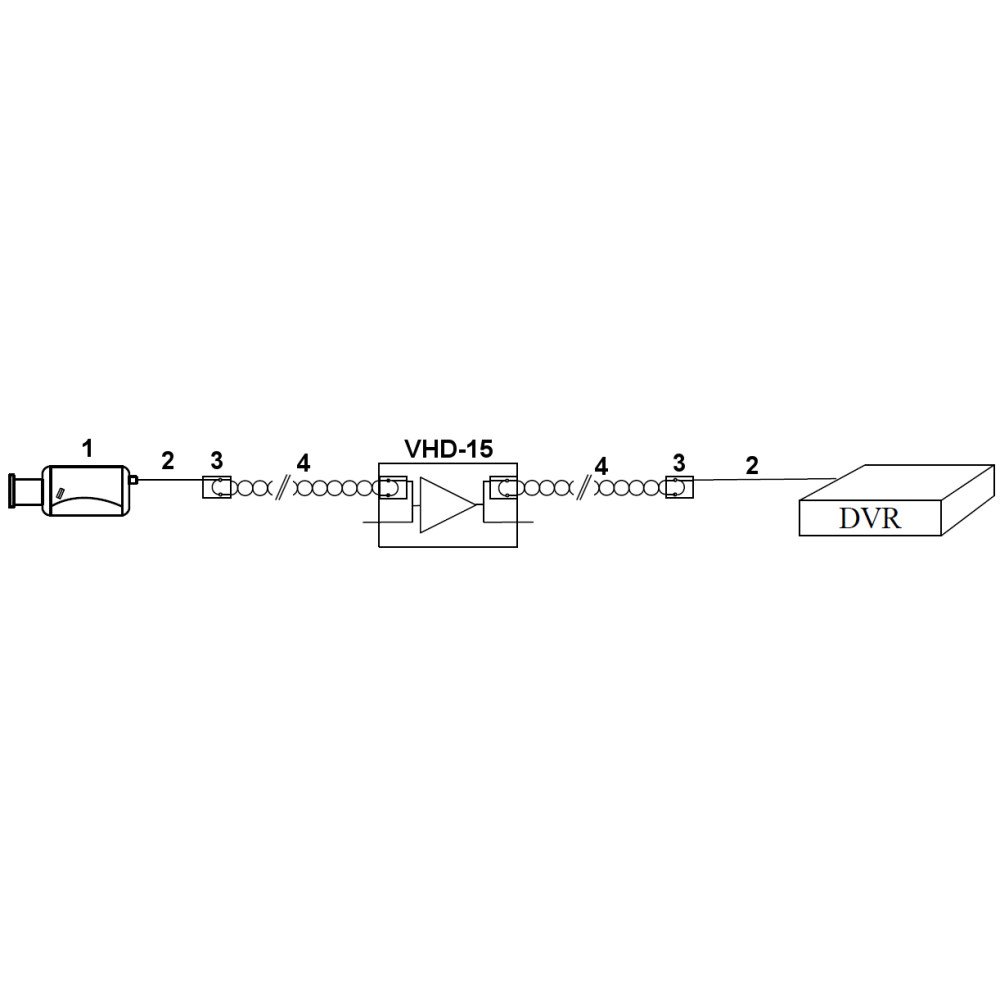

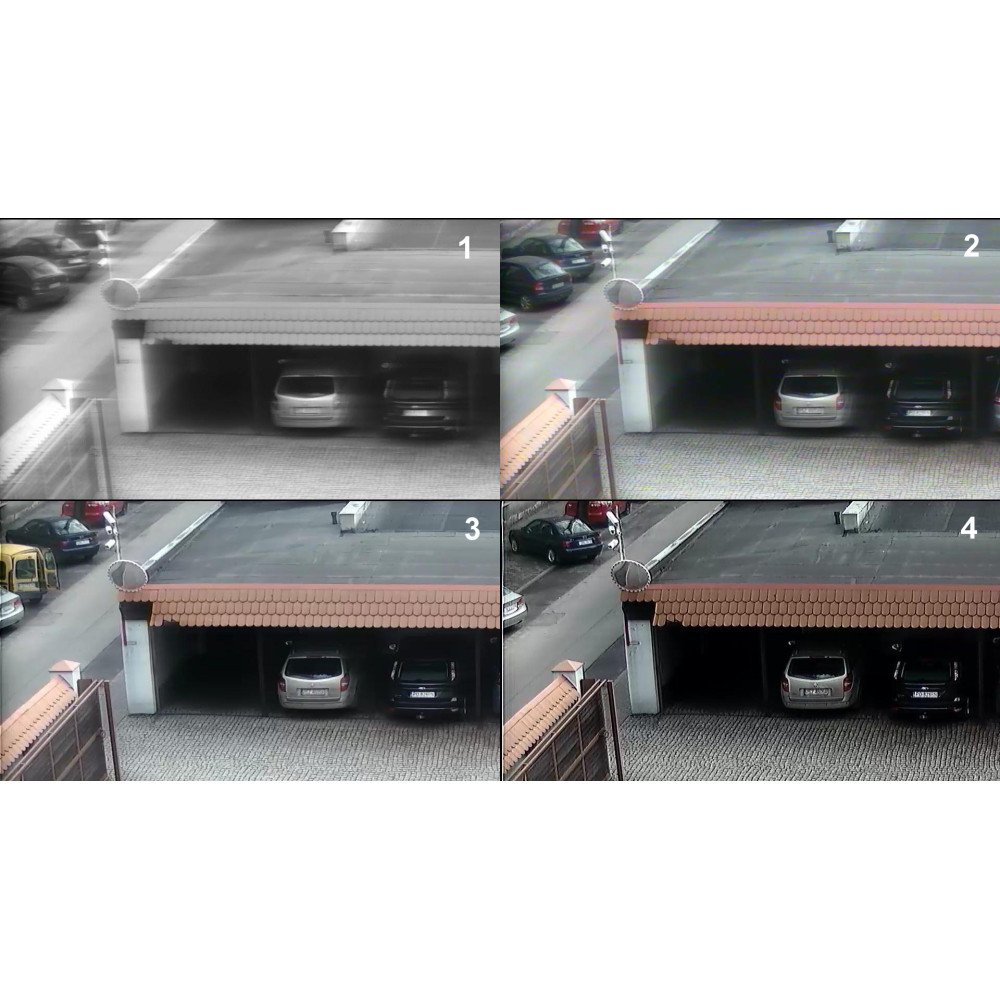

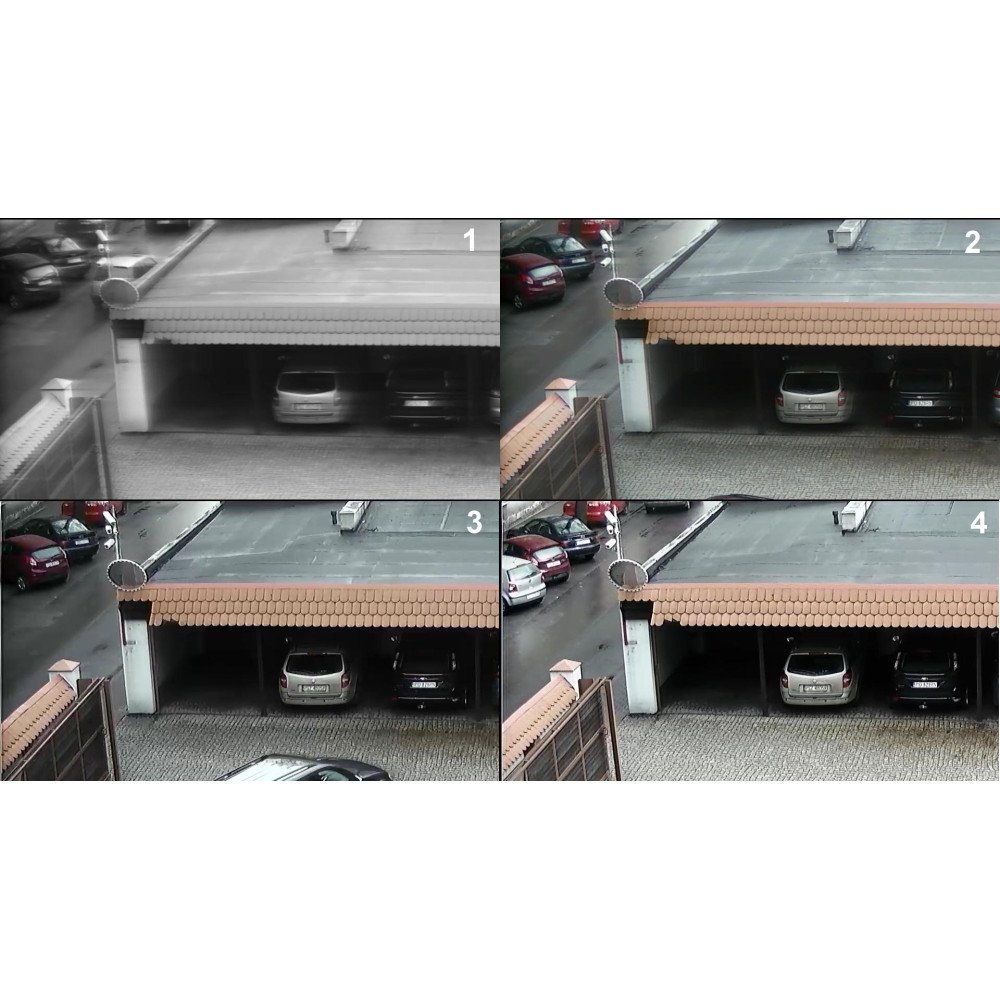

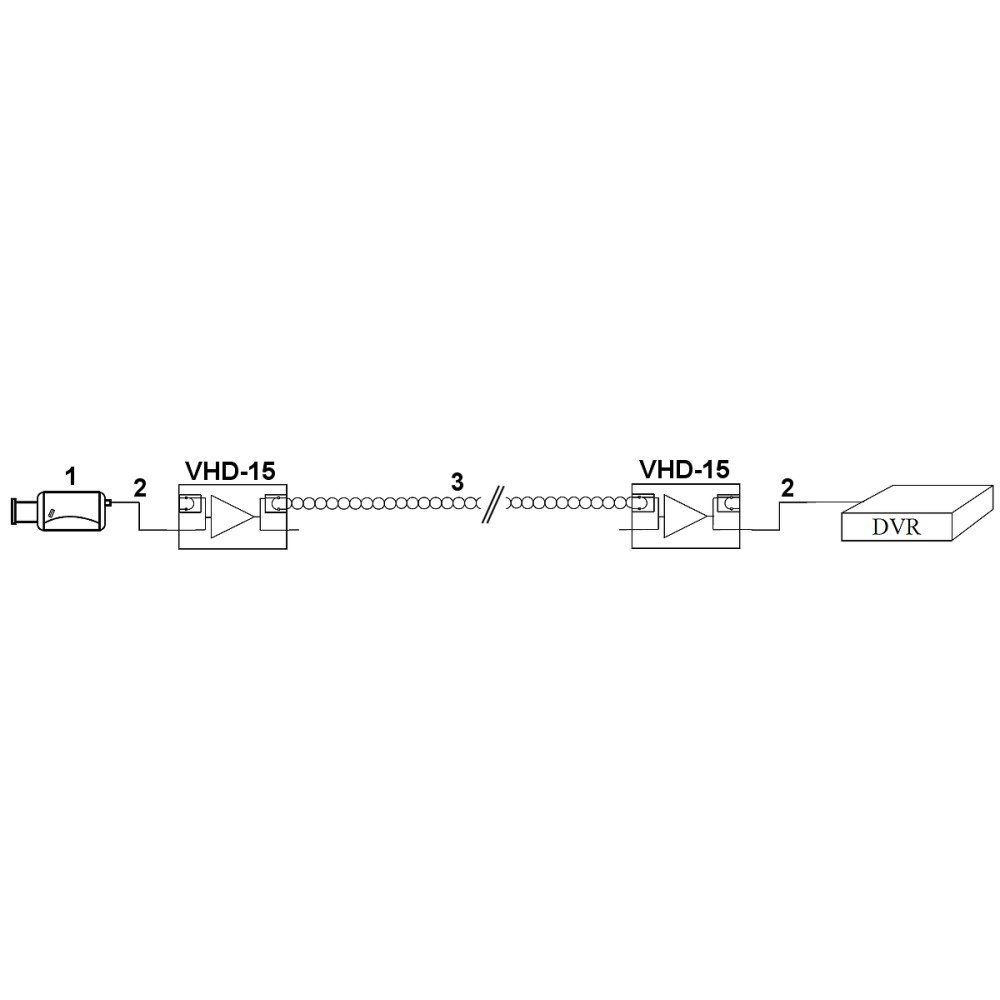

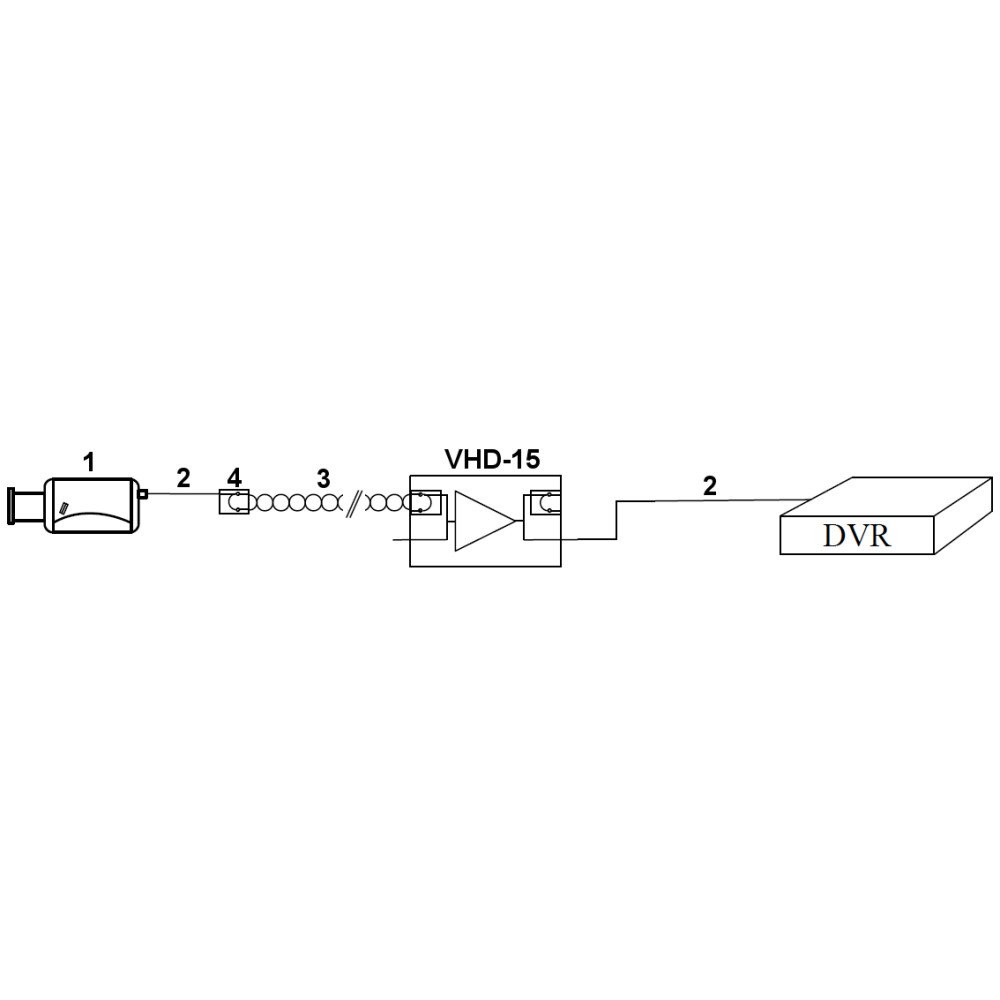

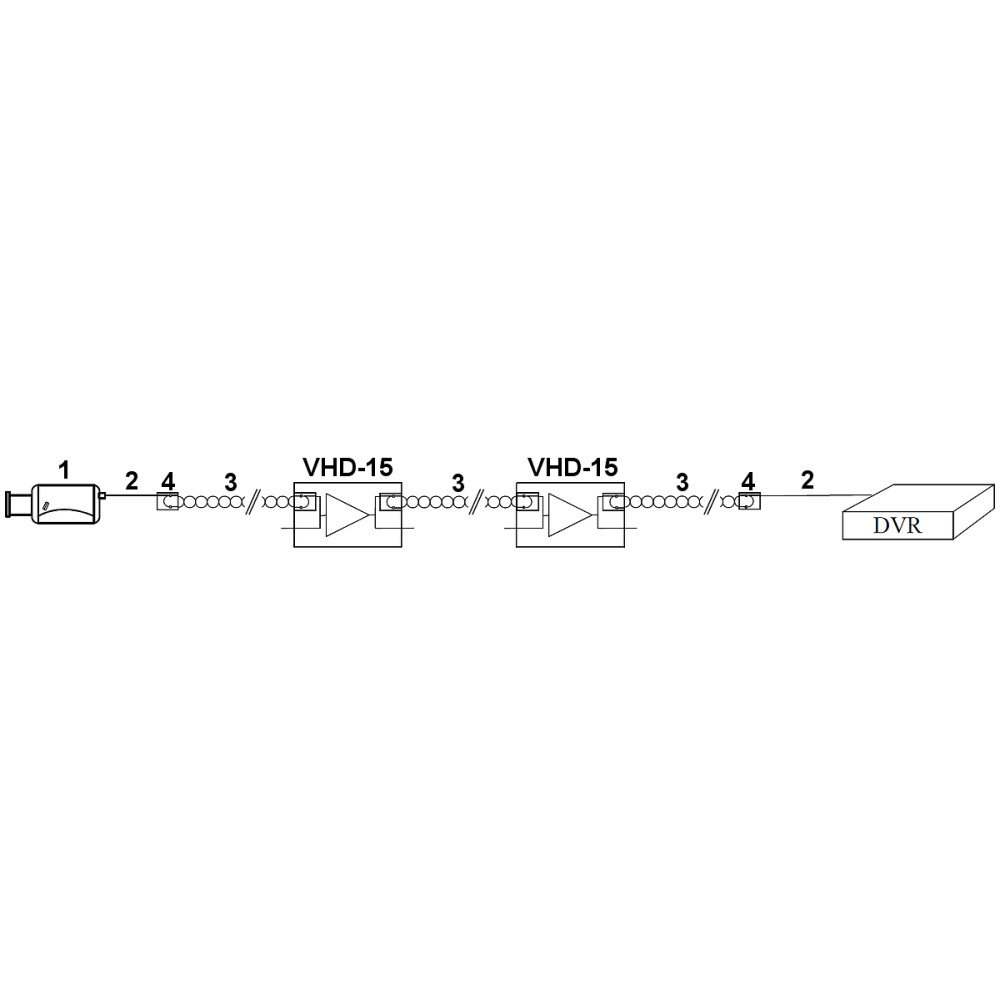

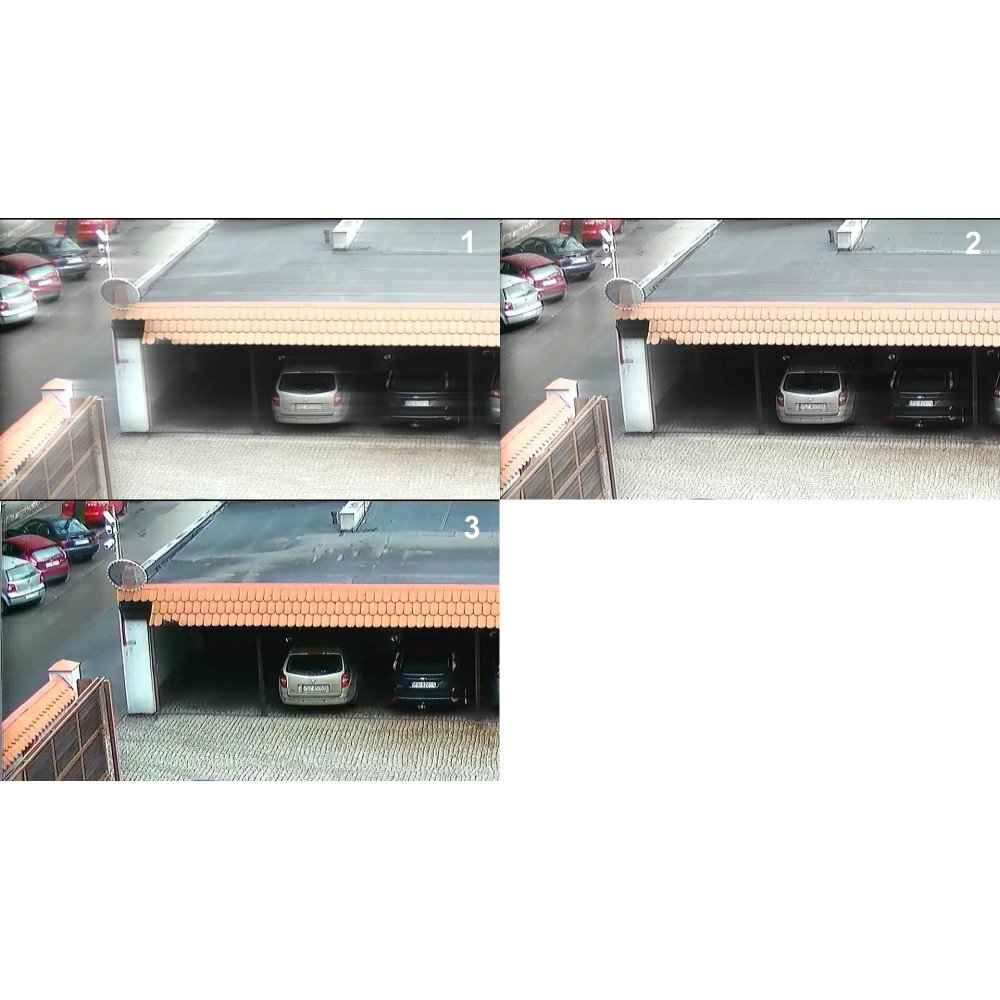

The use of one repeater ensures good image quality for twisted pair cable at a distance of up to 300 m. At a distance of up to 450 m, it is necessary to use two repeaters and at a distance of 600 m, three
For coaxial cable, depending on the type, these distances will be correspondingly larger
| Standard: |
|
| Device type: | Active |
| Signal regeneration ability: | 150 m - Twisted pair cable, 300 m - RG59 , 500 m - Triset113 |
| Reinforcement: | 4.43 MHz @ 6.82 dB 11 MHz @ 11.57 dB 21 MHz @ 17.07 dB 38 MHz @ 24.17 dB 42 MHz @ 25.23 dB 67.5 MHz @ 21.83 dB |
| Power supply: |
|
| Power consumption: | 50 mA |
| Coaxial impedance: | 75 OH |
| Symmetrical junction impedance: | 100 OHMS |

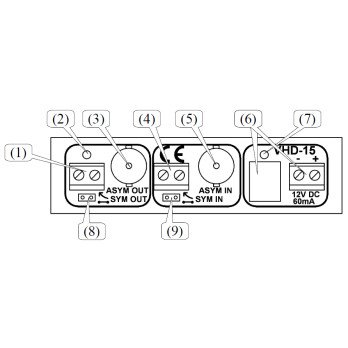

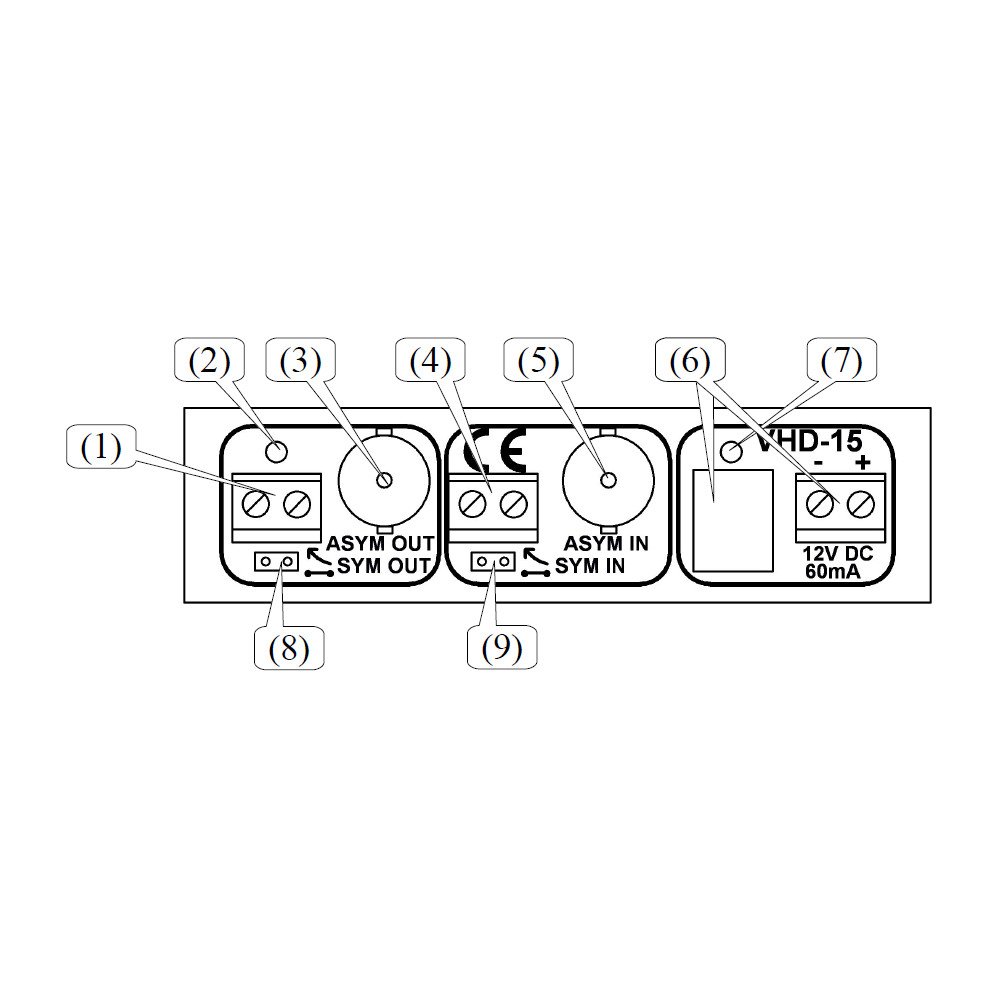

| Number of entries: | 1 |
| Number of outputs: | 1 |

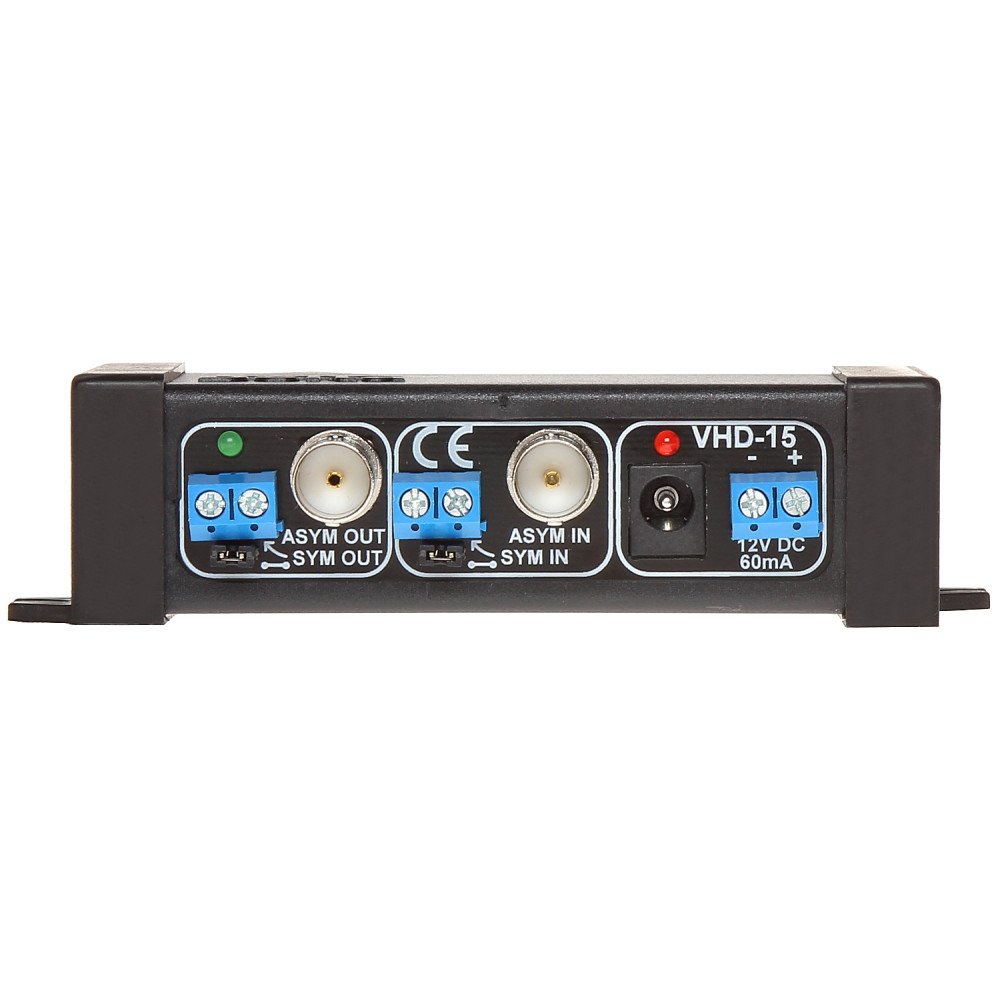

| Coaxial Connector Type: | BNC socket |

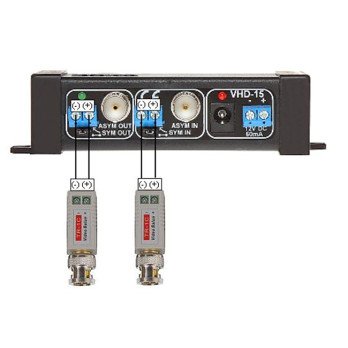

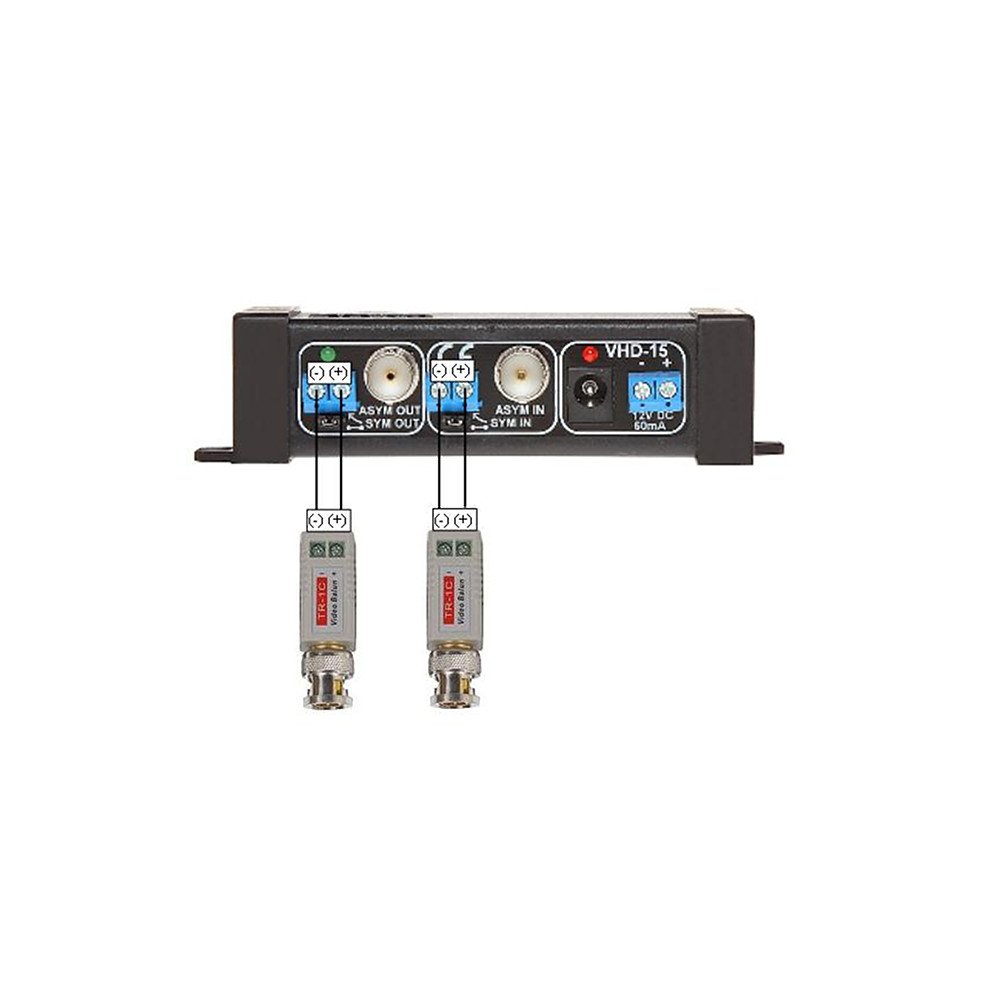

| Symmetrical connector type: | terminal strip |
| Libra: | 0.080 kg |
| Dimensions: | 103 x 62 x 29 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 lata |
