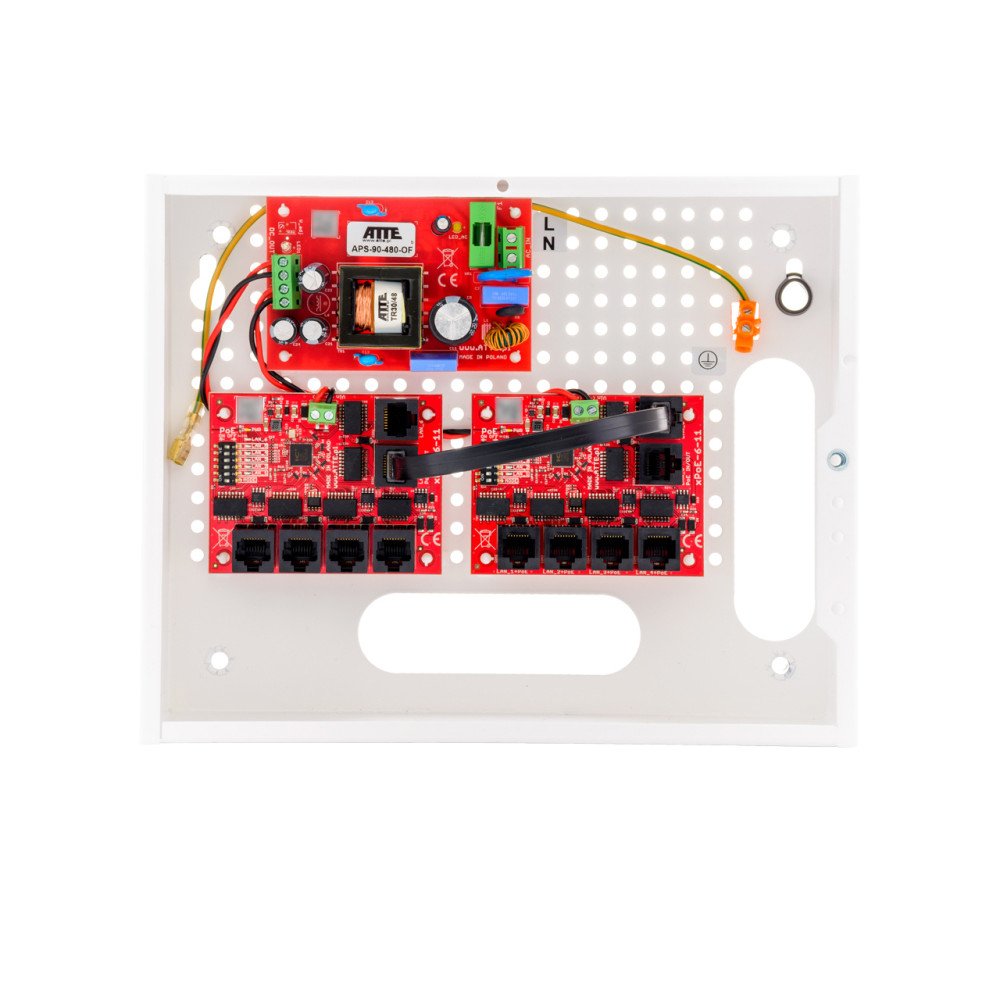

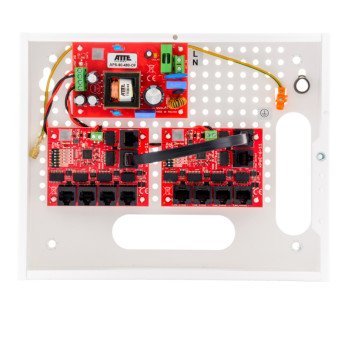

Set for 9 ATTE IP-9-11-E IP cameras

Set for 9 IP cameras, in an ABOX-E internal housing, 96W power supply, 10-port PoE switch 10/100Mbps (9xPoE + 1xUplink), electronic fuses, Long Range mode, type IP-9-11-EKey features and functions:

• ability to power 9 PoE 802.3at/af or PASSIVE receivers
• possibility of data transmission over 280m (in Long Range mode)
• electronic fuse independently for each PoE channel (auto return)
• ability to turn off power on selected PoE ports
• clear optical indication of power supply status and data transmission
• up to 70W of power on the LAN_5 PoE IN/OUT port
• up to 40W of power on other PoE ports
• easy and quick commissioning without the need to configure parameters
• high efficiency of the power supply module (90%)
• easy and quick installation service thanks to its modular structure
• easy expansion and scaling of the system by adding additional xPoE series switches/IP and IPB/IPUPPS
• installation of modules in any perforated part of the housing (raster system)
• Possibility to keep spare cables inside the housing
• cable entries on the back of the housing
• distance to the wall/mounting surface

The set includes:

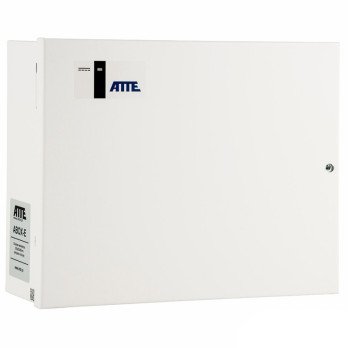

• 1x ABOX-E case
• 1x APS-90-480-OF power supply
• 2x switch xPoE-6-11-OF

IP-9-11-Eis a ready-made kit dedicated to powering an IP CCTV system consisting of:9 room IP. Electronic protection of PoE outputs ensures continuous operation of the entire system in the event of a short circuit or overload of individual power supply branches, and automatic voltage recovery after the failure disappears. "Long Range" mode allows you to:increasing the transmission range to 280musing standard UTP twisted-pair cable.Sets with PoE switchare designed to work with IP cameras and other network devices powered by the PoE 802.3at/af and PoE PASSIVE standards.ABOX series internal housingsthey are a convenient solution to the problem of aesthetic installation of devices and termination of cabling inside buildings. All housings are made of steel sheet, powder-coated in a semi-matt white color. Production using a modern technological line ensures the highest quality and precision. Each housing is equipped with a screw closure, removable door and an opening tamper. The models available in our offer have special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing. TECHNICAL DATA:

LAN ports	10 RJ45 10/100Mbps ports (9xLAN+PoE, 1xUplink)
Supported PoE receivers (standard / max power)	802.3af - do 15,4W LAN_1...LAN_5 802.3at - does 30W LAN_1...LAN_5 PoE PASSIVE - do 70W LAN_5 / do 40W LAN_1...LAN_4
PoE outputs (standard / power mode)	LAN_1...LAN_5 PoE PASSIVE, mode B (4,5+) (7,8-)
PoE output protection (overcurrent/short circuit)	LAN_1...LAN_4 0.75A / electronic (auto-return) LAN_5 1.25A / electronic (auto-return)
SW1 microswitches	switch 1 "MODE" - switch operation mode switches 2...6 "PoE ON/OFF" - PoE power supply on ports LAN_1...LAN_5
"Standard" operating mode	switch 1 "MODE" in the OFF position LAN_1...LAN_6 - range up to 100m (10/100Mbps)
"Long Range" operating mode	switch 1 "MODE" in the ON position LAN_1...LAN_4 - range up to 280m (10Mbps) LAN_5...LAN_6 - range up to 100m (10/100Mbps)
AC adapter (type / type)	impulsowy SMPS / APS-90-480-OF
Power supply output protection (overcurrent/short circuit)	9A, electronic (after a short circuit, a restart of the power supply may be required)
Power supply thermal protection	TSD (thermal shutdown) 130°C, requires restart
Power supply input voltage range / input protection	180...240VAC / T3.15A fuse F1
Power supply output power (continuous)	96W
Power supply efficiency	92% @90W
Output voltage of the power supply (PoE camera power supply)	48V +/-2%
Housing assembly	wall-mounted, mounting holes 6mm
Installation of devices inside the housing	4.8mm system holes in a 10.8mm pitch
Operating temperature range	-10°C...+40°C
Housing (type / material / color / protection / cable entries)	ABOX-E / metal / white / opening tamper / back of the housing, distance to the wall
Dimensions / net weight / degree of protection	250x200x85mm / 1,52kg / IP20
