ATTE buffer set for 16 IP cameras, in ABOX-H internal housing (2x 18Ah Battery + NVR), 144W power supply (2x 72W), 18-port PoE s

ATTE buffer set for 16 IP cameras, in ABOX-H internal housing (2x 18Ah Battery + NVR), 144W power supply (2x 72W), 18-port PoE s

€4,393.87
Tax included
  • Clear optical indication of power supply and data transmission status
  • Up to 40W of power on PoE ports (LAN_1 to LAN_8)
  • Easy and quick commissioning without the need to configure parameters
  • High efficiency of the power supply module (90%)
  • Two supply voltage values ​​available: 12VDC and 48VDC
  • Easy and quick installation service thanks to its modular structure
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

16-port PoE switch in an internal housing with a buffer power supply

16 ports support Power over Ethernet (PoE)

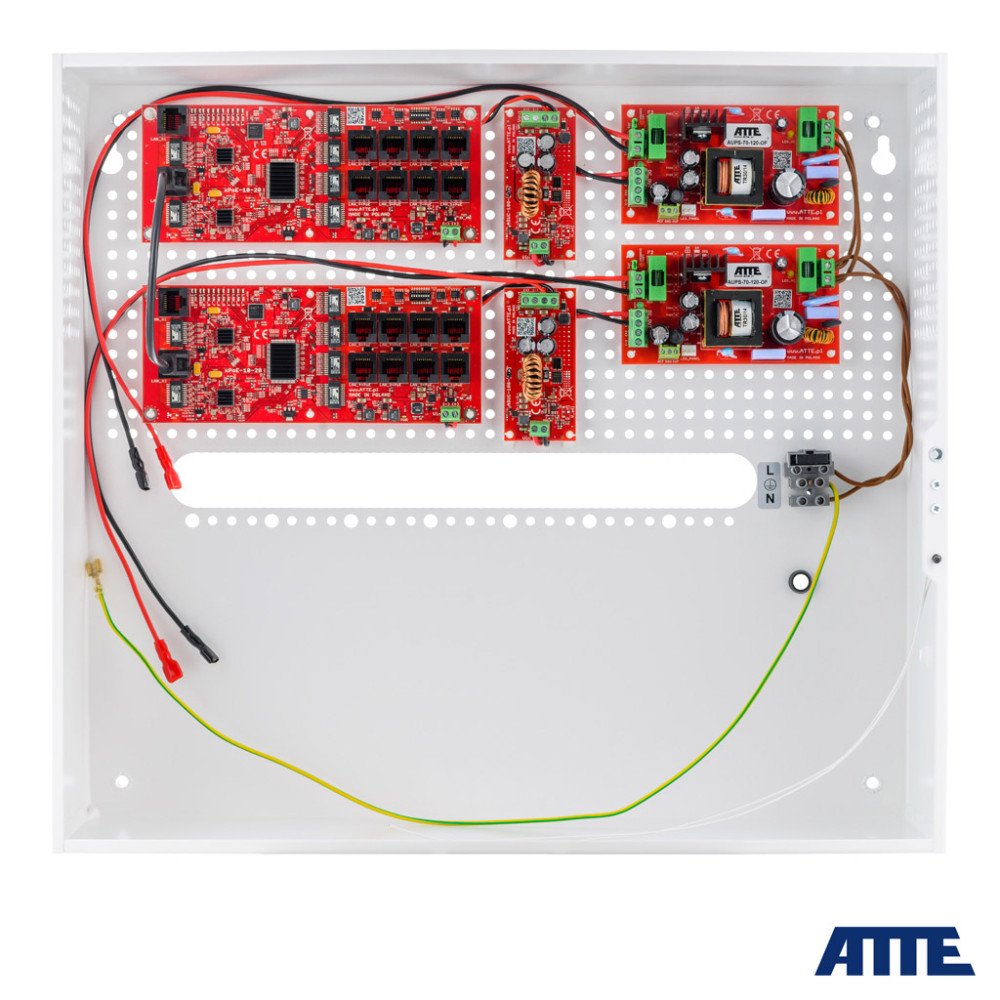

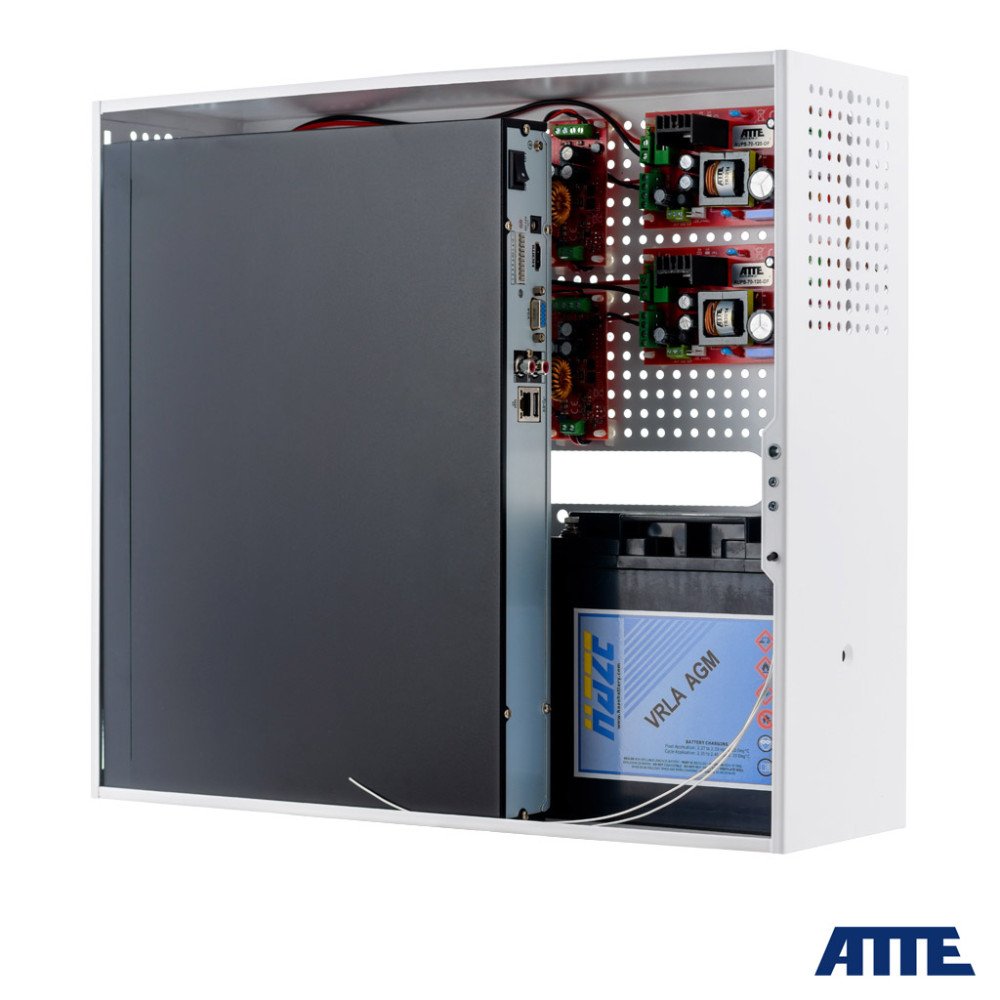

The IPUPS-16-20-H set consists of 2 XPOE-10-20-OF switch modules, 2 AUPS-70-120-OF buffer power supply modules and 2 ASUC-50-480-OF voltage converter modules enclosed in an ABOX-H internal housing with space for 2 18Ah batteries

Buffer power supplies are designed to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V

LAN ports:
  • 2 x RJ45 10/100/1000 Base-T - Uplink
  • 16 x RJ45 10/100 Base-T, PoE 802.3af/at / Passive PoE
Management: NO
Diody LED: 2 x 230V AC IN, 2 x 12V DC OUT, 2 x 48V DC OUT, 2 x CHARGING (ładowanie akumulatora), 20 x LAN, 4 x Gigabit Ethernet
Transmission speed:
  • 10 / 100 / 1000 Mb/s : 2 x Port Uplink
  • 10 / 100 Mb/s : 16 x Port LAN PoE
Maximum output power:
  • 40 W @ssive People - Portly N People,
  • 30 W @ (802.3AF / AT) - Porty la
Maximum total power: 130 W
Selected features:
  • Ability to independently turn PoE power on and off for each of the LAN 1 ... LAN 8 ports
  • The modular design streamlines service tasks and allows for quick, easy system expansion
  • The raster module assembly system facilitates the expansion of the device with additional modules
  • 2 x Battery compartment: 12V / 18Ah
  • Battery charging current: 1 A / 2 A - (set using jumper JP1)
  • OC type technical outputs signaling voltage loss at the power supply output (OUF) and voltage loss in the 230V network (ACF)
  • Protection against deep battery discharge
  • Power supply thermal protection: 130 °C
  • Switch signaling the opening of the TAMPER housing
Power supply: 230 V AND
Libra: 4.7 kg
Dimensions: 455 x 405 x 150 mm
Manufacturer / Brand: ATTE
Guarantee: 2 lata
ATTE
NS32351
1 Item

Data sheet

Protocol
BLE
Ethernet
LIN
PoE
QUIC
Voltage
12V
240V
48V
