Power supply ATTE with 72W, 6-port PoE switch 10/100Mbps IPUPS-5-11-F

Power supply ATTE with 72W, 6-port PoE switch 10/100Mbps IPUPS-5-11-F

€1,187.28
Tax included
  • Two supply voltage values ​​available: 12VDC and 48VDC
  • Easy and quick installation service thanks to its modular structure
  • Easy expansion and scaling of the system by adding additional xPoE series switches/IP and IPB/IPUPPS
  • Installation of modules in any perforated part of the housing (raster system)
  • Space for an 18Ah battery
  • Cable entries on the back of the housing
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

5-port PoE switch in an internal housing with a buffer power supply

5 ports support Power over Ethernet (PoE)

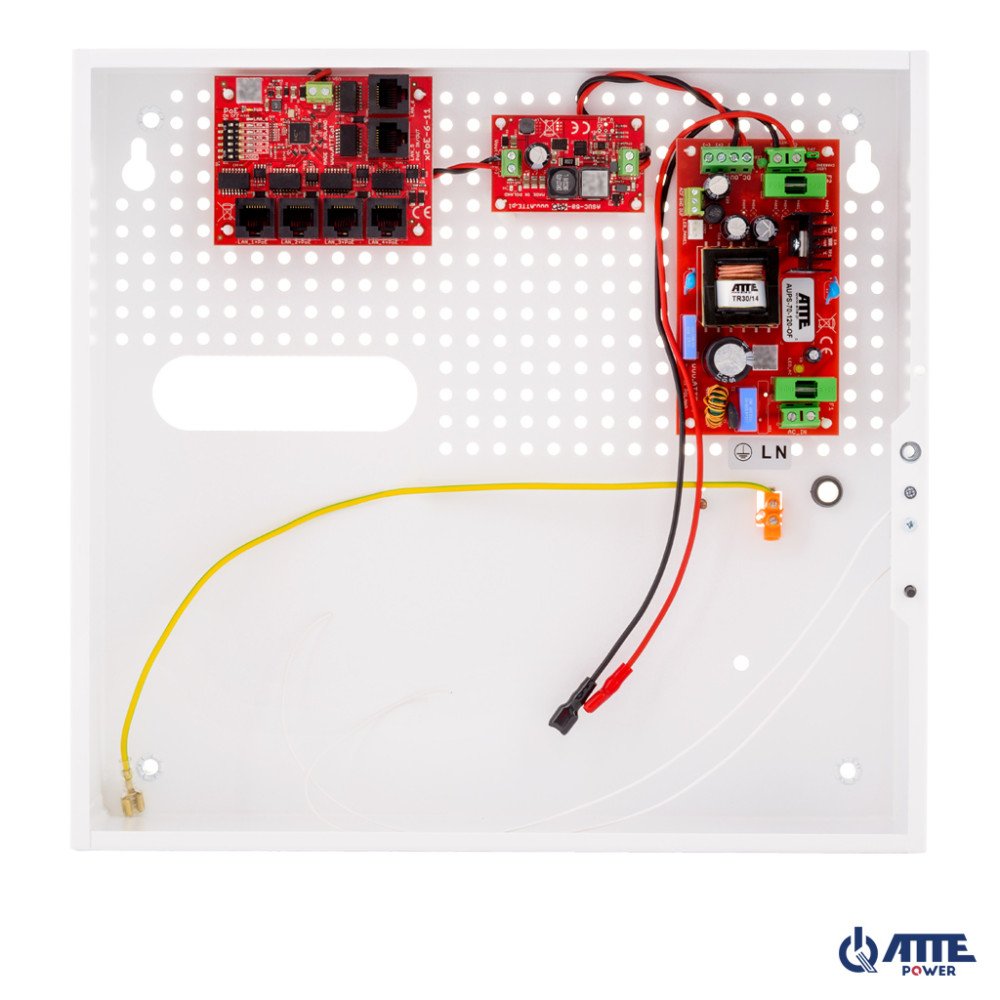

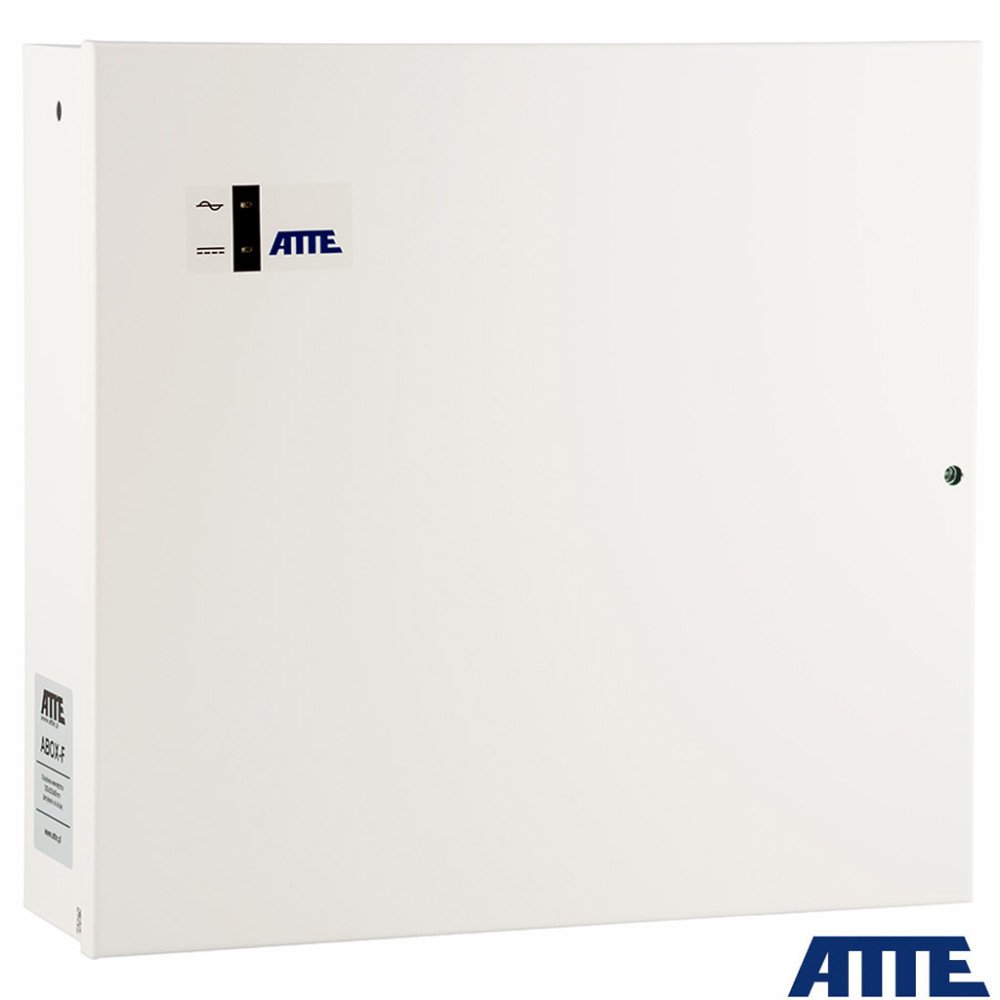

The IPUPS-5-11-F set consists of the XPOE-6-11-OF switch module, the AUPS-70-120-OF buffer power supply module and the ASUC-50-480-OF voltage converter module enclosed in the ABOX-F internal housing with space for an 18Ah battery

Buffer power supplies are designed to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V

LAN ports:
  • 1 x RJ45 10/100 Base-T - Uplink,
  • 5 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management: NO
Diody LED: AC, DC, CHARGING (battery charging), PoE
Transmission speed:
  • 10 / 100 Mb/s : 1 x Port Uplink,
  • 10 / 100 Mb/s : 5 x Port LAN PoE
Maximum output power:
  • 40 W @ Passive PoE - LAN1 ... LAN4 ports,
  • 60 W @ Passive PoE - Port LAN5,
  • 30 W @ PoE (802.3af/at) - Porty LAN1 ... LAN5
Maximum total power: 60 W
Operating modes:
  • Standard : 100 m @ 10/100 Mb/s - Porty LAN1 ... LAN6
  • Long Range : 280 m @ 10 Mb/s - Porty LAN1 ... LAN4 ; 100 m @ 10/100 Mb/s - Porty LAN5, LAN6
Selected features:
  • PoE power supply can be turned on and off independently for each of the LAN 1 ... LAN 5 ports
  • The modular design streamlines service tasks and allows for quick, easy system expansion
  • The raster module assembly system facilitates the expansion of the device with additional modules
  • Battery space: 12 V / 18 Ah
  • Battery charging current: 1 A / 2 A - (set using jumper JP1)
  • Battery - Protection against reverse polarity connection, Protection against deep battery discharge
  • OC type technical outputs signaling voltage loss at the power supply output (OUF) and voltage loss in the 230V network (ACF)
  • Power supply thermal protection: 130 °C
  • Overload protection
  • LAN PoE ports - Short circuit protection, surge protection
  • Switch signaling the opening of the TAMPER housing
  • Tightness class: IP20
Power supply: 190 ... 260 V AND
Libra: 2.4 kg
Dimensions: 325 x 305 x 100 mm
Manufacturer / Brand: ATTE
Guarantee: 3 lata
ATTE
NS32349
1 Item

Data sheet

Protocol
BLE
Ethernet
LIN
PoE
QUIC
Voltage
12V
240V
48V
IP Class
IP20
