ATTE kit for 8 IP cameras, in ABOX-R5U0 housing, 96W power supply, 10-port PoE switch (8xPoE 10/100Mbps + 2xGigabit Uplink), ele

Set of up to 8 IP cameras, in a housingABOX-R5U0, 96W power supply, 10-port PoE switch (8xPoE 10/100Mbps + 2xGigabit Uplink), electronic fuses, type IP-8-20-R5U0Key features and functions:

• 4K Ultra HD camera support
• ability to power 8 PoE 802.3at/af or PASSIVE receivers
• electronic fuse independently for each PoE channel (auto return)
• possibility of turning off the power on PoE ports
• clear optical indication of power supply and data transmission status
• wide input voltage range (10...56VDC)
• output voltage = input voltage
• up to 40W power on PoE ports (LAN_1 to LAN_8)
• easy and quick commissioning without the need to configure parameters
• high efficiency of the power supply module (90%)
• easy and quick installation service thanks to its modular structure
• easy expansion and scaling of the system by adding additional xPoE series switches/IP and IPB/IPUPPS
• installation of modules in any perforated part of the housing (raster system)
• main cable entries on the back of the housing
• additional cable entry is provided in the space between the body and the housing cover
• convenient, tool-free assembly and disassembly of the masking cover (push-in)
• graphite color selected in such a way that the housing fits both dark and light wardrobes
• housing equipped with a connector and an electrical cube with a fuse
• Possibility to keep spare cables inside the housing

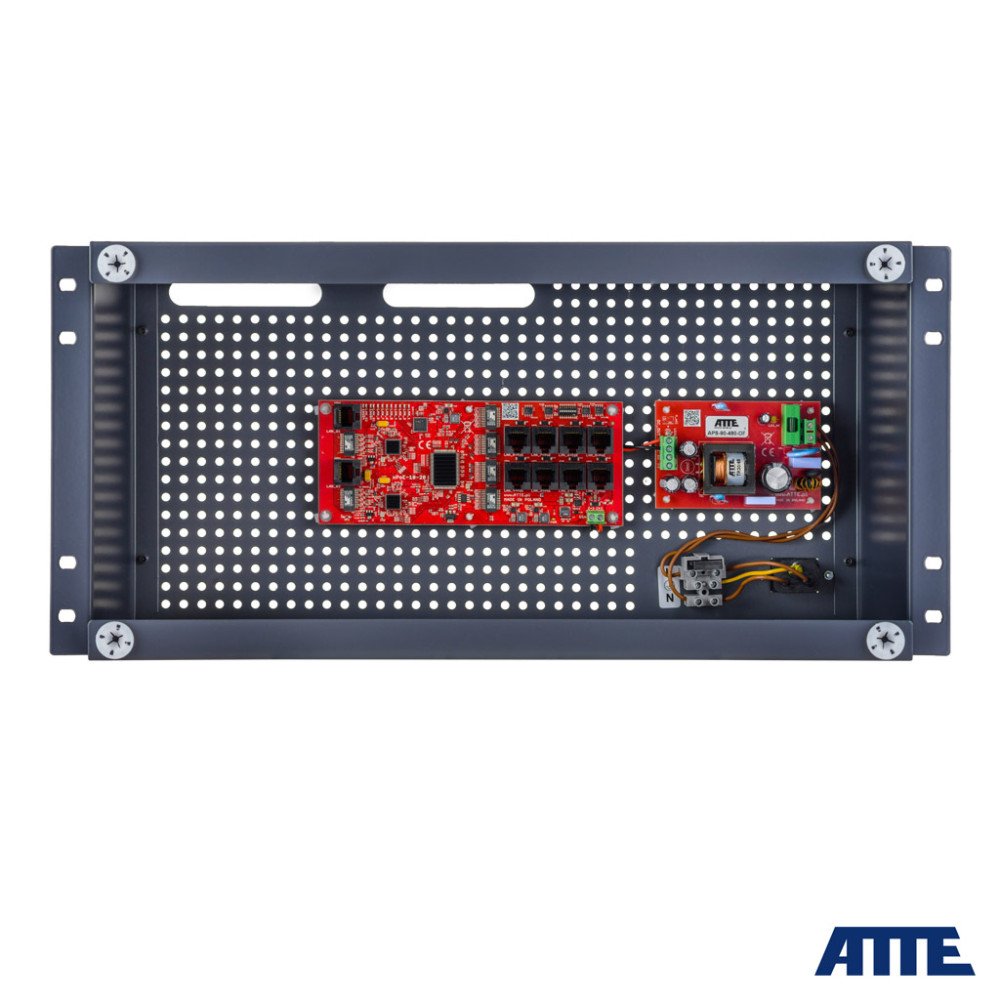

The set includes:

• 1x ABOX-R5U0 housing
• 1x APS-90-480-OF power supply
• 1x switch xPoE-10-20-OF

Comments:

• housing cover - to remove, pull the cover towards you (PULL)
• housing cover - to mount, "push" the cover by guiding the black handles to the white mounting slots (PUSH)

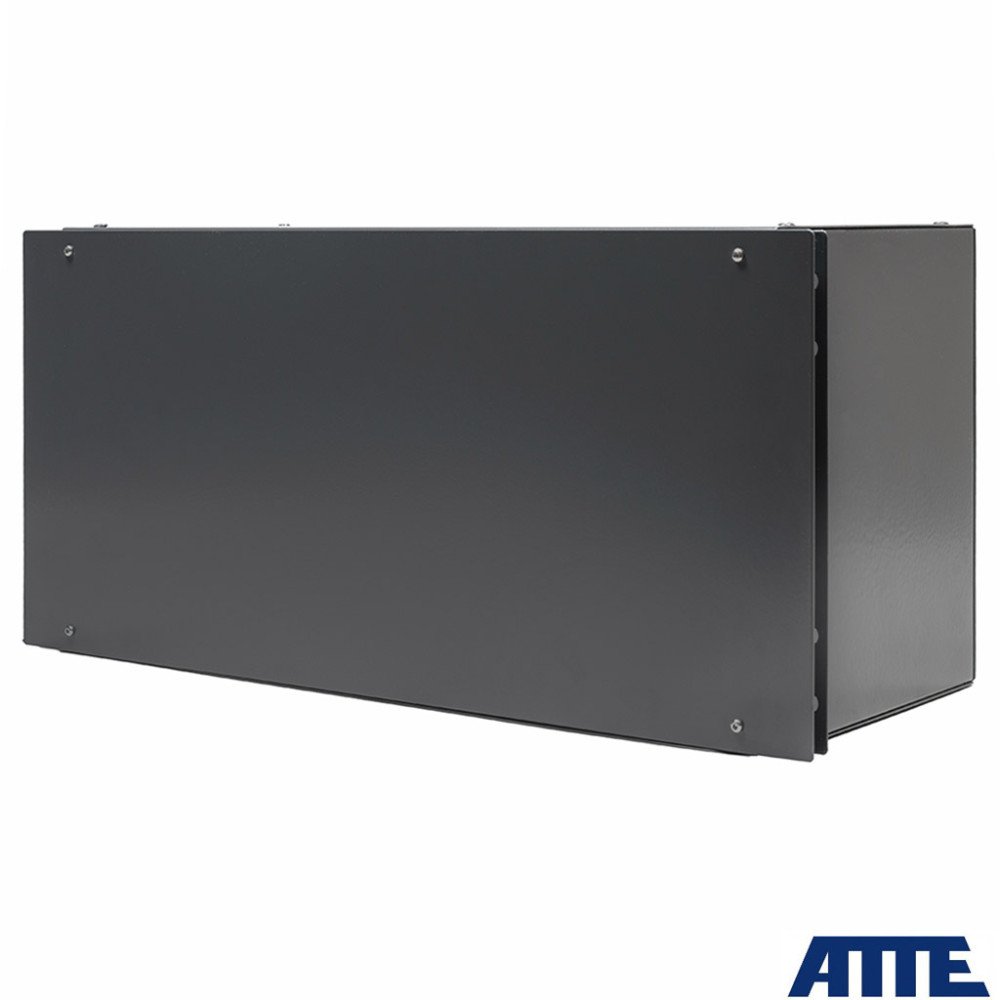

IP-8-20-R5U0is a ready-made kit dedicated to powering an IP CCTV system consisting of:8 room IP. Electronic protection of PoE outputs ensures continuous operation of the entire system in the event of a short circuit or overload of individual power supply branches, and automatic voltage recovery after the failure disappears. The device is used in systems requiring increased network bandwidth, such as CCTV monitoring4K Ultra HD. Sets with PoE switchare designed to work with IP cameras and other network devices powered by the PoE 802.3at/af and PoE PASSIVE standards.ABOX-R5U0 housingallows the installation of the full ATTE product offer, previously dedicated to housings, in a RACK telecommunications cabinetindoor and outdoor ABOX series. The well-thought-out and unique design on the Polish market allows devices to be installed in one housing, along with buffer power supply and batteries. The body is made of steel sheet and the masking cover is made of light aluminum sheet. Both elements are powder-coated in a semi-matt graphite RAL 7024 color. Production using a modern technological line ensures the highest quality and precision of workmanship. ABOX-R5U0 has special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing. TECHNICAL DATA:

LAN ports	10 RJ45 ports (8xLAN+PoE 10/100Mbps, 2x Gigabit UpLink)
Supported PoE receivers (standard / max power)	802.3af - do 15,4W LAN_1...LAN_8 (Vin 48VDC) 802.3at - do 30W LAN_1...LAN_8 (Vin 48VDC) PoE PASSIVE - do 40W LAN_1...LAN_8
PoE outputs (standard / power mode)	LAN_1...LAN_8 PoE PASSIVE, mode B (4,5+) (7,8-)
PoE output protection (overcurrent/short circuit)	LAN_1...LAN_8 0.75A / electronic (auto-return)
SW1 microswitches (DIP switch)	switches 1...8 "PoE ON/OFF" - PoE power supply on ports LAN_1...LAN_8
AC adapter (type / type)	impulsowy SMPS / APS-90-480-OF
Power supply output protection (overcurrent/short circuit)	9A, electronic (after a short circuit, a restart of the power supply may be required)
Power supply thermal protection	TSD (thermal shutdown) 130°C, requires restart
Power supply input voltage range / input protection	180...240VAC / T3.15A fuse F1
Power supply output power (continuous)	96W
Power supply efficiency	92% @90W
Output voltage of the power supply (PoE camera power supply)	48V +/-2%
Housing assembly	19" RACK cabinet, M6 screws (included)
Installation of devices inside the housing	4.8mm system holes in a 10.8mm pitch
Operating temperature range	-10°C...+40°C
Housing (type / material / color / protection / cable entries)	ABOX-R5U0 / metal / RAL 7024 graphite / back of the housing and distance to the front cover
Dimensions / net weight / degree of protection	5U 180mm (440x220x180mm) / 3,2kg / IP20
