- The miniature design allows installation in the camera base
- Powered by another PoE switch in the 802.3at, 802.3af or Passive standard (PoE IN port)
- Possibility to power up to 2 PoE 802.3at/af or Passive receivers (PoE OUT ports)
- Cascade power supply (one switch powers the next)
- Amplifies and splits the network signal (fully functional 100Mbps switch)
- Up to 40W total power

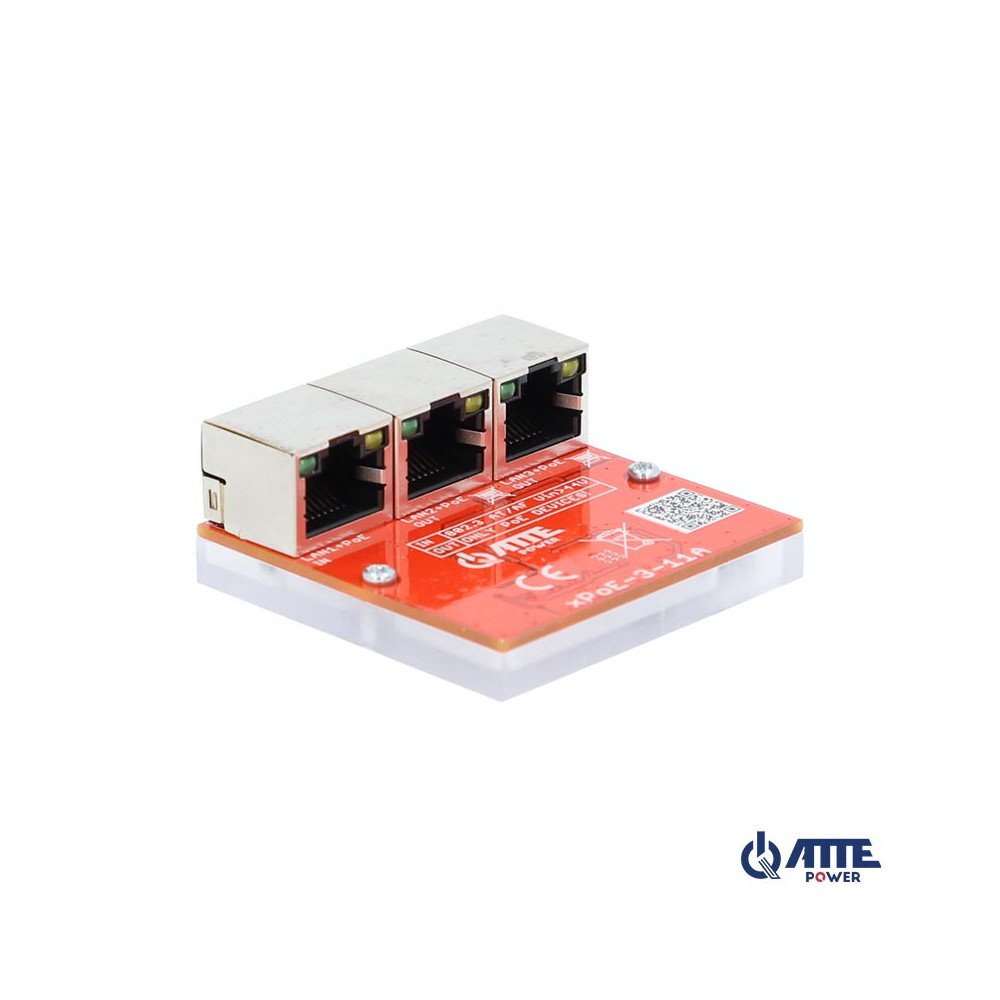

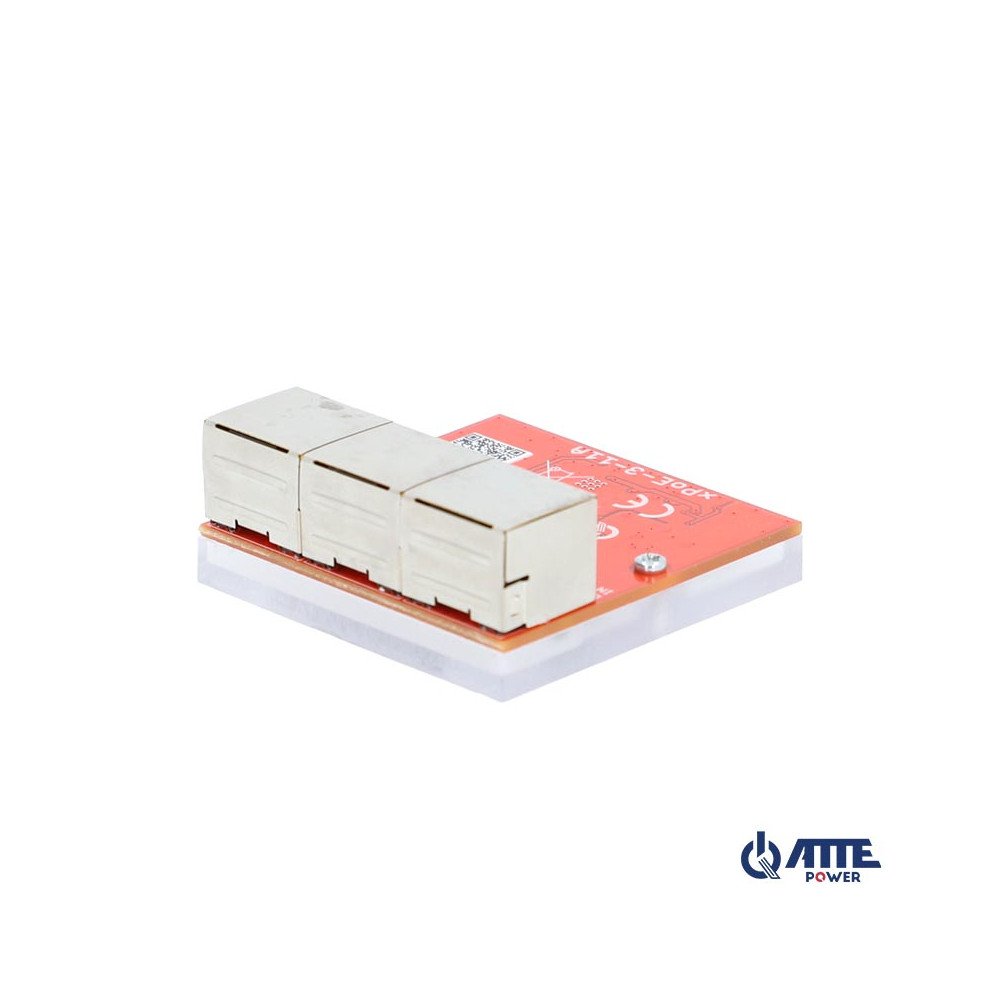

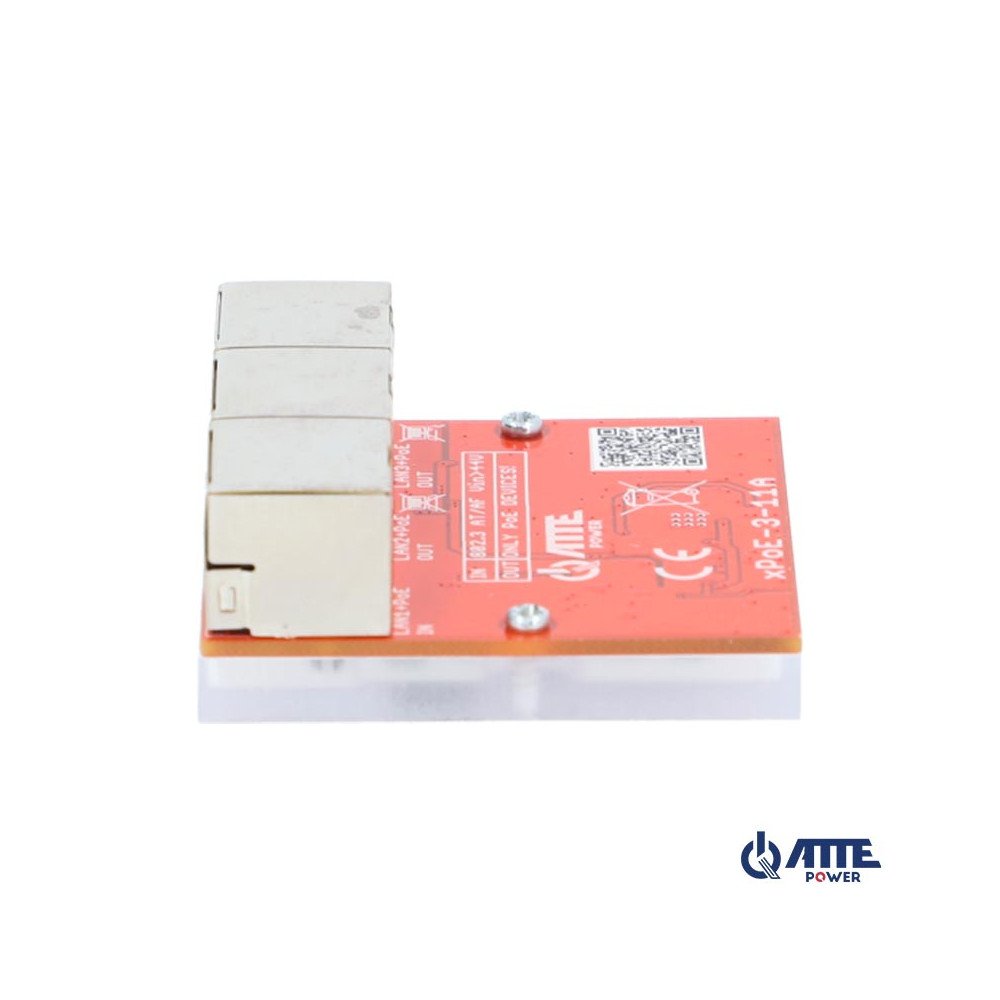

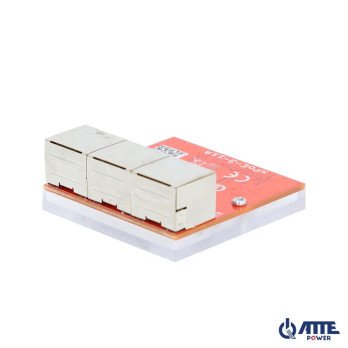

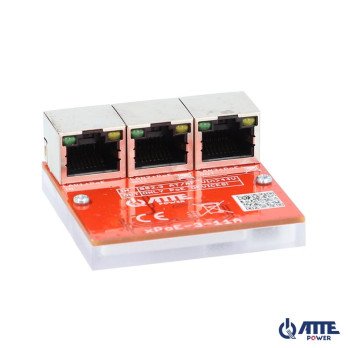

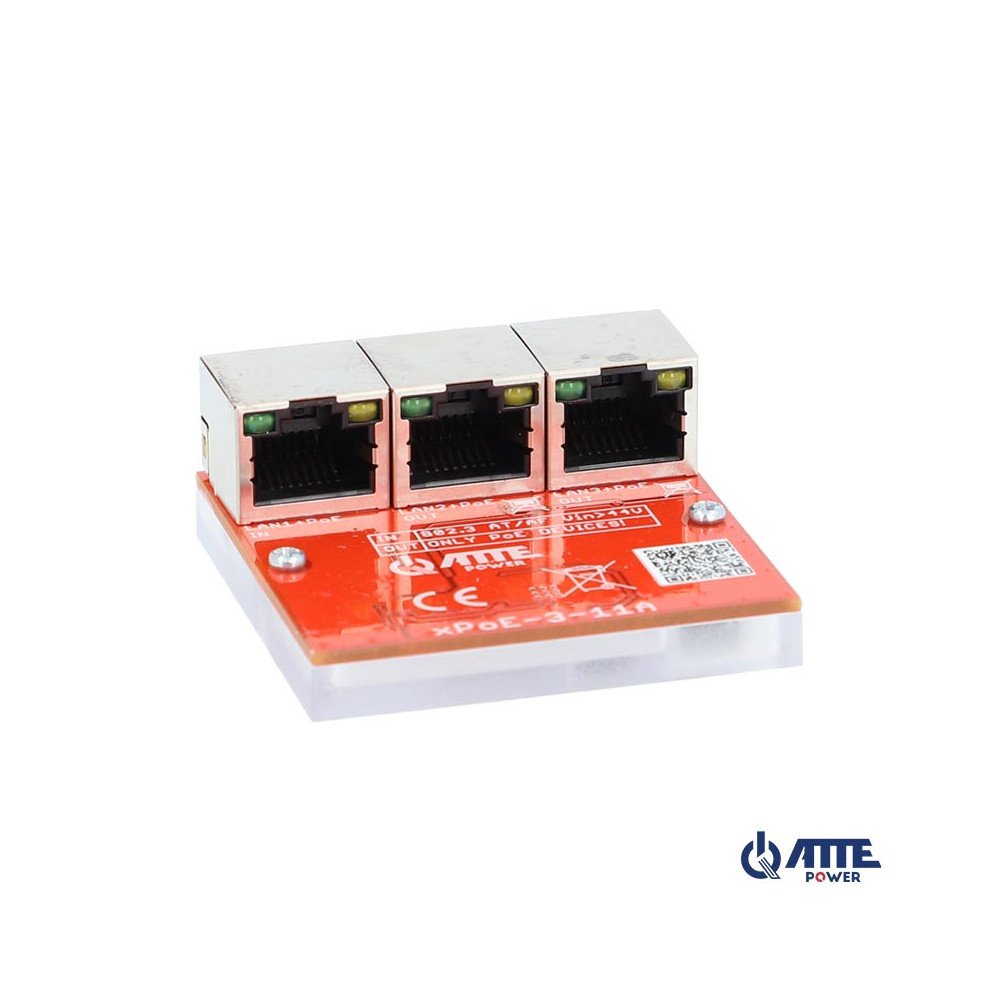

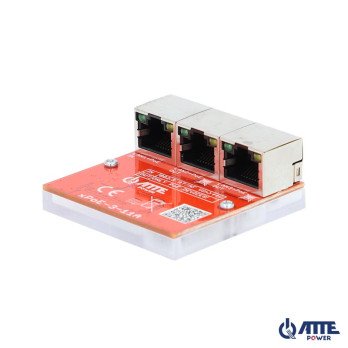

XPOE-3-11A Switch PoE 3 port 10/100Mbps extender
€342.08
Tax included
- The miniature design allows installation in the camera base
- Powered by another PoE switch in the 802.3at, 802.3af or Passive standard (PoE IN port)
- Possibility to power up to 2 PoE 802.3at/af or Passive receivers (PoE OUT ports)
- Cascade power supply (one switch powers the next)
- Amplifies and splits the network signal (fully functional 100Mbps switch)
- Up to 40W total power
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The small dimensions of the device allow for convenient installation in an electrical box or camera holder
PoE power supply option in accordance with the 802.3at standard makes the device even more universal and easier to install

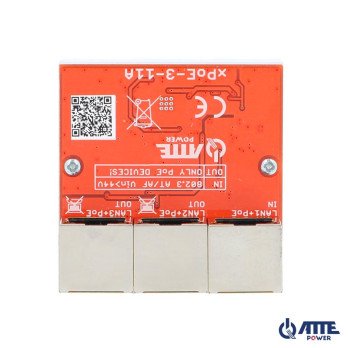

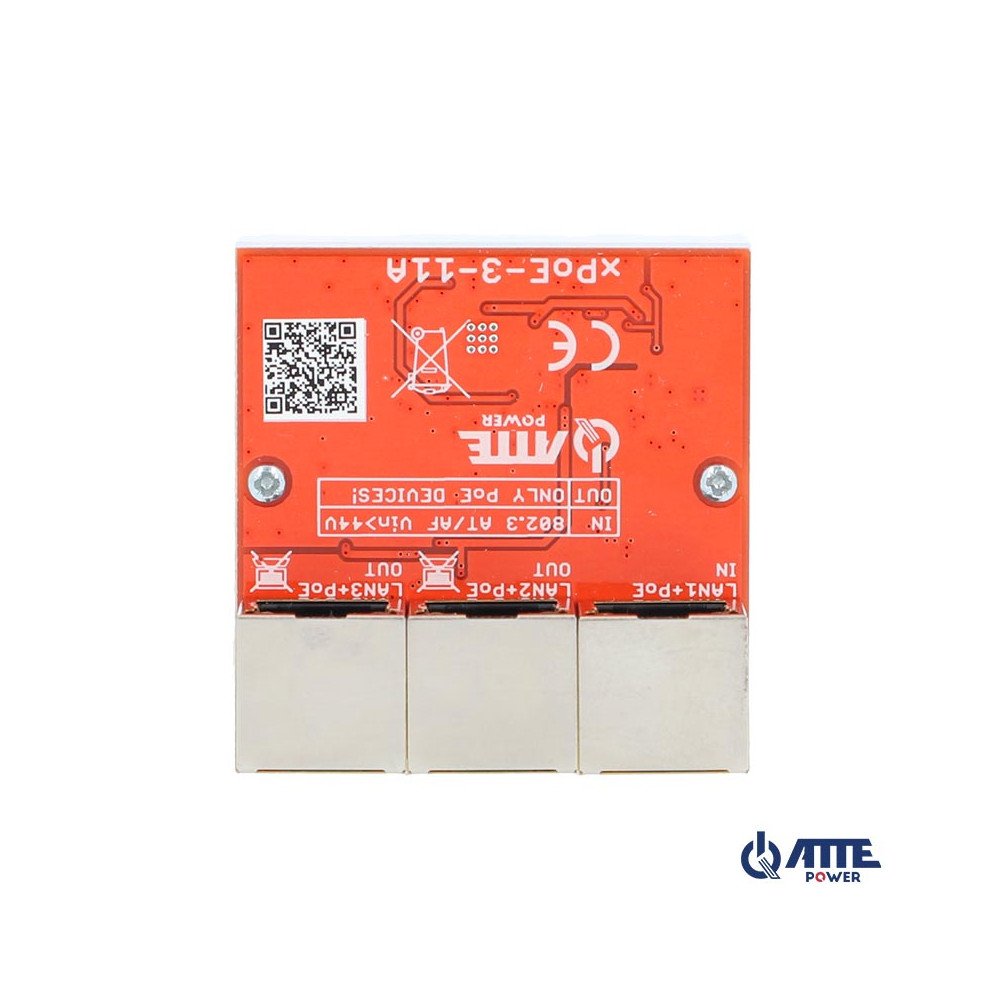

LAN port 1 serves as an Uplink port and PoE power input (standard: 802.3af, 802.3at or Passive PoE)
LAN 2 and LAN 3 ports allow you to power the connected devices via Passive PoE
Attention!
To power devices compliant with the PoE 802.3af/at standard, the input voltage cannot be lower than 44V DC
Do not connect devices that are not powered by PoE to the LAN 2 and LAN 3 ports
| LAN ports: |
|
| Management: | NO |
| Diody LED: | LAN, PoE |
| Transmission speed: | 10 / 100 Mb/s : 1 Port LAN + 2 Porty LAN PoE |
| Maximum output power: | 50 W @ port PoE |
| Maximum total power: | 50 W |
| Selected features: |
|
| Power supply: |
|
| Power consumption: | 0.5 W |
| Libra: | 0.03 kg |
| Dimensions: | 73 x 52 x 23 mm |
| Manufacturer / Brand: | ATTE |
| Guarantee: | 3 lata |
