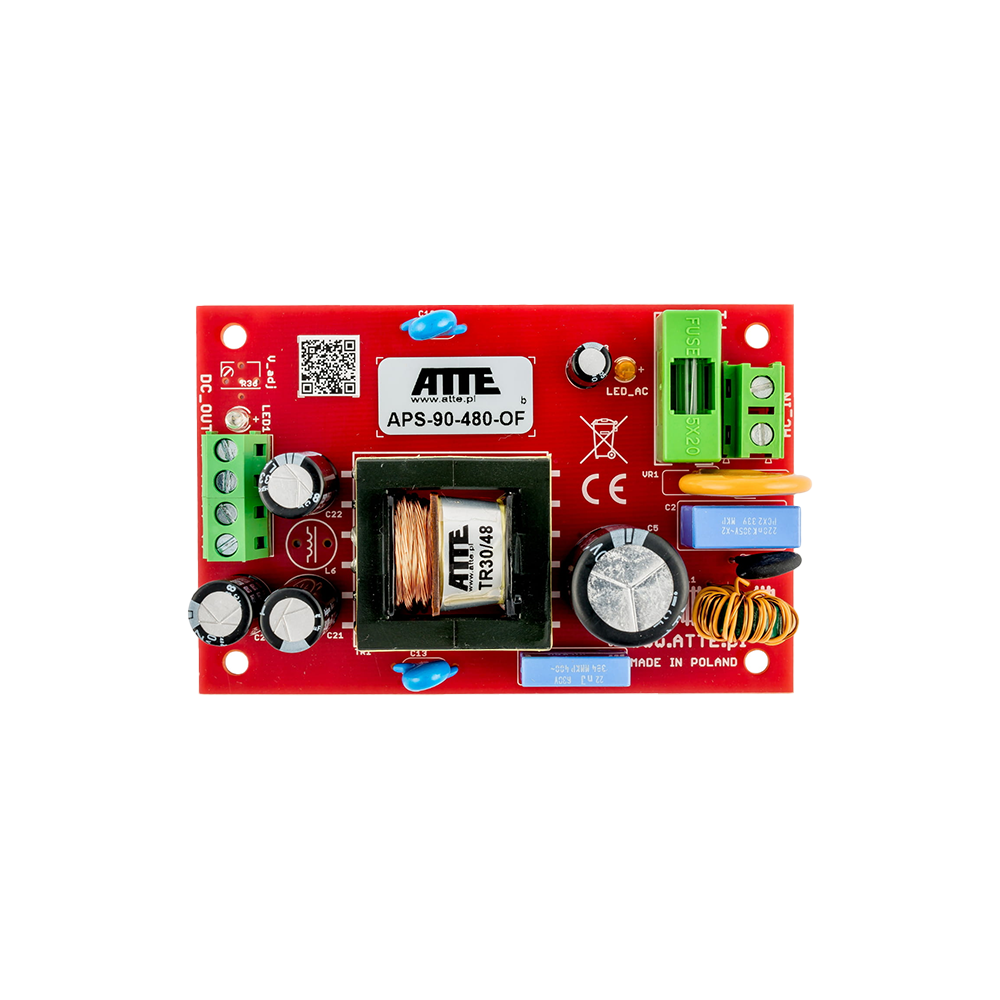

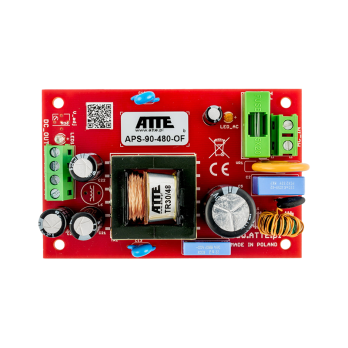

ATTE SMPS power supply unit, Vin 230VAC, Vout 48VDC, Iout 2A, Pout 96W, built-in module, type ATTE APS-90-480-OF

SMPS power supply unit, Vin 230VAC, Vout 48VDC, Iout 2A, Pout 96W, built-in module, type APS-90-480-OF APS-90-480-OFis a power supply that provides stable DC voltage for demanding electronic devices, including: CCTV cameras, recorders, etc. Thanks to the integration of overvoltage and short-circuit protection, it is especially recommended for operation in monitoring systems that require high power supply reliability. The power supply system is a highly efficient impulse converter that ensures isolation between the 230 VAC network and the powered device.OF (Open Frame) constructionallows the device to be installed in any housing, but the most convenient way of installation is dedicated ABOX series housings and mounting plates equipped with system holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any part of the housing or mounting plate. KEY FEATURES:

• a complete solution for powering CCTV devices in a small housing
• low heating of the inside of the housing thanks to the high efficiency of the power supply
• resistance to short circuits and overloads
• resistance to overvoltages both from the 230 VAC network and the power supply output
• easy installation in housings with holes in a 10.8 mm pitch

TECHNICAL DATA:

Output voltage	48 VDC +/-3%
Output current	2A
Power supply power	96W
Efficiency	93% @90W
Supply voltage	190 ... 260 VAC, 50 Hz
Power supply input protection	3.15A slow-blow fuse Surge protection
Power supply output protection	Electronic overload protection at 3 A (each power supply separately) Electronic short circuit protection (after a short circuit, a restart of the power supply may be required) Surge protection
Work signaling	LED_AC (yellow) - presence of mains voltage LED1 (blue) - presence of output voltage
Housing design	None - built-in module
Installation	Snap-on spacer pins, mounting holes in 10.8 mm pitch
Operating temperature	-25 ... +50°C
Dimensions	100 x 65 x 40 mm
Libra	0,11 kg
