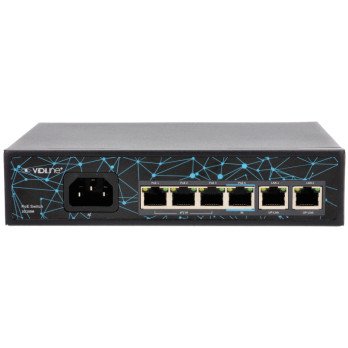

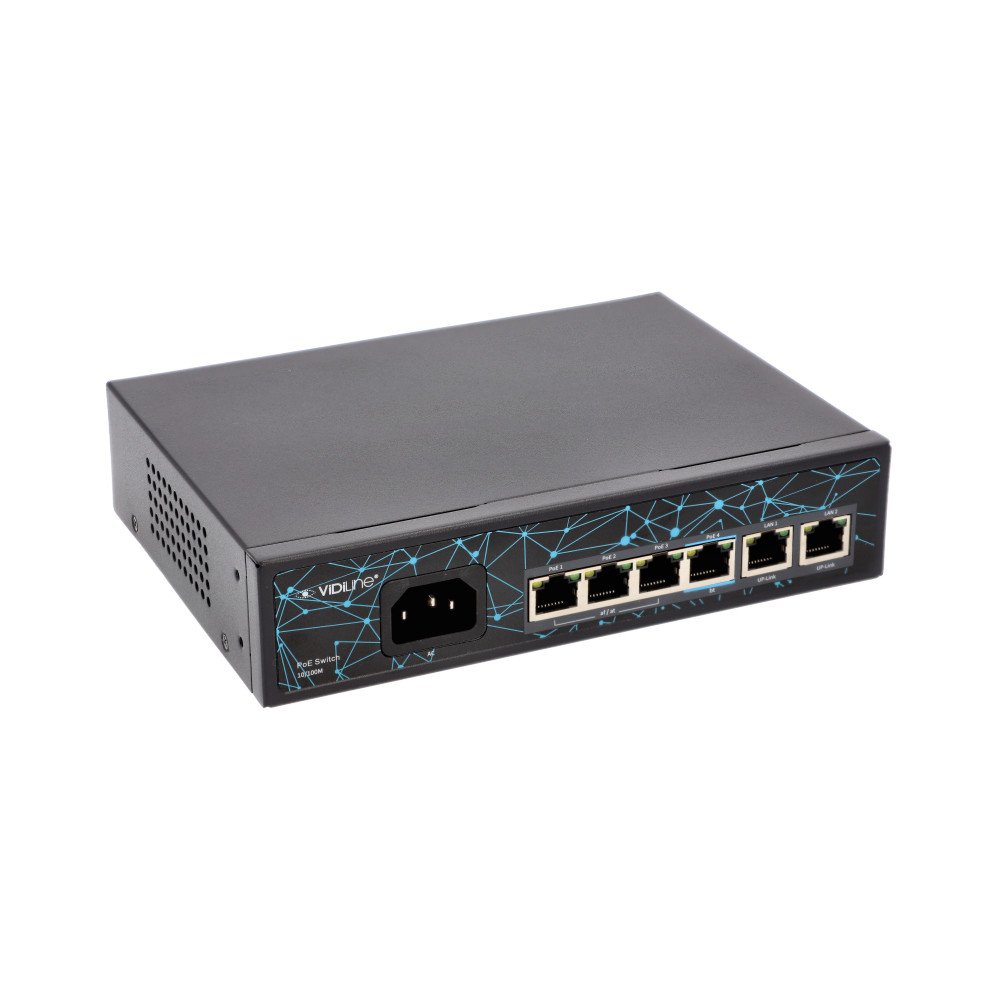

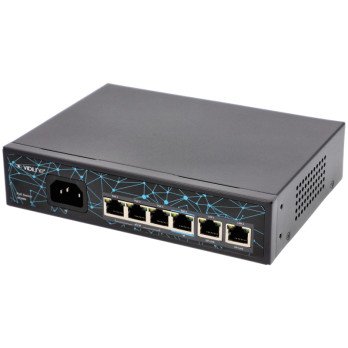

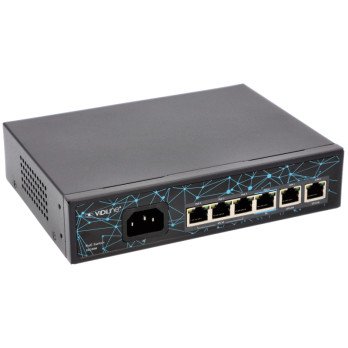

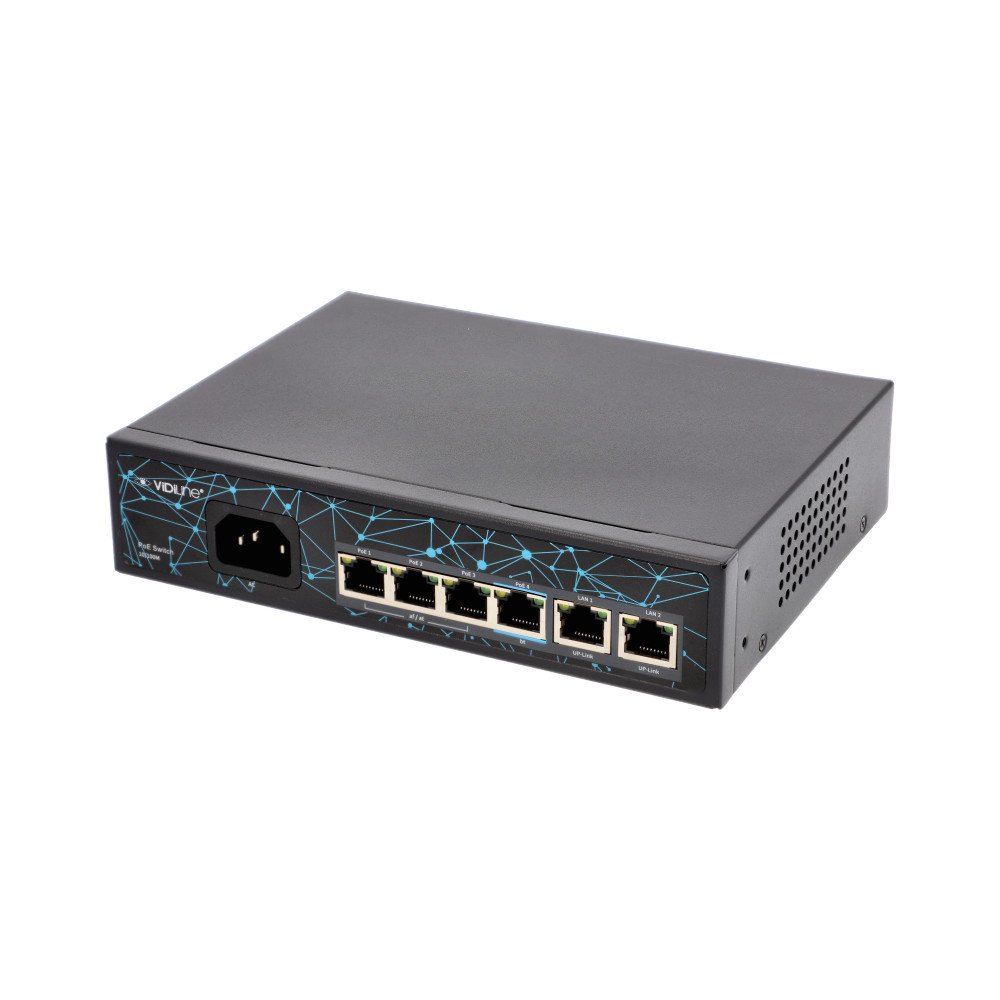

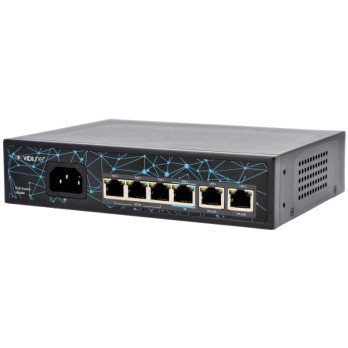

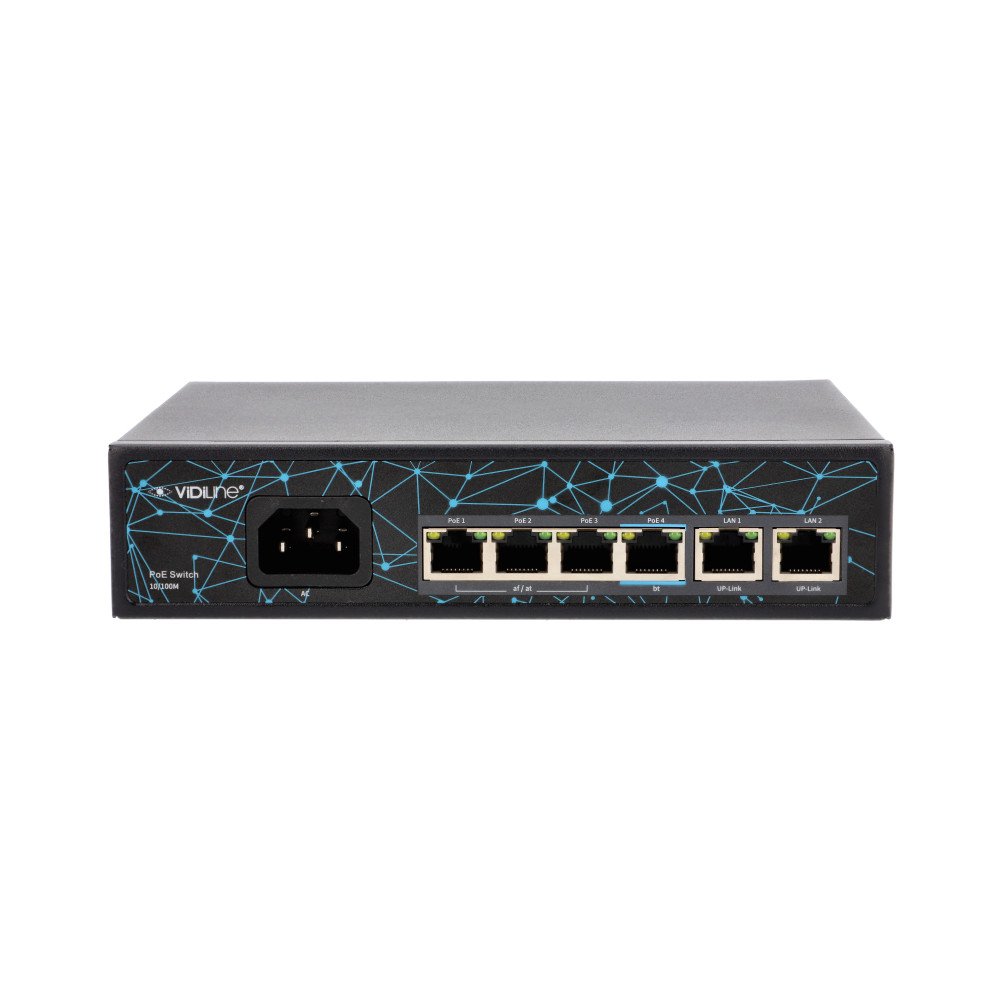

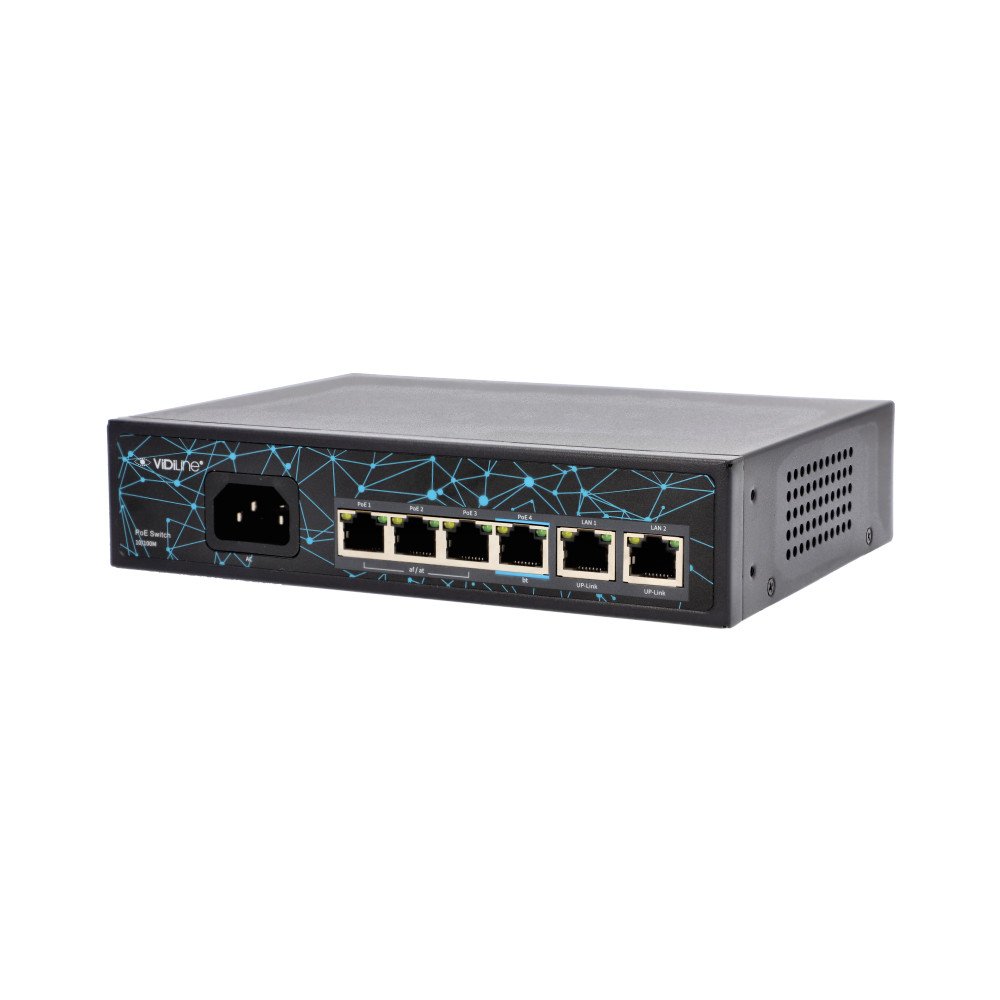

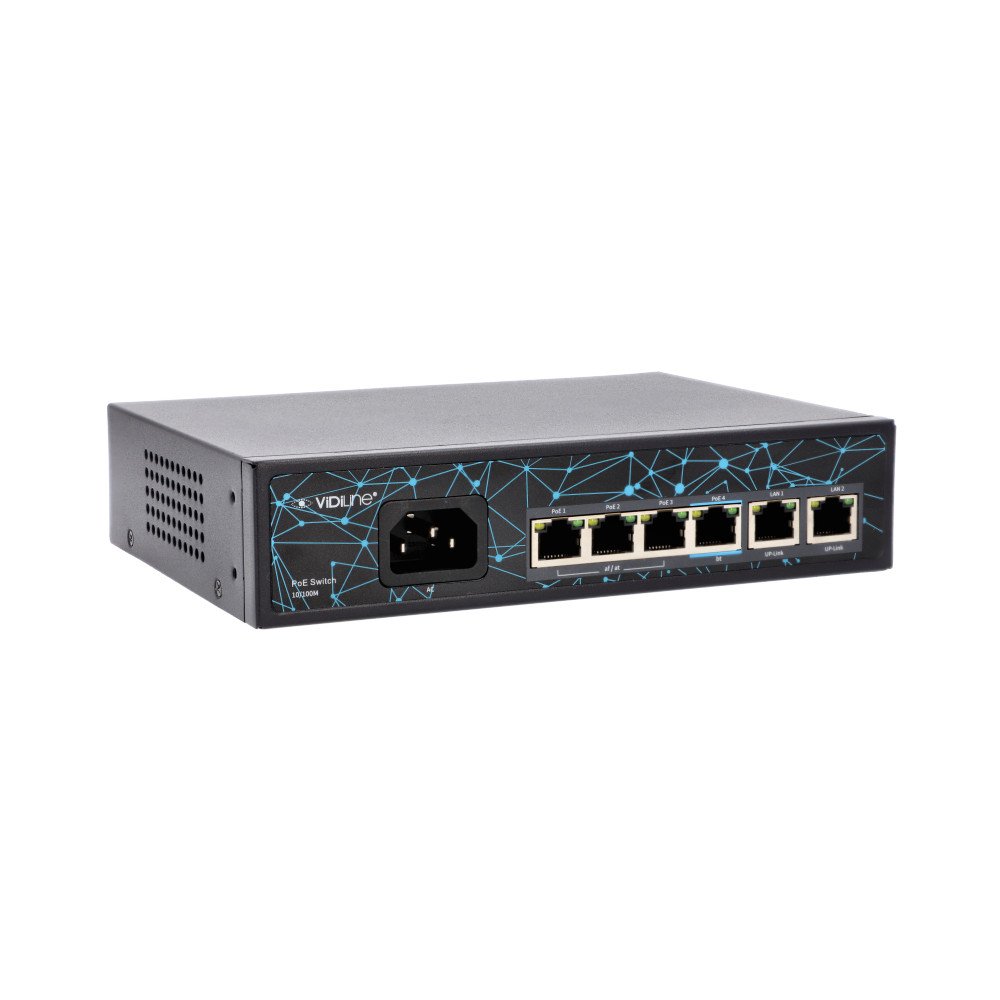

Switch Vidiline 4x PoE 100Mb/s 2x RJ45 Uplink 100Mb/s 65W VIDI-F0420FBL_V2

• PoE power: 65W
• Power supply for 4 devices via twisted pair cable compliant with the 802.3af/at/bt standard
• One 802.3.bt port up to 60W
• 6kV surge protection and 8kV ESD protection
• AI function
• Brackets for mounting in a 19" RACK cabinet

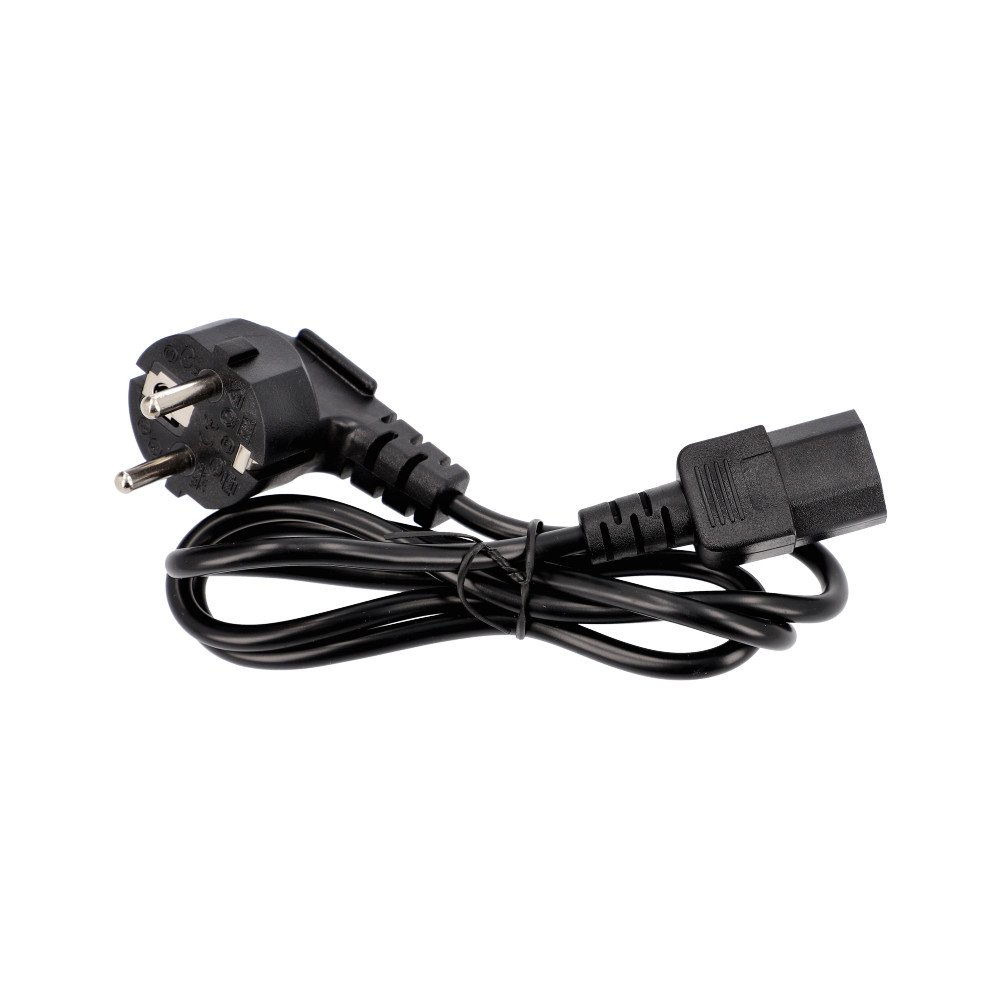

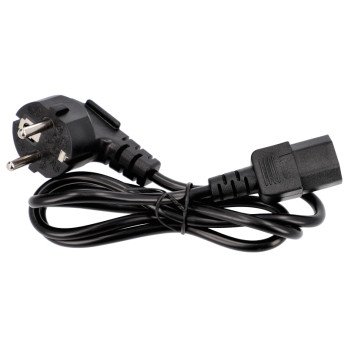

• Angled power cord

Detailed specifications can be found in the catalog card available in the attachments below.

A PoE (Power over Ethernet) switch is a type of network switch that provides the ability to supply electrical power to PoE-compatible devices. The PoE standard allows the transmission of electrical power and data via one Ethernet cable. The PoE switch has special ports that can supply PoE power to devices such as IP surveillance cameras or video intercoms.

Switches in a standard housing are intended for installation in RACK type ICT housings. These are switches typically in a metal housing with the option of mounting special cabinet handles.

Note: Angled cable and holders for mounting on a rail in a 19" RACK cabinet are included in the set.

The switch is equipped with a special Extend Mode, which was designed for long-distance communication and power supply via PoE technology up to 200 m compared to the standard 100 m. This connection requires the use of a twisted pair made of CU copper. Thanks to this mode, it is possible to transmit data and power over longer distances, making it an ideal solution for devices located in large areas. An important aspect is the fact that this function is available only on selected ports in the switch, which allows for flexible network and power management. Additional information in the catalog card.

The switch has an RJ45 port in the PoE 802.3 bt standard. This port allows you to supply up to 60W of power to the receiver. Thanks to this, we can power even the most demanding devices such as large PTZ cameras, WiFi access points or entire cascades of devices using additional distributors.

The advanced feature monitors the PoE device's network connection to see if it is active. When connecting a device powered by PoE, the AI ​​function will reset this device in the event of a communication failure to restore device functionality.

The switch has high-class overvoltage protection up to 6 kV and ESD protection up to 8 kV, which can briefly connect the overvoltage to ground, thus protecting the rest of the system. Such surges can be caused by a variety of factors, including lightning, power grid surges, and induced voltages in circuits.
