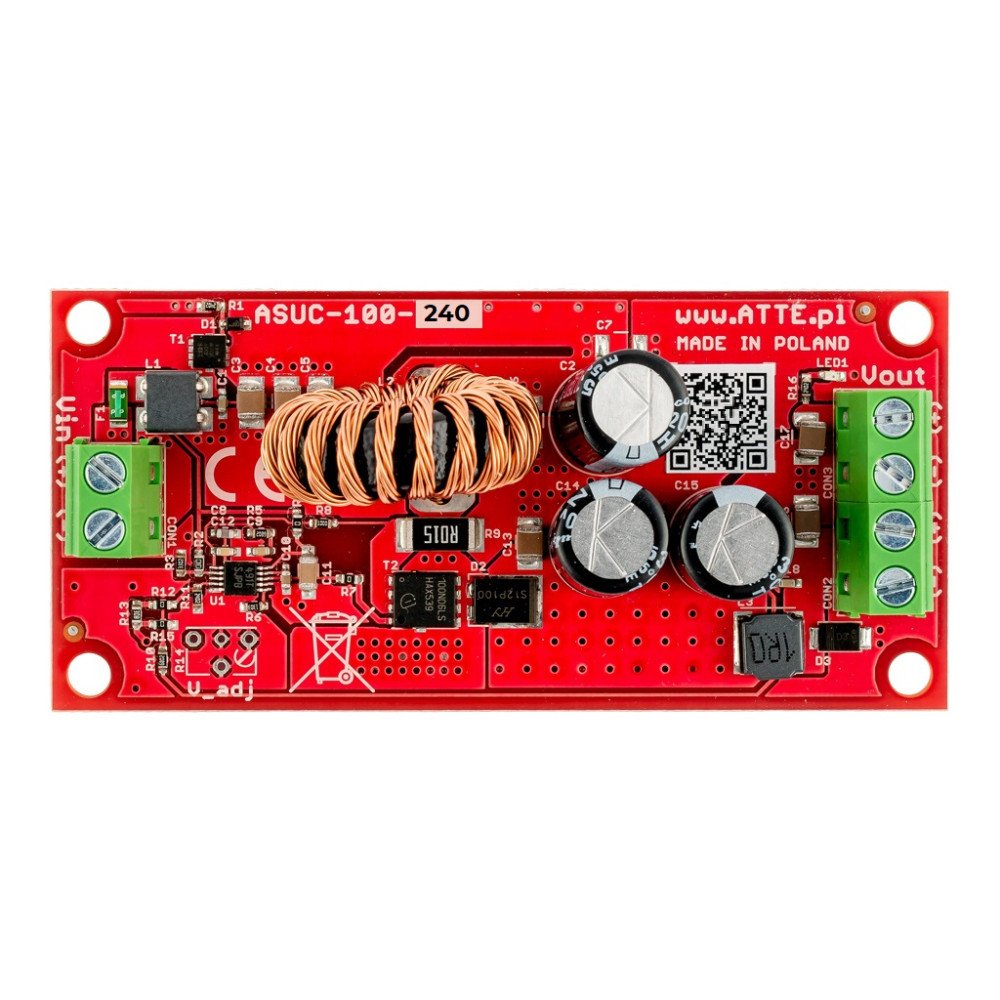

DC/DC converter ATTE ASUC-100-AD0-OF

DC/DC converter, voltage boost, Vin 10V...30VDC, Vout 12...48VDC, Pout 100W, built-in module, type ASUC-100-AD0-OF

KEY FEATURES:

• wide supply voltage range
• possibility of precise regulation of the output voltage in a wide range
• low heating of the device thanks to the high efficiency of the converter
• high output power with small module dimensions
• resistance to reverse polarity of the supply voltage

ASUC-1000-AD0-OFis a high-efficiency, non-isolated DC/DC converter that increases voltage. The converter allows operation in a wide range of input voltages and has precise output voltage regulation. A typical application of the mmmodule is to generate a PoE48 VDC supply voltage from 12 VDC or 24 VDC from a buffer power supply.

OF (Open Frame) constructionallows the device to be installed in any housing, but the most convenient way of installation is dedicated ABOX series housings and mounting plates equipped with system holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing or mounting plate. TECHNICAL DATA:

Output voltage	12...48 VDC
Output power	120W @24V, 80W @12V
Efficiency	93% @Vin=12V, Pout=80W
Input voltage range	10...30 VDC
Converter no-load current	27mA @12V
Work signaling	LED1 - presence of output voltage
Housing design	None - built-in module
Installation	Snap-on spacer pins, mounting holes in 10.8 mm pitch
Operating temperature range	-20...+40°C
Dimensions	40 x 83 x 27 mm
Libra	0,036kg
