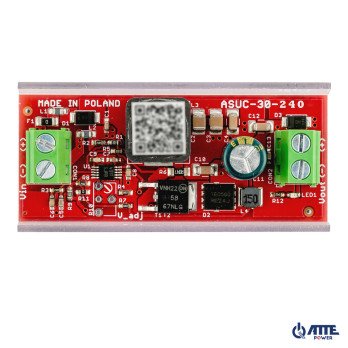

DC/DC converter ATTE ASUC-30-240-OF

DC/DC converter, voltage boost, Vin 10...24VDC, Vout 24VDC, Pout 30W, built-in module, type ASUC-30-240-OFKEY FEATURES:

• wide supply voltage range
• fixed output voltage 24 VDC
• low heating of the device thanks to the high efficiency of the converter
• high output power with small module dimensions
• resistance to reverse polarity of the supply voltage

ASUC-30-240-OFis a high-efficiency, non-isolated DC/DC converter that increases voltage. The converter allows operation in a wide range of input voltages and has a fixed output voltage of 24 VDC. A typical application of the module is to generate 24VDC supply voltage from 12VDC from a buffer power supply.

OF (Open Frame) constructionallows the device to be installed in any housing. The module is delivered with a plastic mounting base and high-quality self-adhesive tape. The smallest of our OF modules do not have system mounting holes in a 10.8 mm pitch due to their small dimensions. TECHNICAL DATA:

Output voltage	24VDC +/-3%
Output power	30W @12V
Efficiency	90% @Vin=12V,Pout=25W
Supply voltage	10...30 VDC
Converter no-load current	18mA @12V
Work signaling	LED1 - presence of output voltage
Housing design	Built-in module mounted on a plastic base with self-adhesive tape
Installation	Self-adhesive tape
Operating temperature range	-20...+40°C
Dimensions	25 x 60 x 16mm
Libra	0,02 kg
