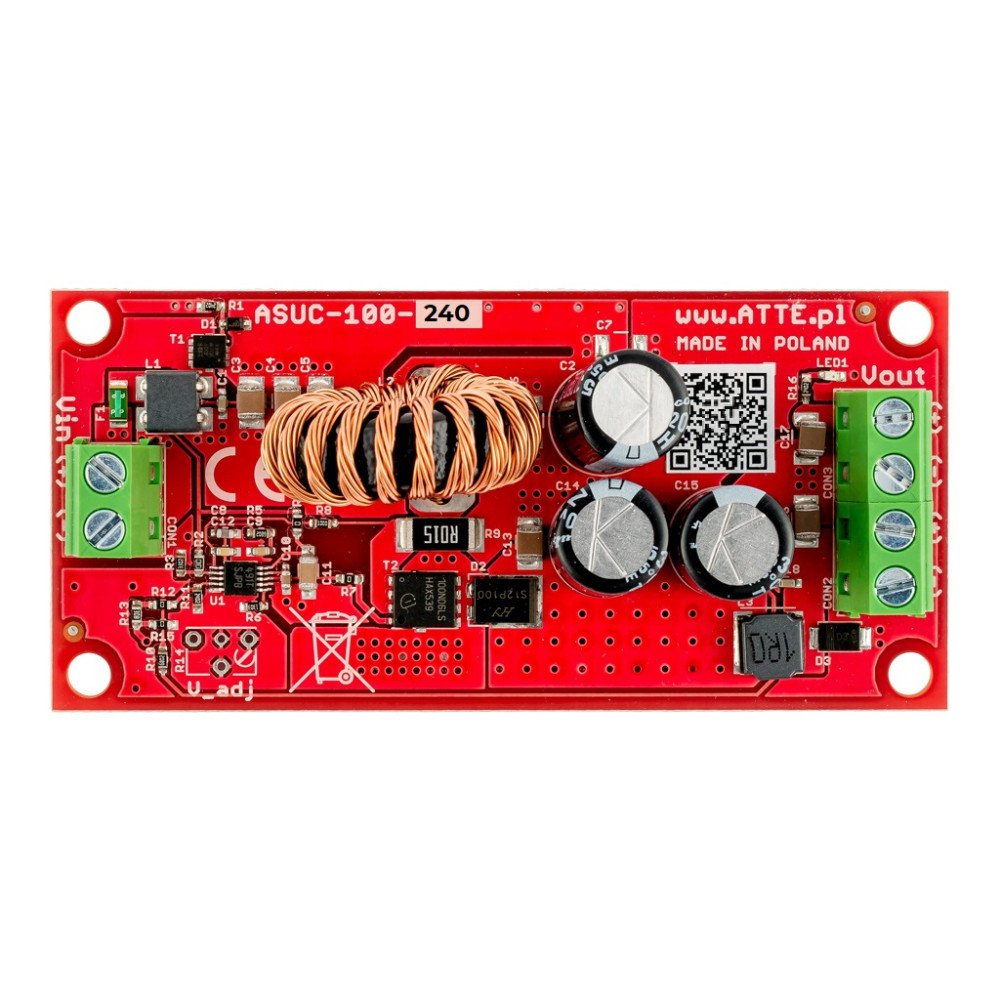

DC/DC converter ATTE ASUC-100-240-OF

DC/DC converter, voltage booster, Vin 10...24VDC, Vout 24VDC, Pout 100W, built-in module, type ASUC-100-240-OF

KEY FEATURES:

• wide supply voltage range
• fixed output voltage 24 VDC
• low heating of the device thanks to the high efficiency of the converter
• high output power with small module dimensions
• resistance to reverse polarity of the supply voltage

ASUC-100-240-OFis a high-efficiency, non-isolated DC/DC converter that increases voltage. The converter allows operation in a wide range of input voltages and has a fixed output voltage of 24 VDC. A typical application of the module is to generate a 24 VDC supply voltage from a 12 VDC voltage coming from a buffer power supply.

OF (Open Frame) constructionallows the device to be installed in any housing, but the most convenient way of installation is dedicated ABOX series housings and mounting plates equipped with system holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing or mounting plate. TECHNICAL DATA:

Output voltage	24VDC +/-2%
Output power	120 W @24V, 80 W @12V
Efficiency	93% @Vin = 12 V, Pout = 80 W
Supply voltage	10 ... 24 VDC
Converter no-load current	27mA @12V
Work signaling	LED1 - presence of output voltage
Housing design	None - built-in module
Installation	Snap-on spacer pins, mounting holes in 10.8 mm pitch
Operating temperature range	-20...+40°C
Dimensions	40 x 83 x 27 mm
Dimensions	0,036 kg
