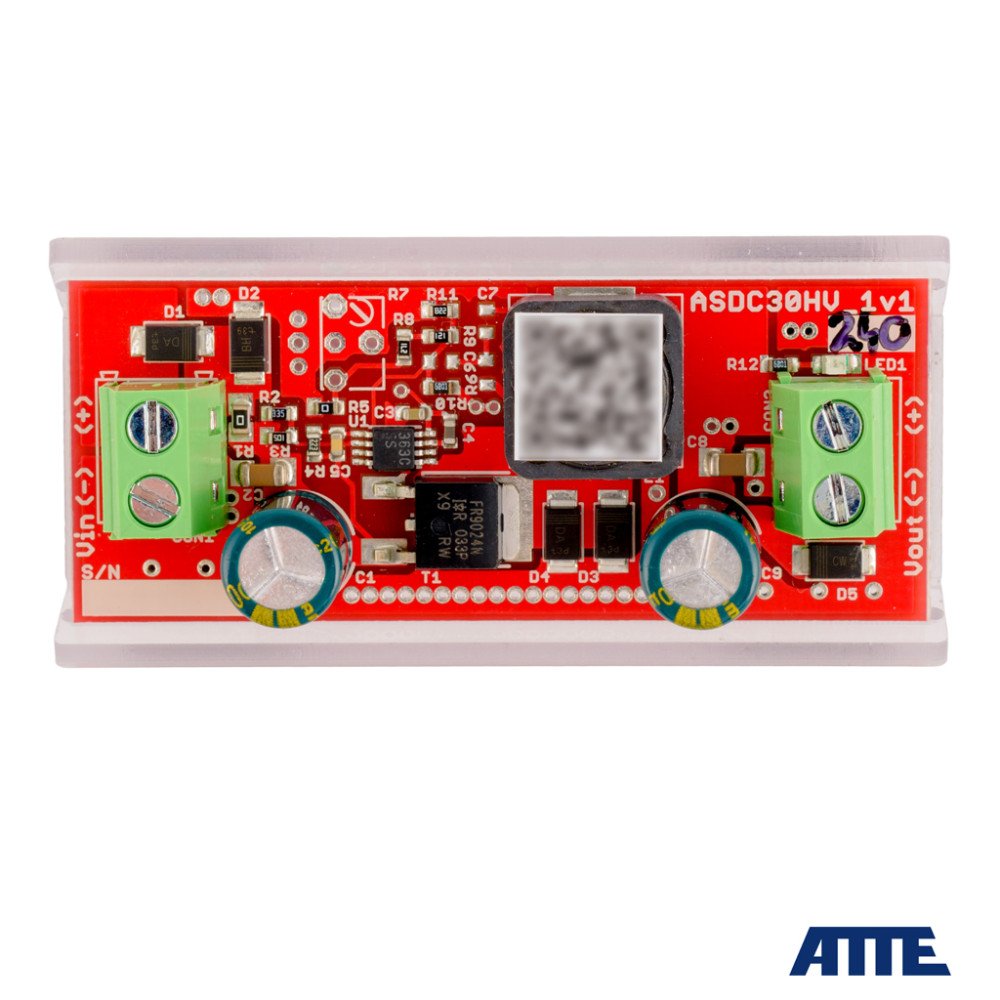

DC/DC converter, step-down, Vin 24…50VDC, Vout 24VDC, Iout 1.3A, built-in module, ATTE type ASDC-30-240-OF
DC/DC converter ATTE ASDC-30-240-OF
€95.88
Tax included
DC/DC converter, step-down, Vin 24…50VDC, Vout 24VDC, Iout 1.3A, built-in module, ATTE type ASDC-30-240-OF
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
DC/DC converter, step-down, Vin 24…50VDC, Vout 24VDC, Iout 1.3A, built-in module, type ASDC-30-240-OF
KEY FEATURES:
- solution for powering monitoring devices requiring 24 V from a 48 V PoE line
- wide input voltage range
- small module size
DC/DC converters from the ASDC group are high-efficiency voltage-lowering modules. The device provides stable power supply for elements of alarm systems, cameras, WLAN devices, etc. It is used to power remote electronic devices via a standard twisted pair cable.

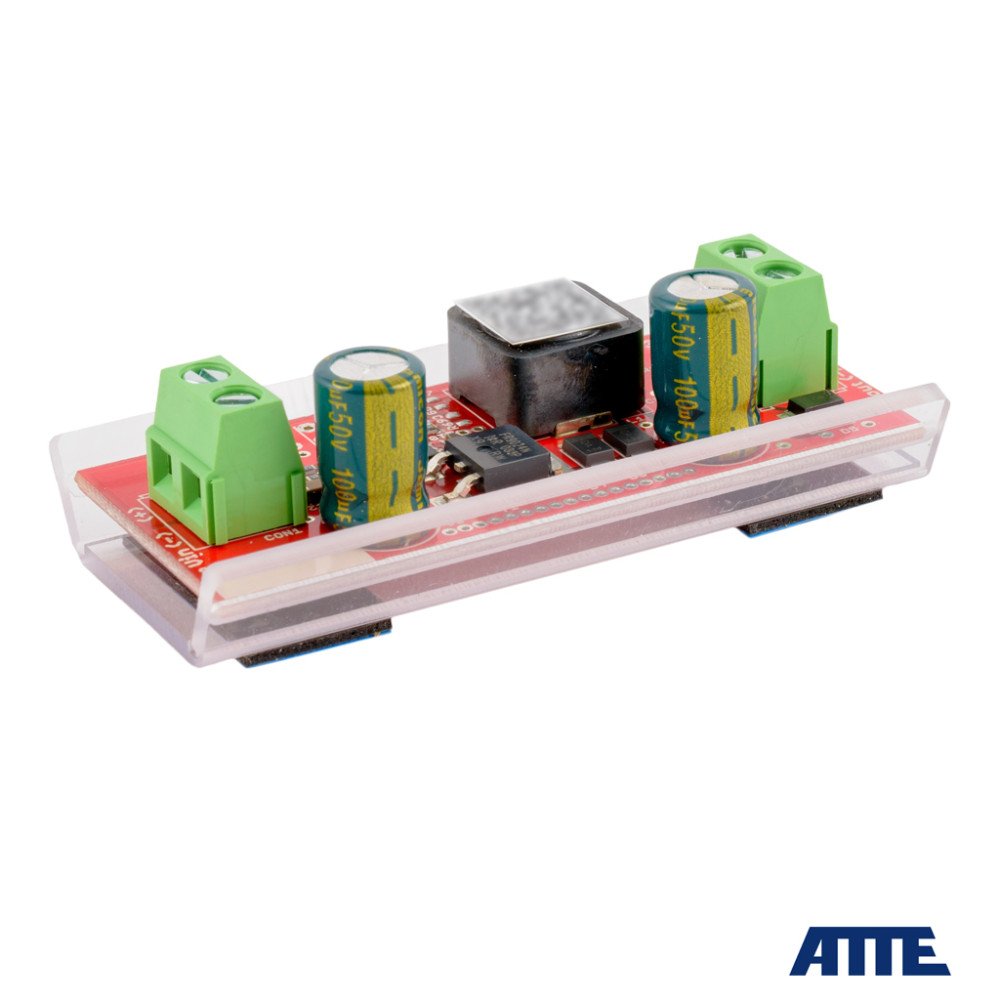

OF (Open Frame) constructionallows the device to be installed in any housing. The module is delivered with a plastic mounting base and high-quality self-adhesive tape. The smallest of our OF modules do not have system mounting holes in a 10.8 mm pitch due to their small dimensions. TECHNICAL DATA:| Output voltage | 24 VDC +/-2% (VIN VOUT) |
| Supply voltage | 5 ... 50 VDC |
| Converter no-load current | 2,5mA @48V |
| Output power | 30W @12V |
| Efficiency | 92% @VIN=48V, POUT=24W |
| Security |
|
| Housing design | Built-in module mounted on a plastic base with self-adhesive tape |
| Installation | Self-adhesive tape |
| Operating temperature range | -10...+40°C |
| Installation | Self-adhesive tape |
| Dimensions | 25 x 60 x 16 mm |
| Libra | 0,02 kg |
