ATTE buffer set for 17 IP cameras, in ABOX-H internal housing (2x 18Ah Battery + NVR), 144W power supply (2x 72W), 18-port PoE s

ATTE buffer set for 17 IP cameras, in ABOX-H internal housing (2x 18Ah Battery + NVR), 144W power supply (2x 72W), 18-port PoE s

€3,269.70
Tax included
  • Installation of modules in any perforated part of the housing (raster system)
  • Space for 2 18Ah batteries
  • Space for a video recorder (NVR)
  • Cable entries on the back of the housing
  • Distance to the wall/mounting surface
  • Possibility to keep spare cables inside the housing
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

17-port PoE switch in an internal housing with a buffer power supply

17 ports support Power over Ethernet (PoE)

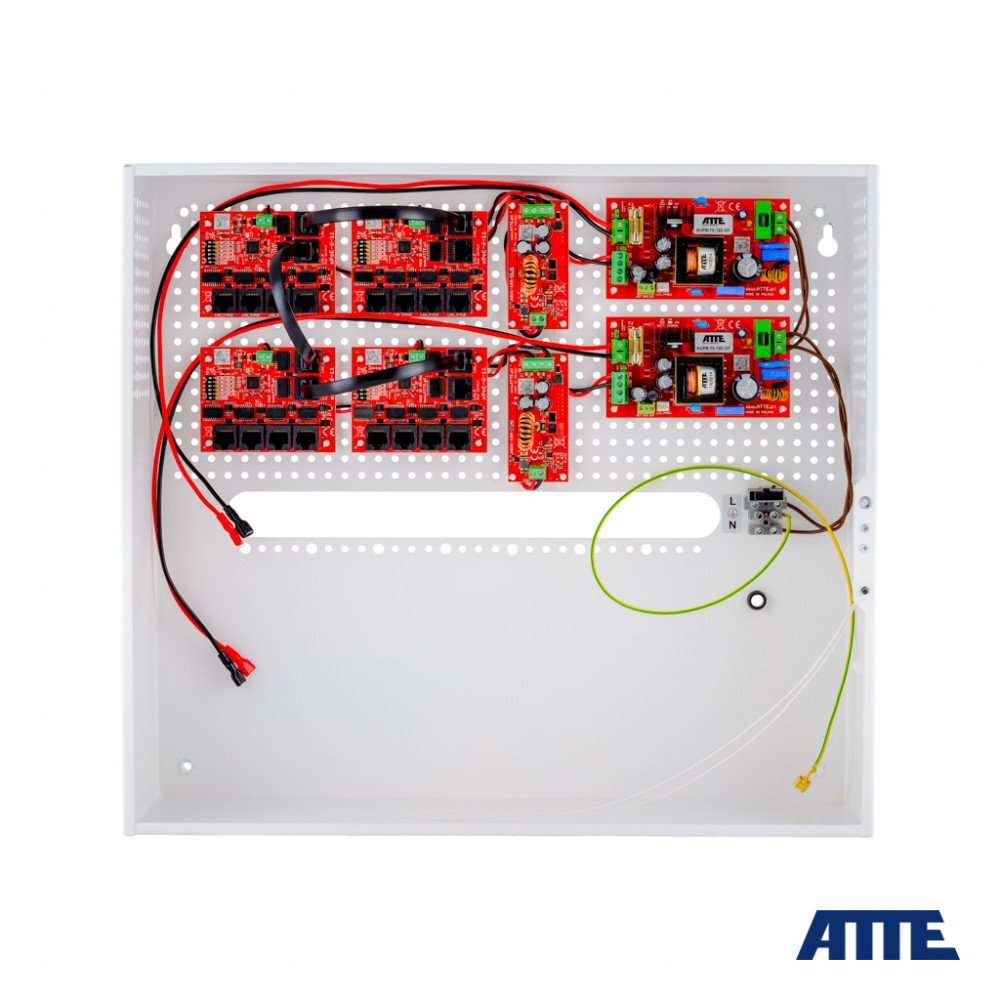

The IPUPS-17-11-H set consists of 4 XPOE-6-11-OF switch modules, 2 AUPS-70-120-OF buffer power supply modules and 2 ASUC-100-480-OF voltage converter modules enclosed in an ABOX-H internal housing with space for 2 18Ah batteries

Buffer power supplies are designed to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V

LAN ports:
  • 1 x RJ45 10/100 Base-T - Uplink,
  • 17 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management: NO
Diody LED: AC, DC, CHARGING (battery charging), PoE
Transmission speed:
  • 10 / 100 Mb/s : 1 x Port Uplink,
  • 10 / 100 Mb/s : 17 x Port LAN PoE
Maximum output power:
  • 40 W @ Passive PoE - LAN1 ... LAN4 ports,
  • 60 W @ Passive PoE - Port LAN5,
  • 30 W @ PoE (802.3af/at) - Porty LAN1 ... LAN5
Maximum total power: 130 W
Operating modes:
  • Standard : 100 m @ 10/100 Mb/s - Porty LAN1 ... LAN6
  • Long Range : 280 m @ 10 Mb/s - Porty LAN1 ... LAN4 ; 100 m @ 10/100 Mb/s - Porty LAN5, LAN6
Selected features:
  • Ability to independently turn PoE power on and off for each of the LAN 1 ... LAN 17 ports
  • The modular design streamlines service tasks and allows for quick, easy system expansion
  • The raster module assembly system facilitates the expansion of the device with additional modules
  • 2 x Battery compartment: 12V / 18Ah
  • Space for recorder (NVR)
  • Battery charging current: 1 A / 2 A - (set using jumper JP1)
  • Battery - Protection against reverse polarity connection, Protection against deep battery discharge
  • OC type technical outputs signaling voltage loss at the power supply output (OUF) and voltage loss in the 230V network (ACF)
  • Power supply thermal protection: 130 °C
  • Overload protection
  • LAN PoE ports - Short circuit protection, surge protection
  • Switch signaling the opening of the TAMPER housing
  • Tightness class: IP20
Power supply: 190 ... 260 V AND
Libra: 4.70 kg
Dimensions: 455 x 405 x 150 mm
Manufacturer / Brand: ATTE
Guarantee: 3 lata
ATTE
NS32352
1 Item

Data sheet

Protocol
BLE
Ethernet
LIN
PoE
QUIC
Voltage
12V
240V
IP Class
IP20
