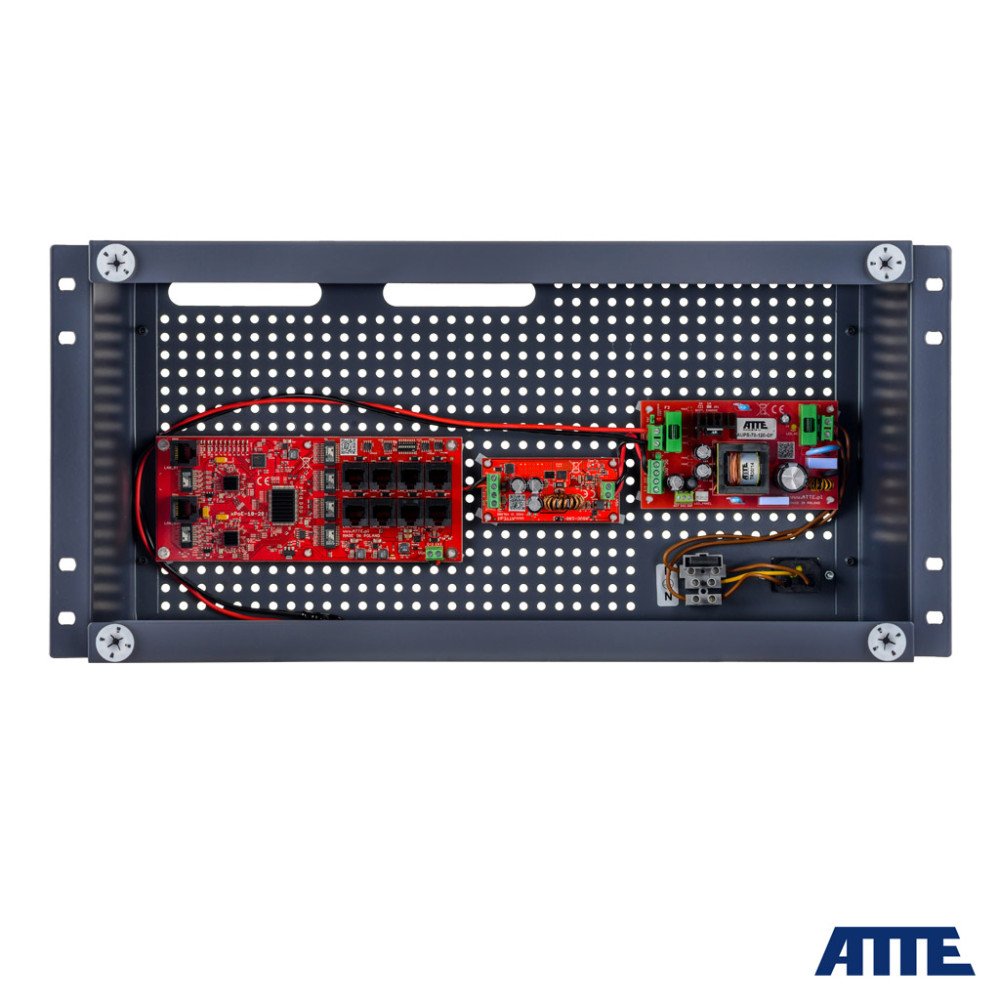

Buffer set for 8 IP cameras, in RACK ABOX-R5U0 housing (1x Battery 18Ah), 72W power supply, 10-port PoE switch (8xPoE 10/100Mbps + 2xGigabit Uplink), electronic fuses, type IPUPS-8-20-R5U0Key features and functions:

• 4K Ultra HD camera support
• possibility of buffer power supply for 8 PoE 802.3at/af or PASSIVE receivers
• electronic fuse independently for each PoE channel (auto return)
• possibility of turning off the power on PoE ports
• clear optical indication of power supply and data transmission status
• up to 40W power on PoE ports (LAN_1 to LAN_8)
• easy and quick commissioning without the need to configure parameters
• high efficiency of the power supply module (90%)
• two supply voltage values ​​available: 12VDC and 48VDC
• easy and quick installation service thanks to its modular structure
• easy expansion and scaling of the system by adding additional xPoE series switches/IP and IPB/IPUPPS
• installation of modules in any perforated part of the housing (raster system)

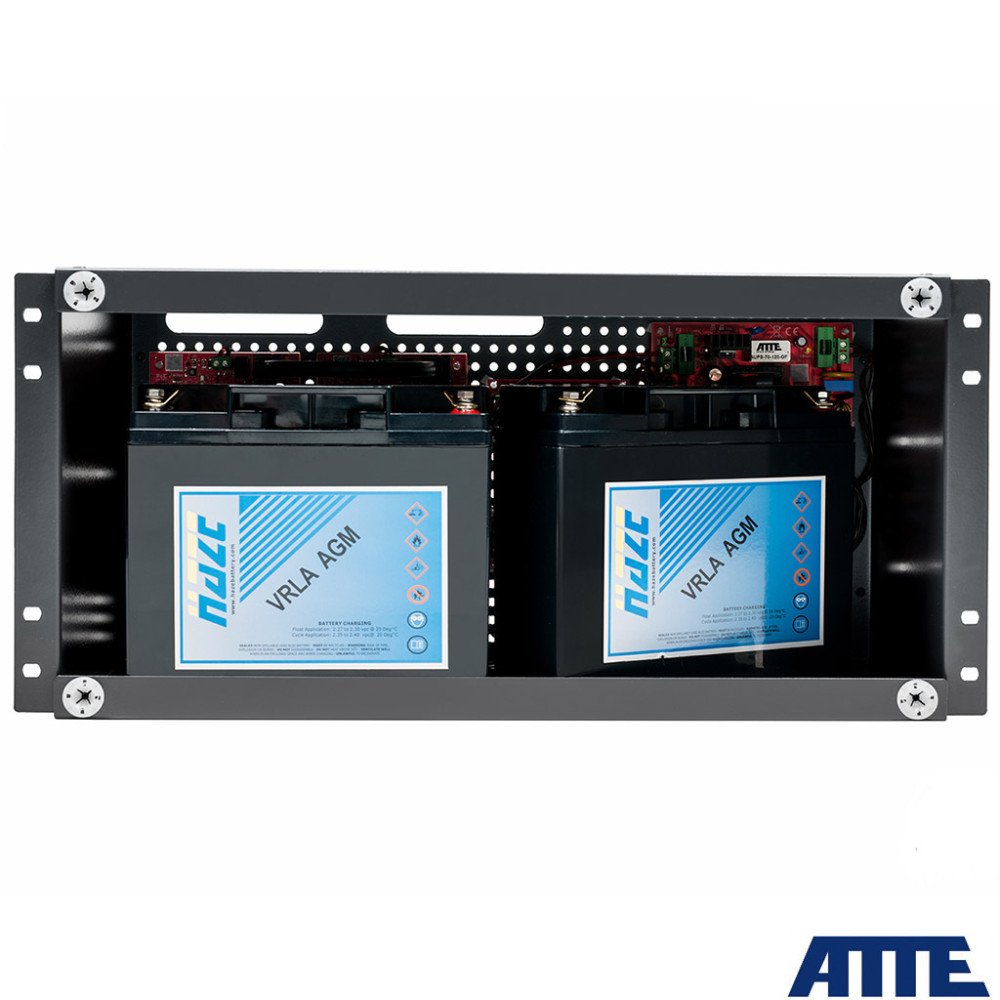

• space for 2 18Ah batteries
• main cable entries on the back of the housing
• additional cable entry is provided in the space between the body and the housing cover
• convenient, tool-free assembly and disassembly of the masking cover (push-in)
• graphite color selected in such a way that the housing fits both dark and light wardrobes
• housing equipped with a connector and an electrical cube with a fuse
• Possibility to keep spare cables inside the housing

The set includes:

• 1x ABOX-R5U0 housing

IPUPS-8-20-R5U0is a ready-made kit dedicated to buffer power supply of an IP CCTV system consisting of:8 room IP. Electronic protection of PoE outputs ensures continuous operation of the entire system in the event of a short circuit or overload of individual power supply branches, and automatic voltage recovery after the failure disappears. The device is used in systems requiring increased network bandwidth, such as monitoringCCTV 4K Ultra HD. Buffer sets with PoE switchare designed to work with IP cameras and other network devices powered by the PoE 802.3at/af and PoE PASSIVE standards. Connecting appropriate batteries ensures uninterrupted operation of the power supply system in the event of periodic power outages.ABOX-R5U0 housingallows the installation of the full ATTE product offer, previously dedicated to housings, in a RACK telecommunications cabinetindoor and outdoor ABOX series. The well-thought-out and unique design on the Polish market allows devices to be installed in one housing, along with buffer power supply and batteries. The body is made of steel sheet and the masking cover is made of light aluminum sheet. Both elements are powder-coated in a semi-matt graphite RAL 7024 color. Production using a modern technological line ensures the highest quality and precision of workmanship. ABOX-R5U0 has special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing. TECHNICAL DATA:

LAN ports	10 RJ45 ports (8xLAN+PoE 10/100Mbps, 2x Gigabit UpLink)
Supported PoE receivers (standard / max power)	802.3af - do 15,4W LAN_1...LAN_8 (Vin 48VDC) 802.3at - do 30W LAN_1...LAN_8 (Vin 48VDC) PoE PASSIVE - do 40W LAN_1...LAN_8
PoE outputs (standard / power mode)	LAN_1...LAN_8 PoE PASSIVE, mode B (4,5+) (7,8-)
PoE output protection (overcurrent/short circuit)	LAN_1...LAN_8 0.75A / electronic (auto-return)
SW1 microswitches (DIP switch)	switches 1...8 "PoE ON/OFF" - PoE power supply on ports LAN_1...LAN_8
AC adapter (type / type)	impulsowy SMPS / AUPS-70-120-OF
Power supply output protection (overcurrent/short circuit)	9A, electronic (after a short circuit, a restart of the power supply may be required)
Power supply thermal protection	TSD (thermal shutdown) 130°C, requires restart
Power supply input voltage range / input protection	180...240VAC / T3.15A fuse in the power strip
Power supply output power (continuous)	72W shared dynamically with battery charging (priority is given to power output)
Power supply efficiency	90% @60W
Power supply output voltage	12V +/-15%
PoE output voltage (camera power supply)	48V +/- 2%
Power budget for PoE outputs (maximum)	65W
Batteries / space in the housing	12V battery (gel or AGM) / 2x18Ah
Charging current of a single battery	1A/2A (selected by jumper JP1)
Battery circuit protection	F6.3A fuse F2
Battery protection	disconnecting the battery when the voltage is below 10.2V
PSU signaling outputs / load capacity / type	OUF - no output voltage, ACF - no voltage 230AC / 50mA / OC (open collector)
Housing assembly	19" RACK cabinet, M6 screws (included)
Operating temperature range	-10°C...+40°C
Installation of devices inside the housing	4.8mm system holes in a 10.8mm pitch
Housing (type / material / color / protection / cable entries)	ABOX-R5U0 / metal / RAL 7024 graphite / back of the housing and distance to the front cover
Dimensions / net weight / degree of protection	5U 180mm (440x220x180mm) / 3,2kg / IP20
