Power supply 96W ATTE IP-9-11-L2 Switch PoE 10 ports 10/100Mbps

Power supply 96W ATTE IP-9-11-L2 Switch PoE 10 ports 10/100Mbps

€1,451.52
Tax included
  • Installation of modules in any perforated part of the mounting plate (raster system)
  • The cover and housing are connected with a string to facilitate servicing
  • Possibility to keep spare cables inside the housing

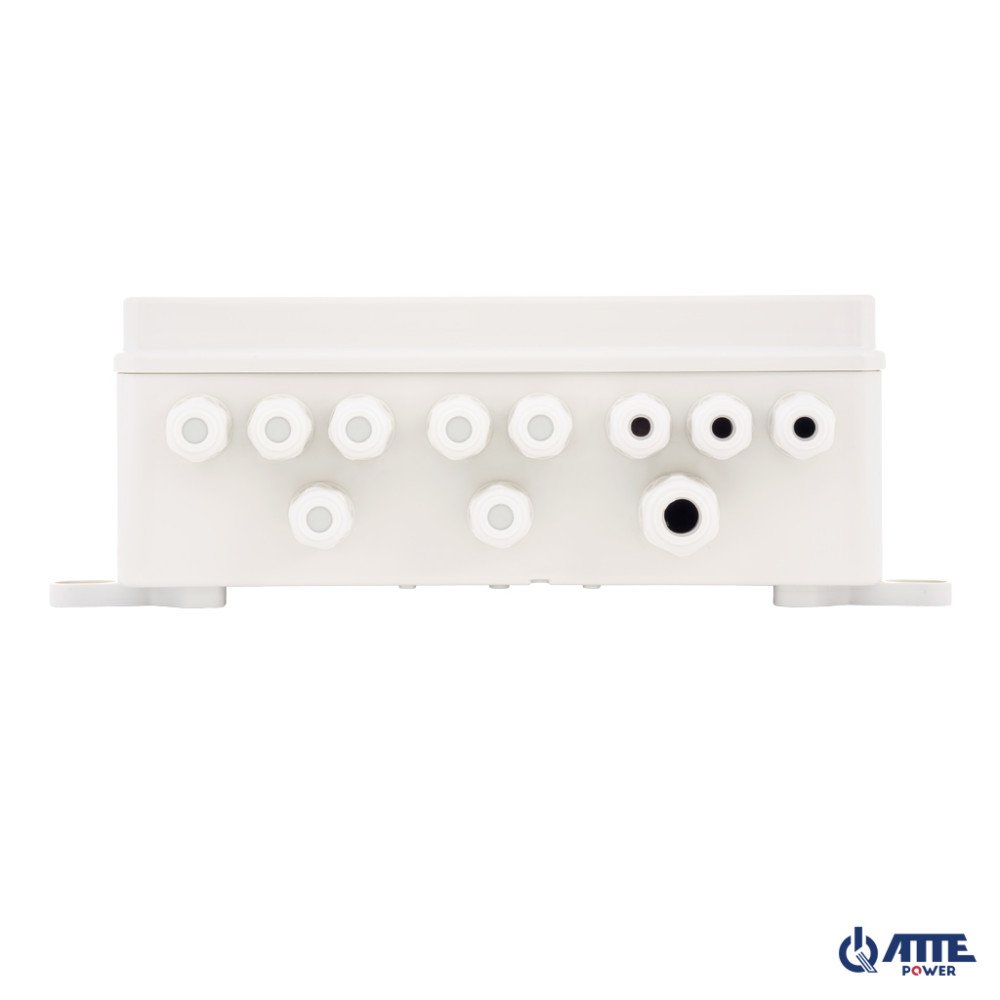

  • Cable entry through glands installed in the housing: 10xM16 and 1xM20

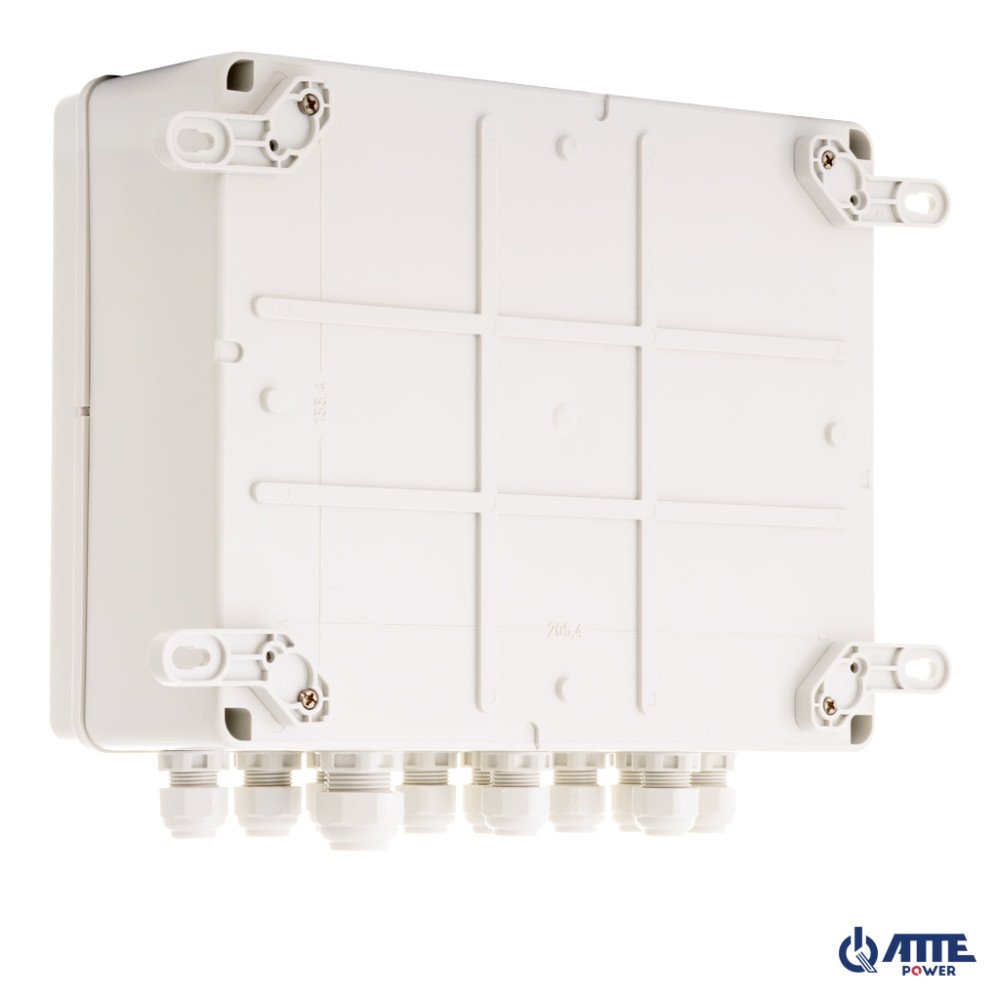

  • The set includes 4 brackets enabling installation of the housing without compromising the IP56 protection level

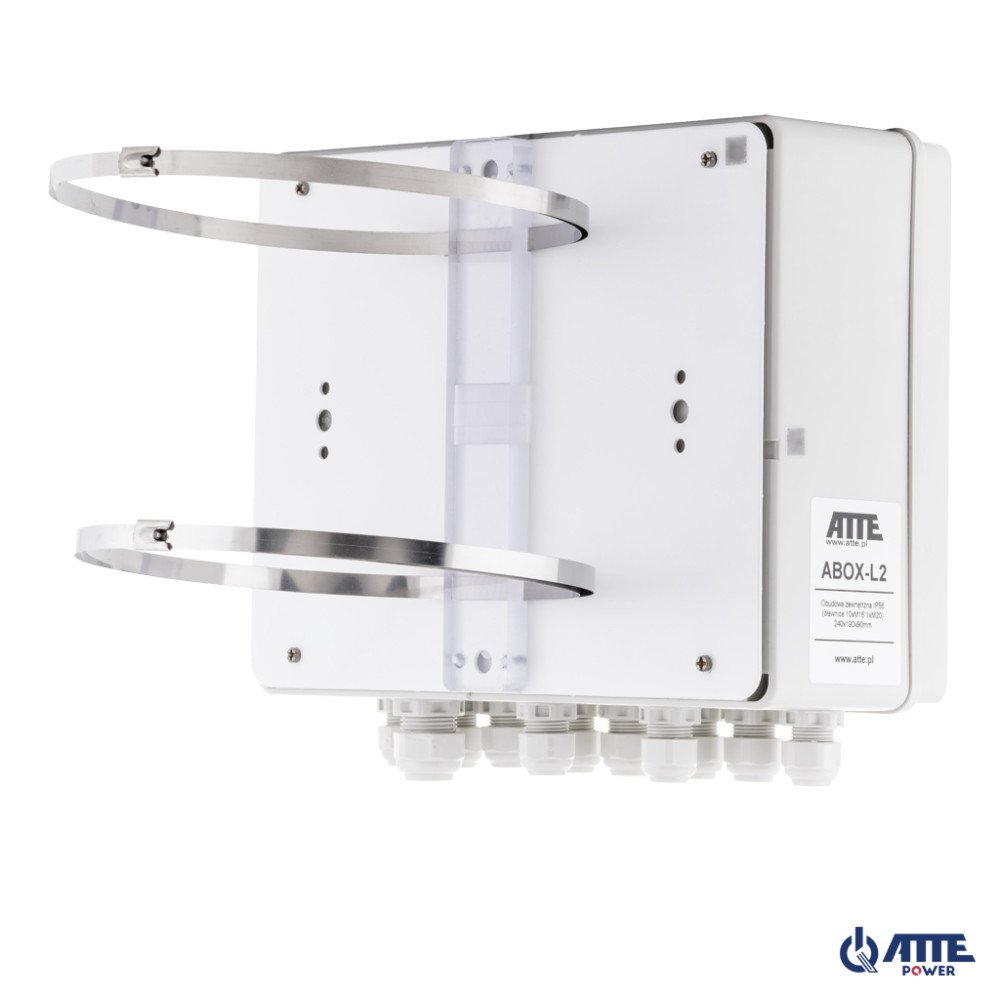

  • Optional ADD-PMAL adapter allows for easy mounting on poles or lampposts (sold separately)
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

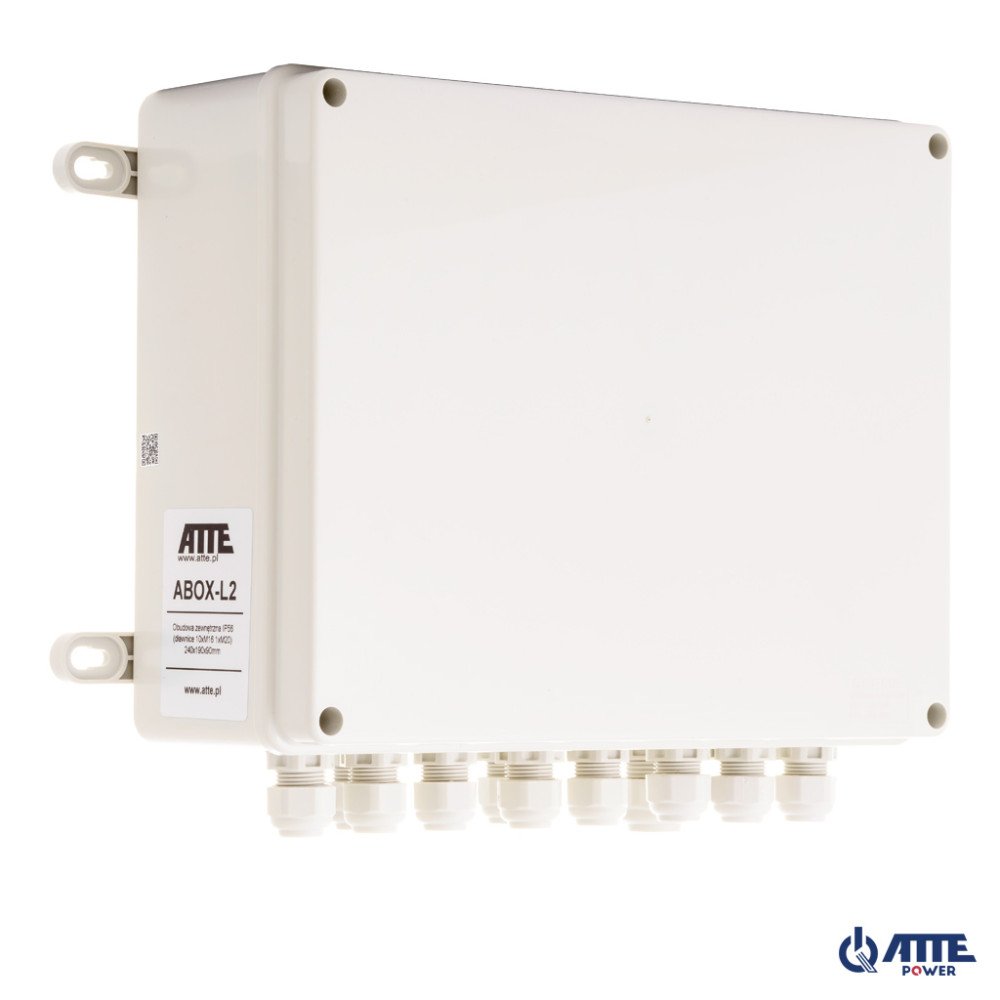

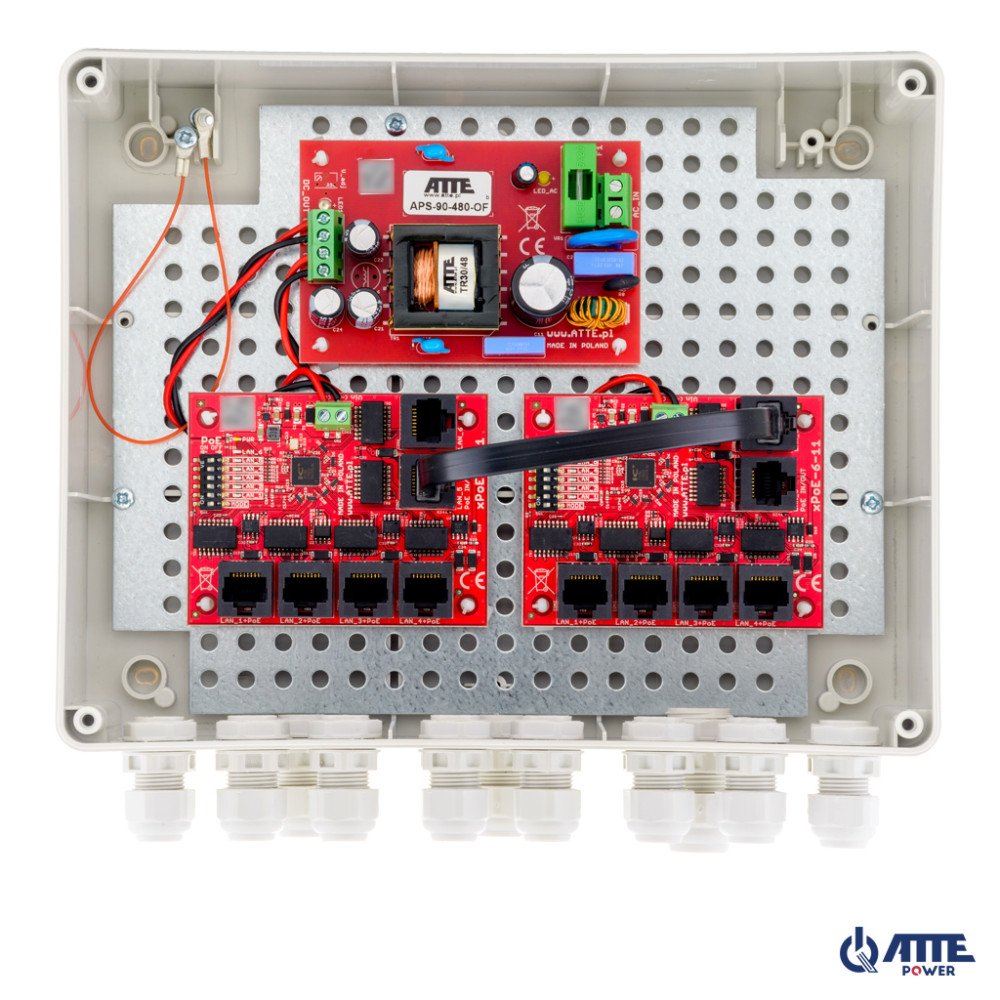

The IP-9-11-L2 set consists of 2 XPOE-6-11-OF modules and an APS-90-480-OF switching power supply enclosed in an ABOX-L2 external housing with IP56 tightness class.

The LONG RANGE operating mode allows you to increase the range of power and data transmission for LAN 1 ... LAN 4 ports to 280m while limiting the network bandwidth for these ports to 10Mbps

It is possible to use the LONG RANGE mode independently in each of the XPOE-6-11-OF modules

LAN ports:
  • 1 x RJ45 10/100 Base-T - Uplink
  • 9 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management: NO
Diody LED: Power, LAN
Transmission speed: 10 / 100 Mb/s : 1 Port LAN + 9 Porty LAN PoE
Maximum output power:
  • 40 W @ Passive PoE - Ports 1 ... 4,
  • 70 W @ Passive PoE - Port 5,
  • 30 W @ PoE (802.3af/at) - Porty 1 ... 5
Maximum total power: 96 W
Operating modes:
  • Normal : 100 m @ 10/100 Mb/s - Porty 1 ... 5
  • Long Range : 280 m @ 10 Mb/s - Porty 1 ... 4 ; 100 m @ 10/100 Mb/s - Port 5
Selected features:
  • Possibility of cascading devices (power transfer between devices using Passive PoE via LAN port 5)
  • LAN port 5 (PoE IN/OUT) can be used to power PoE devices and to draw power from other devices
  • The PoE output voltage is equal to the input voltage
  • PoE power supply can be turned on and off independently for each of the LAN 1 ... LAN 5 ports
  • The modular design streamlines service tasks and allows for quick, easy system expansion
  • The raster module assembly system facilitates the expansion of the device with additional modules
  • The ABOX-L2 mounting housing is equipped with 11 cable entries with glands in the arrangement of 10 x M16 + 1 x M20
Power supply: 230 V AC - cable clamps
Libra: 1.05 kg
Dimensions: 248 x 222 x 96 mm
Manufacturer / Brand: ATTE
Guarantee: 3 lata
ATTE
NS32347
1 Item

Data sheet

Protocol
BLE
LIN
PoE
QUIC
IP Class
IP56
