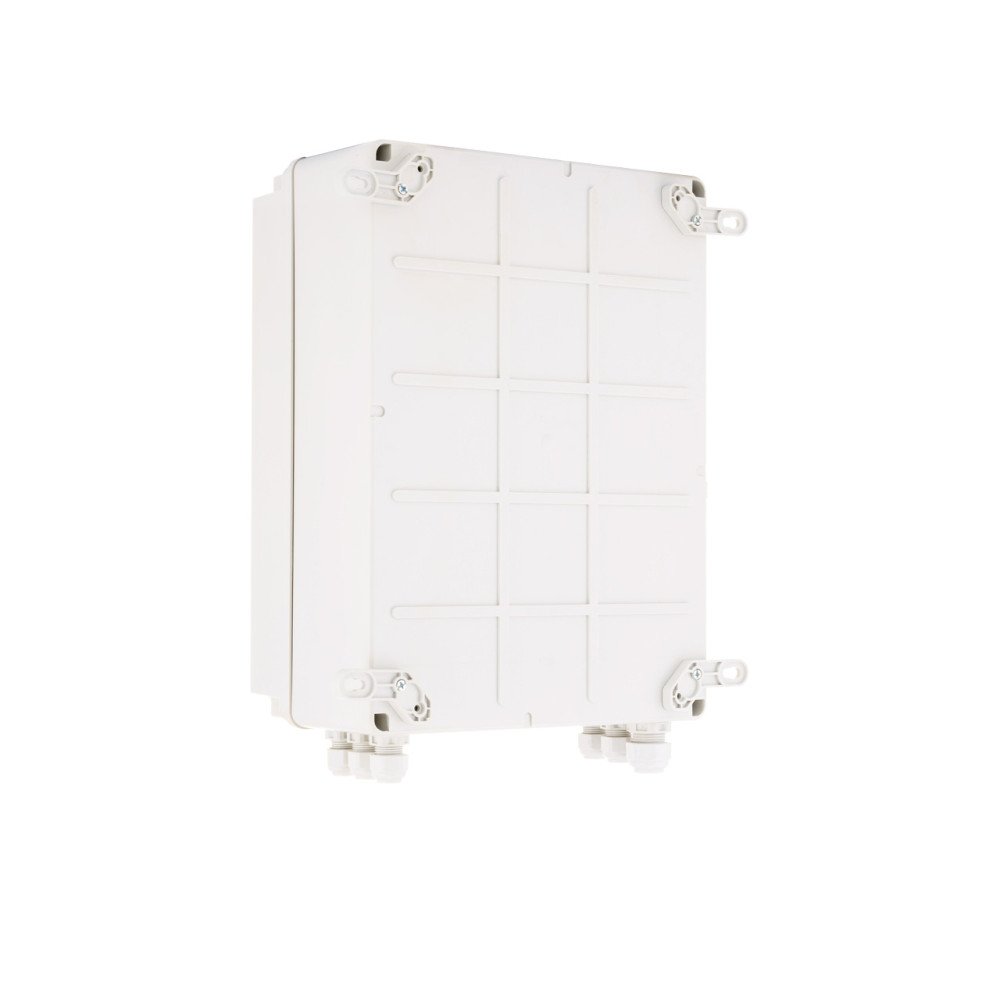

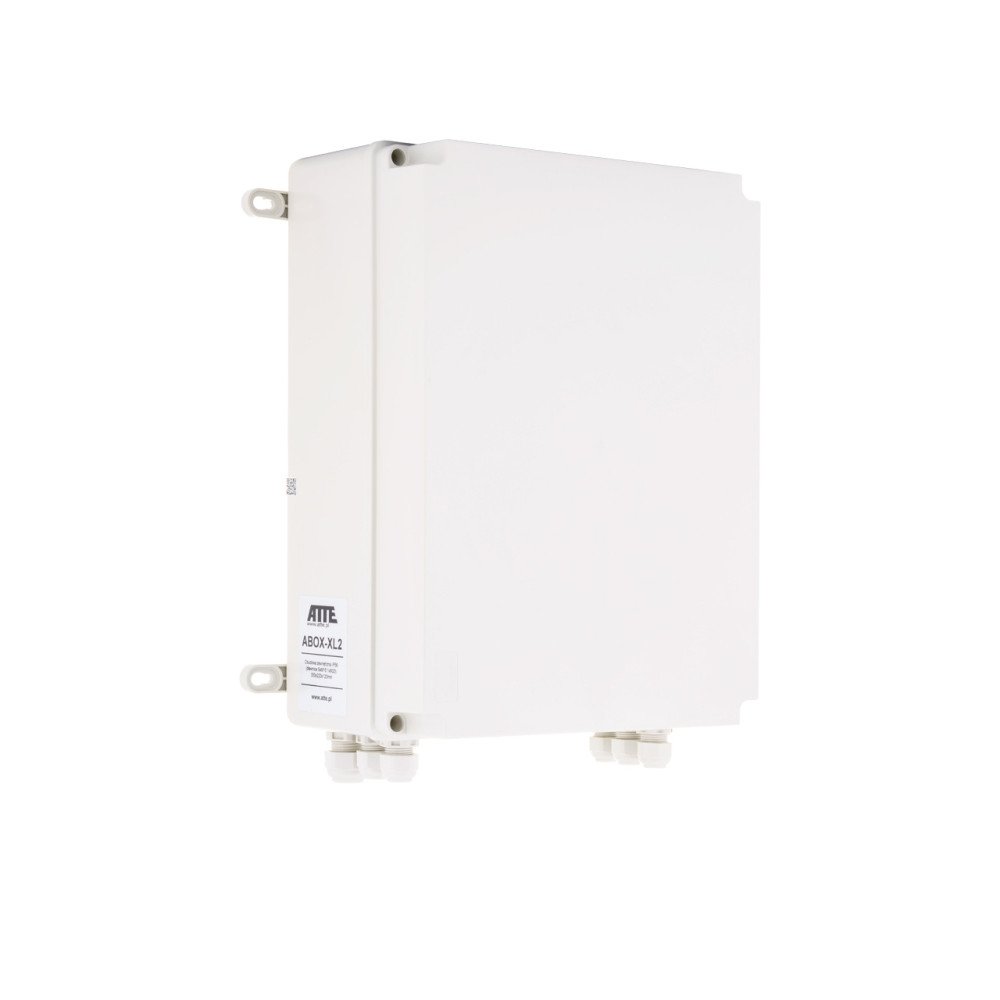

ATTE buffer set for 5 IP cameras, in an ABOX-XL2 external housing (1x AKU 7Ah), 72W power supply, 6-port PoE switch 10/100Mbps (

ATTE buffer set for 5 IP cameras, in an ABOX-XL2 external housing (1x AKU 7Ah), 72W power supply, 6-port PoE switch 10/100Mbps (

€1,113.04
Tax included
  • clear optical indication of power supply and data transmission status
  • cover and housing connected by a string to facilitate servicing
  • Possibility to keep spare cables inside the housing

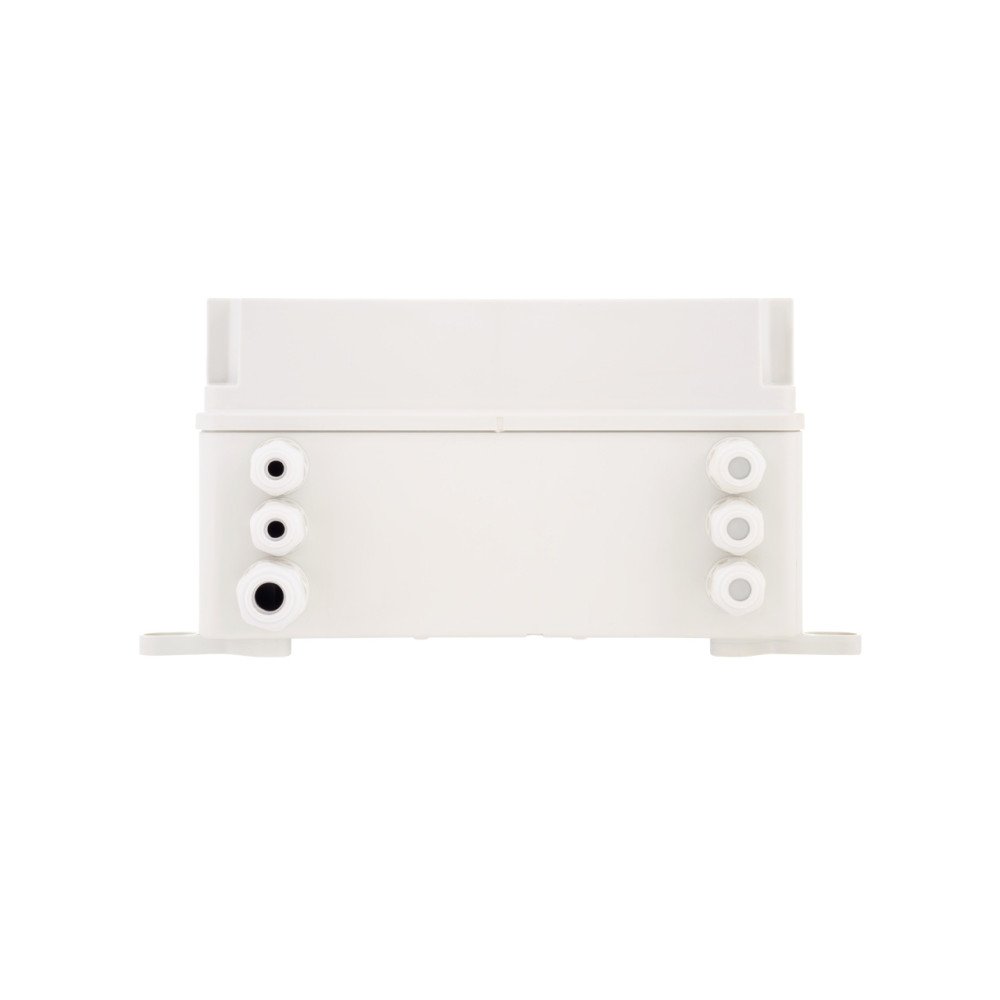

  • cable entry through glands installed in the housing: 5xM16 and 1xM20
  • The set includes 4 brackets enabling installation of the housing without compromising the IP56 protection level
  • optional ADD-PMAXL adapter allows easy installation of both on poles or lampposts
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

5-port PoE switch in an external housing with a buffer power supply

5 ports support Power over Ethernet (PoE)

The IPUPS-5-11-XL2 set consists of the XPOE-6-11-OF switch module, the AUPS-70-120-OF buffer power supply module and the ASUC-50-480-OF voltage converter module enclosed in the ABOX-XL2 external housing with space for a 7Ah battery

The housing meets the IP56 tightness class and is equipped with cable entries with glands in the arrangement of 5 x M16 + 1 x M20

The buffer power supply is designed to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V

The LONG RANGE operating mode allows you to increase the range of power and data transmission for LAN 1 ... LAN 4 ports to 280m while limiting the network bandwidth for these ports to 10Mbps

LAN ports:
  • 1 x RJ45 10/100 Base-T - Uplink
  • 5 x RJ45 10/100 Base-T, PoE 802.3af/at / Passive PoE
Management: NO
Diody LED: Power, LAN
Transmission speed: 10 / 100 Mb/s : 1 Port LAN + 5 Porty LAN PoE
Maximum output power:
  • 40 W @ Passive PoE - Ports 1 ... 4,
  • 50 W @ Passive PoE - Port 5,
  • 30 W @ PoE (802.3af/at) - Porty 1 ... 5
Maximum total power: 50 W
Operating modes:
  • Standard : 100 m @ 10/100 Mb/s - Porty 1 ... 6
  • Long Range : 280 m @ 10 Mb/s - Porty 1 ... 4 ; 100 m @ 10/100 Mb/s - Porty 5, 6
Selected features:
  • PoE power supply can be turned on and off independently for each of the LAN 1 ... LAN 5 ports
  • The modular design streamlines service tasks and allows for quick, easy system expansion
  • The raster module assembly system facilitates the expansion of the device with additional modules
  • Battery space: 12 V / 7 Ah
  • Battery charging current: 1 A / 2 A - (set using jumper JP1)
  • OC type technical outputs signaling voltage loss at the power supply output (OUF) and voltage loss in the 230V network (ACF)
  • Protection against deep battery discharge
  • The ABOX-XL2 mounting housing is equipped with 6 cable entries with glands in the arrangement of 5 x M16 + 1 x M20
Power supply: 230 V AND
Libra: 1.53 kg
Dimensions: 333 x 227 x 130 mm
Manufacturer / Brand: ATTE
Guarantee: 2 lata
ATTE
NS32353
1 Item

Data sheet

Protocol
BLE
Ethernet
LIN
PoE
QUIC
Voltage
12V
240V
IP Class
IP56
