Set of up to 16 ATTE IP-16-20-H IP cameras

Set of up to 16 IP cameras in an internal housing ABOX-H (space for NVR), 192W power supply (2x96W), 18-port PoE switch (16xPoE 10/100Mbps + 2xGigabit Uplink), electronic fuses, type IP-16-20-HKey features and functions:

• 4K Ultra HD camera support
• ability to power 16 PoE 802.3at/af or PASSIVE receivers
• electronic fuse independently for each PoE channel (auto return)
• possibility of turning off the power on PoE ports
• clear optical indication of power supply and data transmission status
• up to 40W power on PoE ports (LAN_1 to LAN_8)
• easy and quick commissioning without the need to configure parameters
• high efficiency of the power supply module (90%)
• easy and quick installation service thanks to its modular structure
• easy expansion and scaling of the system by adding additional xPoE series switches/IP and IPB/IPUPPS
• installation of modules in any perforated part of the housing (raster system)
• space for a video recorder (NVR)
• Possibility to keep spare cables inside the housing
• cable entries on the back of the housing
• distance to the wall/mounting surface

The set includes:

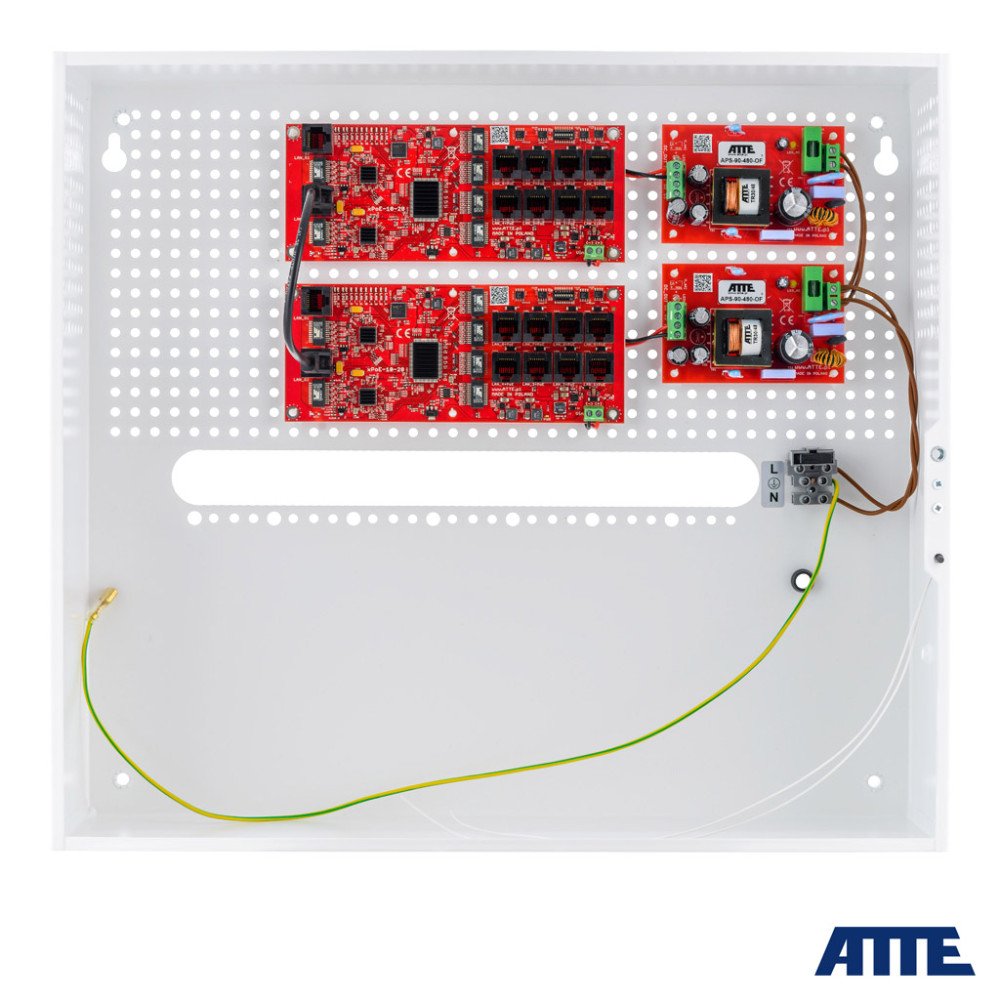

• 1x ABOX-H housing
• 2x APS-90-480-OF power supply
• 2x switch xPoE-10-20-OF

Comments:

• maximum dimensions of the recorder mounted inside the housing:390x390x60mm

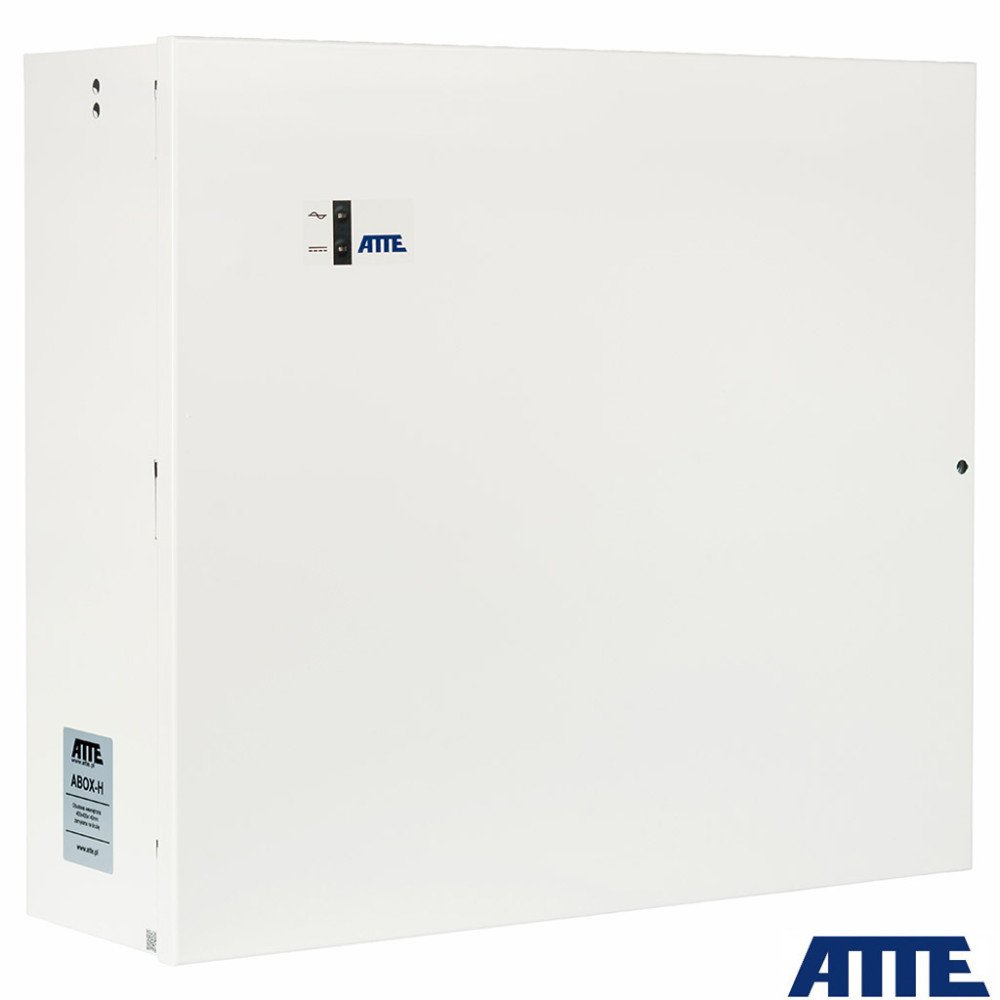

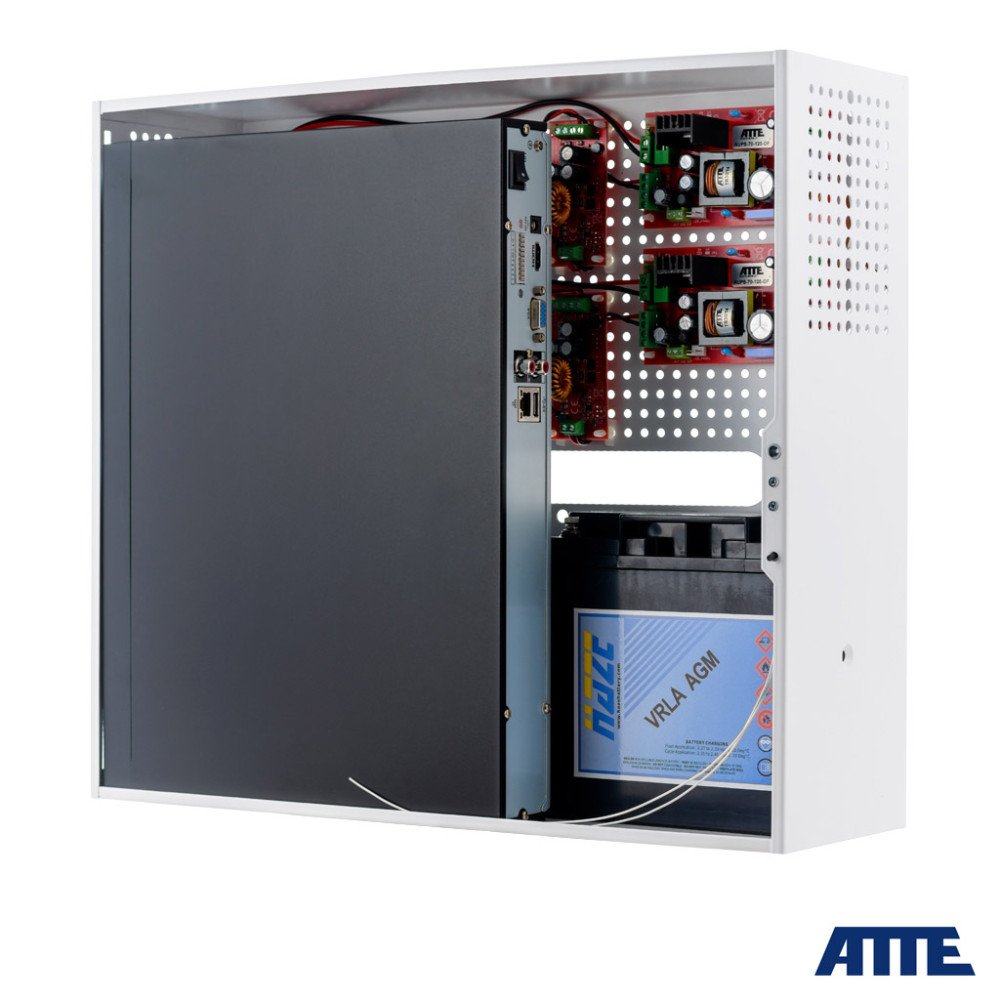

• the photo with the NVR shows an example configuration of devices in the ABOX H housing

IP-16-20-His a ready-made kit dedicated to powering an IP CCTV system consisting of:16 room IP. Electronic protection of PoE outputs ensures continuous operation of the entire system in the event of a short circuit or overload of individual power supply branches, and automatic voltage recovery after the failure disappears. The device is used in systems requiring increased network bandwidth, such as CCTV monitoring4K Ultra HD. Sets with PoE switchare designed to work with IP cameras and other network devices powered by the PoE 802.3at/af and PoE PASSIVE standards.ABOX series internal housingsthey are a convenient solution to the problem of aesthetic installation of devices and termination of cabling inside buildings. All housings are made of steel sheet, powder-coated in a semi-matt white color. Production using a modern technological line ensures the highest quality and precision. Each housing is equipped with a screw closure, removable door and an opening tamper. The models available in our offer have special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing. TECHNICAL DATA:

LAN ports	18 RJ45 ports (16xLAN+PoE 10/100Mbps, 2x Gigabit UpLink)
Supported PoE receivers (standard / max power)	802.3af - do 15,4W LAN_1...LAN_8 (Vin 48VDC) 802.3at - do 30W LAN_1...LAN_8 (Vin 48VDC) PoE PASSIVE - do 40W LAN_1...LAN_8
PoE outputs (standard / power mode)	LAN_1...LAN_8 PoE PASSIVE, mode B (4,5+) (7,8-)
PoE output protection (overcurrent/short circuit)	LAN_1...LAN_8 0.75A / electronic (auto-return)
SW1 microswitches (DIP switch)	switches 1...8 "PoE ON/OFF" - PoE power supply on ports LAN_1...LAN_8
AC adapter (type / type)	impulsowy SMPS / 2x APS-90-480-OF
Power supply output protection (overcurrent/short circuit)	9A (each power supply separately), electronic (after a short circuit, a restart of the power supply may be required)
Power supply thermal protection	TSD (thermal shutdown) 130°C, requires restart
Power supply input voltage range / input protection	180...240VAC / T3.15A fuse F1
Power supply output power (continuous)	2x 96W (192W)
Power supply efficiency	92% @90W
Output voltage of the power supply (PoE camera power supply)	48V +/-2%
Housing assembly	wall-mounted, mounting holes 6mm
Installation of devices inside the housing	4.8mm system holes in a 10.8mm pitch
Operating temperature range	-10°C...+40°C
Housing (type / material / color / protection / cable entries)	ABOX-H / metal / white / opening tamper / back of the housing, distance to the wall
Dimensions / net weight / degree of protection	400x450x140mm / 4,46kg / IP20
