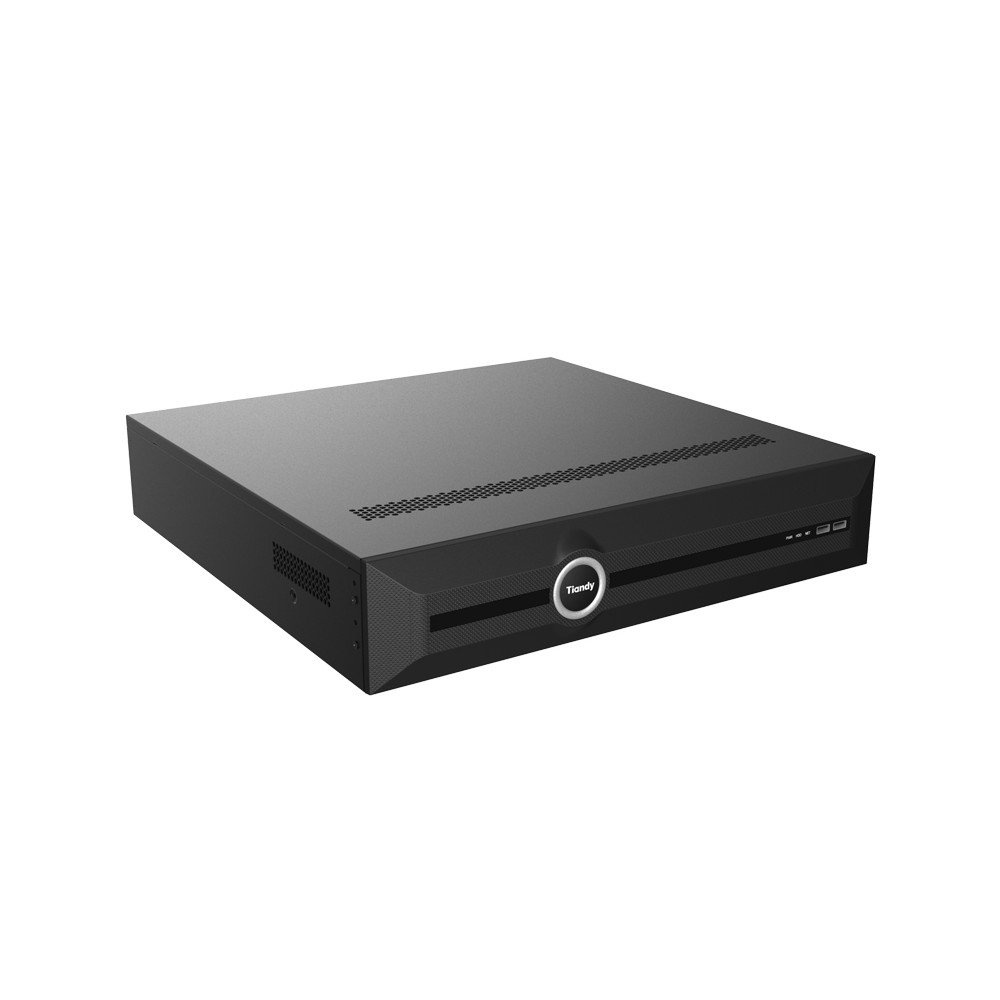

Tiandy TC-R3880 80-channel IP network recorder Spec: I/B/N/V4.0

• Technology:IP
• Number of video channels:80 IP
• Video outputs:2x VGA i 2x HDMI
• Supported IP cameras:up to 12 Mpix
• Bitrate:640/320 Mbps
• Compression:H.264, H.265, S+265
• Number of HDDs:8pcs 10TB SATA III
• Alarm inputs/outputs:16/4
• Onvif:Tak, profile S/T/G
• P2P:Yes - preview via smartphone
• The recorder is compatible with Vidiline cameras using a private protocol

Multi-channel recorders are modern tools that ensure effective and comprehensive supervision over large spaces, thanks to the ability to handle a large number of cameras at the same time and the ability to record on multiple disks. They play a key role in modern monitoring systems, providing the necessary tools for effective protection and supervision of various facilities such as:

• Factories and production plants:These industrial giants often span large areas, and protecting property, workers and production processes is crucial. Multi-channel recorders enable monitoring of all key places, from production lines to warehouses and outdoor areas.
• Logistics bases and warehouses:In these places, the flow of goods is continuous, and supervision of loading and unloading processes, control of deliveries and monitoring of employees is crucial for effective work.
• Hotels and restaurants:In places where guests expect privacy and security, multi-channel recorders ensure the protection of property and people by monitoring entrances, exits, parking lots and other key areas.
• Parks and recreation areas:These areas are often large and require monitoring to ensure visitor safety and protect against vandalism.
• City monitoring:Cities and smaller towns use multi-channel recorders to monitor public spaces, roads, squares and other key places.
• Mass media and transit points:Train stations, bus stations and airports are high-traffic places where safety and control are key. Multi-channel recorders enable real-time monitoring of these areas, ensuring the safety of passengers and employees.

• View from up to 80 cameras simultaneously:support for up to 80 channels and up to 12 Mpix for a single IP camera. The recorder has four video outputs: 2x HDMI (4K resolution) and 2x VGA (Full HD resolution). Each of these pairs of HDMI/VGA outputs can present images from up to 80 channels simultaneously on a single monitor. Thanks to this, the recorder provides flexibility in managing the displayed images, allowing the image from the cameras to be divided into two different screens. Note: HDMI1 and HDMI2 and VGA1 and VGA2 video outputs are independent, but HDMI1 and VGA1 and HDMI2 and VGA2 outputs display the same image at the same time.
• Support for eight SATA HDDs:The TC-R3880 recorder is able to handle 8 SATA drives with a capacity of up to 10 TB per drive, which significantly extends the history of recorded recordings. Support for H.264 / H.265 / S+265 video compression standards, the latter allows you to save disk space up to 5 times. For 80 cameras with a resolution of 4 Mpix and the S+265 compression standard, recordings can be stored for up to 45 days.
• Disk array support:you can intuitively configure the matrix using a simple and modern interface. Creating a matrix allows you to protect yourself against loss of recordings caused by damage to one of the disks.
• Manage locally via browser or remotely via the cloud:We can manage the recorder locally via a dedicated web interface (web browser) or classically via a mouse and monitor. Newer Tiandy recorders allow for operation via a dedicated cloud - remotely. Just add the recorder to your account in the application, log in to the website:
