- Supported resolutions: max. 8 Mpx
- Audio support: 4 Channels - Audio from cameras
- Audio inputs: 1 pc.
- Image compression method: S+265 / H.265 / S+264 / H.264
- Supported hard drives: 1 x 10 TB SATA
- Network Features: Full network support
- Alarm inputs/outputs: 4/1; PoE switch: Built-in 8-port PoE switch

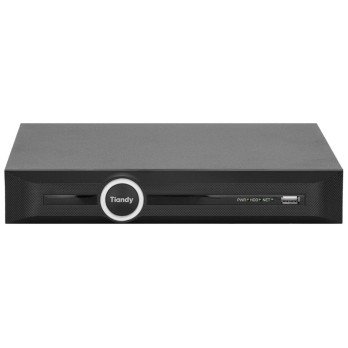

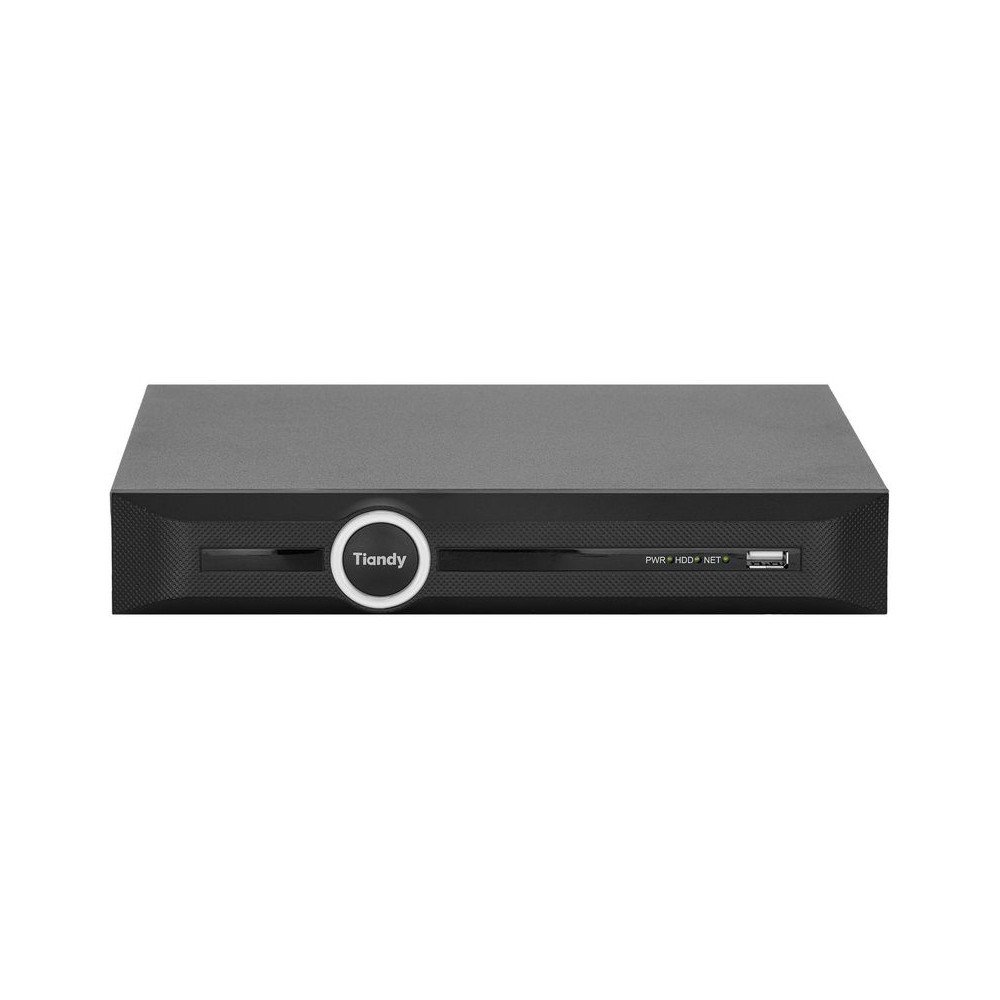

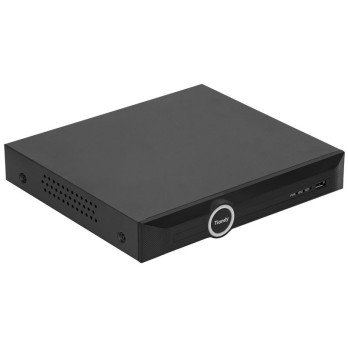

IP Recorder TC-R3110 SPEC:I/B/P8/K/V3.1 10 Channels, 8 PoE TIANDY
€2,835.21
Tax included
- Supported resolutions: max. 8 Mpx
- Audio support: 4 Channels - Audio from cameras
- Audio inputs: 1 pc.
- Image compression method: S+265 / H.265 / S+264 / H.264
- Supported hard drives: 1 x 10 TB SATA
- Network Features: Full network support
- Alarm inputs/outputs: 4/1; PoE switch: Built-in 8-port PoE switch
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The product was designed to reduce costs as much as possible while maintaining high quality and ease of use
Built-in 8-port PoE switch
| Standard: | IP |
| Supported resolutions: | max. 8 Mpx |
| Video outputs: | 1 cent. HDMI 4K 1 pcs VGA |
| Audio support: | 4 Channels - Audio from cameras |
| Audio inputs: | 1 pc. |
| Audio outputs: | 1 pc. |
| Image compression method: | S+265 / H.265 / S+264 / H.264 |
| Supported hard drives: | 1 x 10 TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Archiving on external media: | Archiving to a USB drive (pendrive, external drive) |
| Searching and playing recordings: |
|
| Network interface: | 1 x RJ-45 - 10 / 100 Mb/s |
| Network Features: | Full network support, Remote copying of recordings, Built-in web server |
| ONVIF: | Not |
| Throughput (bitrate): | max. 80 Mb/s |
| Default administrator login/password: | admin / - An administrator password must be set at first startup |
| Default IP address: | 192.168.1.3 |
| RTSP URL: | rtsp://user:password@192.168.1.3:554/1/1 - Main stream rtsp://user:password@192.168.1.3:554/1/2 - Secondary stream |
| Web access ports: | 80, 443, 3000, 3001, 3002, 23002 |
| Access ports via PC application: | 3000, 3001 |
| Access port via mobile application: | 3000, 3001 |
| Mobile phone access: | Port: 3000 or cloud access (P2P)
|
| Access from PC: | Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express |
| Alarm inputs/outputs: | 4 / 1 |
| Motion detection: | Not |
| Intelligent face analysis: | NO |
| USB: | 2 x USB 2.0 |
| Mouse operation: | Not |
| IR remote control included: | NO |
| Selected features: | Support for the intelligent image analysis function available in TIANDY cameras:
|
| Switch PoE: | Built-in 8-port PoE switch, 30 W / Channel - PoE |
| Maximum total switch load: | 70 W |
| Power supply: | 48 V DC / 1.875 A (power supply included) |
| Libra: | 0.93 kg |
| Dimensions: | 255 x 239 x 45 mm |
| Supported languages: | Polish, English, Albanian, Arabic, Spanish, Korean, Russian, French, Hebrew, German, Dutch, Portuguese, Thai, Ukrainian, Vietnamese, Italian |
| Manufacturer / Brand: | TIANDY |
| Guarantee: | 3 lata |
NS33340
1 Item
Data sheet
- APP
- Smarteg Smart Life
- Protocol
- BLE
LIN
ONVIF
PoE
RTSP
SPI
USB - Voltage
- 48V
- Image compression method
- H.264
H.265
