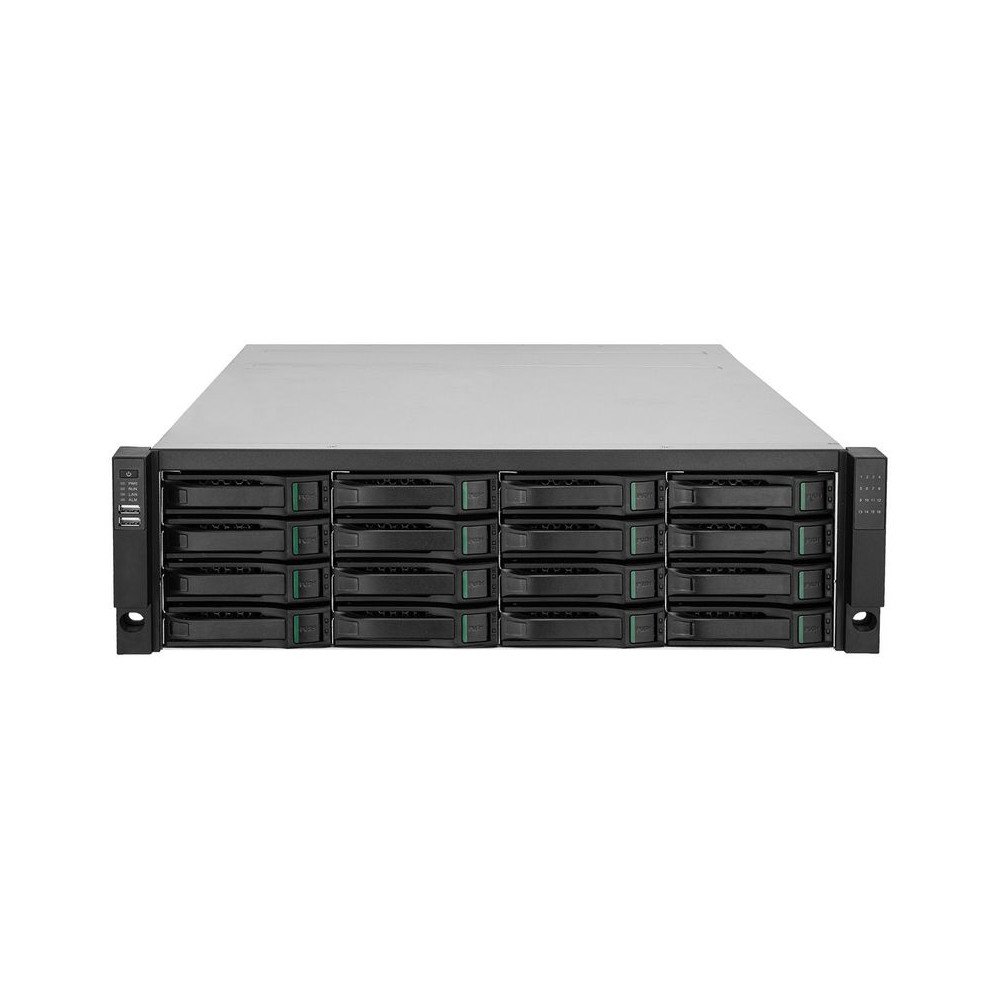

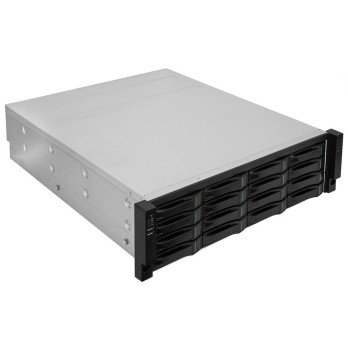

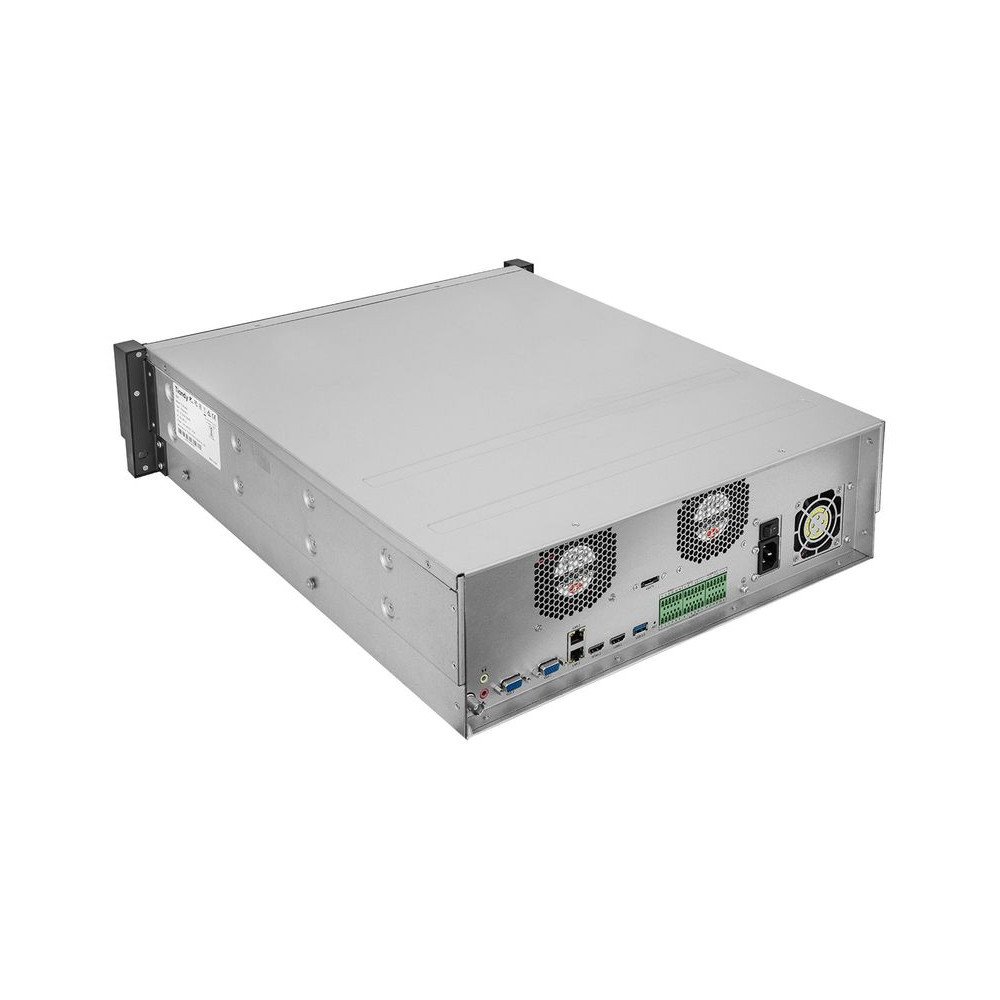

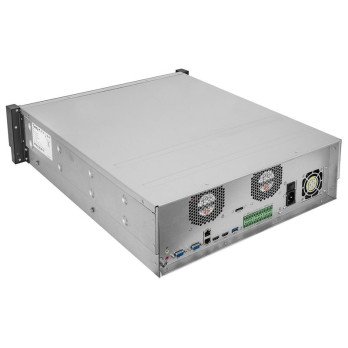

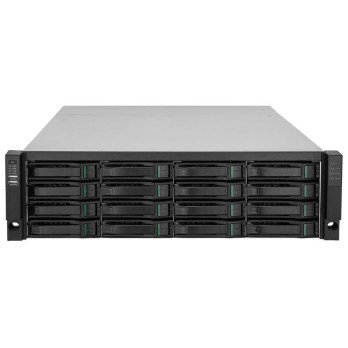

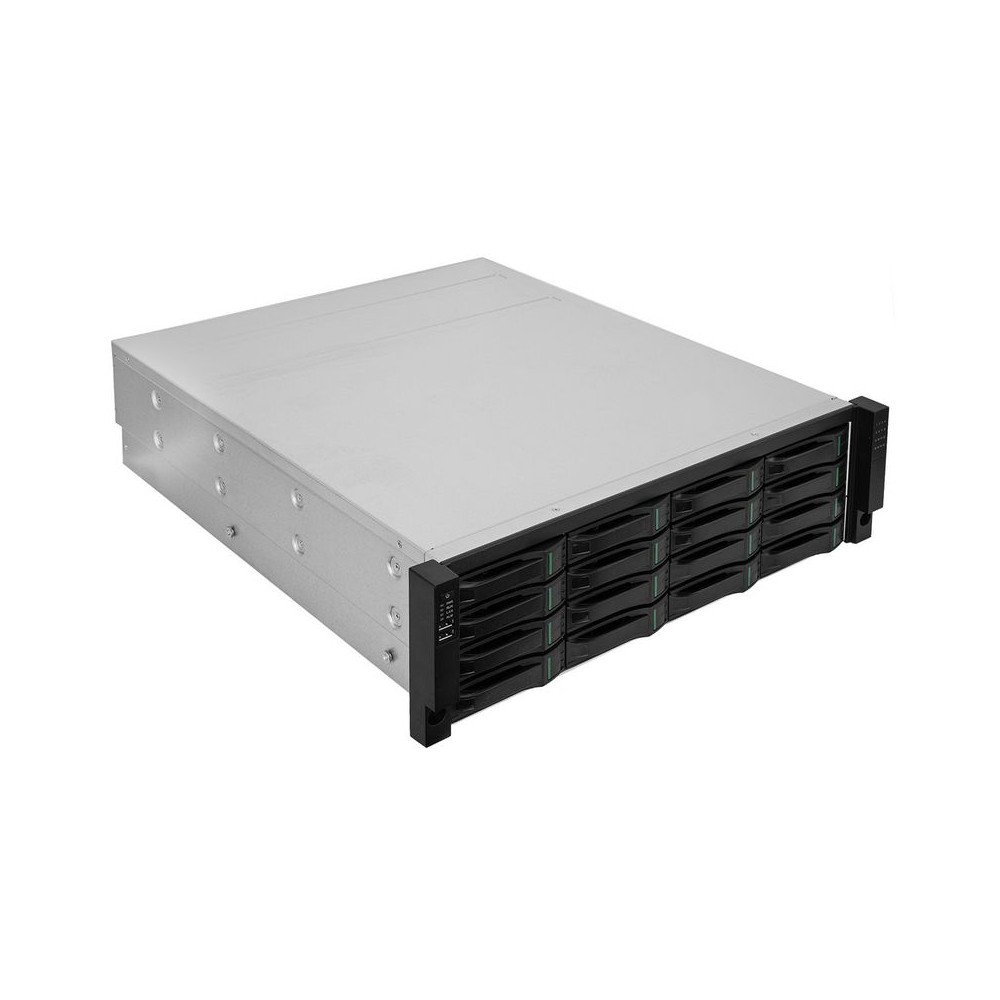

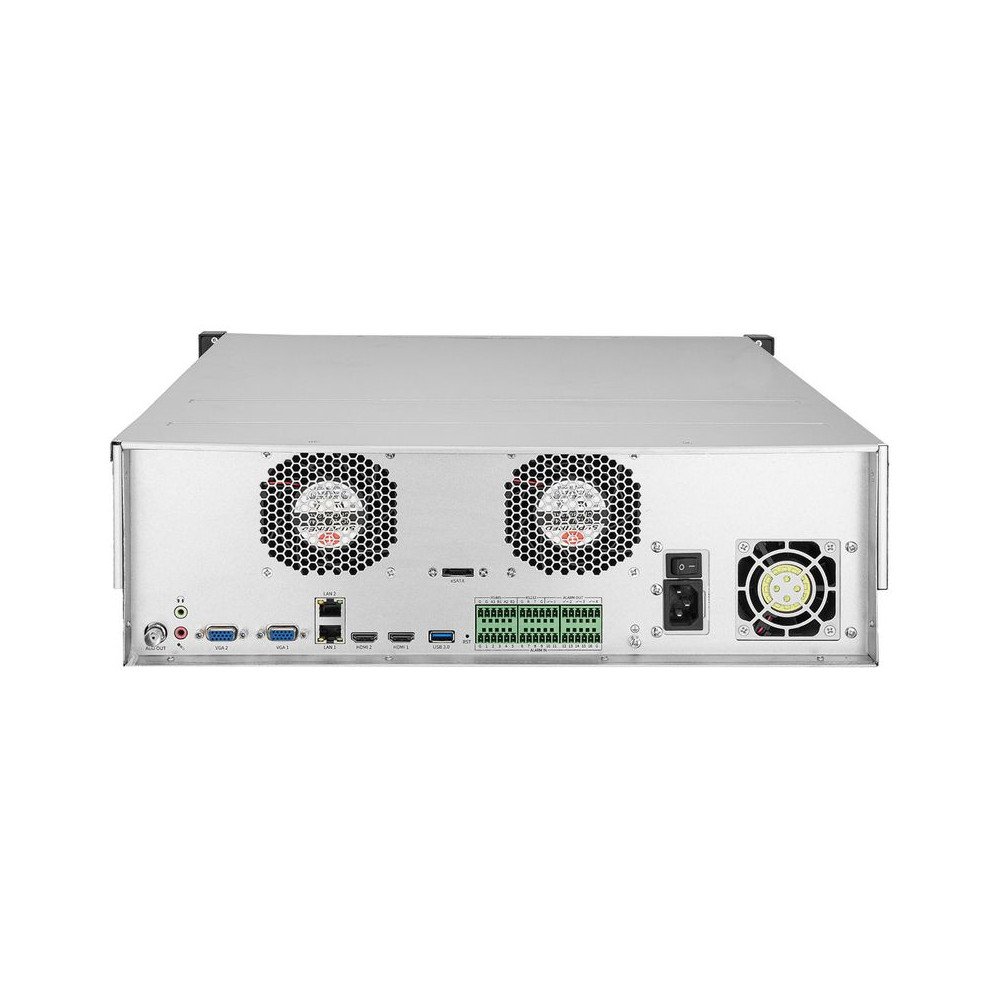

IP RECORDER TC-R31640 SPEC:E/B/N/V4.0 40 CHANNELS TIANDY

IP RECORDER TC-R31640 SPEC:E/B/N/V4.0 40 CHANNELS TIANDY

€18,491.69
Tax included
  • Supported resolutions: max. 16 Mpx
  • Audio support: Audio from cameras
  • Image compression method: S+265 / S+264
  • Supported hard drives: 16 x 18 TB SATA + 1 x eSATA
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

The TC-R31640 SPEC:E/B/N/V4.0 digital recorder is a professional device used in monitoring installations

Registration takes place in the H.265 / H.264 compression standard, which allows for obtaining the best image quality while using the minimum network bandwidth and disk capacity.

The menu has been designed in a way that makes it easy for anyone, even a novice user, to navigate and make changes to the recorder settings.

Standard: IP
Supported resolutions: max. 16 Mpx
Video outputs: 2 szt. HDMI 4K
2 pcs VGA
The video outputs are independent of each other
Audio support: Audio from cameras
Audio inputs: 1 pc.
Audio outputs: 1 pc.
Image compression method: S+265 / H.265 / S+264 / H.264
Supported hard drives: 16 x 18 TB SATA + 1 x eSATA
Recording modes: Manual, motion detection, schedule
Archiving on external media: Archiving to a USB drive (pendrive, external drive)
Searching and playing recordings:
  • Search for recordings by time and event type. Playback: forward, backward, speed up, slow down the recording
  • Advanced search (down to the second)
  • Playback of up to 16 cameras simultaneously
Network interface: 2 x RJ-45 - 10 / 100 / 1000 Mb/s
Network Features: Full network support, Remote copying of recordings, Built-in web server
ONVIF: NO
Mobile phone access: Port: 3000 or cloud access (P2P)
Access from PC: Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express
Bitrate: max. 640 Mb/s
Default administrator login/password: admin / -
An administrator password must be set at first startup
Default IP address: 192.168.1.3
RTSP URL: rtsp://user:password@192.168.1.3:554/1/1 - Main stream
rtsp://user:password@192.168.1.3:554/1/2 - Secondary stream
Web access ports: 80, 443, 3000, 3001, 3002, 23002
Access ports via PC application: 3000, 3001
Access port via mobile application: 3000, 3001
Alarm inputs/outputs: 16 / 4
Motion detection: NO
Intelligent face analysis: NO
USB: 2 x USB 2.0 + 1 x USB 3.0
RS232: 1 pc.
RS485: 2 pcs.
Mouse operation: NO
IR remote control included: NO
Selected features:
  • Possibility of operating disks in a RAID JBOD/0/1/5/6/10 array


    Support for the intelligent image analysis function available in TIANDY cameras:
  • crossing the line
  • double crossing the line
  • abandoned/missing object
  • wandering detection in a given area
  • running
  • parking detection
  • heat map
  • scene change
  • signal loss indication
  • License plate recognition
  • detection of people on duty
  • detection of gatherings of people
  • Parking monitoring mode
  • safety helmet detection
  • counting people
  • advanced face capture functions (max 100,000 faces in the database)
Power supply: 100 V ... 240 V AND
Libra: 11.8 kg
Dimensions: 540 x 445 x 133 mm
Supported languages: Polish, English, Albanian, Arabic, Spanish, Dutch, Korean, French, Hebrew, German, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese, Italian
Manufacturer / Brand: TIANDY
Guarantee: 3 lata
Tiandy
NS33500
1 Item

Data sheet

Protocol
BLE
LIN
ONVIF
RTSP
SPI
USB
Image compression method
H.264
H.265
