IP Recorder TC-R3120 SPEC:I/B/K/V3.1 20 Channels TIANDY

IP Recorder TC-R3120 SPEC:I/B/K/V3.1 20 Channels TIANDY

€1,631.21
Tax included
  • It would be: Lite
  • Supported resolutions: max. 8 Mpx
  • Supported hard drives: 1 x 10 TB SATA
  • Video outputs: 1pcs HDMI 4K, 1pcs VGA
  • Audio inputs/outputs: 1 / 1; Image compression method: S+265 / S+264
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

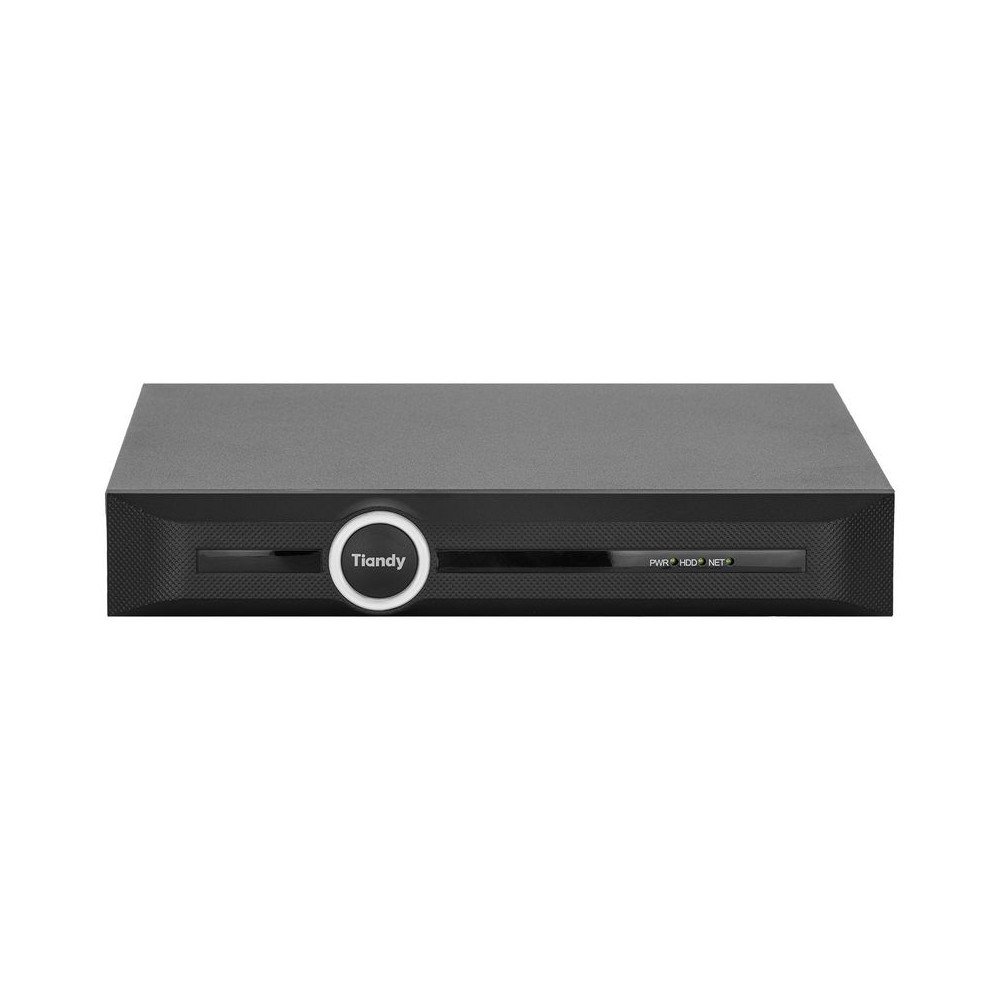

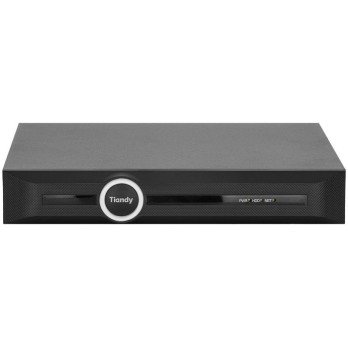

The TC-R3120 SPEC:I/B/K/V3.1 Lite series digital recorder is a professional device used in IP monitoring installations.

Registration takes place in the H.265 / H.264 compression standard, which allows for obtaining the best image quality while using the minimum network bandwidth and disk capacity.

The menu has been designed in a way that makes it easy for anyone, even a novice user, to navigate and make changes to the recorder settings.

Supported standards: IP
He would be: Lite
Number of supported channels: 20
Supported resolutions: max. 8 Mpx
AI implemented by the recorder: NO
AI implemented by cameras:
  • crossing the line
  • double crossing the line
  • abandoned/missing object
  • wandering detection in a given area
  • running
  • Parking monitoring mode
  • signal loss indication
  • detection of people on duty
  • crowd detection
  • safety helmet detection
  • counting people
  • face detection
  • Intelligent motion detection (distinguishing between people and vehicles)
  • heat map
Mobile phone access: Port: 3000 or cloud access (P2P)
Access from PC: Ports 80, 443, 3000, 3001, 3002, 23002
Supported hard drives: 1 x 10 TB SATA

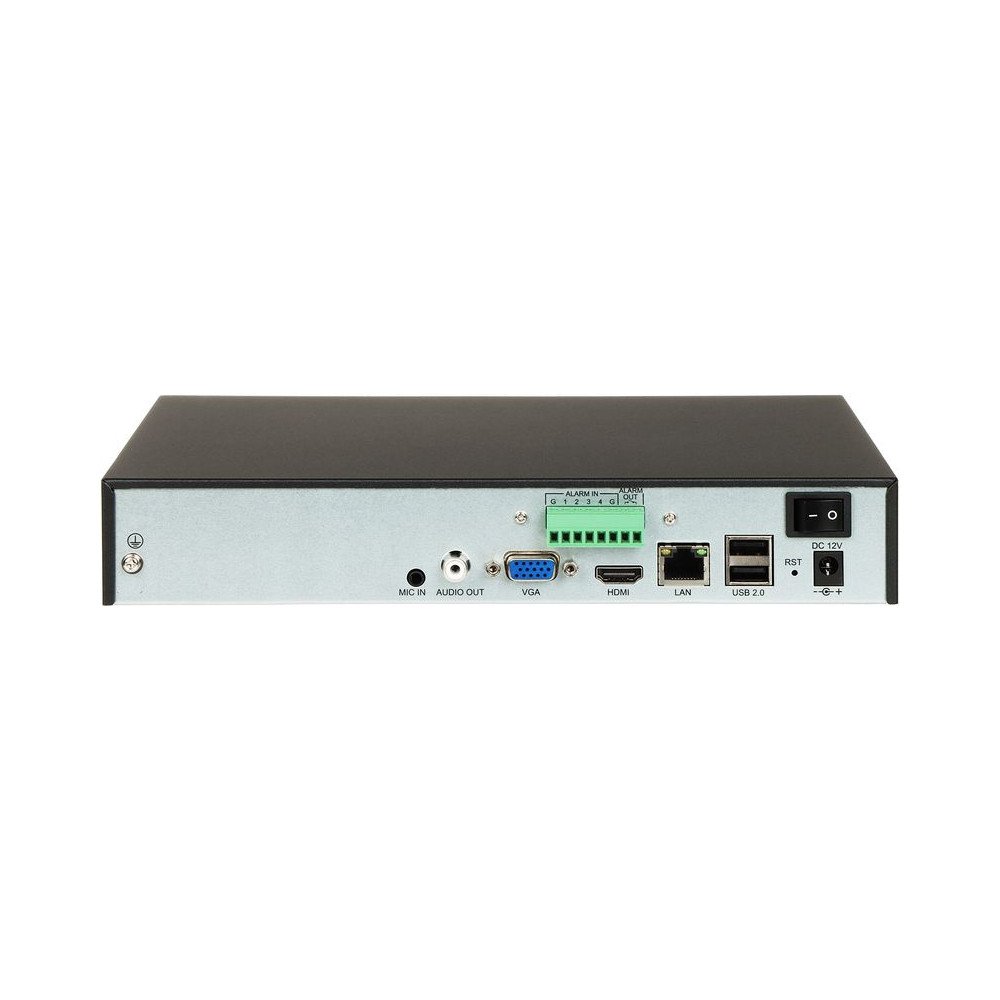

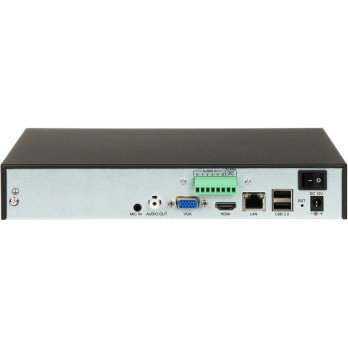

Video outputs:
  • 1 cent. HDMI 4K,
  • 1 pcs VGA
Throughput (bitrate): 80 Mbps (incoming)
Audio inputs/outputs: 1 / 1
Image compression method: S+265 / H.265 / S+264 / H.264
Archiving on external media: Archiving to a USB drive (pendrive, external drive)
Network interface: 1 X RJ-45 - 10/100 mb / s
ONVIF: NO
Default IP address: 192.168.1.3
Default administrator login/password: admin / -
An administrator password must be set at first startup
USB: 2 x USB 2.0
Alarm inputs/outputs: 4 / 1
Switch PoE: NO

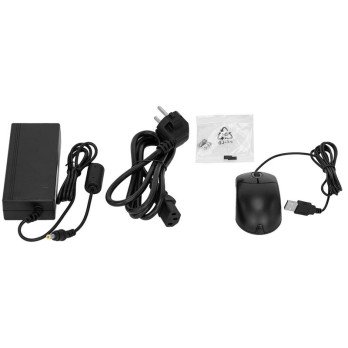

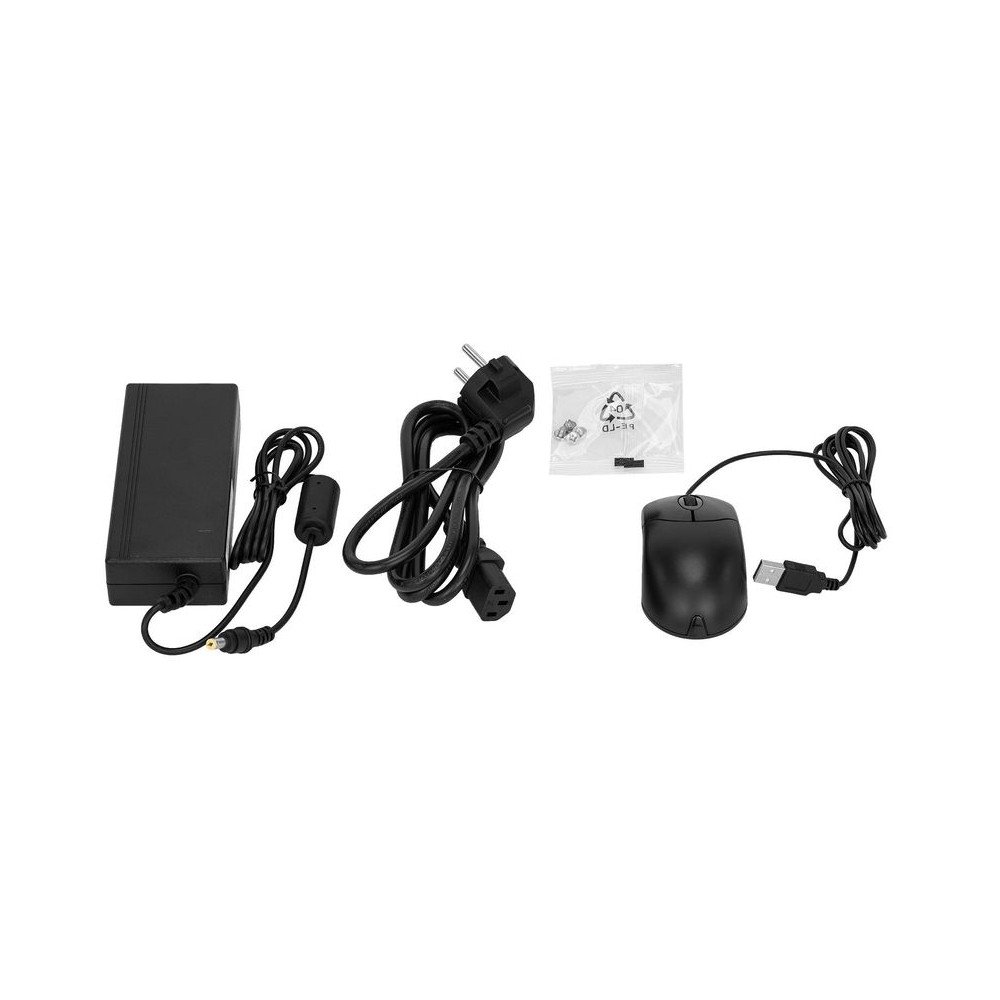

Power supply: 12 V DC / 3.3 A (power supply included)
Power consumption: 10 W (bez HDD)
Working temperature: -10 °C ... 55 °C
Libra: 0.85 kg
Dimensions: 255 x 238 x 45 mm
Supported languages: Polish, English, Albanian, Arabic, Traditional Chinese, Simplified Chinese, French, Spanish, Korean, Dutch, Hebrew, Portuguese, German, Russian, Thai, Turkish, Ukrainian, Vietnamese, Italian
Manufacturer / Brand: TIANDY
Guarantee: 3 lata
