- Supported resolutions: max. 8 Mpx
- Audio support: 20 Channels - Audio from cameras
- Image compression method: S+265 / H.265 / S+264 / H.264
- Supported hard drives: 2 x 10 TB SATA
- Network functions: Full network support, Remote copying of recordings, Built-in web server
- The recorder is compatible with Vidiline cameras using a private protocol

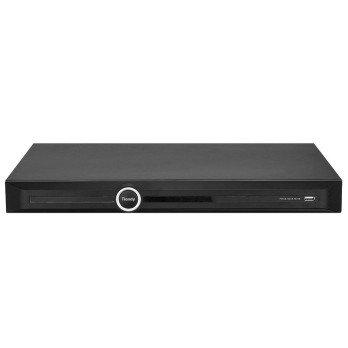

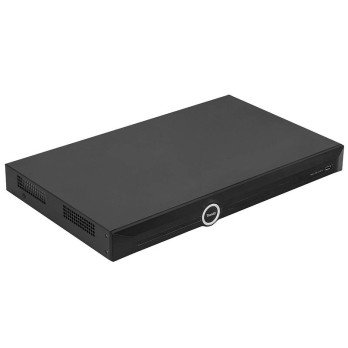

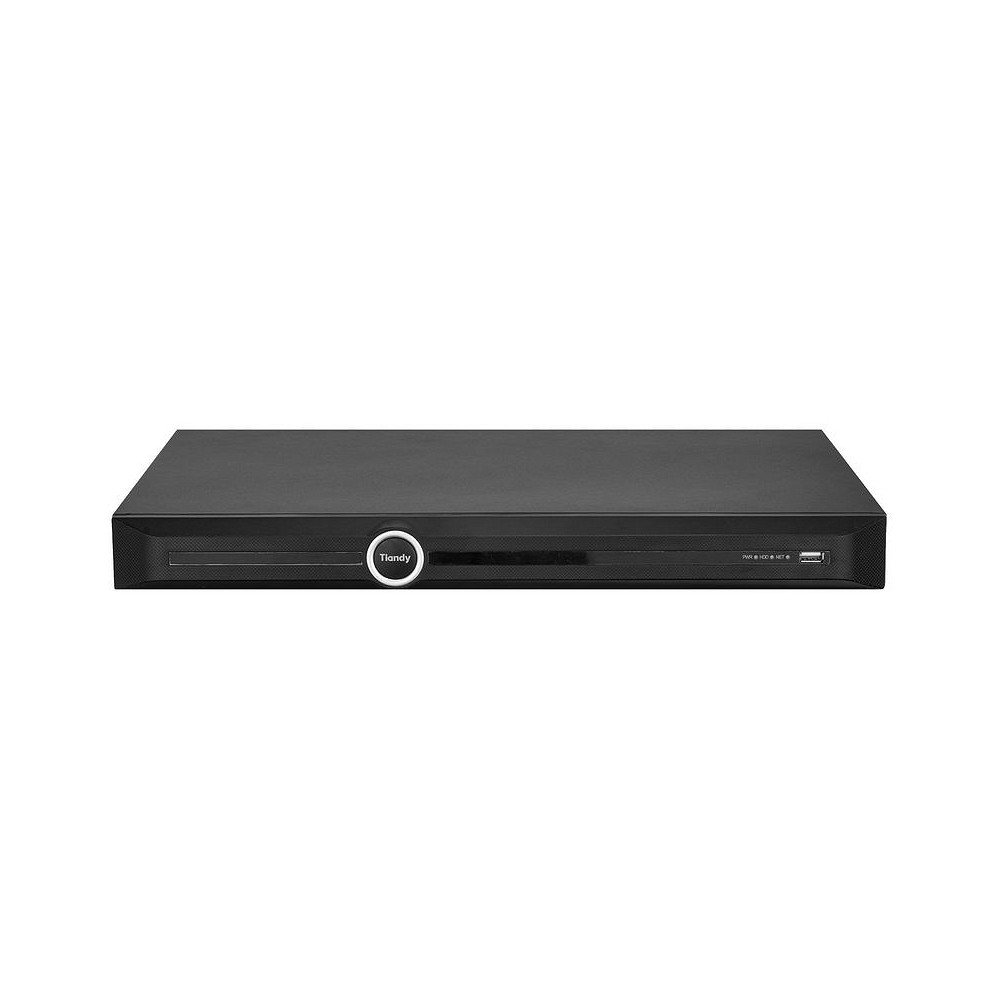

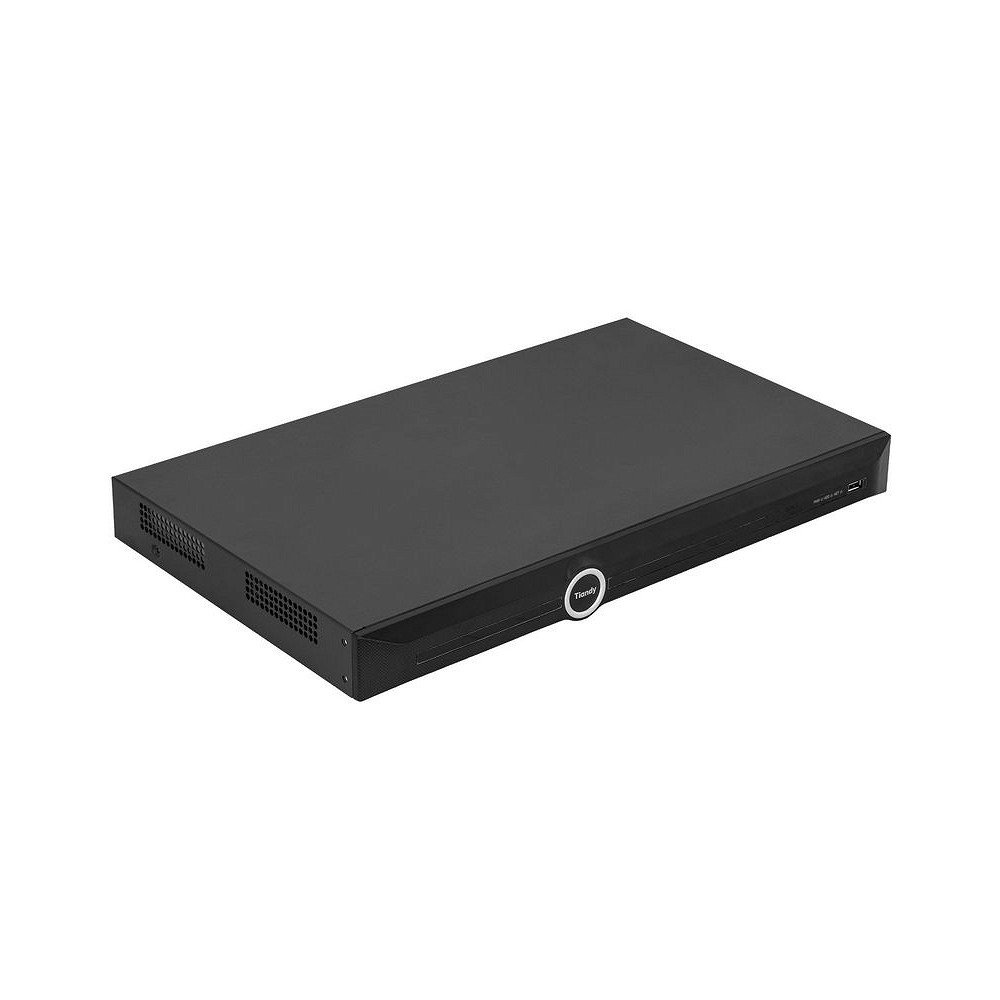

Tiandy IP network recorder 20-channel, 16 PoE TC-R3220 Spec:I/B/P16/K/V3.1
€3,752.51
Tax included
- Supported resolutions: max. 8 Mpx
- Audio support: 20 Channels - Audio from cameras
- Image compression method: S+265 / H.265 / S+264 / H.264
- Supported hard drives: 2 x 10 TB SATA
- Network functions: Full network support, Remote copying of recordings, Built-in web server
- The recorder is compatible with Vidiline cameras using a private protocol
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The TC-R3220 SPEC:I/B/P16/K/V3.1 digital recorder is a professional device used in monitoring installations.
Registration takes place in the H.265 / H.264 compression standard, which allows for obtaining the best image quality while using the minimum network bandwidth and disk capacity.
The menu has been designed in a way that makes it easy for anyone, even a novice user, to navigate and make changes to the recorder settings.
| Standard: | IP |
| Supported resolutions: | max. 8 Mpx |
| Video outputs: | 1 cent. HDMI 4K 1 pcs VGA |
| Audio support: | 20 Channels - Audio from cameras |
| Audio inputs: | 1 pc. |
| Audio outputs: | 1 pc. |
| Image compression method: | S+265 / H.265 / S+264 / H.264 |
| Supported hard drives: | 2 x 10 TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Archiving on external media: | Archiving to a USB drive (pendrive, external drive) |
| Searching and playing recordings: |
|
| Network interface: | 1 x RJ-45 - 10 / 100 / 1000 Mb/s |
| Network Features: | Full network support, Remote copying of recordings, Built-in web server |
| ONVIF: | NO |
| Throughput (bitrate): | max. 160 Mb/s |
| Default administrator login/password: | admin / - An administrator password must be set at first startup |
| Default IP address: | 192.168.1.3 |
| RTSP URL: | rtsp://user:password@192.168.1.3:554/1/1 - Main stream rtsp://user:password@192.168.1.3:554/1/2 - Secondary stream |
| Web access ports: | 80, 443, 3000, 3001, 3002, 23002 |
| Access ports via PC application: | 3000, 3001 |
| Access port via mobile application: | 3000, 3001 |
| Mobile phone access: | Port: 3000 or cloud access (P2P)
|
| Access from PC: | Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express |
| Alarm inputs/outputs: | 4 / 1 |
| Motion detection: | NO |
| Intelligent face analysis: | NO |
| USB: | 2 x USB 2.0 |
| Mouse operation: | NO |
| IR remote control included: | NO |
| Selected features: | Support for the intelligent image analysis function available in TIANDY cameras:
|
| Switch PoE: | Built-in 16-port PoE switch, 30 W / Channel - PoE |
| Maximum total switch load: | 200 W |
| Power supply: | 100 V ... 240 V AND |
| Libra: | 3.07 kg |
| Dimensions: | 440 x 284 x 47 mm |
| Supported languages: | Polish, English, Albanian, Arabic, Spanish, Korean, Italian, Russian, Thai, French, Dutch, Hebrew, Vietnamese, German, Ukrainian, Portuguese |
| Manufacturer / Brand: | TIANDY |
| Guarantee: | 3 lata |
