- Supported resolutions: max. 6 Mpx
- Audio support: 10 Channels - Audio from cameras
- Image compression method: S+265 / S+264
- Supported hard drives: 1 x 10 TB SATA

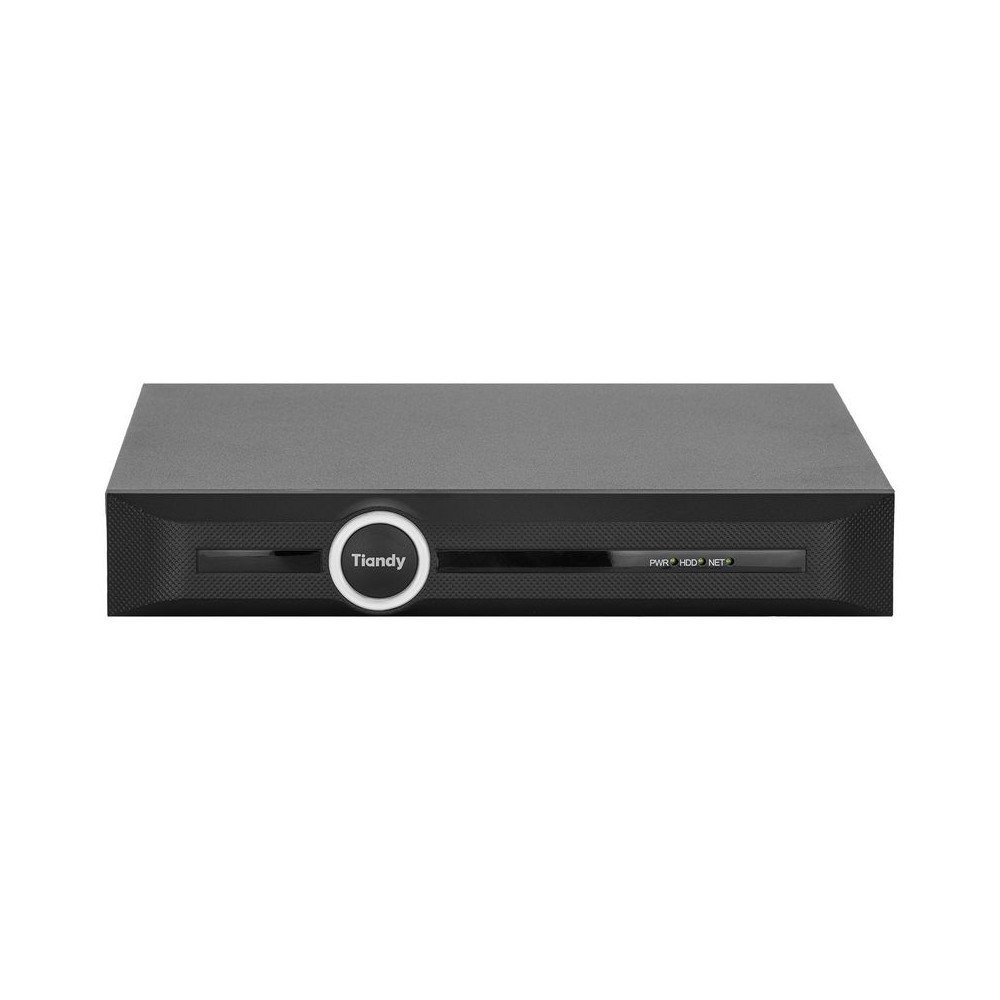

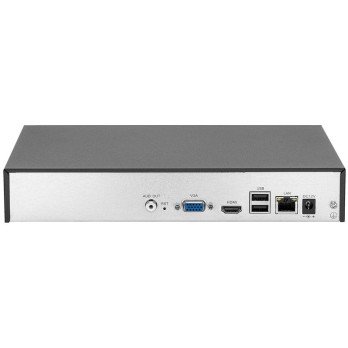

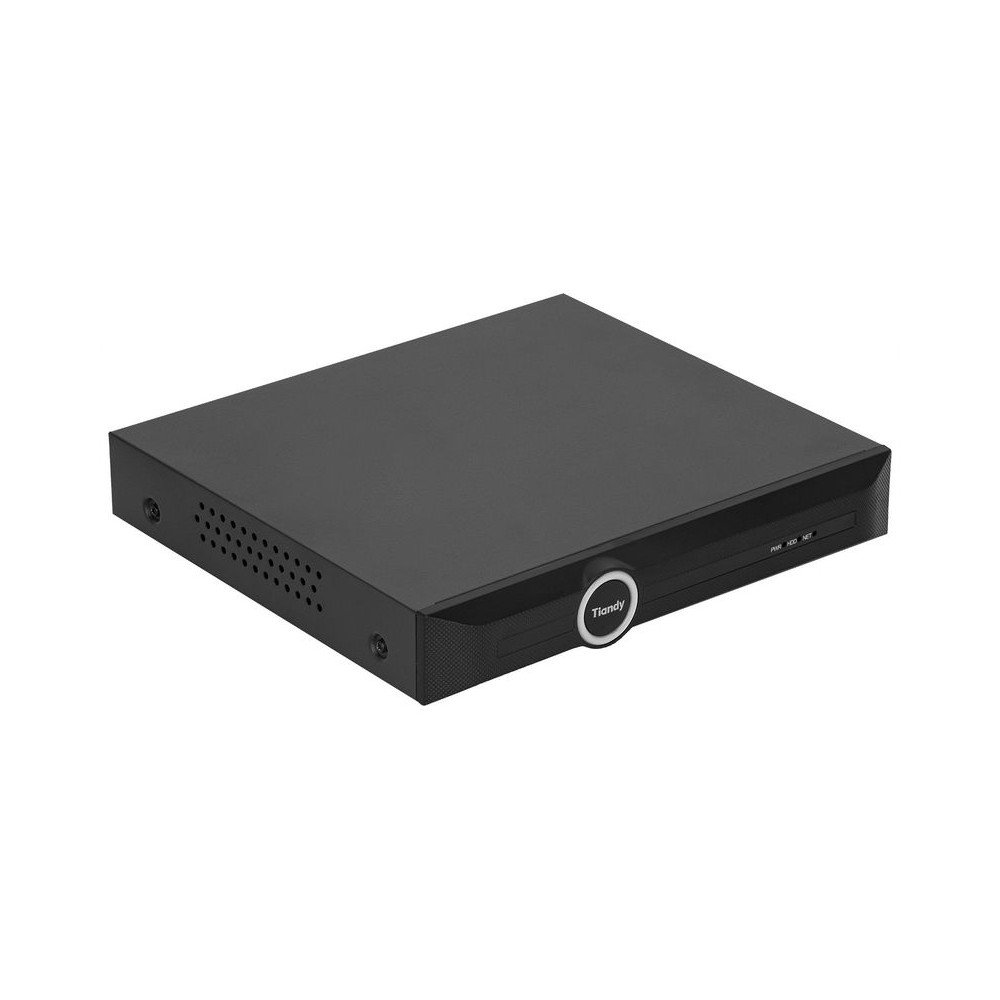

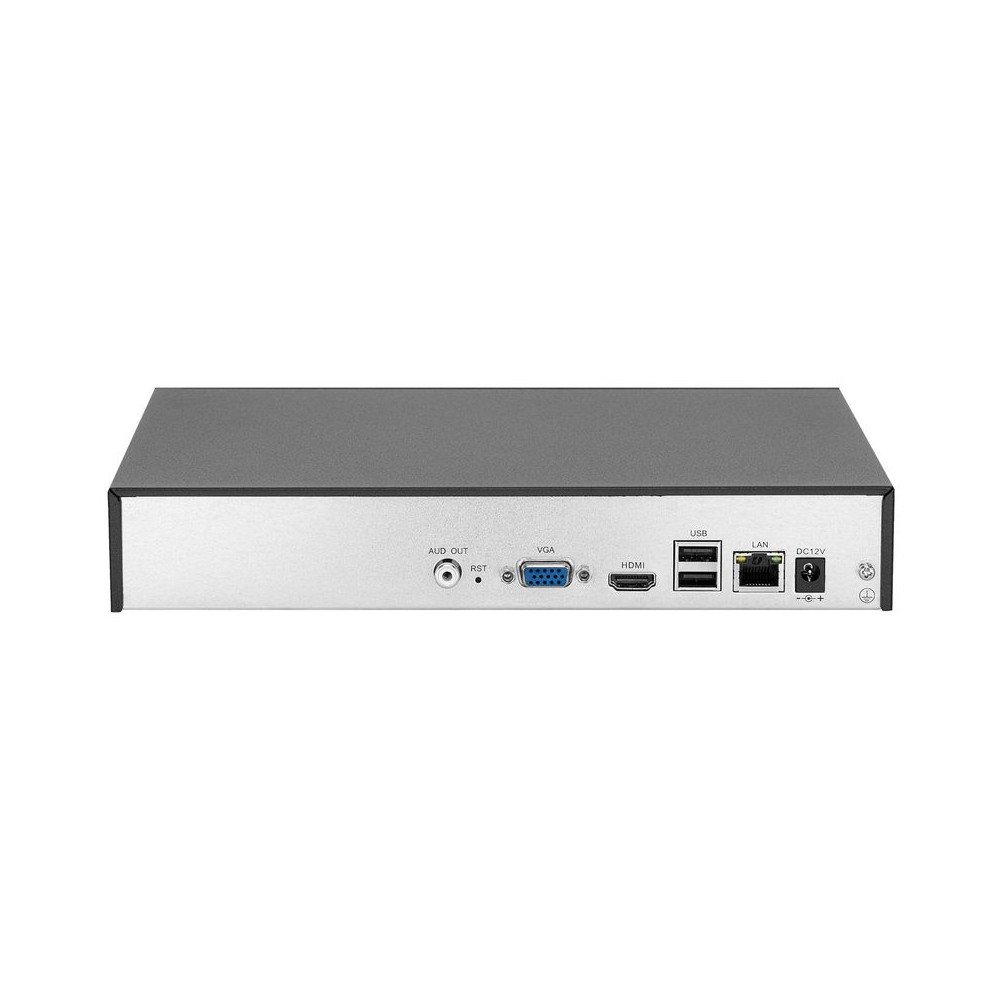

IP Recorder TC-R3110 SPEC:I/B/V3.0 10 Channels TIANDY
€1,242.83
Tax included
- Supported resolutions: max. 6 Mpx
- Audio support: 10 Channels - Audio from cameras
- Image compression method: S+265 / S+264
- Supported hard drives: 1 x 10 TB SATA
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The product was designed to reduce costs as much as possible while maintaining high quality and ease of use
| Standard: | IP |
| Supported resolutions: | max. 6 Mpx |
| Video outputs: | 1 cent. HDMI 4K 1 pcs VGA |
| Audio support: | 10 Channels - Audio from cameras |
| Audio inputs: | NO |
| Audio outputs: | 1 pc. |
| Image compression method: | S+265 / H.265 / S+264 / H.264 |
| Supported hard drives: | 1 x 10 TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Archiving on external media: | Archiving to a USB drive (pendrive, external drive) |
| Searching and playing recordings: | Search for recordings by time and event type. Playback: forward, backward, speed up, slow down the recording Advanced search (down to the second) Synchronous playback divided into 1/4 channels |
| Network interface: | 1 X RJ-45 - 10/100 mb / s |
| Network Features: | Full network support, Remote copying of recordings, Built-in web server |
| ONVIF: | Not |
| Throughput (bitrate): | max. 60 Mb/s |
| Default administrator login/password: | admin / - An administrator password must be set at first startup |
| Default IP address: | 192.168.1.3 |
| RTSP URL: | rtsp://user:password@192.168.1.3:554/1/1 - Main stream rtsp://user:password@192.168.1.3:554/1/2 - Secondary stream |
| Web access ports: | 80, 443, 3000, 3001, 3002, 23002 |
| Access ports via PC application: | 3000, 3001 |
| Access port via mobile application: | 3000, 3001 |
| Mobile phone access: | Port: 3000 or cloud access (P2P)
|
| Access from PC: | Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express |
| Alarm inputs/outputs: | NO |
| Motion detection: | Not |
| Intelligent face analysis: | NO |
| USB: | 2 x USB 2.0 |
| Mouse operation: | Not |
| IR remote control included: | NO |
| Selected features: | Support for the intelligent image analysis function available in TIANDY cameras:
|
| Power supply: | 12 V DC / 3.3 A (power supply included) |
| Libra: | 0.75 kg |
| Dimensions: | 255 x 237 x 45 mm |
| Supported languages: | Polish, English, Spanish, Italian, Turkish, French, Hebrew, German, Portuguese |
| Manufacturer / Brand: | TIANDY |
| Guarantee: | 3 lata |
NS34288
1 Item
Data sheet
- APP
- Smarteg Smart Life
- Protocol
- BLE
LIN
ONVIF
RTSP
SPI
USB - Voltage
- 12V
- Image compression method
- H.264
H.265
