Set of 5 ATTE IP-5-11-L3 IP cameras

Set for 5 IP cameras, in an ABOX-L3 external housing, 96W power supply, 6-port PoE switch 10/100Mbps (5xPoE + 1xUplink), electronic fuses, Long Range mode, type IP-5-11-L3

• possibility of powering 5 PoE 802.3at/af or PASSIVE receivers
• possibility of data transmission over 280m (in Long Range mode)
• electronic fuse independently for each PoE channel (auto return)
• ability to turn off power on selected PoE ports
• clear optical indication of power supply status and data transmission
• up to 70W of power on the LAN_5 PoE IN/OUT port
• up to 40W of power on other PoE ports
• easy and quick commissioning without the need to configure parameters
• high efficiency of the power supply module (90%)
• easy and quick installation service thanks to its modular structure
• easy expansion and scaling of the system by adding additional xPoE series switches/IP and IPB/IPUPPS

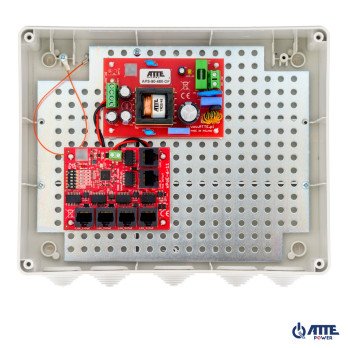

• installation of modules in any perforated part of the mounting plate (raster system)
• cover and housing connected by a string to facilitate servicing
• Possibility to keep spare cables inside the housing

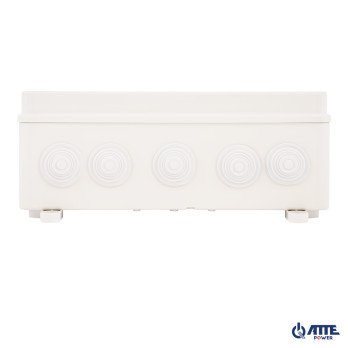

• cable entry through rubber plugs installed in the housing: 5x29mm
• possibility of inserting cables with pre-made plugs (after cutting the cap)
• The set includes 4 brackets enabling installation of the housing without compromising the IP55 protection level
• optional ADD-PMAL adapter allows easy installation of both on poles or lampposts (sold separately)

The set includes:

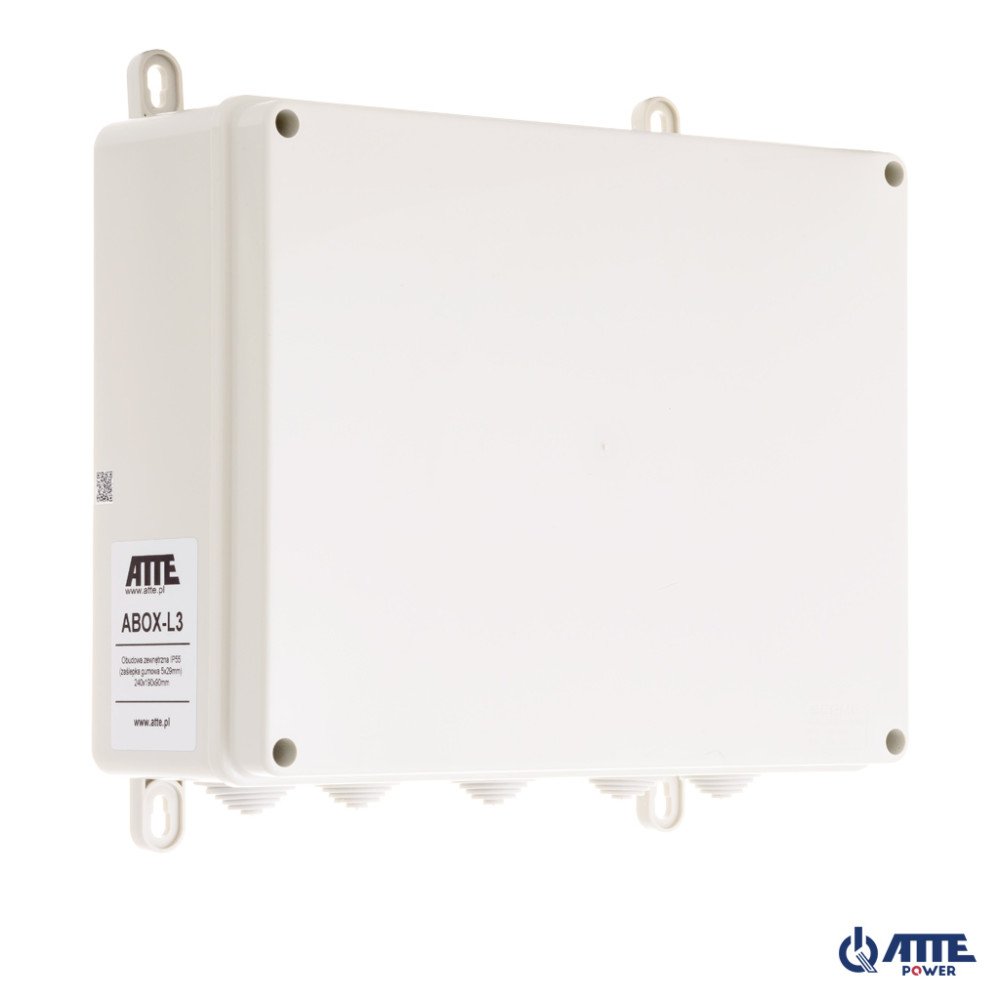

• 1x ABOX-L3 housingincreasing the transmission range to 280musing standard UTP twisted-pair cable.Sets with PoE switchare designed to work with IP cameras and other network devices powered by the PoE 802.3at/af and PoE PASSIVE standards.ABOX series external enclosuresare a convenient solution to the problem of protecting devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other unfavorable atmospheric factors. The models available in the offer are equipped with a mounting plate with special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the mounting plate.
