- Standard PoE: 802.3af/at
- Transmission speed: 10 / 100 Mbps
- Number of inputs: 2x RJ45
- Number of outputs: 2x RJ45
- Max. IN voltage: 57V
- Max transmitted power: 60 W total

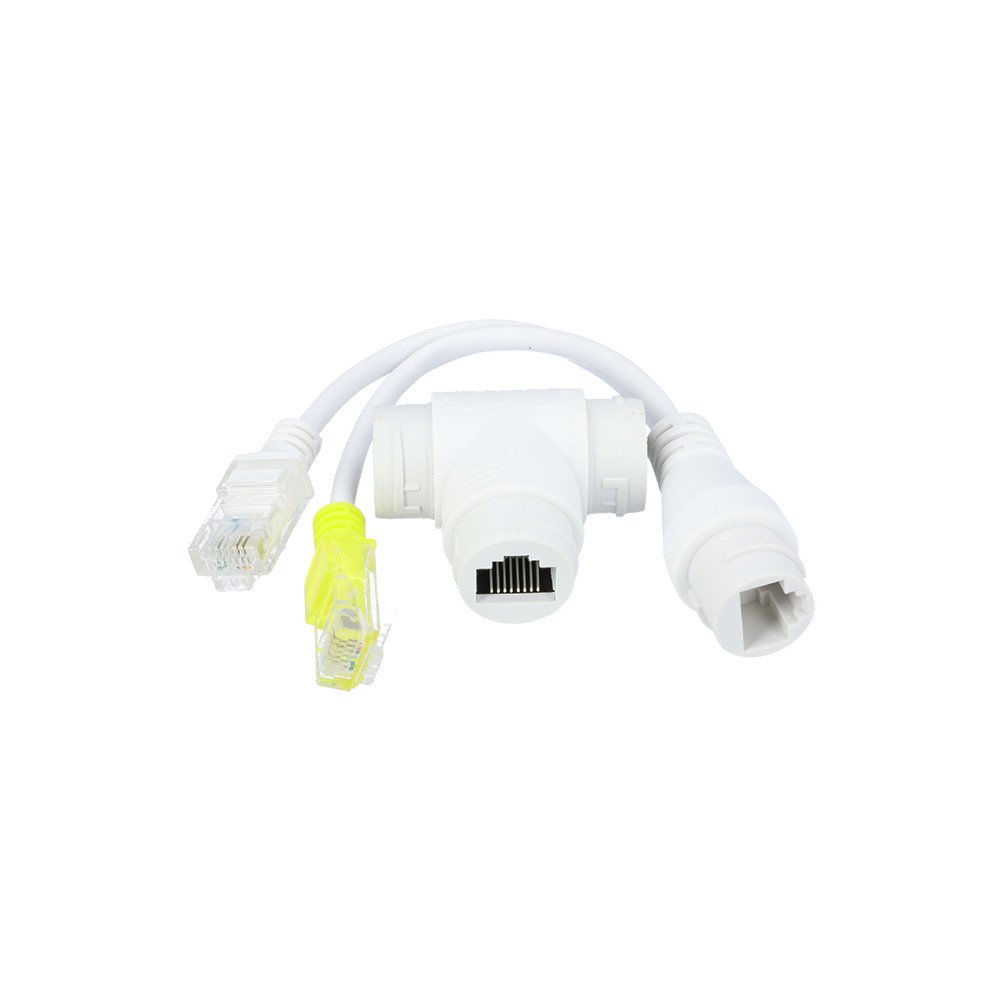

VIDI-FZW-CONV PoE splitter
€34.45
Tax included
- Standard PoE: 802.3af/at
- Transmission speed: 10 / 100 Mbps
- Number of inputs: 2x RJ45
- Number of outputs: 2x RJ45
- Max. IN voltage: 57V
- Max transmitted power: 60 W total
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
PoE splitter - Two IP cameras on one cable
VIDI-FZW-CONV is an advanced device dedicated to powering IP cameras using PoE (Power over Ethernet) technology, supporting IEEE 802.3af/at standards. It allows you to transmit images from two cameras using one twisted pair, which simplifies installation and allows you to add an additional IP camera where there is no additional cabling. Thanks to built-in surge protection and resistance to harsh external conditions, it ensures reliable operation at temperatures from -30°C to 60°C, making it an ideal solution for professional video monitoring systems.
SynthesisThe device connected to two PoE ports in the switch transmits the signal and power to the splitter using one twisted pair, using part of the wires for power and the rest for communication.
SplitterIt receives the signal from the synthesis and appropriately distributes power and communication to each of the connected devices by appropriate use of the power and communication wires.
