Set for 5 ATTE IP-5-11-L2 IP cameras

Set for 5 ATTE IP-5-11-L2 IP cameras

€940.55
Tax included
  • Possibility to power 5 PoE 802.3at/af or PASSIVE receivers
  • Possibility of data transmission over 280m (in Long Range mode)
  • Electronic fuse independently for each PoE channel (auto return)
  • Possibility to turn off the power on selected PoE ports
  • Clear optical indication of power supply and data transmission status
  • Up to 70W of power on the LAN_5 PoE IN/OUT port
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

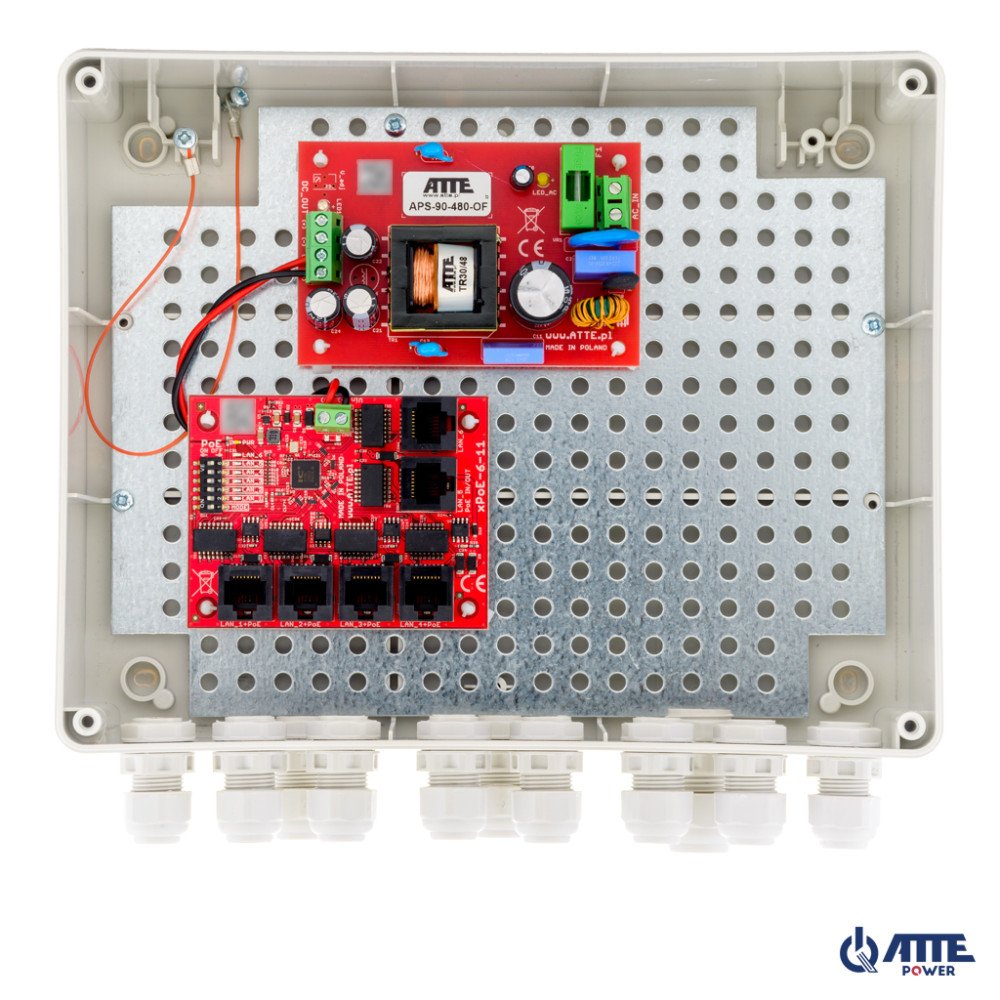

The IP-5-11-L2 set consists of the XPOE-6-11-OF switch module and the APS-90-480-OF switching power supply enclosed in an ABOX-L2 external housing with IP56 tightness class.

The LONG RANGE operating mode allows you to increase the range of power and data transmission for LAN 1 ... LAN 4 ports to 280m while limiting the network bandwidth for these ports to 10Mbps

LAN ports:
  • 1 x RJ45 10/100 Base-T - Uplink,
  • 5 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management: NO
Diody LED: Power, LAN
Transmission speed: 10 / 100 Mb/s: 1 LAN port + 5 LAN PoE ports
Maximum output power:
  • 40 W @ Passive PoE - LAN1 ... LAN4 ports,
  • 60 W @ Passive PoE - Port LAN5,
  • 30 W @ PoE (802.3af/at) - Porty LAN1 ... LAN5
Maximum total power: 60 W
Operating modes:
  • Standard : 100 m @ 10/100 Mb/s - Porty LAN1 ... LAN6
  • Long Range : 280 m @ 10 Mb/s - Porty LAN1 ... LAN4 ; 100 m @ 10/100 Mb/s - Porty LAN5, LAN6
Selected features:
  • Possibility of cascading devices (power transfer between devices using Passive PoE via LAN port 5)
  • The PoE output voltage is equal to the input voltage
  • PoE power supply can be turned on and off independently for each of the LAN 1 ... LAN 5 ports
  • The modular design streamlines service tasks and allows for quick, easy system expansion
  • The raster module assembly system facilitates the expansion of the device with additional modules

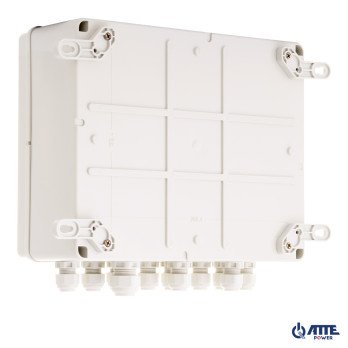

  • The ABOX-L2 mounting housing is equipped with 11 cable entries with glands in the arrangement of 10 x M16 + 1 x M20
  • Tightness class: IP56
Power supply: 190 ... 260 V AC - cable clamps
Libra: 1.02 kg
Dimensions: 248 x 198 x 96 mm
Manufacturer / Brand: ATTE
Guarantee: 3 lata
ATTE
NS32344
1 Item

Data sheet

Protocol
BLE
LIN
PoE
QUIC
IP Class
IP56
