Buffer set for 16 IP cameras, in RACK ABOX-R5U0 housing (2x 18Ah battery), 144W power supply (2x 72W), 18-port PoE switch (16xPo

Buffer set for 16 IP cameras, in RACK ABOX-R5U0 housing (2x 18Ah battery), 144W power supply (2x 72W), 18-port PoE switch (16xPo

€3,775.39
Tax included
  • Main cable entries on the rear of the case
  • Additional cable entry is provided in the space between the body and the housing cover

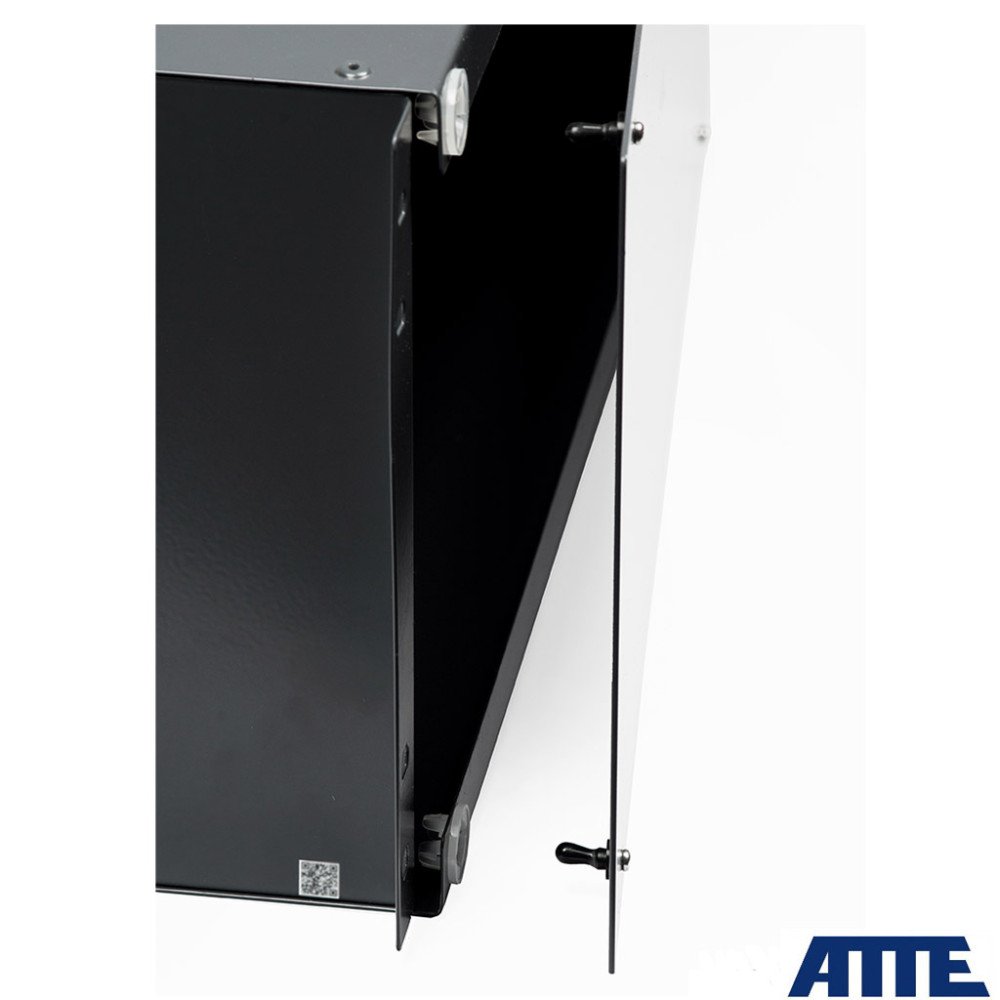

  • Convenient, tool-free assembly and disassembly of the masking cover (push-in)
  • Graphite color selected in such a way that the housing fits both dark and light wardrobes
  • The housing is equipped with a connector and an electrical cube with a fuse
  • Possibility to keep spare cables inside the housing
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

16-port PoE switch in a RACK cabinet housing with a buffer power supply

16 ports support Power over Ethernet (PoE)

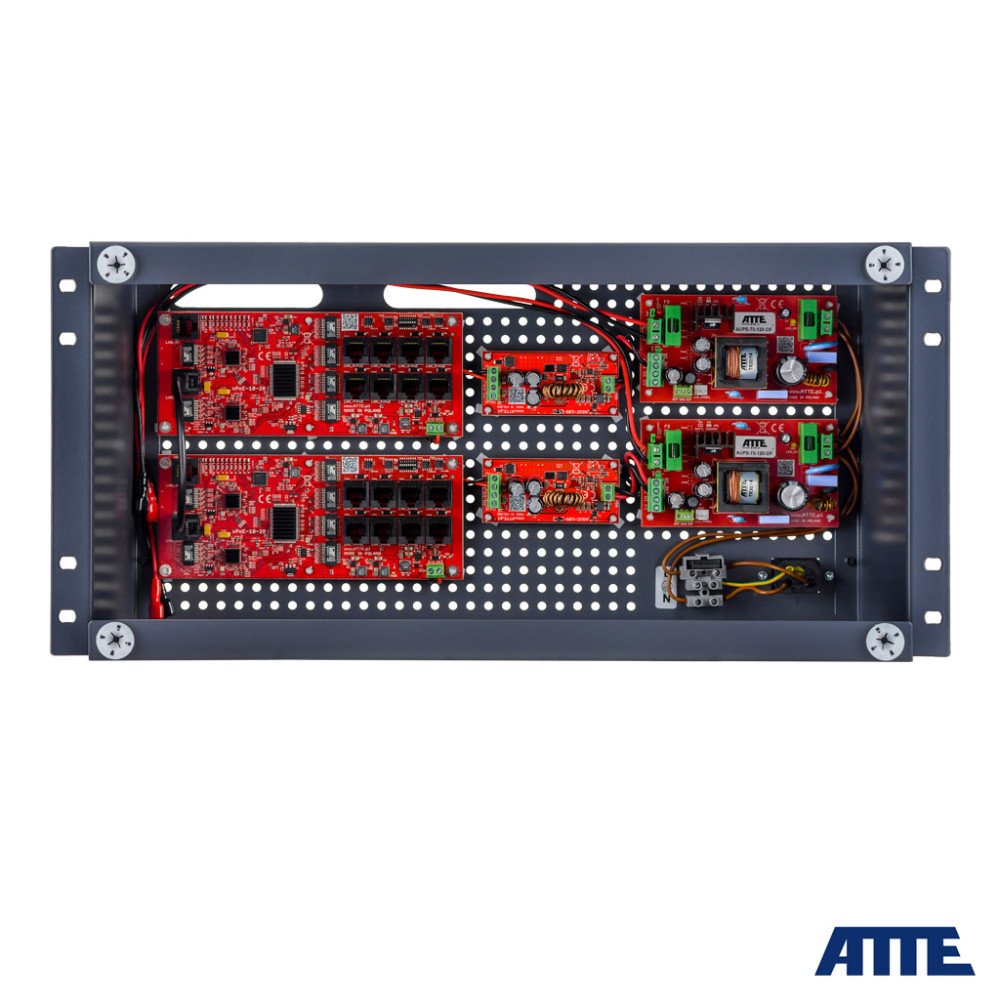

The IPUPS-16-20-R5U0 set consists of 2 XPOE-10-20A-OF switch modules, 2 AUPS-70-120-OF buffer power supply modules and 2 ASUC-100-480-OF voltage converter modules enclosed in an ABOX-R5U0 RACK cabinet housing with room for 2 18Ah batteries

Buffer power supplies are designed to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V

LAN ports:
  • 2 x RJ45 10/100/1000 Base-T - Uplink,
  • 16 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management: NO
Diody LED: AC, DC, CHARGING (battery charging), PoE, Gigabit Ethernet
Transmission speed:
  • 10 / 100 / 1000 Mb/s : 2 x Port Uplink,
  • 10 / 100 Mb/s : 16 x Port LAN PoE
Maximum output power:
  • 40 W @ Passive PoE - LAN1 ... LAN8 ports,
  • 30 W @ PoE (802.3af/at) - Porty LAN1 ... LAN8
Maximum total power: 130 W
Operating modes: Standard : 100 m @ 10/100 Mb/s - LAN1 ... LAN8 ports
Selected features:
  • 4K UHD support
  • Ability to independently turn PoE power on and off for each of the LAN 1 ... LAN 16 ports
  • The modular design streamlines service tasks and allows for quick, easy system expansion
  • The raster module assembly system facilitates the expansion of the device with additional modules

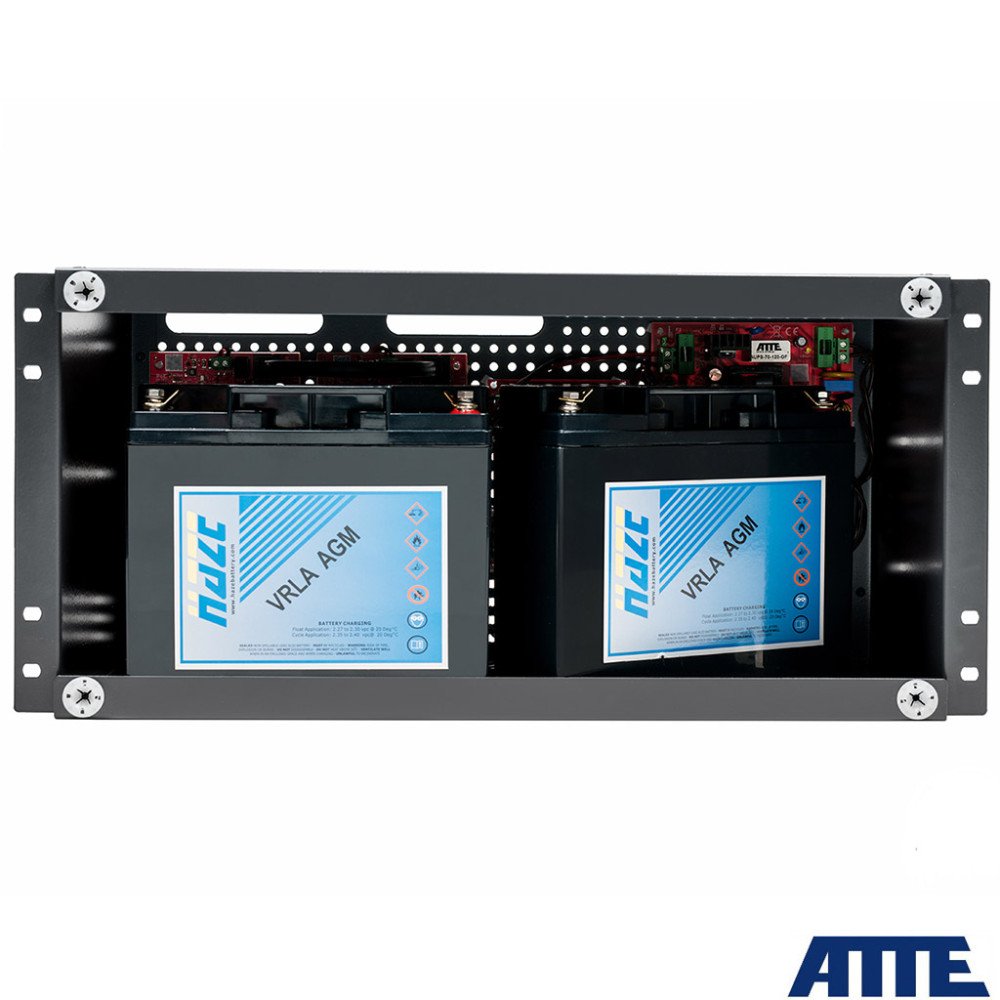

  • 2 x Battery compartment: 12V / 18Ah
  • Battery charging current: 1 A / 2 A - (set using jumper JP1)
  • Battery - Protection against reverse polarity connection, Protection against deep battery discharge
  • OC type technical outputs signaling voltage loss at the power supply output (OUF) and voltage loss in the 230V network (ACF)
  • Power supply thermal protection: 130 °C
  • Overload protection
  • LAN PoE ports - Short circuit protection, surge protection
  • Possibility of installation in a 19" rack cabinet
  • Tightness class: IP20
Power supply: 190 ... 260 V AND
Libra: 3.42 kg
Dimensions: 440 x 220 x 180 mm - RACK 19", 5U

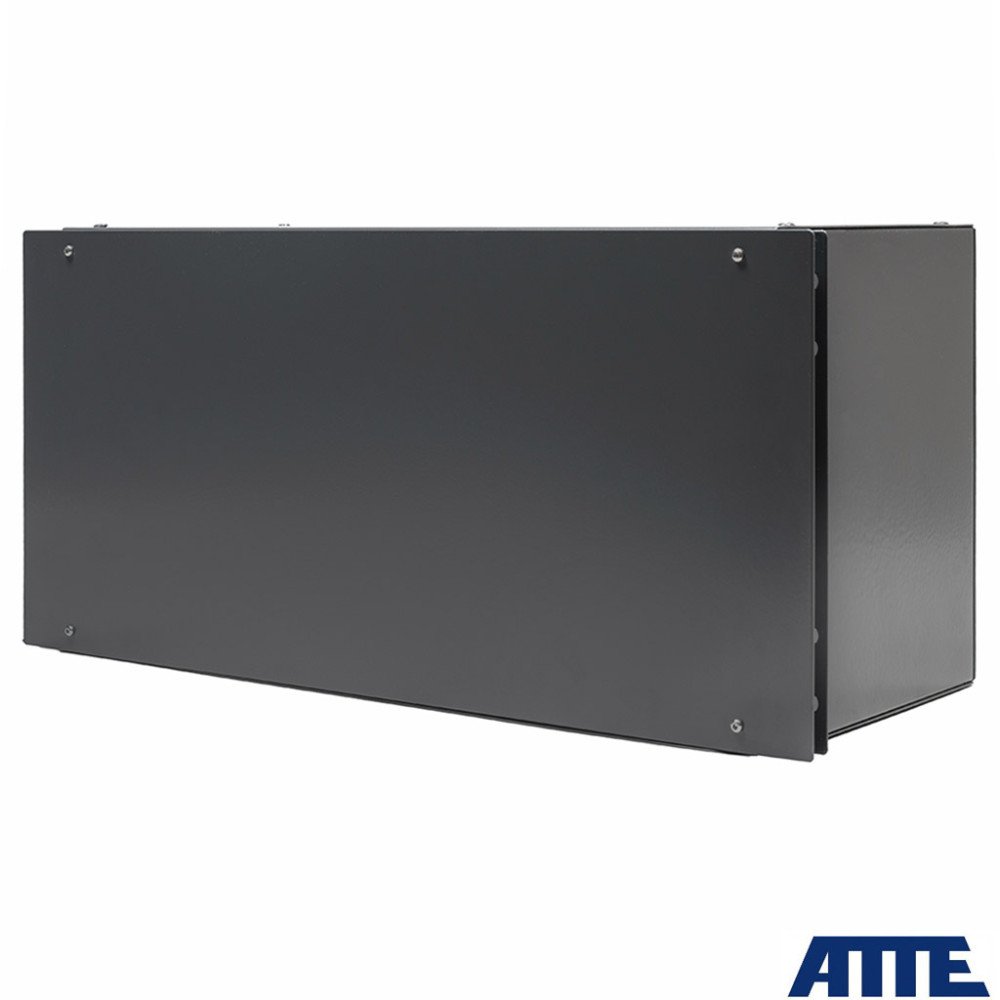

External dimensions of the housing: 484 x 225 x 202 mm
Manufacturer / Brand: ATTE
Guarantee: 3 lata
ATTE
NS32355
1 Item

Data sheet

Protocol
BLE
Ethernet
LIN
PoE
QUIC
Voltage
12V
240V
IP Class
IP20
