Set for 17 ATTE IP-17-11-H IP cameras

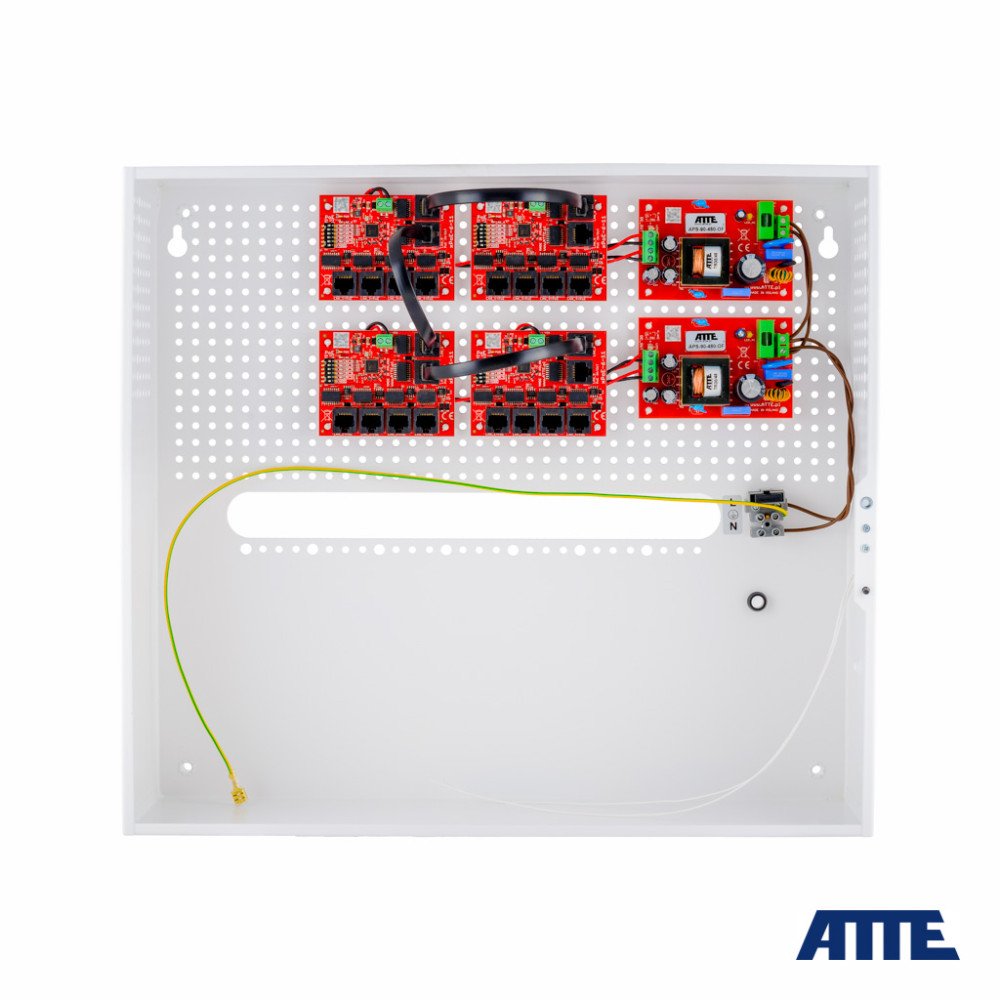

Set for 17 IP cameras, in an internal housing ABOX-H (space for NVR), power supply 192W (2x 96W), 18-port PoE switch 10/100Mbps (17xPoE + 1xUplink), electronic fuses, Long Range mode, type IP-17-11-H

• ability to power 17 PoE 802.3at/af or PASSIVE receivers
• possibility of data transmission over 280m (in Long Range mode)
• electronic fuse independently for each PoE channel (auto return)
• ability to turn off power on selected PoE ports
• clear optical indication of power supply status and data transmission
• up to 70W of power on the LAN_5 PoE IN/OUT port
• up to 40W of power on other PoE ports
• easy and quick commissioning without the need to configure parameters
• high efficiency of the power supply module (90%)
• easy and quick installation service thanks to its modular structure
• easy expansion and scaling of the system by adding additional xPoE series switches/IP and IPB/IPUPPS
• installation of modules in any perforated part of the housing (raster system)

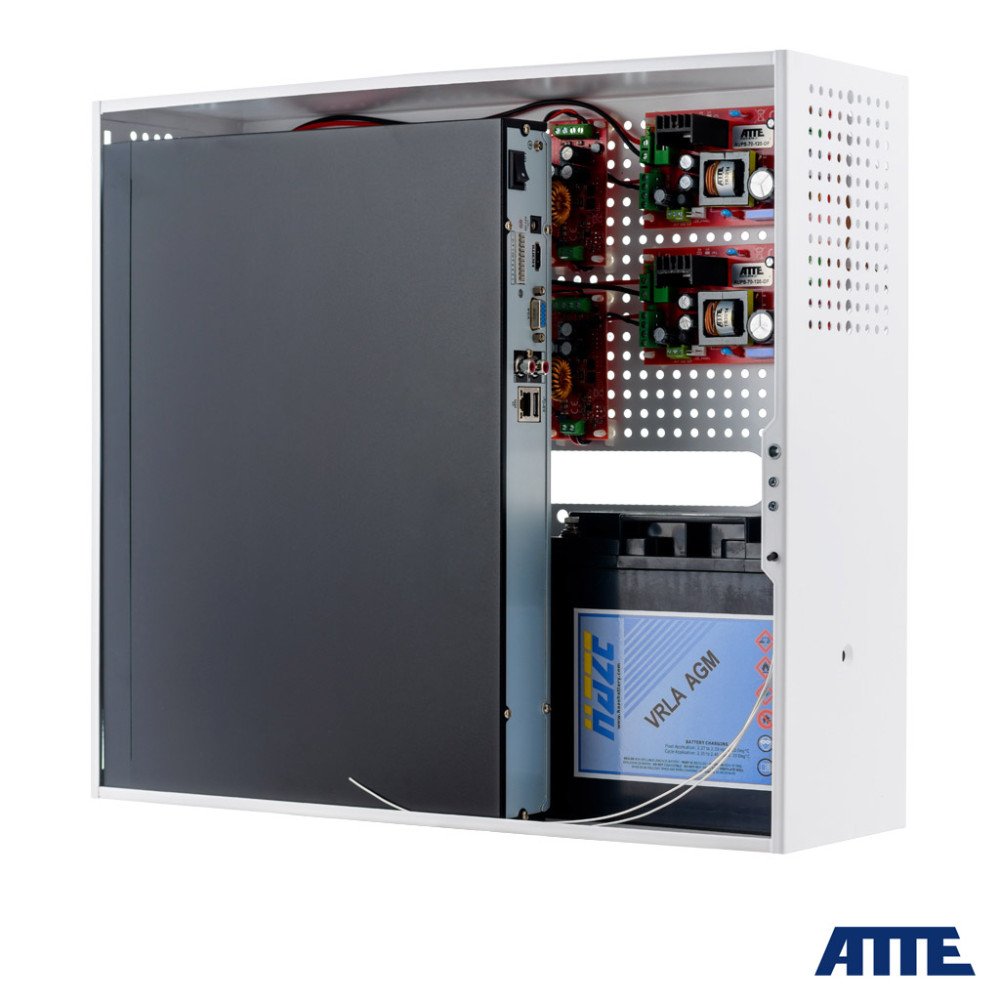

• space for a video recorder (NVR)
• Possibility to keep spare cables inside the housing
• cable entries on the back of the housing
• distance to the wall/mounting surface

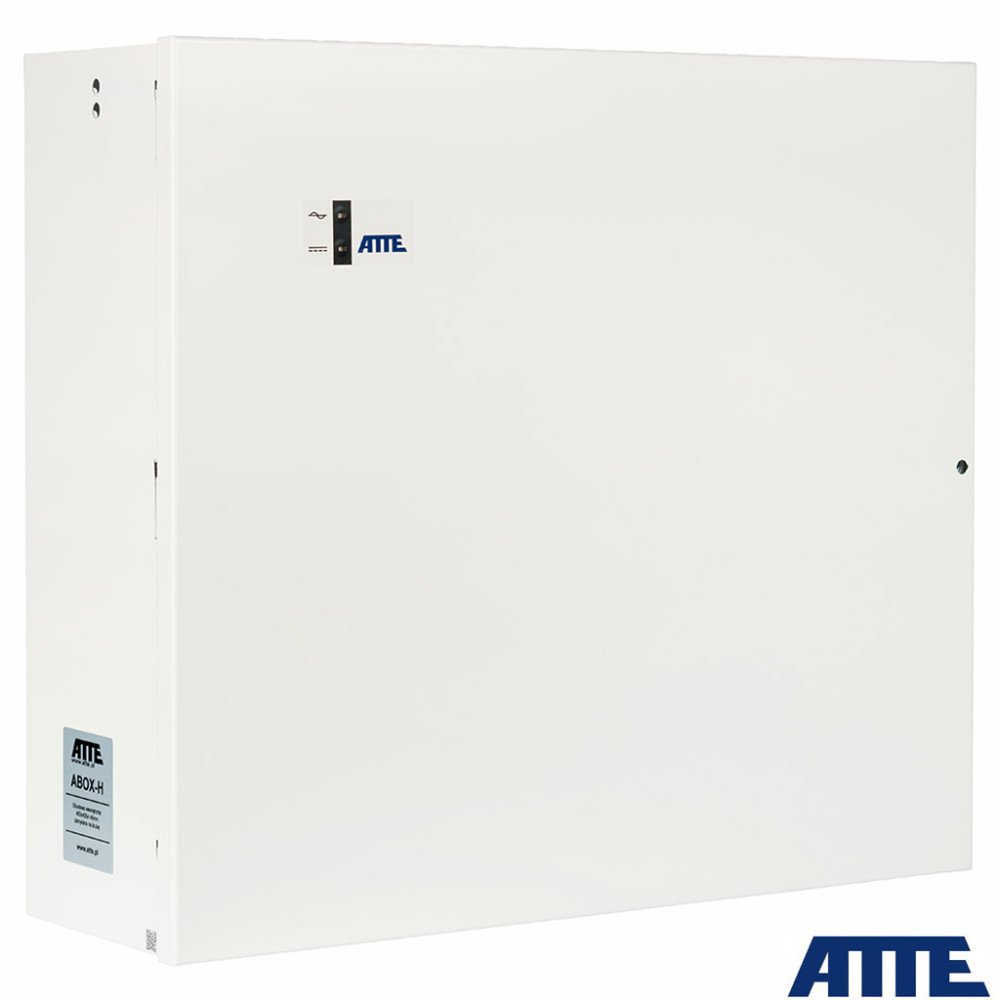

• 1x ABOX-H housing
• 2x APS-90-480-OF power supply
• 4x switchincreasing the transmission range to 280musing standard UTP twisted-pair cable.Sets with PoE switchare designed to work with IP cameras and other network devices powered by the PoE 802.3at/af and PoE PASSIVE standards.ABOX series internal housingsthey are a convenient solution to the problem of aesthetic installation of devices and termination of cabling inside buildings. All housings are made of steel sheet, powder-coated in a semi-matt white color. Production using a modern technological line ensures the highest quality and precision. Each housing is equipped with a screw closure, removable door and an opening tamper. The models available in our offer have special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing. TECHNICAL DATA:

  LAN ports	18 RJ45 10/100Mbps ports (17xLAN+PoE, 1xUplink)
  Supported PoE receivers (standard / max power)	802.3af - do 15,4W LAN_1...LAN_5 802.3at - does 30W LAN_1...LAN_5 PoE PASSIVE - do 70W LAN_5 / do 40W LAN_1...LAN_4
  PoE outputs (standard / power mode)	LAN_1...LAN_5 PoE PASSIVE, mode B (4,5+) (7,8-)
  PoE output protection (overcurrent/short circuit)	LAN_1...LAN_4 0.75A / electronic (auto-return) LAN_5 1.25A / electronic (auto-return)
  SW1 microswitches	switch 1 "MODE" - switch operation mode switches 2...6 "PoE ON/OFF" - PoE power supply on ports LAN_1...LAN_5
  "Standard" operating mode	switch 1 "MODE" in the OFF position LAN_1...LAN_6 - range up to 100m (10/100Mbps)
  "Long Range" operating mode	switch 1 "MODE" in the ON position LAN_1...LAN_4 - range up to 280m (10Mbps) LAN_5...LAN_6 - range up to 100m (10/100Mbps)
  AC adapter (type / type)	impulsowy SMPS / 2x APS-90-480-OF
  Power supply output protection (overcurrent/short circuit)	9A (each power supply separately), electronic (after a short circuit, a restart of the power supply may be required)
  Power supply thermal protection	TSD (thermal shutdown) 130°C, requires restart
  Power supply input voltage range / input protection	180...240VAC / T3.15A fuse F1
  Power supply output power (continuous)	2x 96W (192W)
  Power supply efficiency	92% @180W
  Output voltage of the power supply (PoE camera power supply)	48V +/-2%
  Housing assembly	wall-mounted, mounting holes 6mm
  Installation of devices inside the housing	4.8mm system holes in a 10.8mm pitch
  Operating temperature range	-10°C...+40°C
  Housing (type / material / color / protection / cable entries)	ABOX-H / metal / white / opening tamper / back of the housing, distance to the wall
  Dimensions / net weight / degree of protection	400x450x140mm / 4,5kg / IP20
