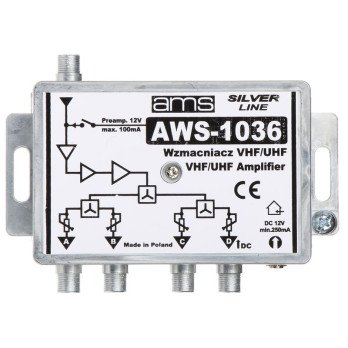

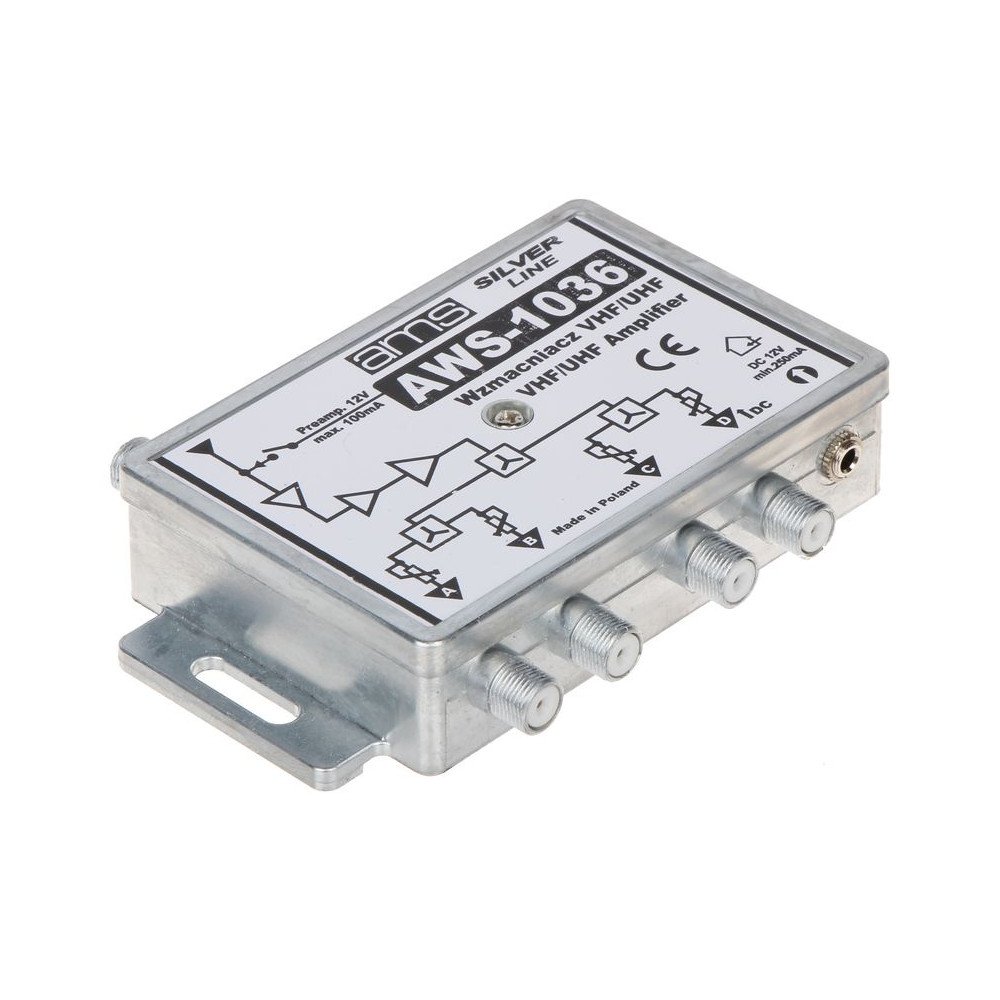

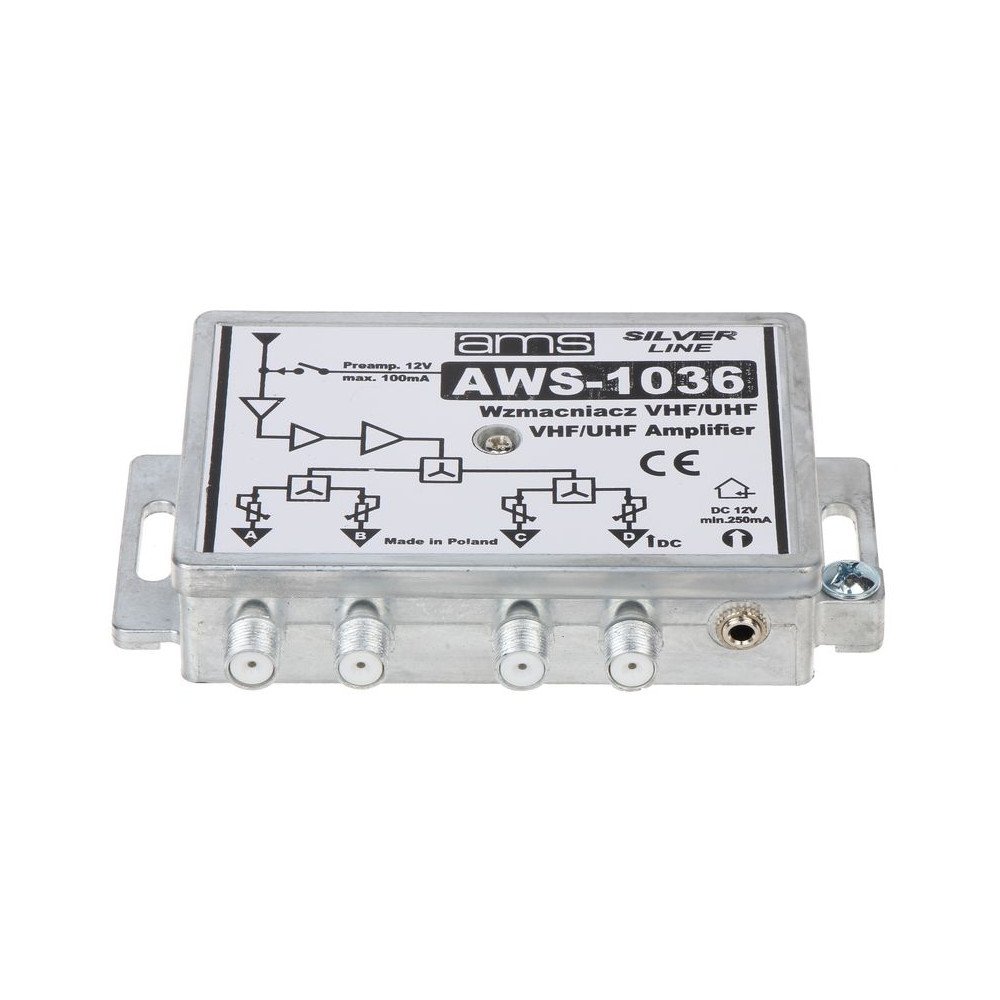

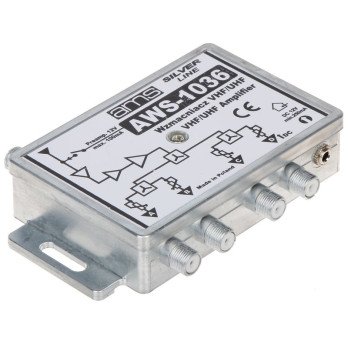

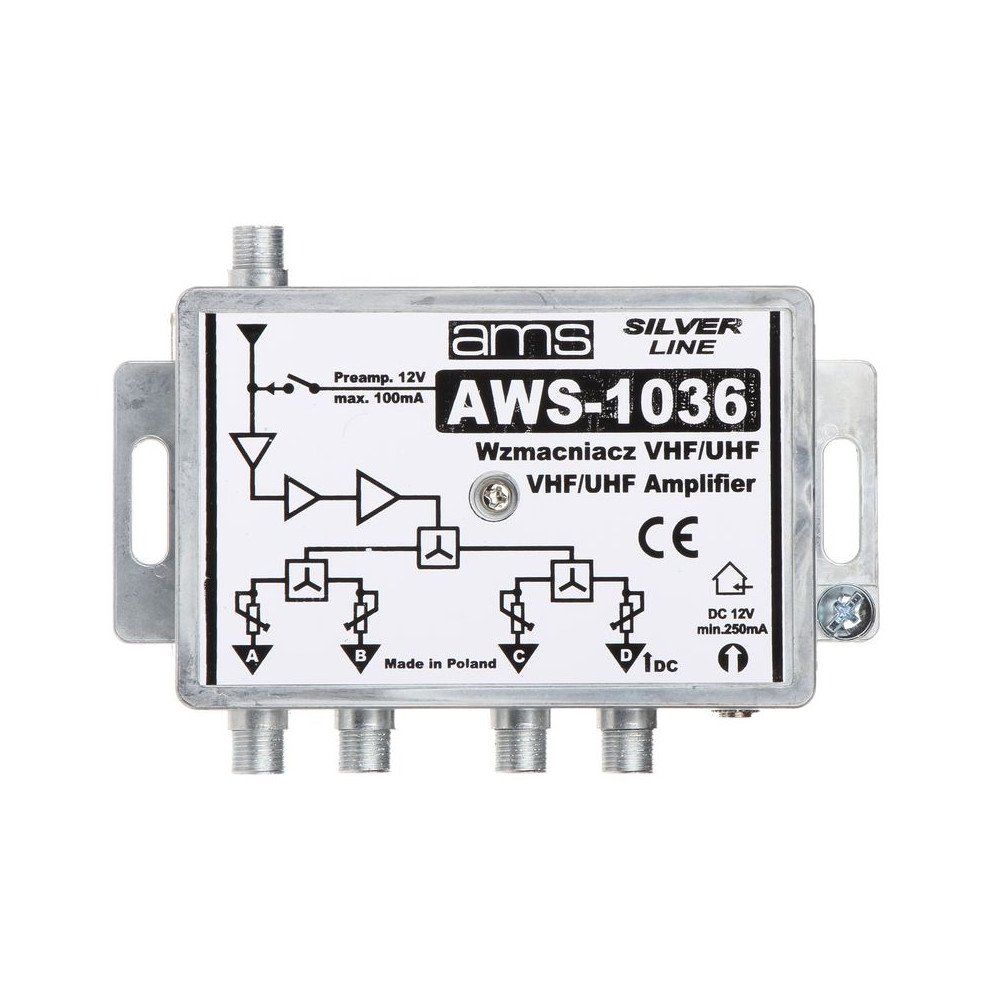

AWS-1036 is designed to amplify and divide the TV signal into 4 home antenna installations built using band antennas connected by a crossover. Gain control allows you to adjust the signal level throughout the installation.

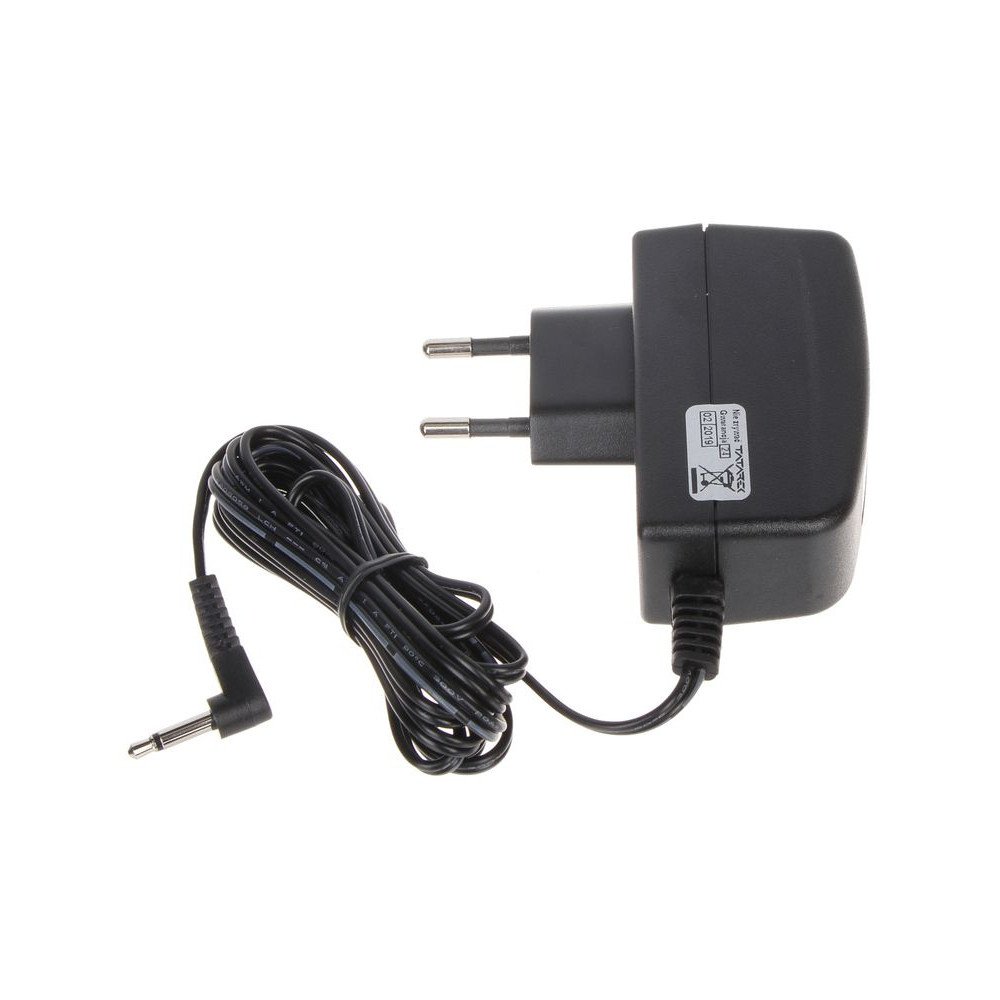

The amplifier can be powered directly from the included power supply or through an output using a separator.

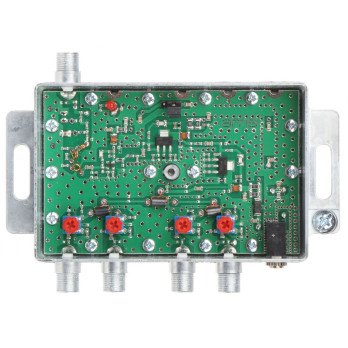

AMPLIFIER AWS-1036 20/23DB AMS
€272.77
Tax included
AWS-1036 is designed to amplify and divide the TV signal into 4 home antenna installations built using band antennas connected by a crossover. Gain control allows you to adjust the signal level throughout the installation.
The amplifier can be powered directly from the included power supply or through an output using a separator.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
AWS-1036 is designed to amplify and divide the TV signal into 4 home antenna installations built using band antennas connected by a crossover.
Gain control allows you to adjust the signal level throughout the installation
The amplifier can be powered directly from the included power supply or through an output using a separator
| Frequency Range: | 87 MHz ... 790 MHz |
| Number of inputs/outputs: | 1 / 4 |
| Input/output impedance: | 75 OH |
| Connector type: | "F" |
| Reinforcement: | 20 dB / 27 dB ± 2 dB |
| Gain Control: | 0 dB ... 14 dB (+/- 1dB) |
| Noise figure: | ≤ 5 dB ± 1 dB |
| Maximum output level: | 102 dBµV |
| IMA3 60dB: | 96 dBµV |
| IMA2 60dB: | 83 dBµV |
| Mismatch suppression: | 10 dB |
| Working temperature: | -25 °C ... 55 °C |
| Power supply: | 12 V DC / 250 mA |
| Libra: | 0.3 kg |
| Dimensions: | 124 x 88 x 27 mm |
| Manufacturer / Brand: | AMS |
| Guarantee: | 2 lata |
