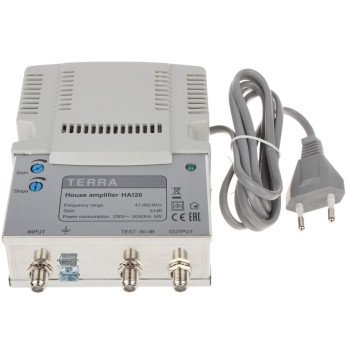

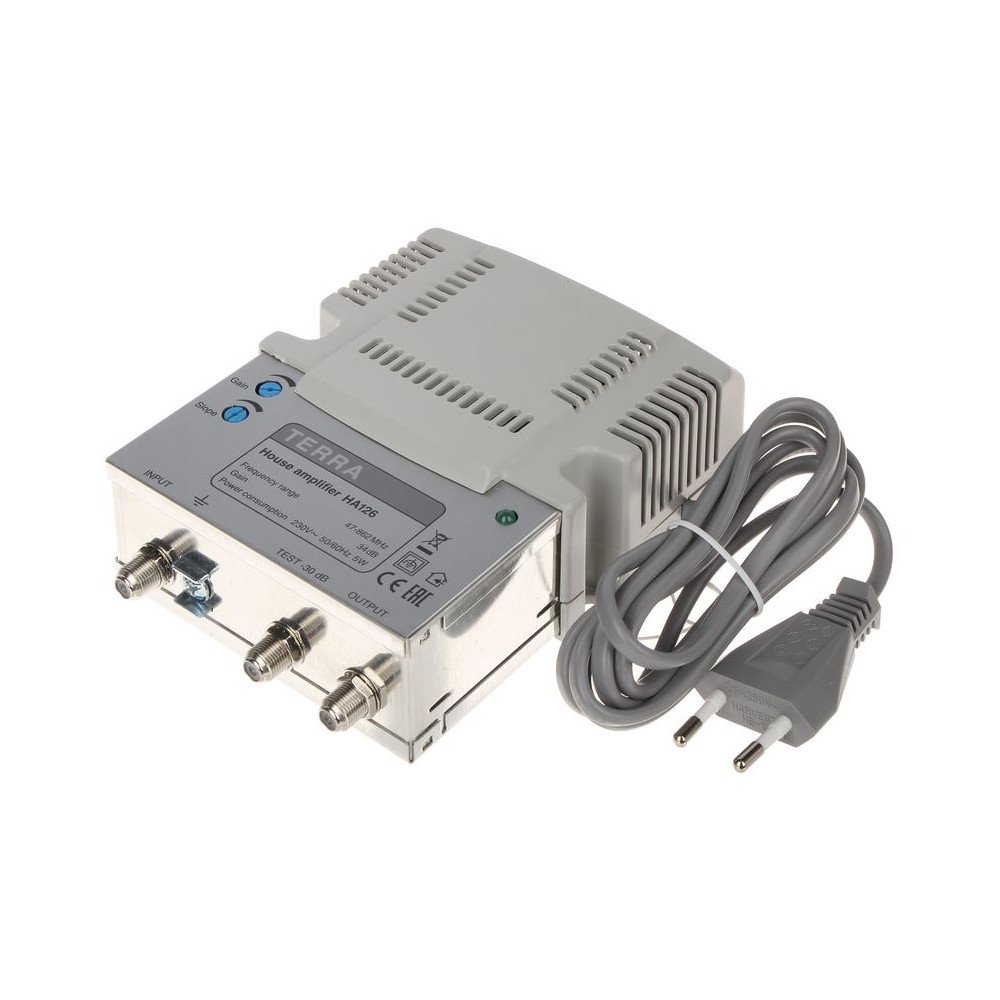

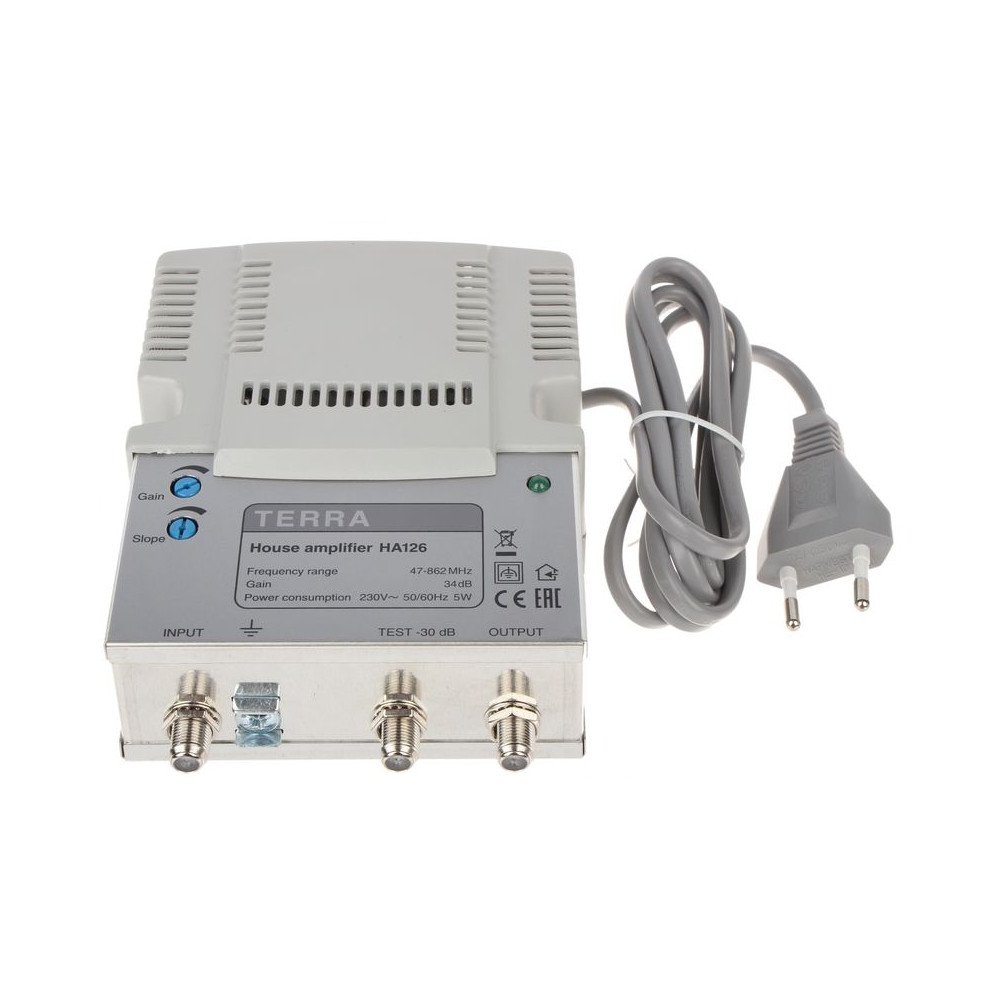

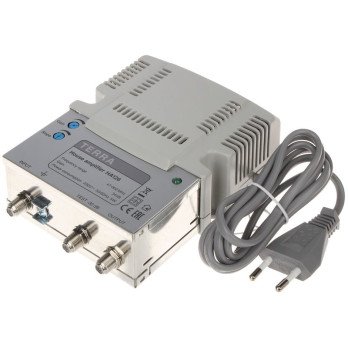

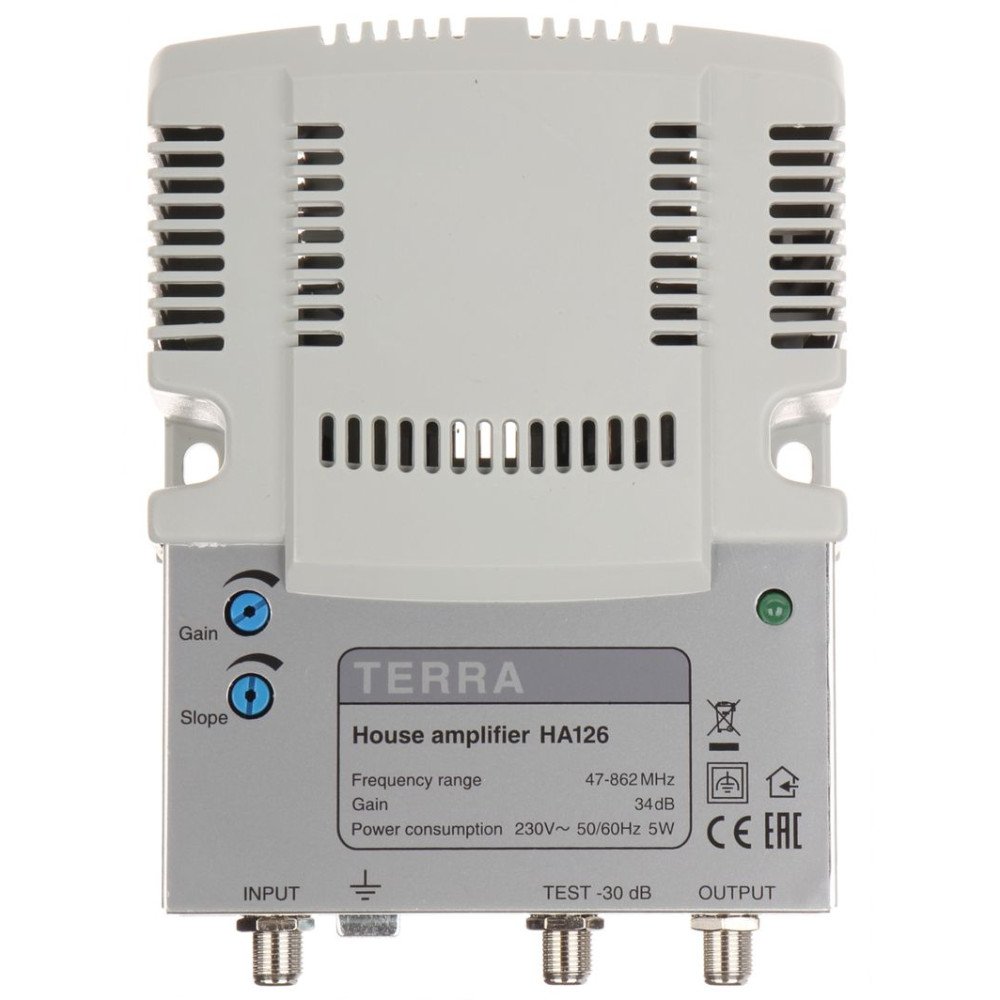

HA-126 TERRA AMPLIFIER 34 db
€342.59
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Frequency Range: | 47 MHz ... 862 MHz |
| TV Gain (47-862MHz): | 34 dB |
| Non-uniformity of frequency response: | ± 0.5 dB |
| Number of inputs/outputs: | 1/1 |
| Gain Control: | 0 dB ... 20 dB |
| Cable attenuation correction: | 0 dB ... 18 dB |
| Maximum output level IMD3=60 dB DIN45004B: | 117 dBµV |
| Maximum output level IMD2=60 dB EN50083-3: | 112 dBµV |
| Mismatch suppression: | 14 dB Mismatch rejection (at f=47 MHz, mismatch rejection decreases by 1.5 dB/octave) |
| Noise figure: | 6 dB |
| Power consumption: | 6 VA / 230 V / 50 Hz |
| Working temperature: | -20 °C ... 50 °C |
| Libra: | 0.930 kg |
| Dimensions: | 107 x 145 x 53 mm |
| Guarantee: | 2 lata |
