The MX-062 mast amplifier from Terra is a device dedicated to individual installations or small collective installations with several sockets, e.g. in single-family houses. The maximum signal output level of 105dBµV (IMD3=60dB, DIN45004B) allows it to be safely distributed to several sockets.
The amplifier has 1 FM+VHF input and 2 UHF inputs. The amplifier has a low noise level.
The On/Off switch allows you to send 12 V voltage and a maximum current of 60 mA to the antenna preamplifier. The amplifier can be powered by a typical power supply with a 12V/100mA separator. It is also possible to supply power from amplifiers supplying power via a coaxial cable.

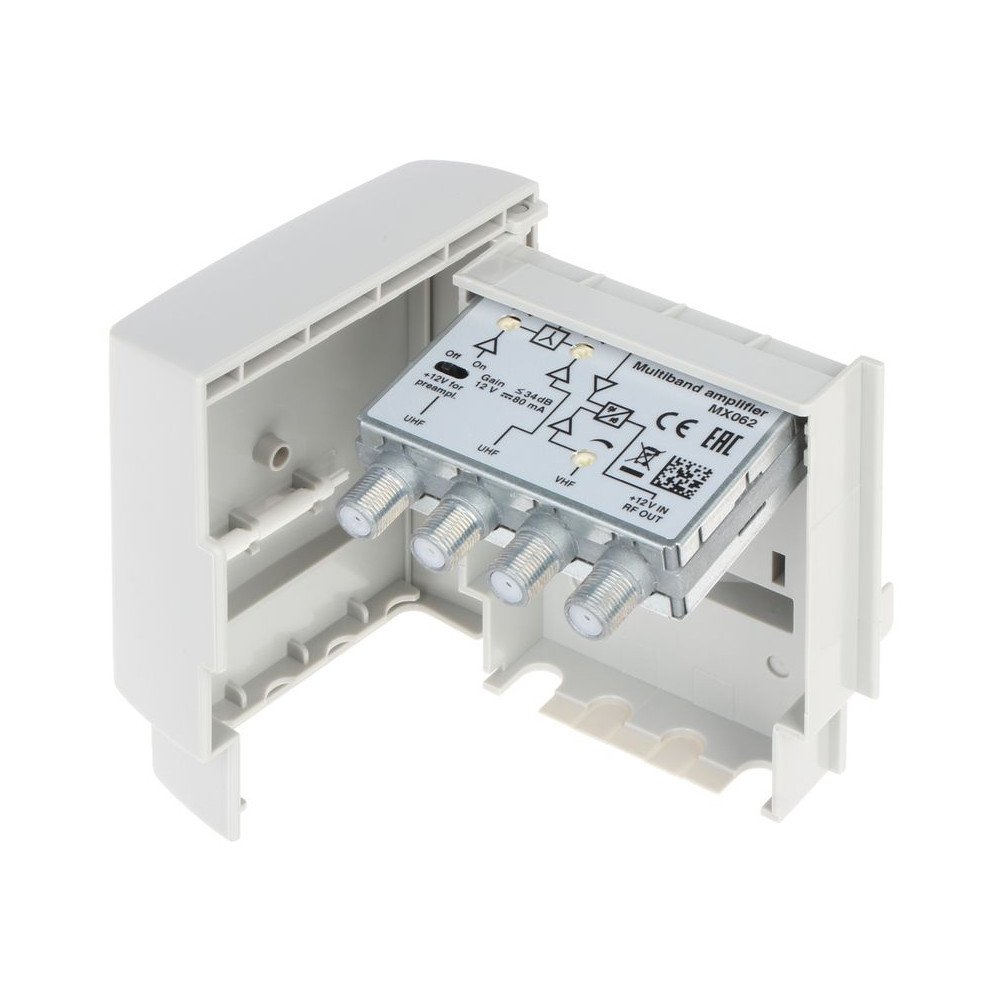

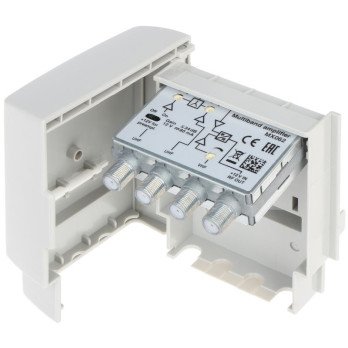

ANTENNA AMPLIFIER MX-062 FM / VHF / UHF 12V TERRA
€183.11
Tax included
The MX-062 mast amplifier from Terra is a device dedicated to individual installations or small collective installations with several sockets, e.g. in single-family houses. The maximum signal output level of 105dBµV (IMD3=60dB, DIN45004B) allows it to be safely distributed to several sockets.
The amplifier has 1 FM+VHF input and 2 UHF inputs. The amplifier has a low noise level.
The On/Off switch allows you to send 12 V voltage and a maximum current of 60 mA to the antenna preamplifier. The amplifier can be powered by a typical power supply with a 12V/100mA separator. It is also possible to supply power from amplifiers supplying power via a coaxial cable.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The MX-062 mast amplifier from Terra is a device dedicated to individual installations or small collective installations with several sockets, e.g. in single-family houses
The maximum signal output level of 105dBµV (IMD3=60dB, DIN45004B) allows it to be safely distributed to several sockets
The amplifier has 1 FM+VHF input and 2 UHF inputs
The amplifier has a low noise level
On/Off switch allows 12 V voltage and a maximum current of 60 mA to be sent to the antenna preamplifier
The amplifier can be powered by a typical power supply with a 12V/100mA separator. It is also possible to supply power from amplifiers supplying power via a coaxial cable
| Frequency Range: |
|
| Reinforcement: |
|
| Noise figure: |
|
| Mismatch suppression: | 10 dB |
| Number of inputs/outputs: | 3 / 1 |
| IMA3 60dB: | 105 dBµV |
| Amplifier screen: | NO |
| Input/output impedance: | 75 OH |
| Connector type: | "F" |
| Case: | die-cast housing mounted inside a compact plastic housing |
| Mounting: | on a mast or wall |
| Working temperature: | -20 °C ... 50 °C |
| Power supply: | 12 V DC / 80 mA |
| Libra: | 0.176 kg |
| Dimensions: | 107 x 89 x 43 mm |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 lata |
