AWS-1142 is used to distribute TV signals in home antenna installations. Gain control allows you to adjust the signal level throughout the installation.
The amplifier can be powered directly from the included power supply or through an output using a separator.

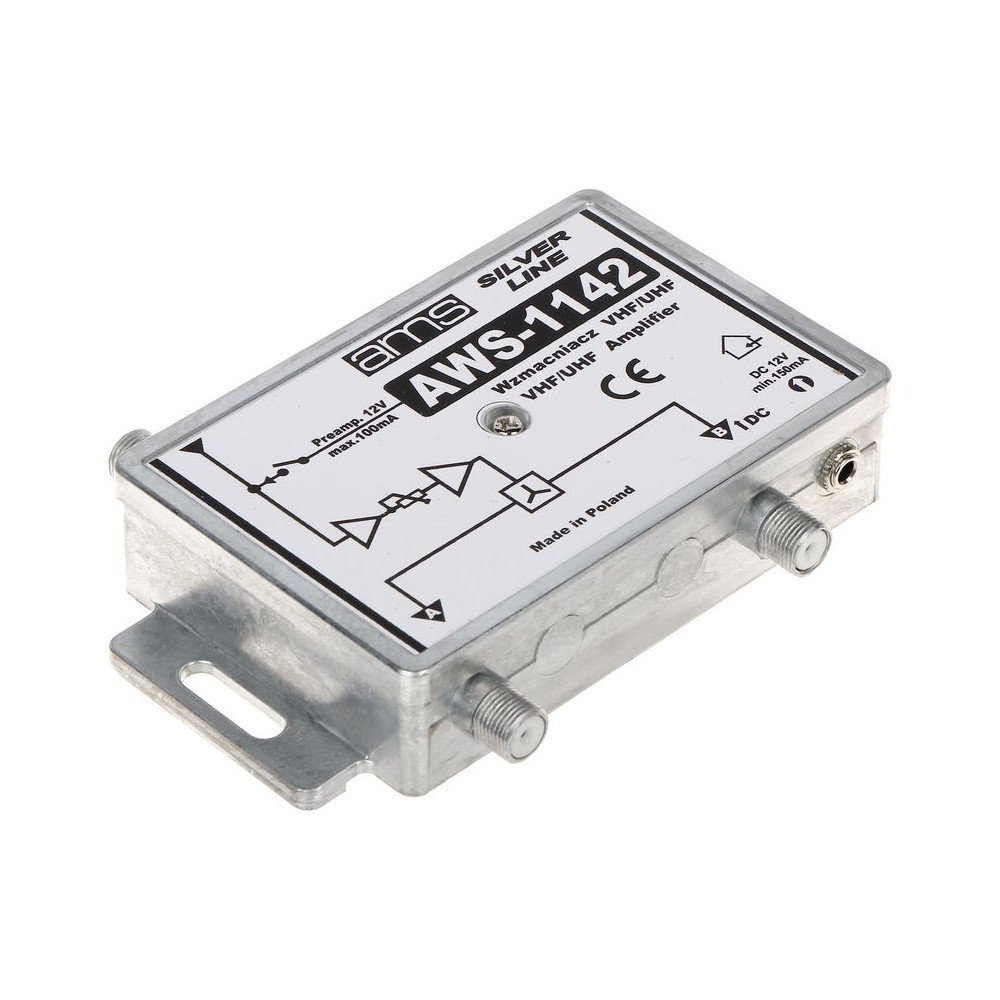

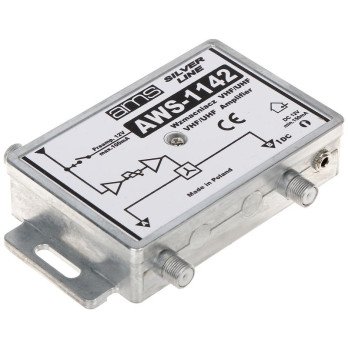

ANTENNA AMPLIFIER AWS-1142 17/19dB
€228.82
Tax included
AWS-1142 is used to distribute TV signals in home antenna installations. Gain control allows you to adjust the signal level throughout the installation.
The amplifier can be powered directly from the included power supply or through an output using a separator.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
AWS-1142 is used to distribute TV signals in home antenna installations
Gain control allows you to adjust the signal level throughout the installation
The amplifier can be powered directly from the included power supply or through an output using a separator
| Frequency Range: | 87 MHz ... 790 MHz |
| Number of inputs/outputs: | 1 / 2 |
| Input/output impedance: | 75 OH |
| Connector type: | "F" |
| Reinforcement: | 17 dB / 19 dB |
| Gain Control: | 0 dB ... 10 dB (+/- 1dB) |
| Noise figure: | ≤ 4 dB |
| Maximum output level: | 104 dBµV |
| IMA3 60dB: | 98 dBµV |
| IMA2 60dB: | 85 dBµV |
| Mismatch suppression: | ≥ 10 dB |
| Power supply for preamplifiers: | NO |
| Working temperature: | -25 °C ... 55 °C |
| Power supply: | 12 V DC / 300 mA (power supply included) |
| Manufacturer / Brand: | AMS |
| Guarantee: | 2 lata |
