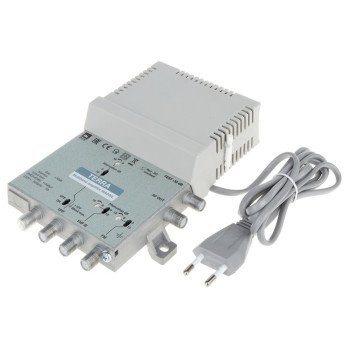

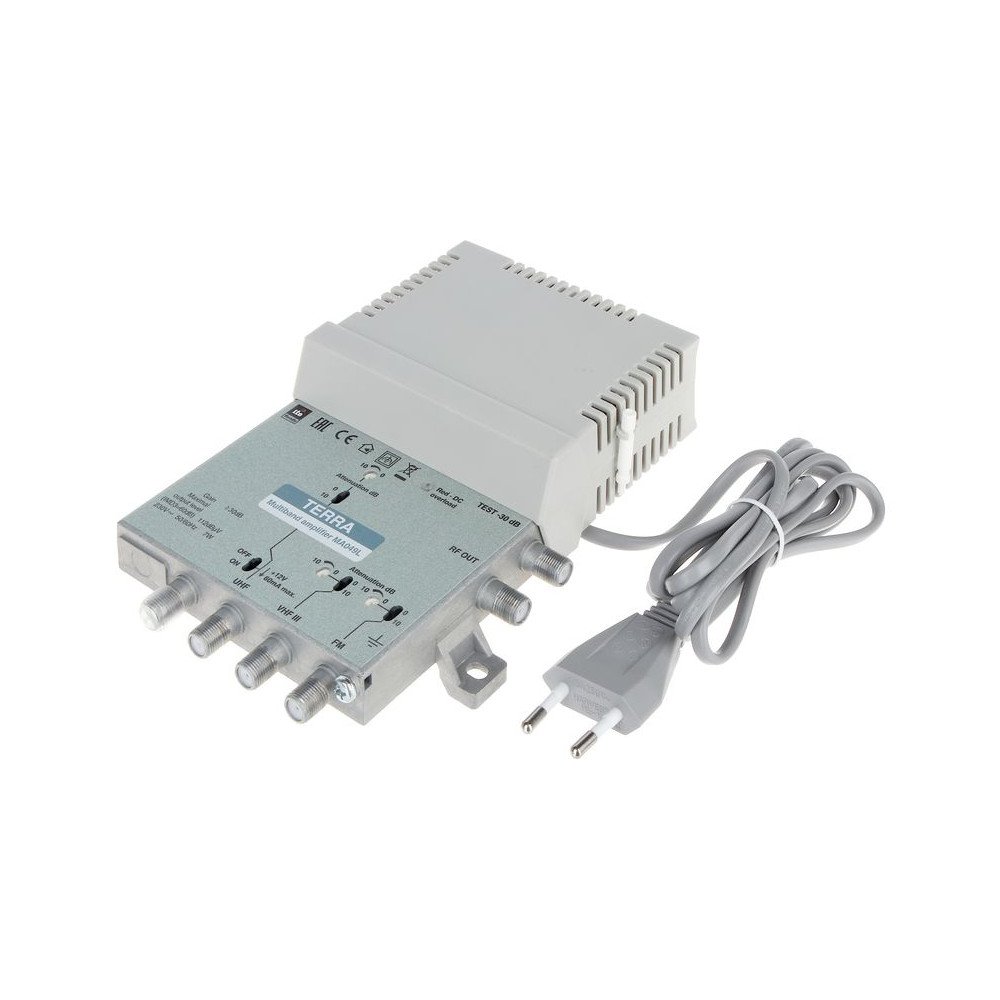

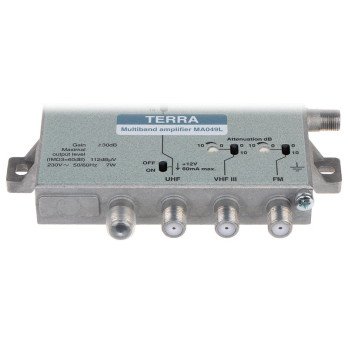

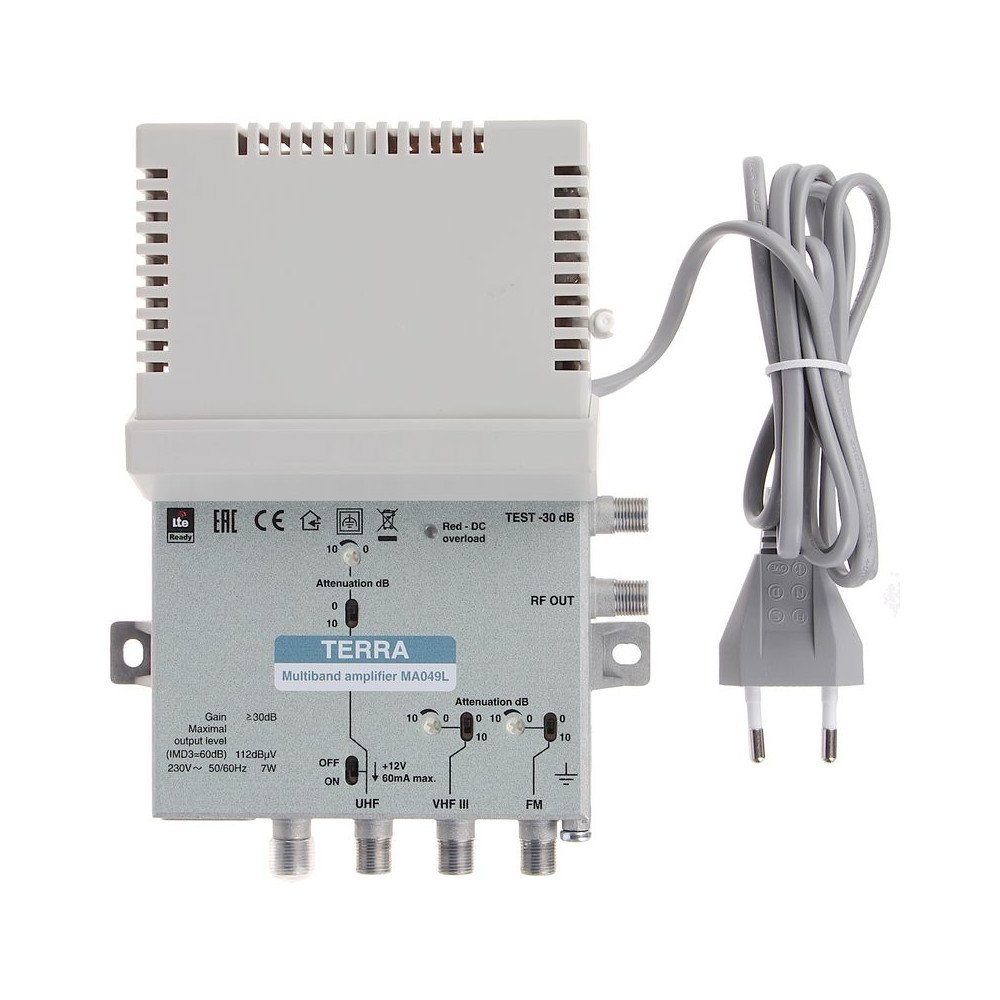

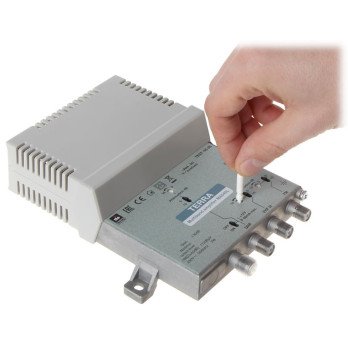

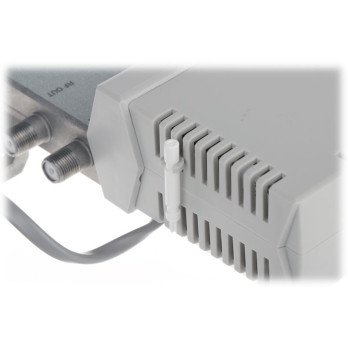

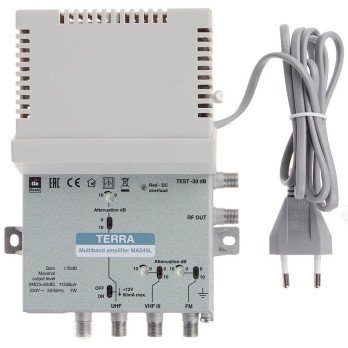

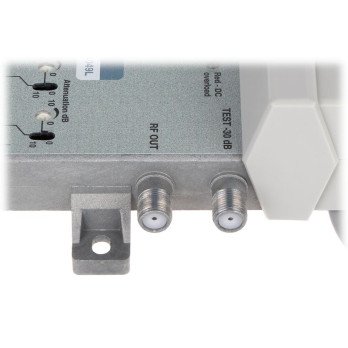

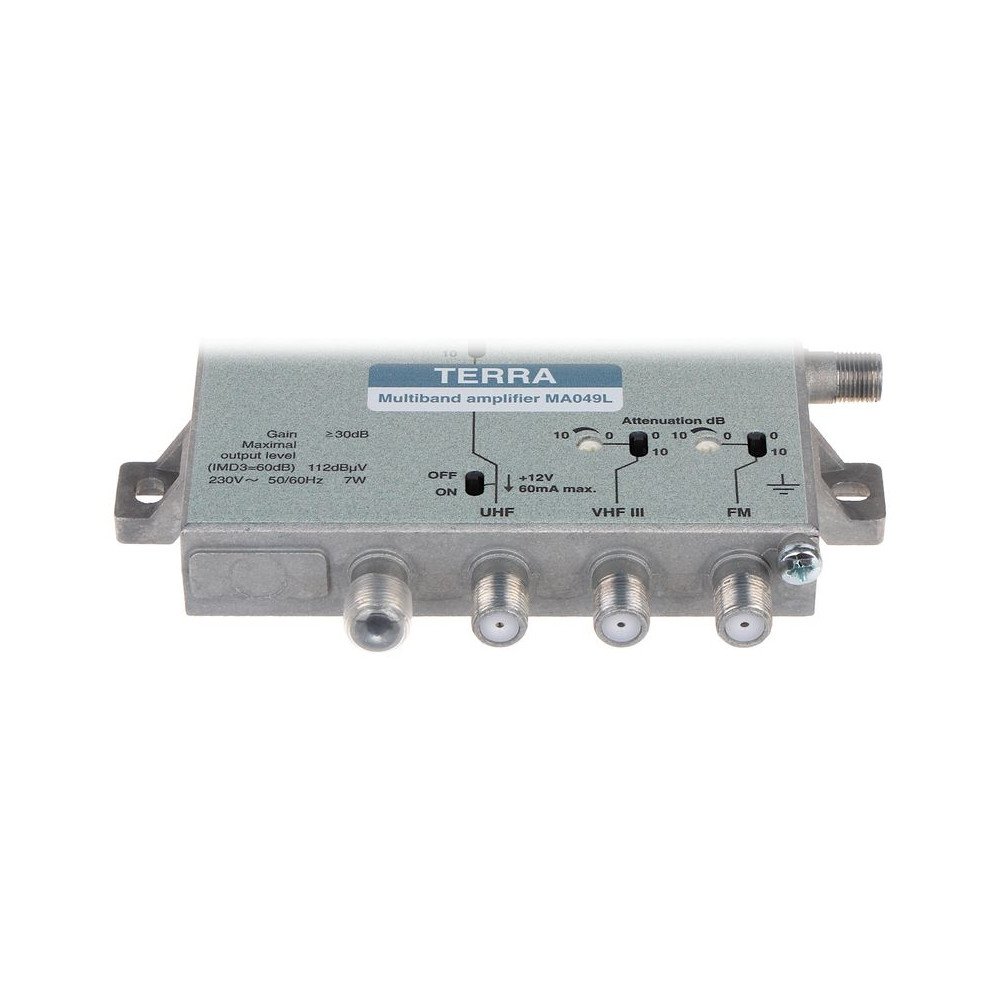

MULTI-RANGE AMPLIFIER MA-049L
€394.54
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Frequency Range: | 88 MHz ... 108 MHz - FM , 174 MHz ... 230 MHz - VHF , 470 MHz ... 790 MHz - UHF |
| Reinforcement: | 30 dB @ FM 30 dB @ VHF 34 dB @ UHF |

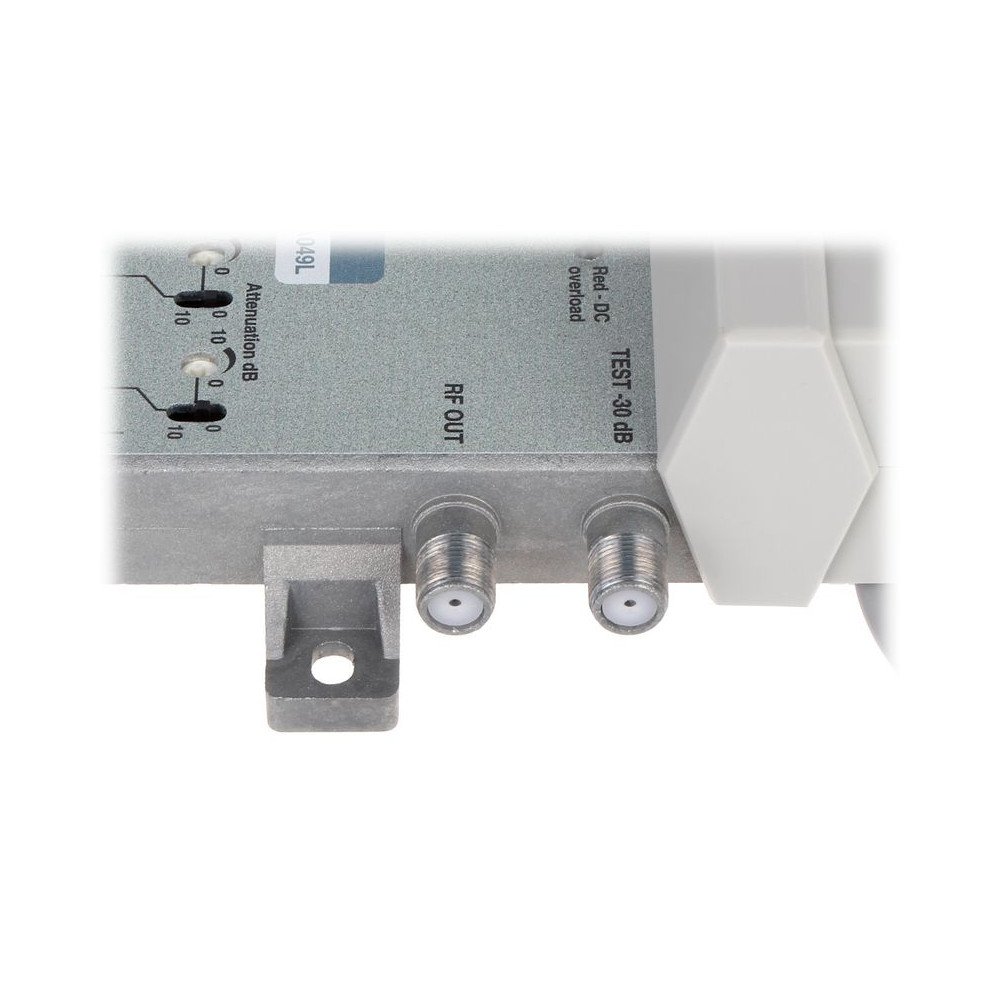

| Number of inputs/outputs: | 3 / 1 + 1 (test, -30dB) |

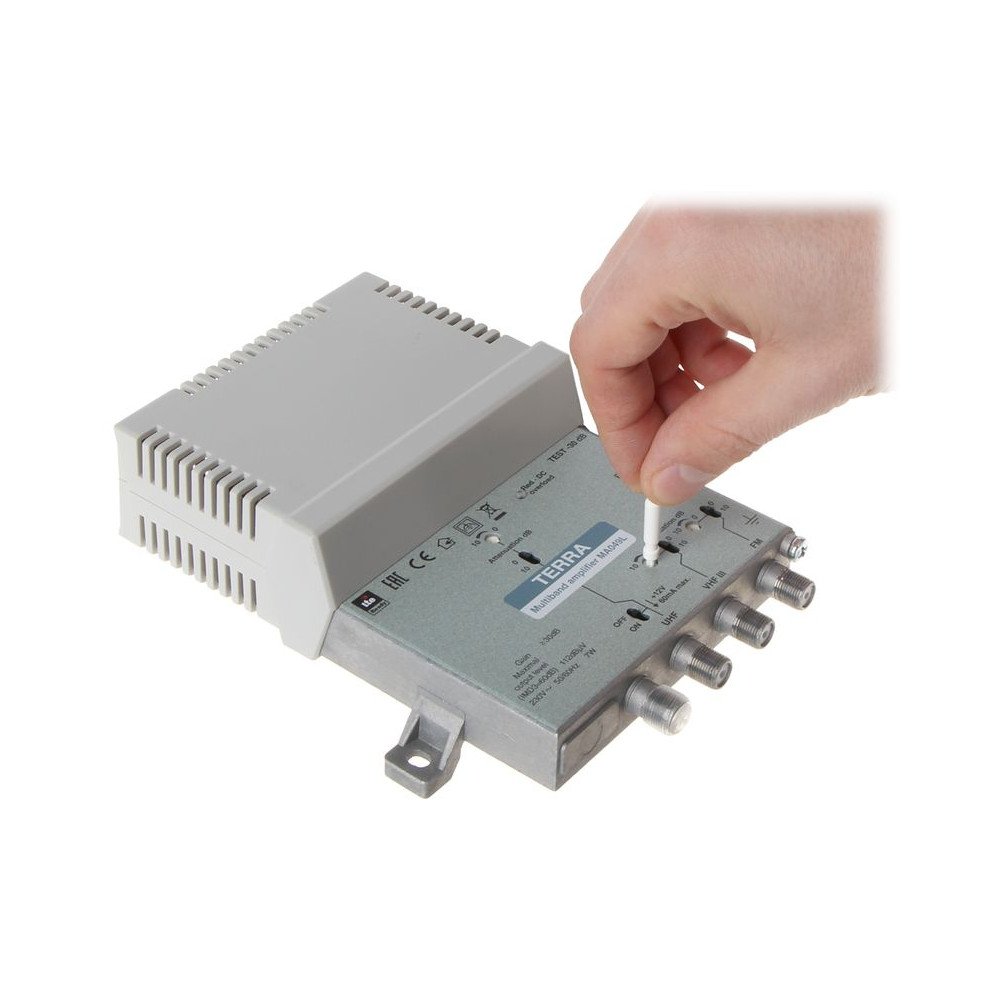

| Gain Control: | 0 dB ... 20 dB |
| Maximum output level IMD3=60 dB DIN45004B: | 112 dBµV |
| Noise figure: | 6 dB @ VHF 5 dB @ UHF |
| Power supply: | 230 V AND |
| Power consumption: | 7 W |
| Working temperature: | -20 °C ... 50 °C |
| Libra: | 0.67 kg |
| Dimensions: | 179 x 135 x 52 mm |
| Guarantee: | 2 lata |
