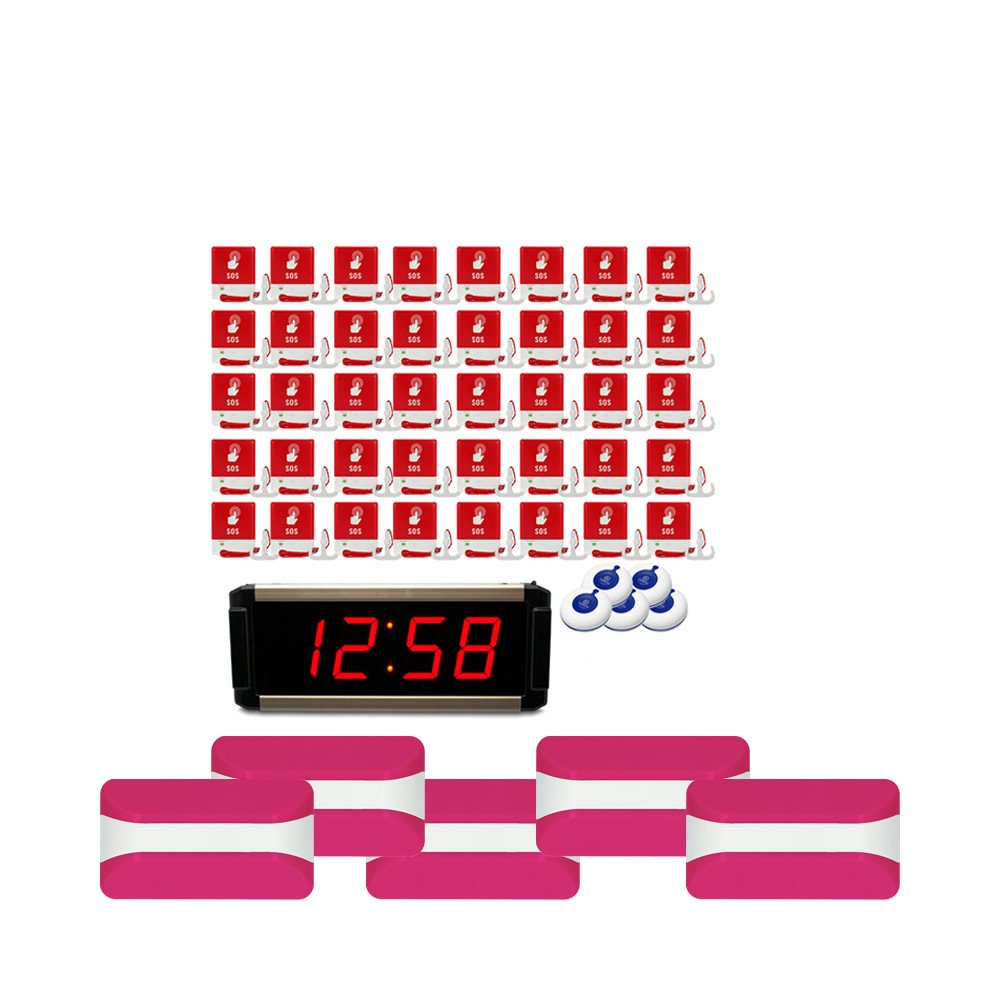

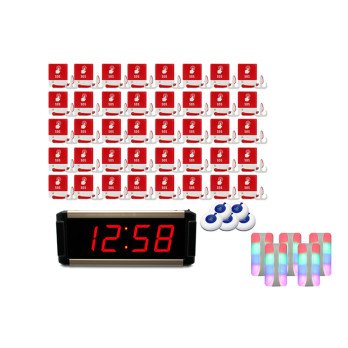

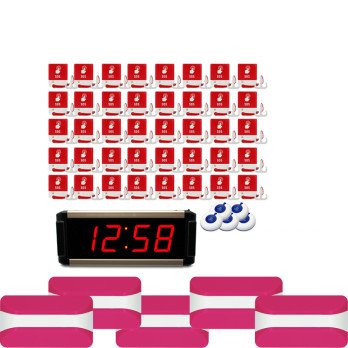

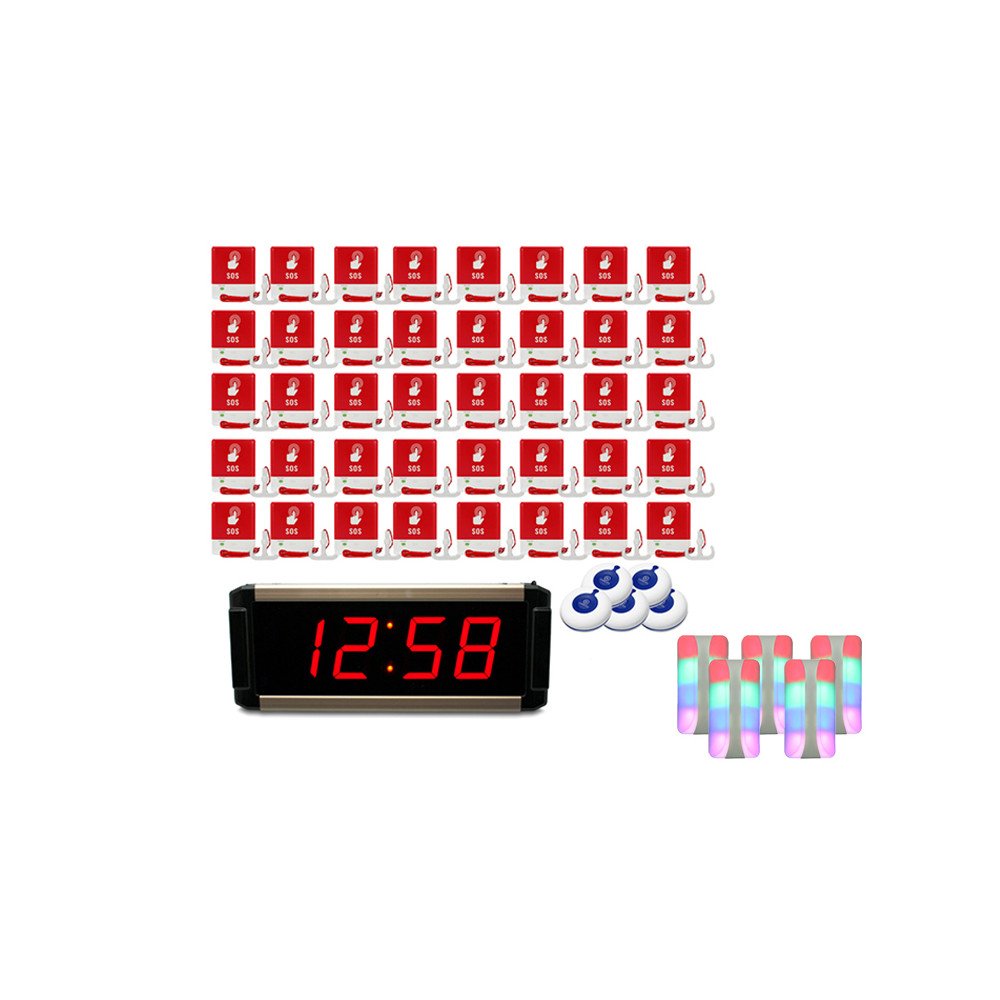

KALER calling system for a nursing home

Wireless paging system for a nursing home. A complete set of 5 rooms with 4 beds each. The set includes optical and acoustic alarms to be mounted above the entrance to the room, and Cancel buttons to be mounted at the entrance to the room.

The set includes:

• GEN-48 x 1 calling board
• GEN-ST2 x 20 wireless cable button
• GEN-CC Wireless Delete Button x 5
• Wireless optical-acoustic siren GEN-L3 x5

The wireless paging system is used in restaurants - shorter waiting times for service, as well as in hospitals and emergency centers. One of the elements of the system is a signal board, which is mounted in the room where the staff is located. The second element is the call button, which can be placed on a particular table or hospital room. Each call is confirmed by a sound signal and the number assigned to a given table or patient.

Basic features of the system:

• easy installation
• easy operation
• Possibility to program up to 256 buttons
• volume control
• ability to display up to 10 calls simultaneously
• bright LED diodes allow the displayed message to be visible from up to 40 meters
• notification function about the need to replace the battery in the "LBF" buttons

Technical parameters:

• supply voltage – 12V DC
• current consumption – 450mA
• operating frequency – 433MHz
• audio power – 2W
• Dimensions: Width - 289 mm Height - 116 mm Depth - 28 mm

Wireless, waterproof pull button. Most often used in toilets. It is used to call for help in an emergency such as fainting, heart attack, etc. The bright color of the handle, its length and flexibility allow it to be quickly found and used reflexively.

Technical parameters:

• tension:DC 12V
• intensity: 15 mA
• transmission frequency:433MHz±75kHz
• output power: 20 mW
• dimensions:85×105×18mm

It can be mounted above the door or in a place visible to the staff. When the patient calls for help, the alarm emits an optical-acoustic signal that makes it easier for staff to locate the person requiring help.

Technical parameters:

• Power supply: mains - mains adapter included
• Voltage: DC 12V 500mA
• current: 65 mA
• sensitivity: 5 uV(-106 dB)
• Volume: 30-120dB
• working environment: -10 to 50 °C, humidity: 80%
• dimensions [mm]: 160x90x50

The button is intended to cancel triggered messages. It is used, among others, in hospital. It is most often placed next to the door to the room where patients are lying. When entering the room, the nurse presses a button, thereby canceling the call from the patient who made the call.

Characteristic:

• modern look of the waterproof case,
• internal antenna,
• signal transmission at a distance of up to 300 m in open space.

Technical parameters:

• Voltage: DC 12V
• current: 15 mA
• transmission frequency: 433MHz ± 75kHz
• output power: 20 mW
• dimensions: 60 mm (diameter) x 17 mm (height)

Hermetic and waterproof housing -IP66.

All elements of the KALER system are availablewireless.Data transmission range up to 200m in an open area.

*wireless communication, 12 V power supply

Possibility of usedouble-sided tapefor mounting buttons and other elements results in significant resultsshortening the timesystem installation.

FlexibilityThe KALER system allows it to be used in many areas.
