KALER calling system - toilet set for disabled people with emergency power supply

Toilet set for disabled people (with emergency power supply)

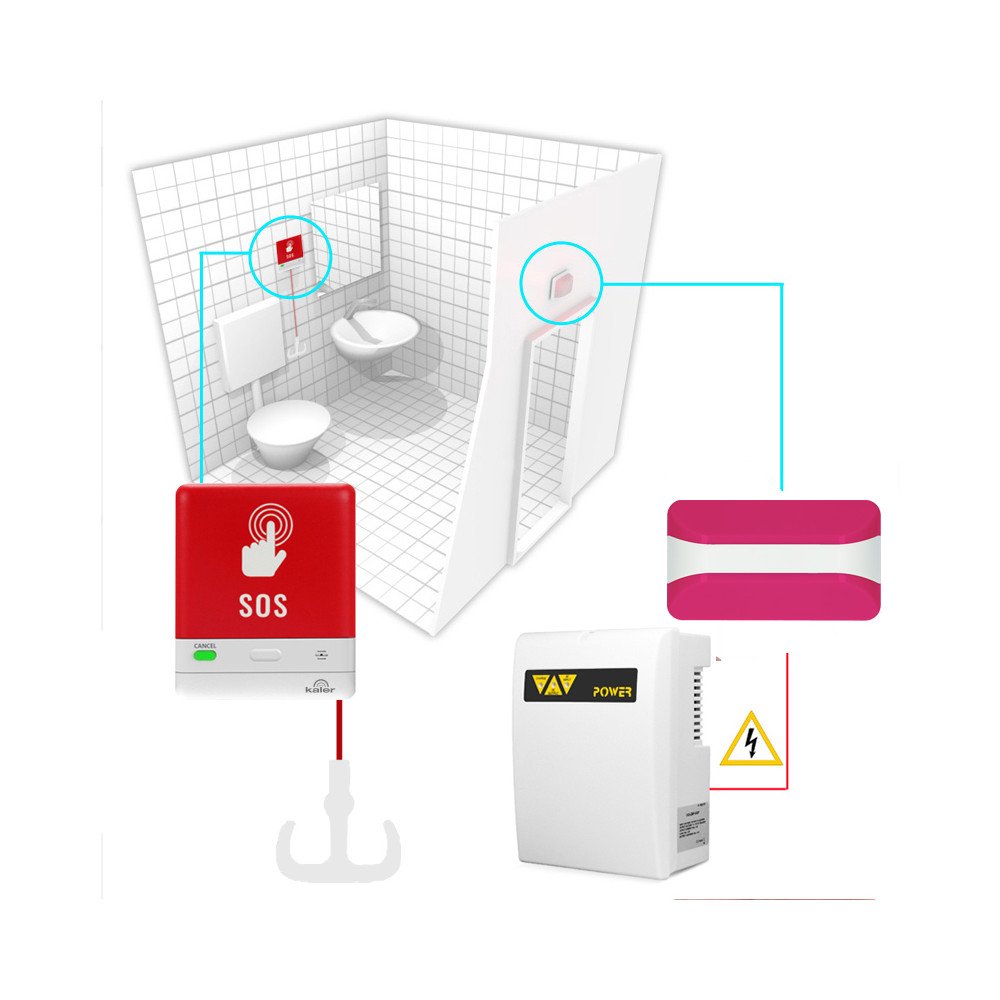

The Kaler wireless calling system can be used in every toilet. The pull button is mounted near the toilet bowl, so that it is in an easily accessible place for a person using the toilet or lying on the floor (e.g. in case of loss of balance). A person who needs help pulls the string of the pull button, and an optical and acoustic signal located above the door informs about the need to provide help.

The set includes:

• Acoustic-optical signaling device "KLR-L3" - 1 piece
• Pull button "KLR-ST2" - 1 piece
• VIDI-ZBF-015P buffer power supply - 1 piece
• Gel battery 7.2Ah - 1 piece

Acoustic-optical signaling device KLR-L3

It can be mounted above the door or in a place visible to the staff. When the patient calls for help, the alarm emits optical and acoustic signals that make it easier for staff to locate the person requiring help.

Technical parameters:

Support for up to 400 transmitters.
Four sound signaling modes (low frequency, high frequency, siren, none).
Eight optical signaling colors.
Six lighting modes (area 1/2/3/4, all, none).
Three volume levels.
Four call cancellation modes (until Cancel is used, 30s, 60s, 120s).
Two lighting modes (flashing, constant).

KLR-ST2 pull button

Waterproof, wireless pull button KLR-ST2. Most often used in bathrooms and toilets. It is used to call for help in an emergency, such as fainting, heart attack, etc. The bright red color of the pull handle as well as its length and flexibility allow it to be quickly found and used reflexively.

Characteristic:

• long, red handle color (easily noticeable in an emergency)
• "Cancel" button – to cancel the recall
• internal antenna
• built-in LED signaling diode
• installation on any surface
• hermetic and waterproof housing – IP66
• Transmission range up to 200* m in an open area
• possibility of increasing the range thanks to the signal amplifier
• CE and EMC certificate

Technical parameters:

• battery power: DC 12V
• transmission frequency: 433MHz ±75kHz
• Output power: - dimensions: 85x85x18mm

VIDI-ZBF-015P buffer power supply 1.5Awith a separate 0.8A battery charging path. The device is characterized by very compact dimensions, but we can still fit a battery with a capacity of 7Ah or 7.2Ah inside. The power supply has lights informing aboutcondition of his work.The casing is made of plastic, equipped with ventilation holes and brackets for mounting on the wall.

Technical parameters:

• Input voltage:190-240V AC 50/60Hz
• Output voltage when powered from the mains:13,8V DC
• Output voltage when powered by battery:10,0-12,5V DC
• Total power:32W
• Output current:1,5A
• Battery charging current:0,8A
• Signal lights:AC input, DC output, Charging
• Security:overvoltage protection, short circuit protection, battery overcharge protection, over discharge protection
• Dimensions:225 mm (wys) x 167mm (szer) x 102 mm (glebokosc)
• Battery space:7Ah or 7.2Ah - not included

Gel batterywith a capacity of 7.2Ah and a voltage of 12V. It has a hermetic construction and can work in any position. The advantages of the device are fire resistance, durability, maintenance-free as well as a wide range of applications and high quality.

Device features:

• Design life: 5 years (6-9 years according to Eurobat)
• Over 500 cycles at a depth of discharge of up to 50%
• Warranty: 1 year

Technical parameters:

• Nominal voltage:12V
• Capacity:I=C/20: 7,2Ah
• Case:UL94HB ABS
• Dimensions:151 x 65 x 100 mm (length x width x height)
• Libra:2,051 kg

Waterproof

Hermetic and waterproof housing -IP66.

Wireless

All elements of the KALER system are availablewireless.Data transmission range up to 200m in an open area.

*wireless communication, 12 V power supply

Easy to install

Possibility of usedouble-sided tapefor mounting buttons and other elements results in significant resultsshortening the timesystem installation.

Variety of applications

FlexibilityThe KALER system allows it to be used in many areas.
