KALER calling system - toilet set for disabled people

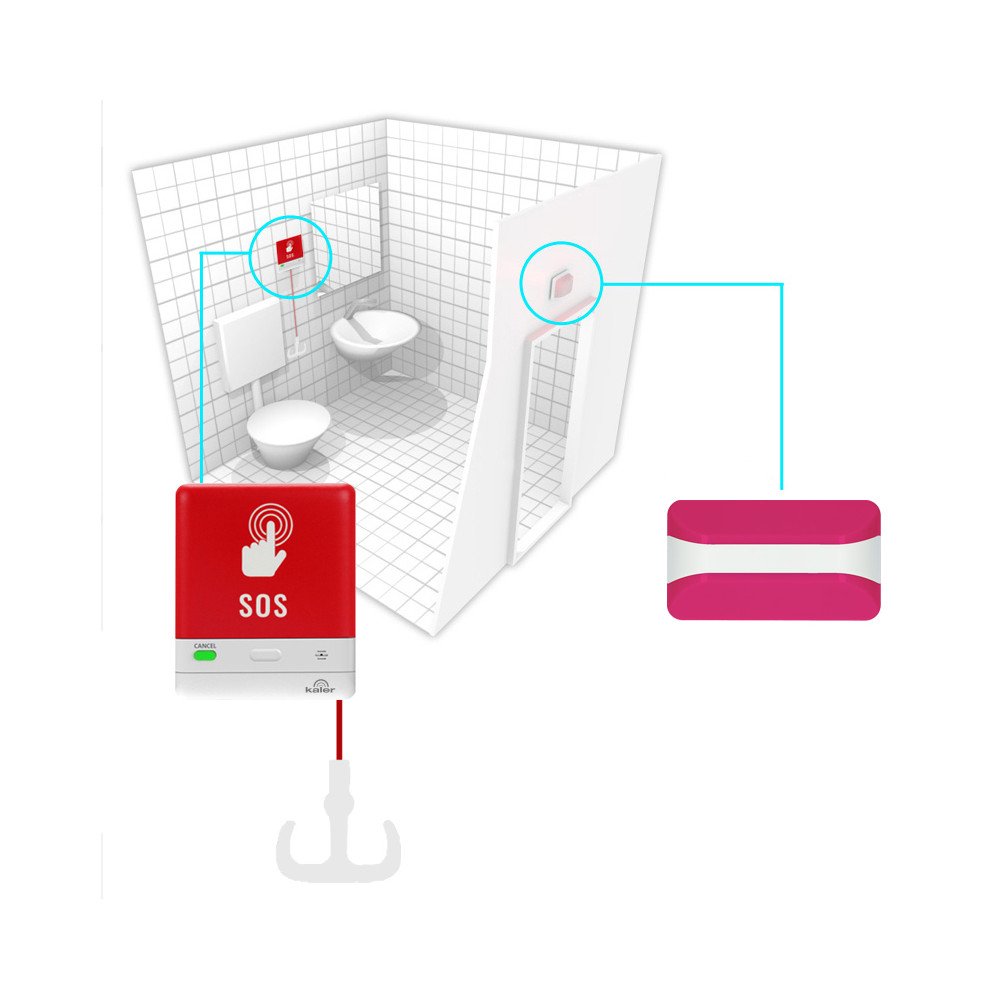

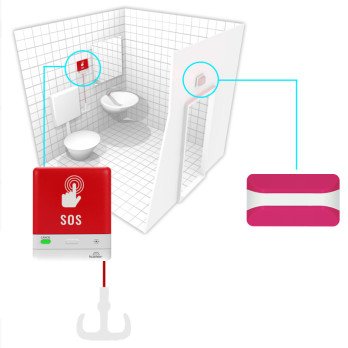

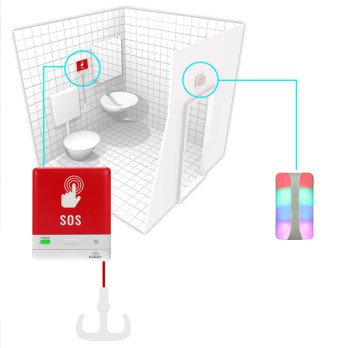

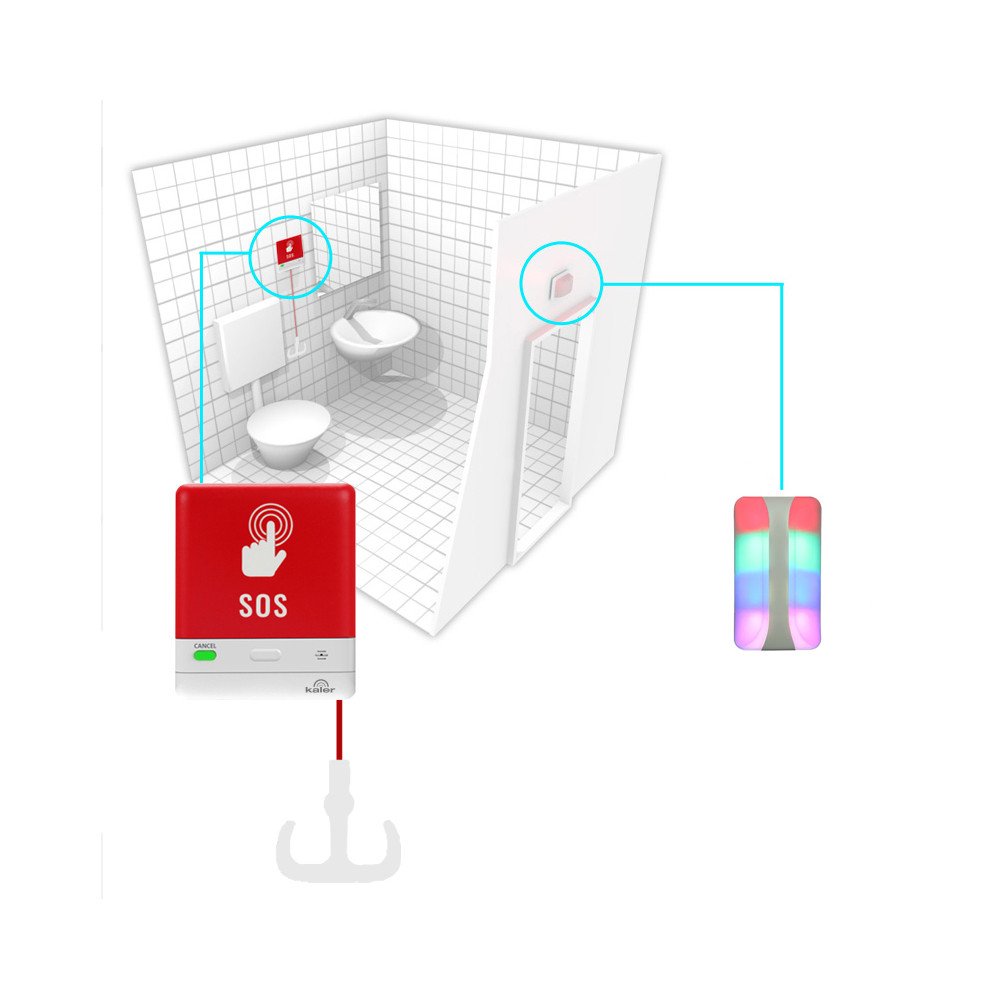

The Kaler wireless calling system can be used in every toilet. The pull button is installed near the toilet bowl, so that it is in an easily accessible place for a person using the toilet or lying on the floor (e.g. in case of loss of balance). A person who needs help pulls the string of the pull button, and an optical and acoustic signal located above the door informs about the need to provide help.

The set includes:

• Acoustic-optical signaling device "KLR-L3" - 1 piece
• Pull button "KLR-ST2" - 1 piece

It can be mounted above the door or in a place visible to the staff. When a patient calls for help, the alarm emits optical and acoustic signals that make it easier for staff to locate the person requiring help.

Support for up to 400 transmitters.
Four sound signaling modes (low frequency, high frequency, siren, none).
Eight optical signaling colors.
Six lighting modes (area 1/2/3/4, all, none).
Three volume levels.
Four call cancellation modes (until Cancel is used, 30s, 60s, 120s).
Two lighting modes (flashing, constant).

Waterproof, wireless pull button KLR-ST2. Most often used in bathrooms and toilets. It is used to call for help in an emergency such as fainting, heart attack, etc. The bright red color of the pull handle as well as its length and flexibility allow it to be quickly found and used reflexively.

Characteristic:

• "Cancel" button – to cancel the recall
• internal antenna
• built-in LED signaling diode
• installation on any surface
• hermetic and waterproof housing – IP66
• Transmission range up to 200* m in an open area
• possibility of increasing the range thanks to the signal amplifier
• CE and EMC certificate

Technical parameters:

• battery power: DC 12V
• transmission frequency: 433MHz ±75kHz
• Output power: - dimensions: 85x105x18mm

Hermetic and waterproof housing -IP66.

All elements of the KALER system are availablewireless.Data transmission range up to 200m in an open area.

*wireless communication, 12 V power supply

Possibility of usedouble-sided tapefor mounting buttons and other elements results in significant resultsshortening the timesystem installation.

FlexibilityThe KALER system allows it to be used in many areas.
