VIDI-AC-4CS-WKIT2 - Wireless access control kit with lock and remote controls

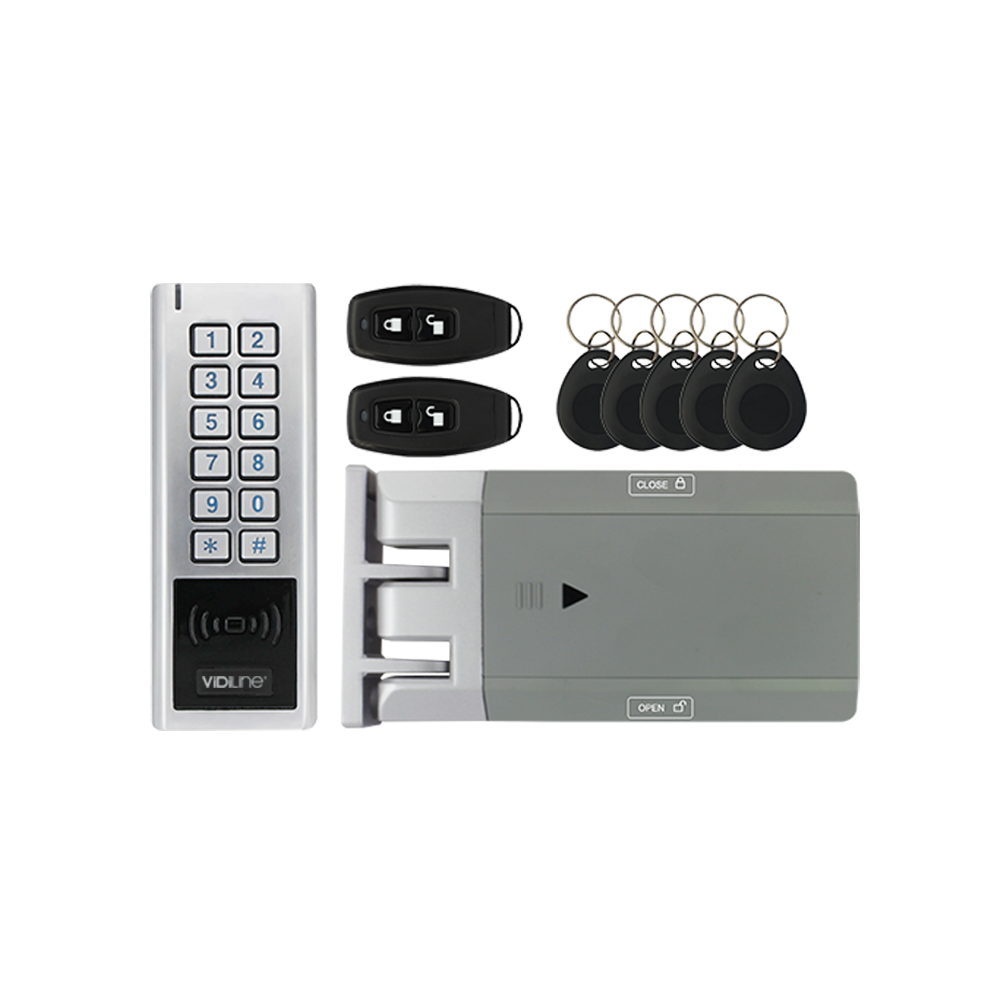

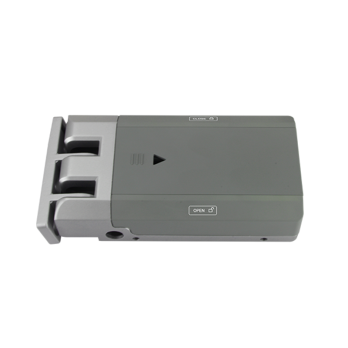

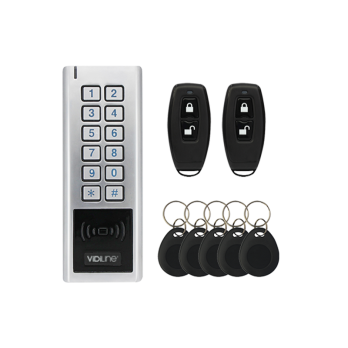

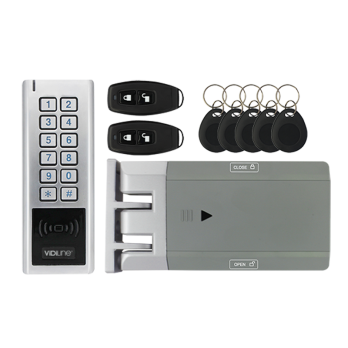

VIDI-AC4-CS-WKIT2is a wireless access control kit. The set can be mounted using the double-sided tapes provided in the box. The package includes a wireless keypad, wireless lock (can be installed on wooden/metal/glass doors or frames). For indoor use.

When the battery energy level is low, the device will inform you about it, and if you do not replace the batteries in time and the energy level in them drops to a critical level, the lock will open automatically and remain open until the battery is replaced with a new one.

Key Features:

• Up to 500 PINs/cards 4~8 digit PIN, 125kHz cards
• Operating time: 16 thousand uses of the lock on one set of batteries; Use the keyboard 10 thousand times on one set of batteries
• Remote control for remote opening
• 433MHz variable coding
• Communication distance up to 50 meters in open space
• Low energy consumption

Specification:

• • Number of users:500 cards/PIN numbers
  • PIN length: 4~8 digits
  • Typ kart: 125 kHz

• • Power supply:
  • Keyboard: 3x AAA batteries
  • Lock: 2x AA batteries
  • Remote control: 1x 2032 type battery

• • Energy consumption
  • Standby: ≤10μA
  • Operation: Keyboard ≤50mA, Lock ≤60mA, Remote Control ≤3mA

• • Working frequency:433MHz
  • Communication distance:up to 50 meters in open space
  • Working conditions:-20°C~60°C, 10%~86%, non-condensing
  • Case:Metal
  • Keyboard: Zinc alloy,IP66
  • Lock: Zinc alloy
  • Pilot: Zinc Alloy and Plastic

• • Dimensions (mm)
  • Keyboard: 135x54x19
  • Castle: 150x83x38
  • Pilot: 62x40x11,5

• Weight (g): 1240 (with packaging)
• Keyboard: 90
• Castle: 800
• Pilot: 25

Our lock guarantees uninterrupted operation at extreme temperatures and dustproofness thanks to the tightness classIP66.

There is no need to install cabling. Communication is wireless and the signal has variable encoding, which makes it impossible for a potential burglar to decrypt the signal.

• Office rooms (also with glass doors)
• Entrance to the basement
• Garage doors
• Tool sheds
• Garbage bins

And wherever it is not possible to lay cables.
