KD4 access control set - 4 inputs, 3 2CS-V2 125 MF PIN readers

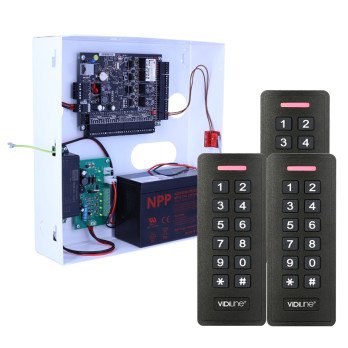

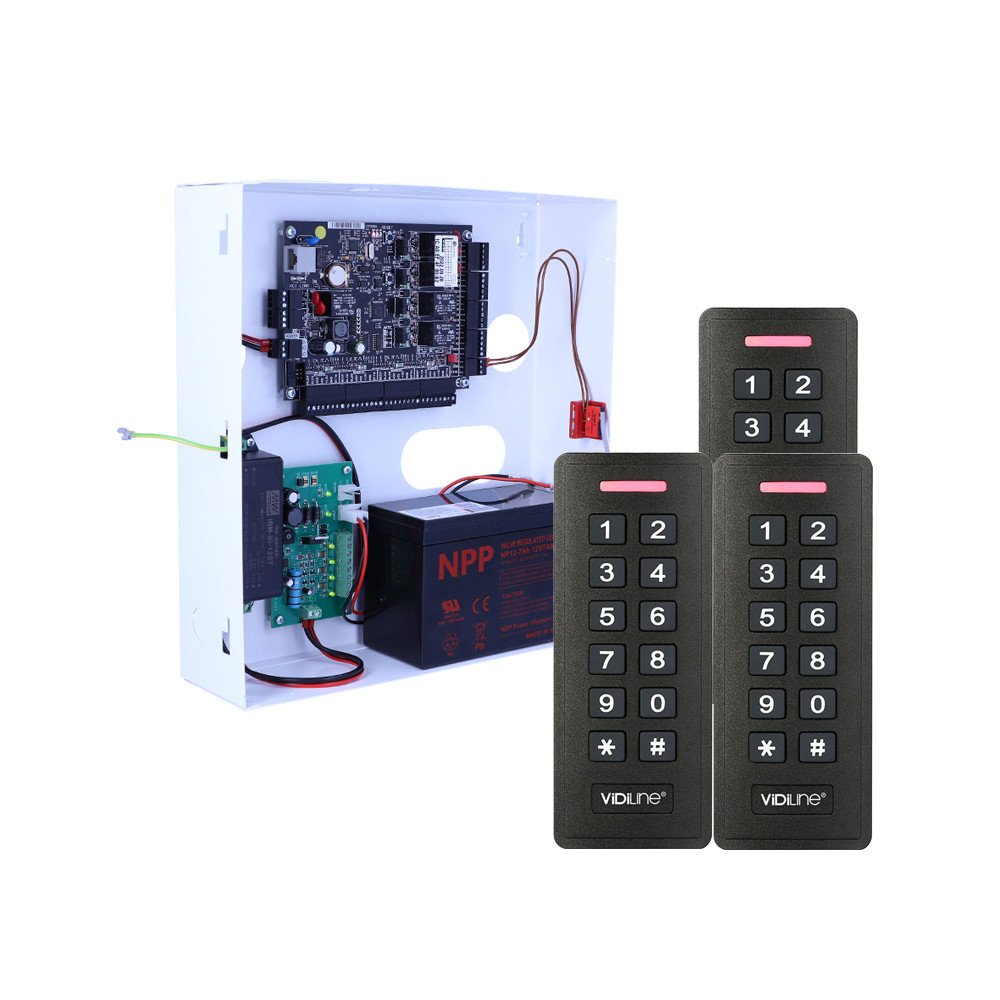

The set includes:

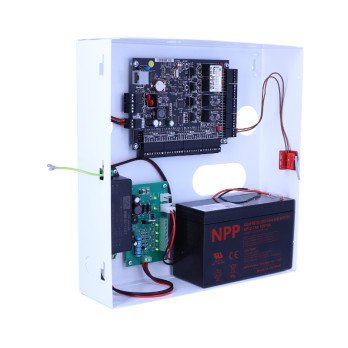

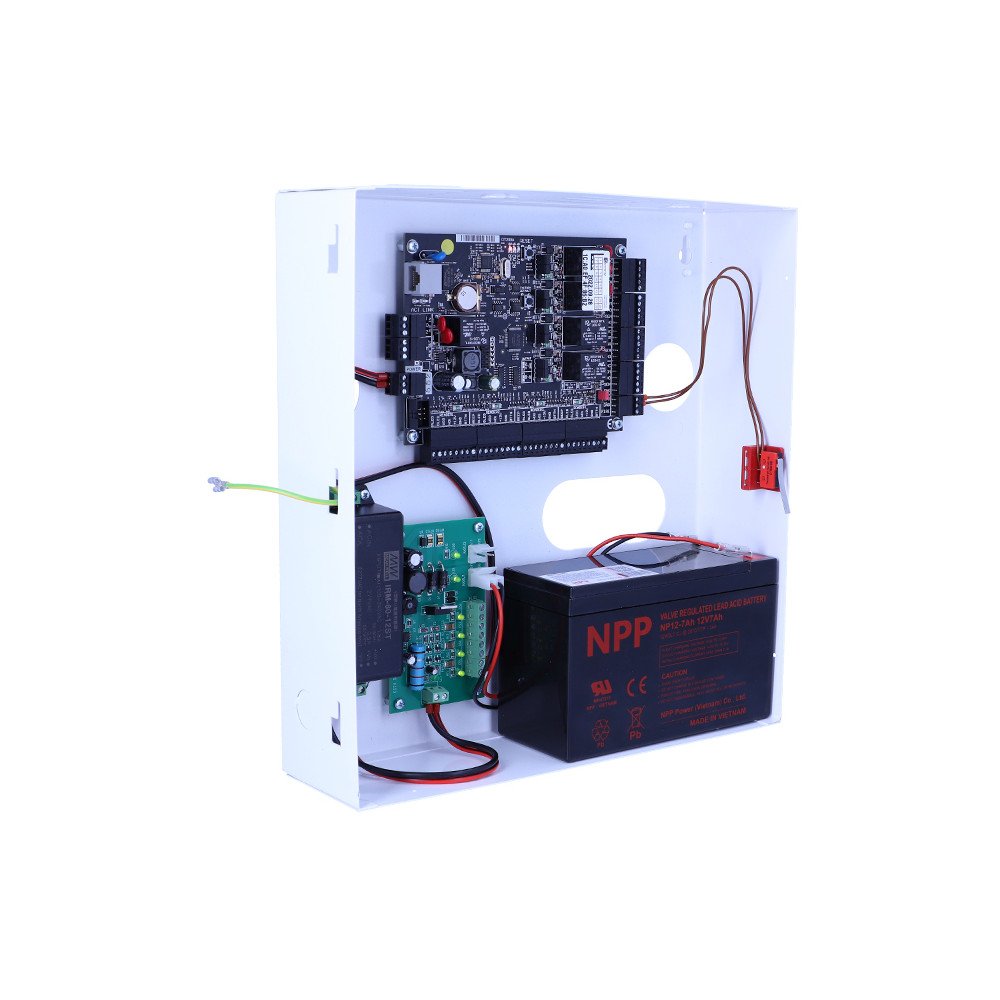

• Controller VIDI-AC-KD4x1

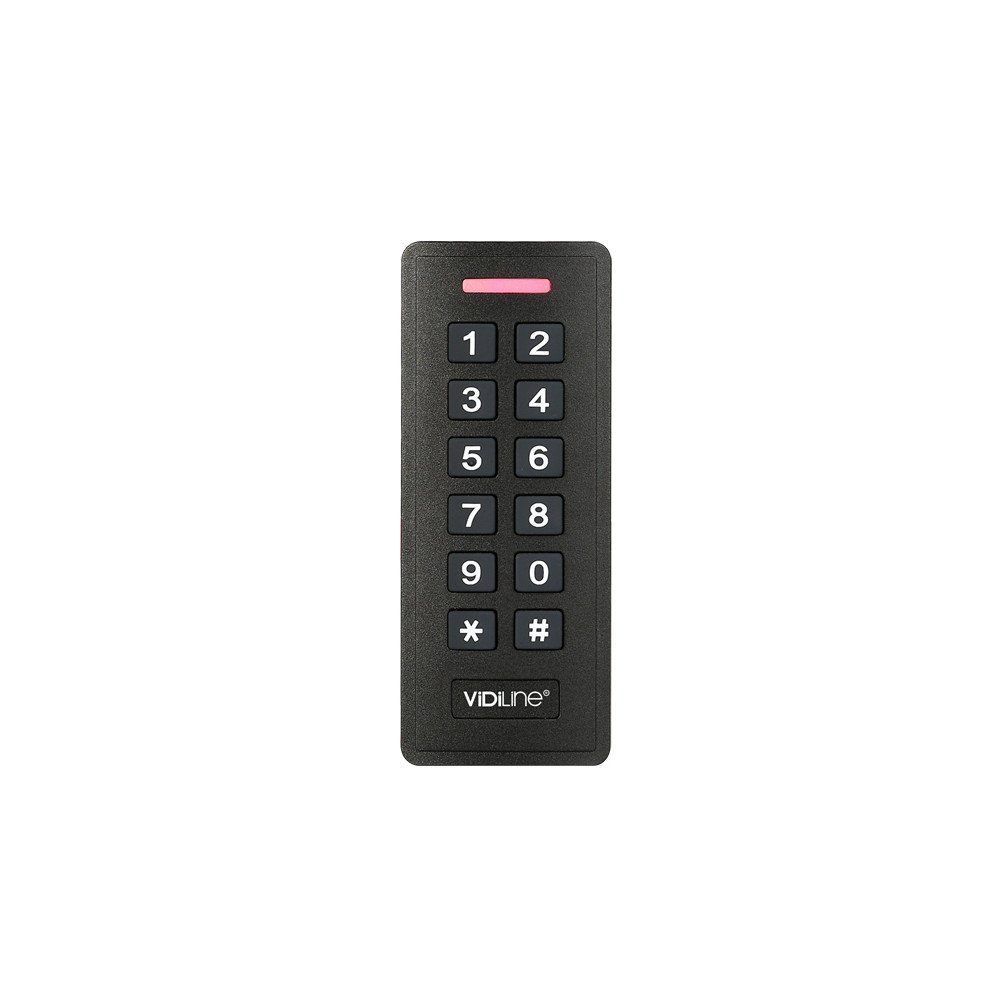

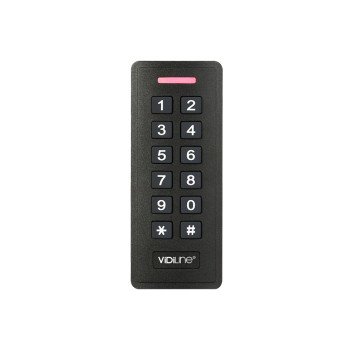

• VIDI-AC-2CS-V2 card readerx3
• Akumulator 12V 7Ahx1

Access control is an electronic security system used to limit or grant access to facilities or specific zones only for authorized users or groups of users, while preventing access by unauthorized persons.

• Companies and offices- securing the archive or server room against unauthorized access;

• Hospitals and clinics- securing access to rooms not intended for patients or unauthorized persons;

• Shops and warehouses- securing the store's back office to protect against theft;

• Schools and universities- limiting students' access to specific rooms or parts of the building, such as a staff room.

The KD4 controller plays a key role in the system, readers, exit buttons, jumpers/latches and door opening (status) sensors are connected to it. The readers provide information about the cards read and/or access codes provided to the controller, which decides whether to grant access to a given user or not. The actuating elements of the system are jumpers/catches placed directly in the controlled passages.

The system is scalable, which means that we can connect as many controllers as we need to handle even a very large facility within one centralized access control system managed from one place. For this purpose, all KD4 controllers should be connected in one LAN network.

VidiLine software is available in Polish and is easy to use and transparent. It intuitively guides the user through the first installation and configuration process. Thanks to this, in a few simple steps we obtain access control configured and ready for operation. We can manage the entire system from one place, i.e. add new controllers, perform configuration, add users or change their access rights to specific zones.

VidiLine software allows you to view events in real time. Events include user entries/exits, operator logins in the program, forced door opening or incorrect code entry. Entry/exit events include the date and time as well as the place (door in the system) where a given user was authorized or not. Thanks to the live view, a security employee can quickly take actions related to an attempt by an unauthorized person to enter the facility or an employee at the reception who can remotely open the door.

View, sort and filter all events in the system with one click. The program allows you to export events as a file. Thanks to this, we can quickly and easily determine who entered or left a given zone and at what time.

We offer KD4 access controllers in sets with VidiLine readers, in the following numbers: 2, 3, or 4. We have three different reader models to choose from. Choose a reader that suits your needs. Are you guided by appearance or functionality (authorization method).

ATTENTION:one reader can handle maximumone passwone pageto control the passage intwo sidesshould be usedtwo readers, i.e. one reader for each side of the passage.

ATTENTION:readers in individual sets may beindividuallyfittedby our sales department, for example: two VIDI-AC-WR readers, one VIDI-AC-2CS-V2 reader and one VIDI-AC-F3 reader. Maximumnumber of readersconnected tosingle controllertotals4.

COMPARISON OF PARAMETERS OF VIDILINE READERS AVAILABLE IN SETS
