Beninca set for swing gates Encoder for 3m KTOM3024.P

The Beninca KTOM3024.P set is a ready-made set of modern automation with accessories designed for swing gates with a leaf length of up to 3 m. An actuator with a built-in encoder.

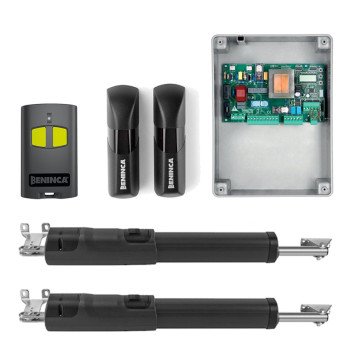

THE SET INCLUDES:

• 2 x TOM3024E 24V actuator with built-in encoder (right and left)
• TRUST24 control unit with radio receiver
• 1 x TO.GO2VA 433.92MHz 2-channel remote control
• Para photochambers PUPILLA.T

Perfect for any type of swing gate, also thanks to its compact dimensions (only 96 mm wide) and universal mounting brackets. The inclination of the power cable at an angle of 45° allows the distance from the ground to be reduced to a minimum. Rear and front brackets, aligned on the same axis, enable better load distribution by optimizing actuator life. The screw protected by a cleaning ring and the stainless steel shaft make it suitable for dusty, sandy or aggressive weather environments. Manual unlocking secured with a personalized key.

PERFECT FIT

Rear joint that can be set in three positions. The drive adapts perfectly to any misalignment during movement.

HIGH QUALITY COMPONENTS

The worm gear is protected by a seal and a stainless steel shaft.

THE TOM ACTUATOR WORKS WITH THE TRUST24 CONTROL EQUIPMENT

CentralTRUST24for 24 Vdc, it is ideal for controlling one or two swing gate drives. Integrated ESA+ system with intake

EASY PROGRAMMING AND CONNECTION

Remote configuration, diagnostics and software update withpro.UP.

Intuitive interface thanks to the applicationBeUPallowing remote management of installations.

BeMOVEallows direct control of the automation, according to event, time period or GPS position.

PRODUCT FEATURES:

• Leaf length: 3 m
• Opening time 11"
• Mechanical stops adjustable from above
• Encoder
• Adjustable mounting bracket – three mounting points
• Cable exit at an angle of 45°
• Included with the TRUST24 control unit
• Power consumption in standby mode 0.8 W
• Can be integrated with the KNX system
• Programmed by PRO.UP

TECHNICAL DATA of the TOM3024E drive:

• Power supply: 230 Vac (50-60Hz)
• Motor power supply: 24 Vac
• Current: 5.5 A
• Maximum force: 1500 N
• Opening time: 11"
• Duty cycle: intensive use
• Screw pitch: 300 mm
• Degree of protection: IP44
• Adjustable mechanical stop: YES
• Limit switch: NO
• Encoder: BRANCH
• Operating temperature: -20°C / +50°C
• Maximum leaf length: 3 m
• Weight: 8.1 kg
