- 24 Vdc electromechanical brushless barrier for intensive use. The arm can be mounted on the right or left side (easy to change the mounting side of the arm)
- Gear in oil bath
- Average number of cycles (lifetime): MFCB: 5,000,000 cycles
- Opening speed 0.9s (no slowdowns)
- Parking function - prevents bumper driving
- Possibility of integrating FTC.S photocells with the barrier housing
- Control panel with built-in 433.92 MHz radio receiver (512 ARC variable codes)
- The barrier is equipped with two encoders to ensure maximum safety
- Possibility to synchronize two barriers (requires two SIS cards)
- Fast unlocking system
- 2 mechanical limit switches
- Built-in STC system - the control panel adjusts the actuator power to the changing conditions in which the barrier operates

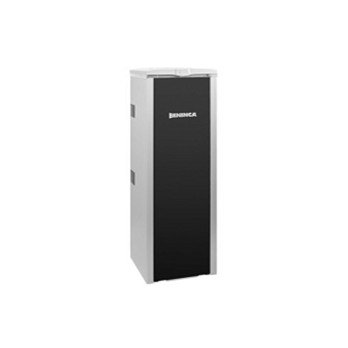

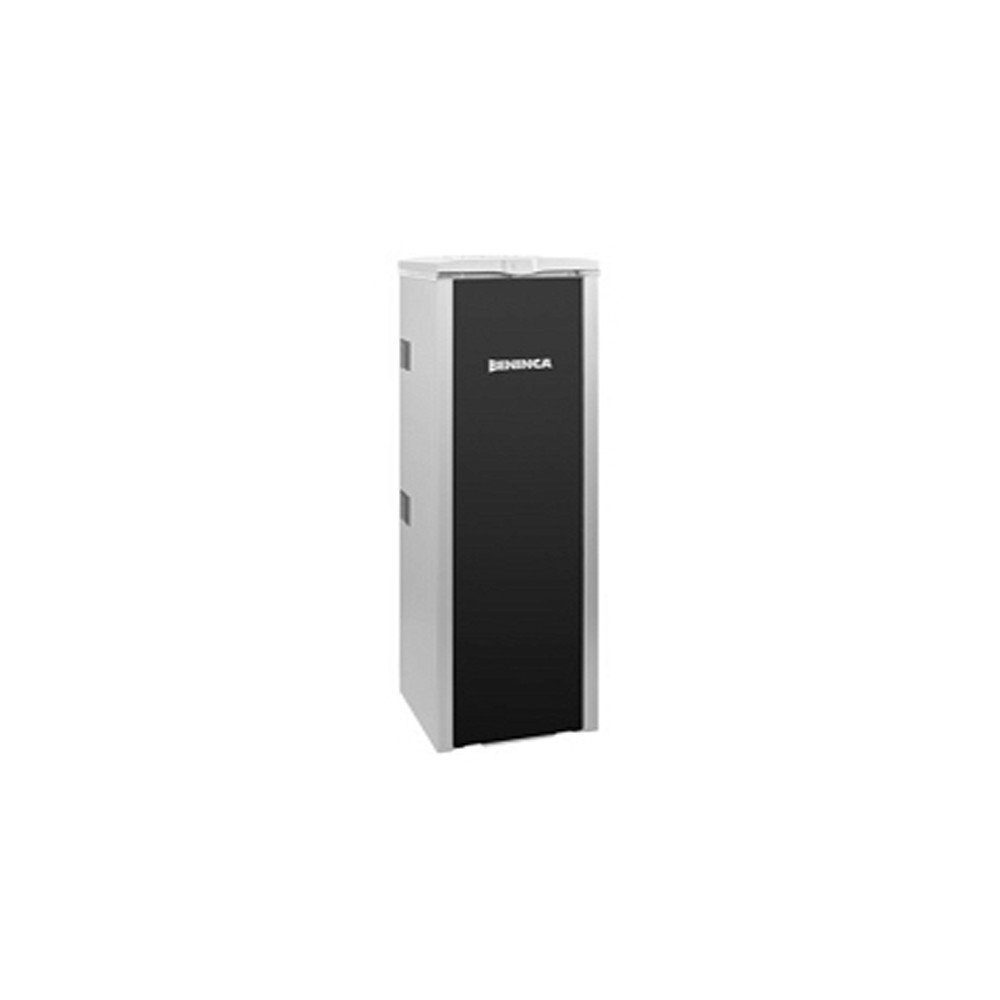

DIVA.3 - brushless barrier, 3 m long.
€18,773.49
Tax included
- 24 Vdc electromechanical brushless barrier for intensive use. The arm can be mounted on the right or left side (easy to change the mounting side of the arm)
- Gear in oil bath
- Average number of cycles (lifetime): MFCB: 5,000,000 cycles
- Opening speed 0.9s (no slowdowns)
- Parking function - prevents bumper driving
- Possibility of integrating FTC.S photocells with the barrier housing
- Control panel with built-in 433.92 MHz radio receiver (512 ARC variable codes)
- The barrier is equipped with two encoders to ensure maximum safety
- Possibility to synchronize two barriers (requires two SIS cards)
- Fast unlocking system
- 2 mechanical limit switches
- Built-in STC system - the control panel adjusts the actuator power to the changing conditions in which the barrier operates
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
- Built-in radio receiver
- 24 Vdc electromechanical brushless barrier for intensive use. The arm can be mounted on the right or left side (easy to change the mounting side of the arm)
- Gear in oil bath
- Average number of cycles (lifetime): MFCB: 5,000,000 cycles
- Opening speed 0.9s (no slowdowns)
- Easy and quick programming of the control panel thanks to its location at the top of the barrier (above the engine)
- Parking function - prevents bumper driving
- Intuitive control panel programming and barrier operation
- Possibility of integrating FTC.S photocells with the barrier housing
- Emergency battery power supply (optional). If the voltage drops below 23V, the barrier opens automatically (as a function)
- Control panel with built-in battery charging card
- Control panel with built-in 433.92 MHz radio receiver (64 ARC variable codes)
- The barrier is equipped with an absolute encoder
- Amperometric anti-crushing protection
- Possibility to synchronize two barriers (requires two SIS cards)
- New quick unlock system
- The housing is equipped with RGB LED lighting
- Possibility of full adjustment of light color with different arm positions (requires DIVA.TL)
- 2 mechanical limit switches
- Does not include foundation plate and arm
Technical data:
- Power supply 230 Vac (50-60Hz)
- Motor power supply 24Vdc
- Current 1.6 A
- Torque 110 Nm
- Opening time 0.9"
- Duty cycle - continuous work
- IP44 protection level
- Operating temperature -20°C / +50°C
- Weight 55 kg
NS33111
1 Item
Data sheet
- Protocol
- BLE
QUIC - Voltage
- 24V
- LED colour
- RGB
- LED Strip type
- RGB LED
- IP Class
- IP44
