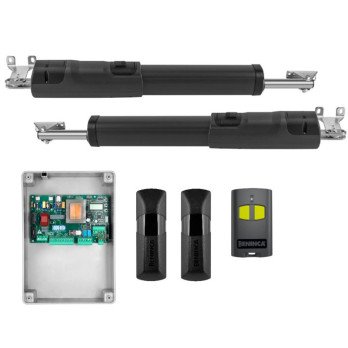

Beninca set for swing gates, limit switches up to 4m KTOM40M.P

The Beninca KTOM40M.P set is a ready-made set of modern automation with accessories designed for swing gates with a leaf length of up to 4 m. An actuator with 2 adjustable opening and closing mechanical stops, accessible from the top and placed under a metal cover.

THE SET INCLUDES:

• BENINCA TOM40M actuator - 2 pcs.

• BENINCA HEADY control unit with radio receiver and housing - 1 pc.

• 2-channel remote control BENINCA TO.GO2VA 433.92MHz - 1 pc.

• BENINCA PUPILLA.T photocells (transmitter + receiver) - 1 set.

• mounting accessories

• user manual in Polish

Perfect for any type of swing gate, also thanks to its compact dimensions (only 96 mm wide) and universal mounting brackets. The inclination of the power cable at an angle of 45° allows the distance from the ground to be reduced to a minimum. Rear and front brackets, aligned on the same axis, enable better load distribution by optimizing actuator life. The screw protected by a cleaning ring and the stainless steel shaft make it suitable for dusty, sandy or aggressive weather environments. Manual unlocking secured with a personalized key.

PERFECT FIT

Rear joint that can be set in three positions. The drive adapts perfectly to any misalignment during movement.

HIGH QUALITY COMPONENTS

The worm gear is protected by a seal and a stainless steel shaft.

PRODUCT FEATURES:

• Leaf length: 4 m
• Top-adjustable mechanical stops and limit switches
• Adjustable mounting bracket – three mounting points
• Cable exit at an angle of 45°
• Included with the HEADY control unit

TECHNICAL DATA of the TOM40M drive:

• Power supply: 230 Vac (50-60Hz)
• Motor power supply: 230 Vac
• Current: 1 A
• Maximum force: 2000 N
• Opening time: 24"
• Duty cycle: 30%
• Screw pitch: 400 mm
• Degree of protection: IP44
• Limit switch: YES
• Encoder: NO
• Operating temperature: -20°C / +50°C
• Maximum leaf length: 4 m
• Weight: 8.4 kg
