The set is designed to automate the operation of double-leaf gates with a maximum leaf length of 5.0 m
KBOB50M-PM zestaw do 5 m 230V
€6,358.24
Tax included
The set is designed to automate the operation of double-leaf gates with a maximum leaf length of 5.0 m
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Technical data:
- parameters model set BOB50M.PM
- power supply 230Vac (50-60Hz)
- 230Vac motor power supply
- current 1.4A
- max force 3500N
- opening time 26"
- duty cycle: 30%
- screw pitch 455mm
- max. screw pitch 520mm
- IP44 protection level
- encoder: no
- working temperature -20 degrees/+50 degrees. C
- leaf length 5m
- weight 11.6 kg

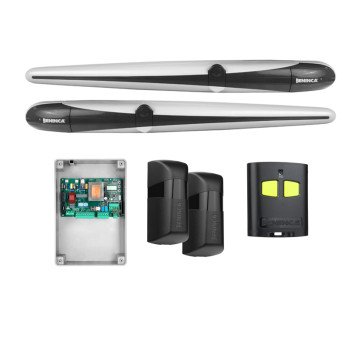

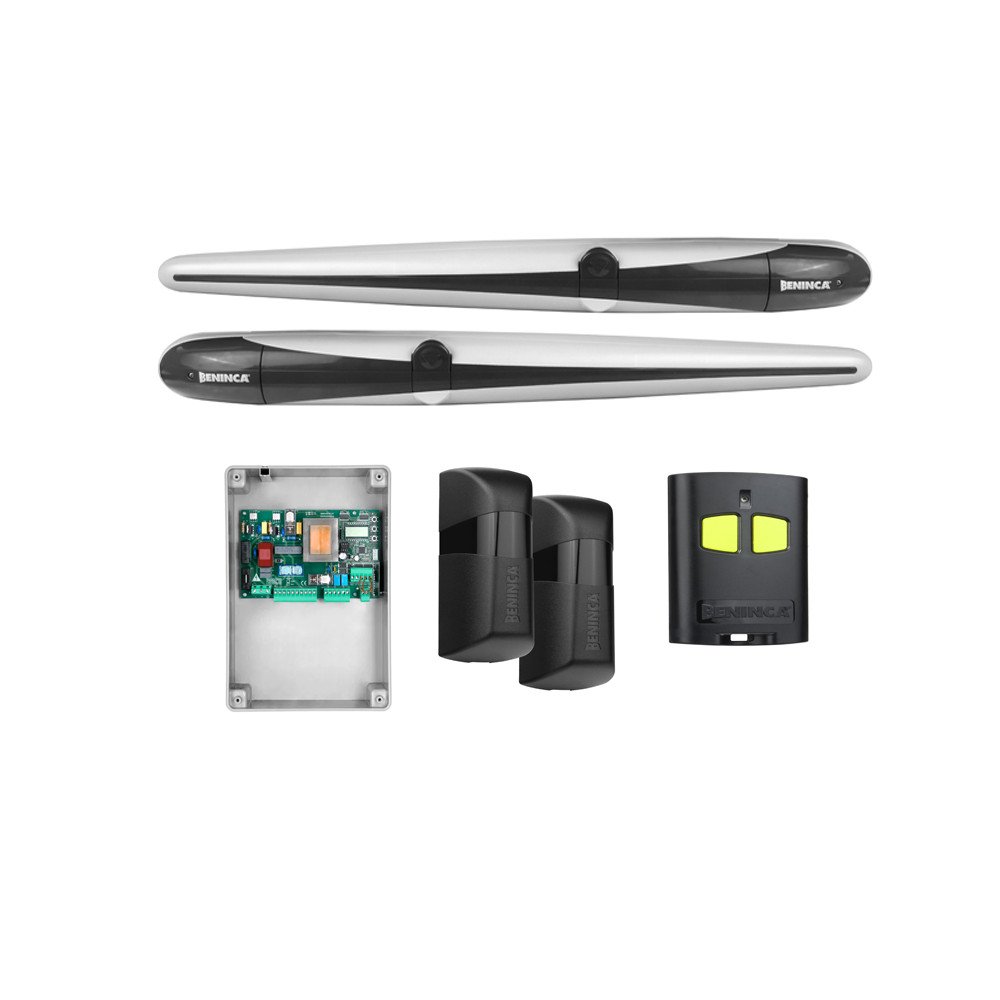

The set includes:
- 2 x "BOB50M" electromechanical actuator
- 1 x 230 Vac external control unit "HEADY"
- 1 x Pair of "PUPILA" synchronization photocells
- 1 x 2-channel remote control "TO.GO2A"
