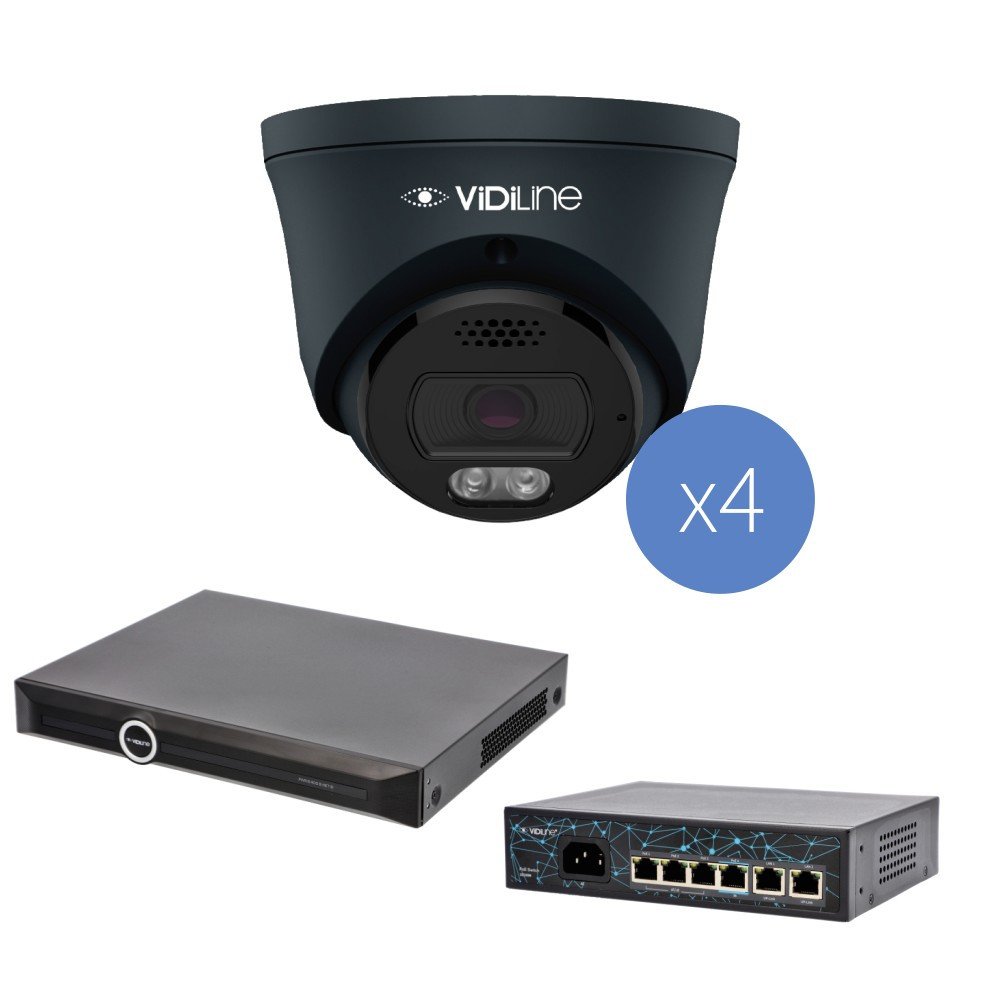

ViDiLine IP Monitoring Set 4 Cameras 8Mpx EW Switch Recorder

• RecorderSEE-NVR-8232 x1
• IP CameraViDi-IPC-238D x4

• SwitchVIDI-F0420FBL_V2_2 x1

• Technology:IP
• Number of video channels:32 IP
• Video outputs:1xVGA / 1xHDMI / 4k on HDMI output
• Supported IP cameras:do 8Mpx
• Bitrate:160/48 Mbps
• Alarm I/O:4/1
• Compression:H.264, H.265, S+265
• Number of HDDs:2 pcs. 10TB SATA III
• Onvif:Profil S/T/G
• P2P:Yes - preview via smartphone

The ViDiLine VIDI-NVR-8232 recorder is a 32-channel IP recorder, supporting cameras up to 8 Mpx and two SATA drives up to 10 TB per disk. The recorder is intended for monitoring larger facilities such as companies or squares. The recorder ensures full compatibility with ViDiLine and Tiandy cameras via a private communication protocol. Support for S+265 compression effectively reduces the size of recordings by up to 75%, ensuring a longer period of stored recordings. The recorder has an HDMI 4K and VGA output for connecting a monitor. Four inputs and one output allow integration with other systems, e.g. alarm systems, or increasing the functionality of the recorder itself. Thanks to the Onvif protocol, the recorder supports cameras from other manufacturers. The recorder allows you to search for recordings by analyzing the image in terms of IVA rules.

The recorder supports recording after motion detection. This means that if there is a change in the scene in the camera's field of view, it is interpreted as motion detection. The recorder records this event as an alarm event that stands out on the timeline, making it easy to determine when the alarm occurred. Alarm notifications are sent to the phone with the application in the form of push notifications.

• Technology:IP
• Image sensor:1/2,8" CMOS
• Transducer sensitivity:0,002 Lux
• Resolution:3840 × 2160 (20 fps)
• Lens:2,8 mm
• Tightness class:IP67
• Night Visibility Infrared:do 30 m
• Night Visibility White Light:do 15 m
• Early Warning:Not
• Metal casing:Not
• Power supply:PoE, DC 12 V
• Onvif:Profil S/T/G
• Smartphone application:ViDi View

The ViDiLine VIDI-IPC-38D I3W/E/A/S/G/O/M/2.8mm camera is an IP camera with a resolution of 8 Mpix in a dome housing made of metal with Early Warning (EW) technology. The camera is equipped with two high-power dual LEDs to illuminate the scene up to 30 m for a black and white image and up to 15 m for a color image, guaranteeing a detailed image at night. White diodes can be used as an element of perimeter protection or to deter intruders by turning on the light after violating the appropriate motion detection rule. People and vehicles classification effectively minimizes the number of false alarms from the camera, and Early Warning effectively deters unwanted guests. The small anthracite-colored housing allows the camera to be mounted in many places without affecting the appearance of the building's facade.

Dual Light technology in ViDiLine cameras is an advanced lighting system that combines white light and IR infrared, ensuring visibility in all lighting conditions. By intelligently switching between white and infrared light, cameras can automatically adjust the type of lighting to the prevailing conditions, enabling bright and readable images at night. This technology not only significantly improves image quality in various lighting scenarios, but also increases the effectiveness of monitoring by deterring potential intruders with white light when motion is detected.
